1. Printing Method

1.1. Target Printer

This document applies only to Ricoh genuine platen only.

1.2. Setup Printer

Refer to Ricoh Ri series Direct to Garment Printer Manual.

1.3. Printing method for Textile Productionserver

Start Textile Productionserver.

Input the image to Textile Productionserver.

Please set with Textile Productionserver according to the platen type.

Platen type Textile Productionserver

Hat a) User select Media size

(*1)

Sleeve a) User select Media size

Shoe a) User select Media size

b) User set Offset/Scaling

Face Covering a) User select Media size

b) User set Offset/Scaling

Printing Method RICOH Ri 4000

User Manual

(CAUTION *1)

The image is printed 180 degrees inverted from the display on the Textile

Productionserver.

In that case, the user should set 180 degrees.

The print settings are below.

Default Settings: After Set Rotate(180 degree)

Printing Method RICOH Ri 4000

User Manual

a) User select Media size

Textile Productionserver:

b) User set Offset/Scaling

♦For “Shoe Platen”

According to type of Shoe Attachment, user set Height x Width, Offset x, y.

Offset Y

Printer

Distance between printable

areas

Printable Area (Width)

Offset X

Printable Area (Height)

Printing Method RICOH Ri 4000

User Manual

If you want to print on both feet, please prepare the following image and set Offset x,y.

Offset of each Shoe attachement

Shoe

Attachment

Offset

(Reference)

Printable Area(Width x Height)

(Reference)

Distance between printable areas

Small

X:20 Y:220

85 x 150 mm

205 mm

Medium

X:40 Y:360

50 x 50 mm

40 mm

Large

X:40 Y:350

60 x 60 mm

40 mm

Setting method of Textile Productionserver:

Printing Method RICOH Ri 4000

User Manual

Default Settings: After Set Offset(X =40, Y=350)

♦For “Face Covering Platen”

User set Height x Width, Offset x, y.

IMPORTANT! If you print with “Printing on the entire surface” method, depending on image, it

may print to the area outside the platen.

In the figure below, it may be printed in the red area.

Offset Y (Back side)

Printable Area (Width)

Offset X

Printable Area (Height)

Offset Y (Back side)

Printer

Printable Area (Height)

Printable Area (Width)

Printing on the

entire surface:

Printing one side

surface:

Offset X

Offset Y (Front side)

Printing Method RICOH Ri 4000

User Manual

Offset of Face Covering Platen

Printing Method

(Reference)

Offset

(Reference)

Printable Area(Width x Height)

Printing on the entire surface

[Front side]

X: 40

Y: 100

[Back side]

X: 40

Y: 275

330 x 120 mm

Printing one side surface

[Front side]

X: 10

Y: 90

[Back side]

X: 10

Y: 265

385 x 140 mm

If you want to print on multiple media, please prepare the following image and set Offset

x,y.

Setting method of Productionserver:

See page 6 "For “Shoe Platen”".

Adjust the platen height.

For details on height adjustment, see the user manual.

Send the print job to the printer.

For details, refer to the ColorGATE Productionserver help or user manual.

Printing Method RICOH Ri 4000

User Manual

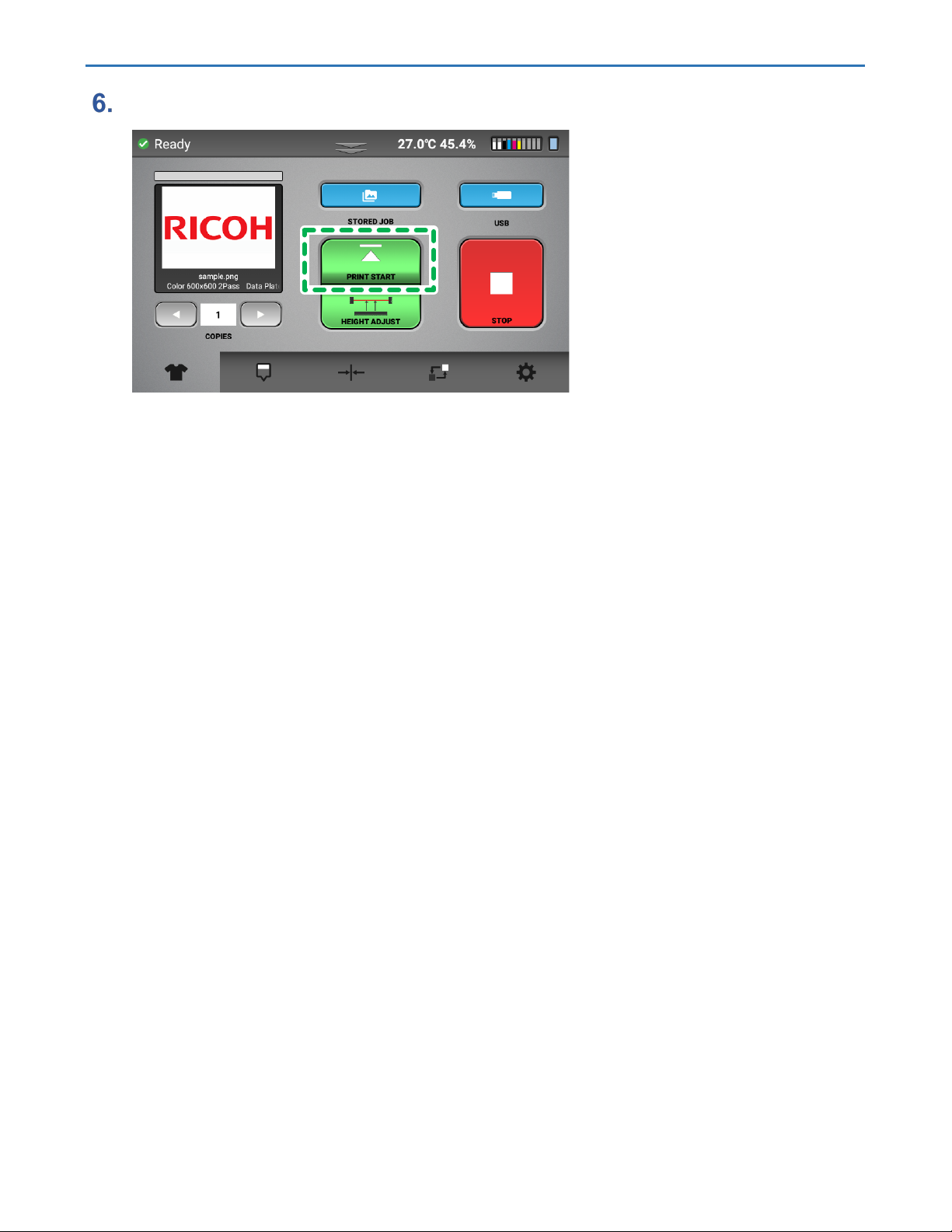

After the print preview appears on the preview window, press [PRINT START].
