Revo RCDY24-1 User manual

Dome Camera

with IR Night Vision

Instruction Manual

VER.:1.0, NO.: R040687/2

Thank you for purchasing our product. Before installing this camera, please

readthis instruction manual carefullyto ensureproperuse.

1. Safety Precautious

CAUTION

RISK OF ELECTRIC

SHOCK. DO NOT OPEN!

CAUTION : TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT OPEN COVERS.

NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

Disposal of Old Electrical & Electronic Equipment (Applicable in

the European Union and other European countries with separate

collection systems).

Please do not directly touch the sensor element. If necessary, use

a soft cloth moistened with alcohol to wipe off any dust.

Please be extra careful not to shake the camera.

Please avoid places where there is direct sunlight.

When using this camera in places where the lighting differs greatly,

please use the auto iris lens with ND filter.

Please avoid places where temperatures exceed 50℃(122 0F) or

more, high humidity or where direct rain drops hit, frequent

vibrations, or shocks occur.

During the night, if a minimum brightness of 0.1 Lux can not be

achieved, install appropriate light fixtures.

When the camera is not used, keep the lens or the lens cap

attached to protect the sensor.

2. Description

The camera uses high sensitive super HAD interline transfer image

sensor, and employs digital signal processor (DSP) chip-set for image

control, and all integrated state circuitry which provide extremely long

life and high reliability. This camera offers excellent image quality with

low lag and high burn resistance, and is not subject to distortions from

magnetic fields.

Highly resistance to shock and vibration, easy to install, this

camera is a very good choice for your color CCTV system.

3. Feature

Color camera PCB module with 1/3” High Resolution Sensor.

Employs Digital Signal Processor (DSP) chip-set for image

control.

Pixel number: NTSC=380K / PAL=440K.

High sensitivity, low smear, high anti-blooming and high S/N ratio.

Support functions: Auto Electronic Shutter (AES), Auto Iris (AI),

Auto Gain Control (AGC), Auto White Balance (ATW), Back Light

Compensation (BLC), Flickerless mode (FL).

Vari-Focal Lens (DC Drive).

DC type, ultra low power consumption.

4. Contents

Item

Name of Part

Quantity

Camera

Instruction Manual

Bag

Fixed Retaining Screws for Mounting

Anchor

5. Installation & Operation

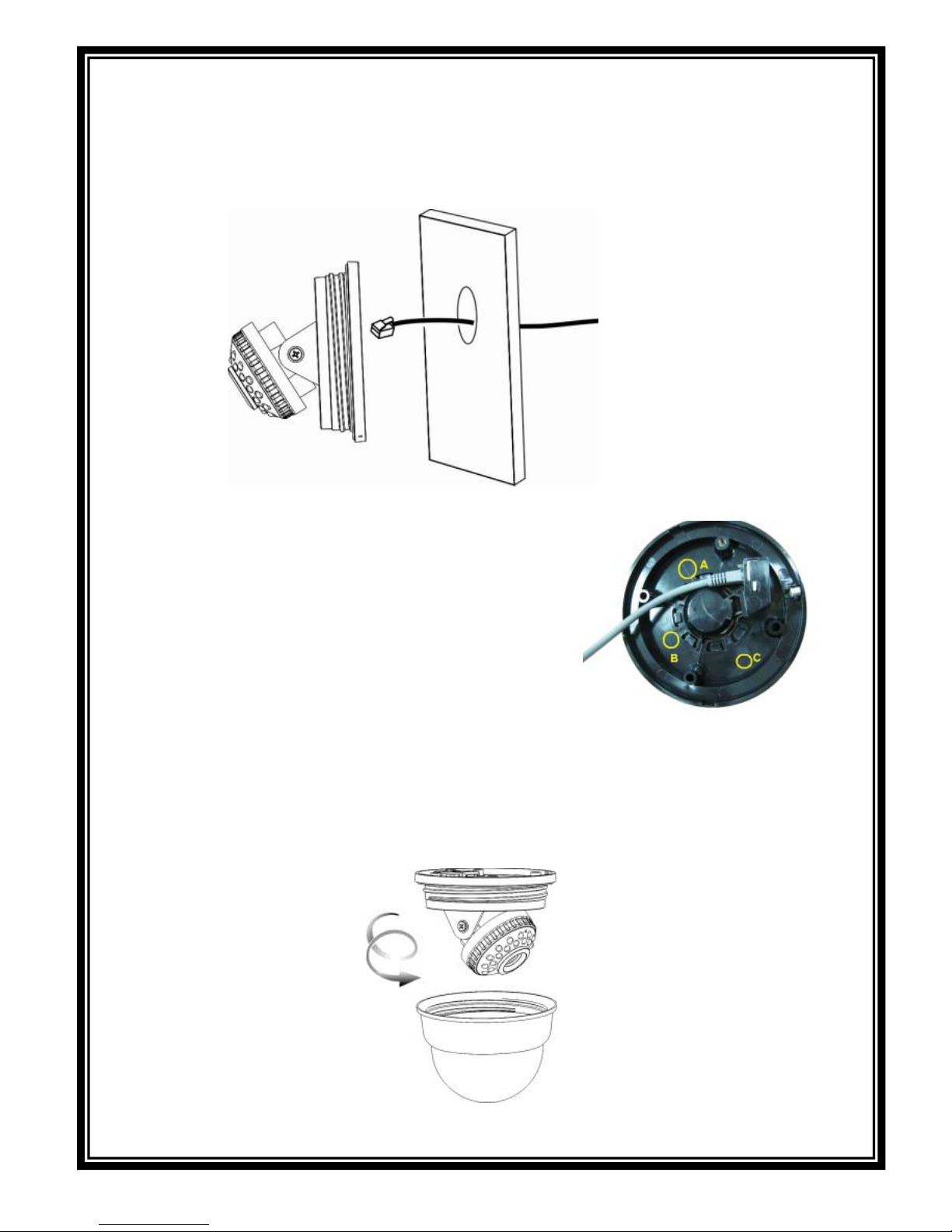

1. Install Preparation

Drill hole in wall if wire needs to go through the wall.

2. Removing the Dome Cover

Remove the dome cover from the main body by gently turning the

cover counter-clockwise to unlock and pull free from the main body.

Note!

The following picture illustrates the

base of the real IR Dome. The IR

Dome does not provide a central

pathway for the cables to run through

as it applies RJ12 connection

method. Therefore, you must drill

hole in wall to be off center of base ,

in either zone “A”, “B”or “C”.

3. Wiring Instructions

Connect the video output to the monitor or other video device

through a 75 Ohms type coaxial cable and RJ-12 output to the

power source.

4. Install Camera

Use the 4 screws provided to attach the camera and bracket to the

ceiling surface or wall.

RJ-12

5. Camera Diagram Image Adjustment

You can adjust camera to any direction by using Pan, Tilt, and

Rotate mechanism.

Pan Basemovesby120°on the whole.

Tilt Base covers total 120° angle (60° to each side).

Angle range of Rotate Base is 360°.

6. Attaching the Dome Cover

After all necessary adjustment has been made reinstall the dome

cover to the main body by turning the dome clockwise until it locks

in place.

6. Specification

According to the camera purchased, select and refer to the appropriate specification below:

Model No.

RCDY24-1

RCDY12-1

Image Device

1/3“Color CCD

(Sharp Chipset)

Picture Elements

NTSC: 510 x 492

PAL: 500 x 582

Resolution

540 TVL

Min. Illumination

0.02Lux/ F1.2 (Day)

0Lux (IR On)

S/N Ratio

More than 48 dB

Electronic Shutter

NTSC:1/60~1/100,000, PAL:1/50~1/110,000

Gamma

0.45

Sync System

Internal

Lens Furnished

Board Lens

White Balance

Auto

Gain Control

Auto

Video Output

1 Vp-p/ 75 Ohms

Power Supply

DC12V±10%

Power Consumption

IR OFF

75mA max.

24 IR

LED ON

355mA max.

12 IR

LED ON

215mA max.

Infrared Illuminator Module

Infrared Luminary

24 IR LED

12 IR LED

Filter

Tempered Glass

Wavelength

850nm

Illuminant Distance

20 M

10 M

Power Supply

DC 12V±10％

Power Consumption

3.4 W

1.7 W

System Device

Operating Temp.

-10℃to 50℃(14℉to 122℉)

Operating Humidity

0% RH~70%RH

Storage Humidity

0% RH~85%RH

Dimensions

φ110x82 (H) mm

Note: Design and specifications are subject to change without prior notice.

* This symbol indicates the functions are available only on Auto Iris camera models.
