Reebok I-Run 3.0 User manual

RFE International Ltd

The Performance Centre

8 Clarendon Drive

Milton Keynes MK8 8ED

United Kingdom

Customer Support

0800 440 2459

[email protected]

reebokﬁtnessequipment.info

Usermanual

i-Run 3.0

reebokﬁtnessequipment.com

Reebok i-Run 3.0

reebokﬁtnessequipment.com

Assembly

Customer Support

0800 440 2459

[email protected]

Thank you for choosing Reebok. Before you get

started, please read these instructions carefully.

If you experience any diﬃculties, our support

team will be happy to help – or check out our

website at reebokﬁtnessequipment.com

Welcome from

Reebok Fitness

Important note:

Consult your doctor before starting any exercise programme. If you feel any sickness, chest

pain, dizziness or breathlessness during your training, stop exercising and consult your

doctor immediately.

If you have any further queries please contact our customer support team on the details

provided either at the foot of this page or on the back of the manual.

Reebok i-Run 3.0 Reebok i-Run 3.0

reebokﬁtnessequipment.com

Customer Support 0800 440 2459

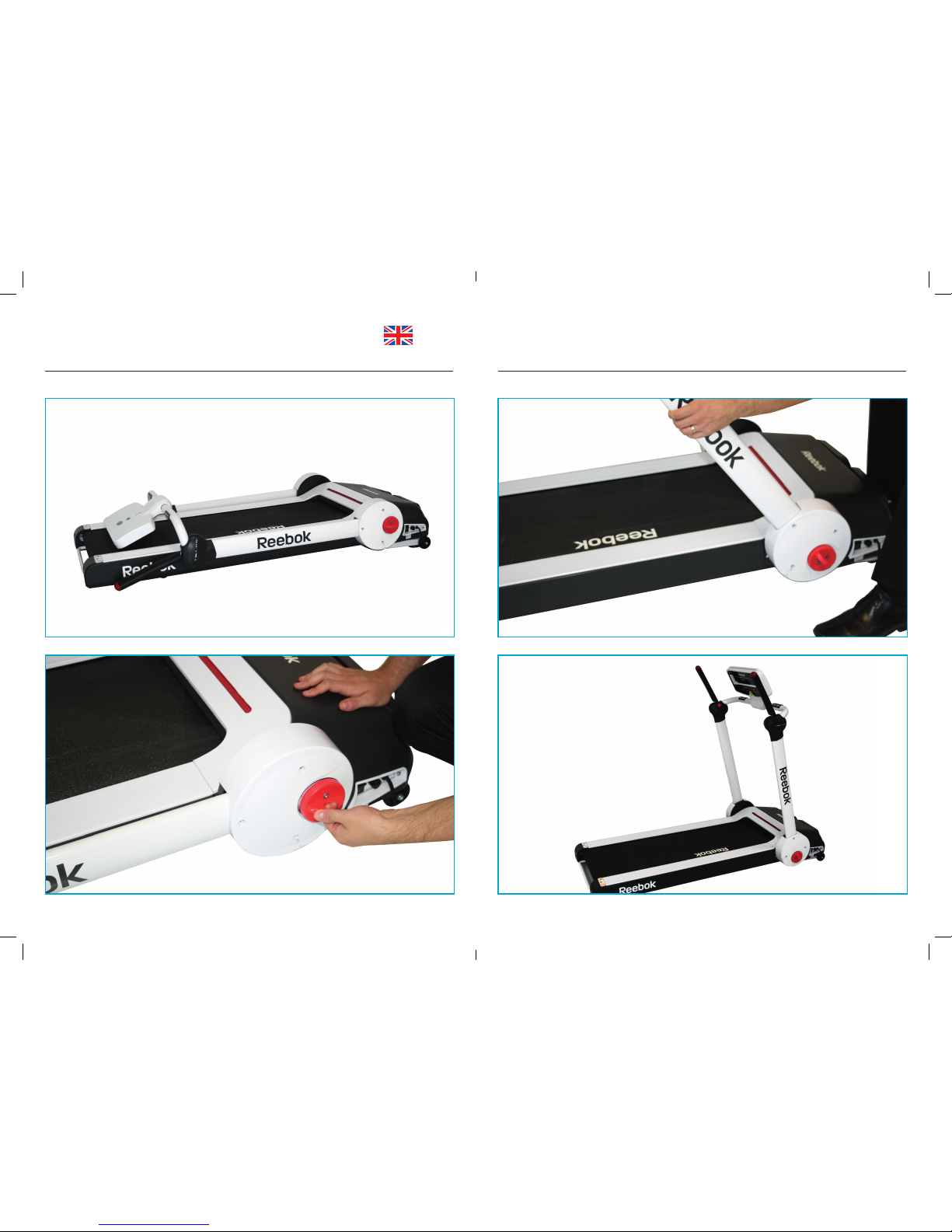

Assembly

01 03

Reebok i-Run 3.0 Reebok i-Run 3.0

reebokﬁtnessequipment.com

Customer Support 0800 440 2459

05 07

06 08

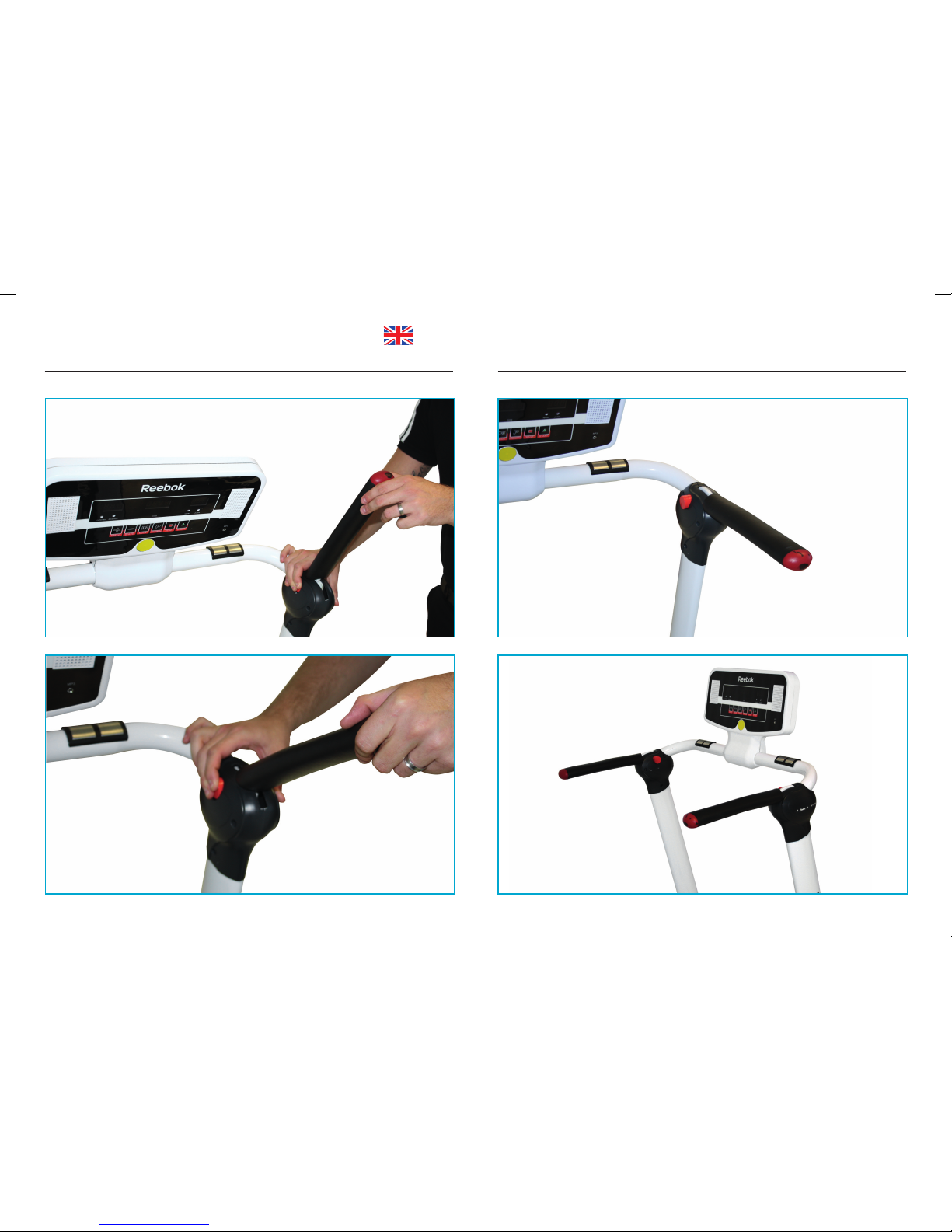

Assembly

Reebok i-Run 3.0 Reebok i-Run 3.0

reebokﬁtnessequipment.com

Customer Support 0800 440 2459

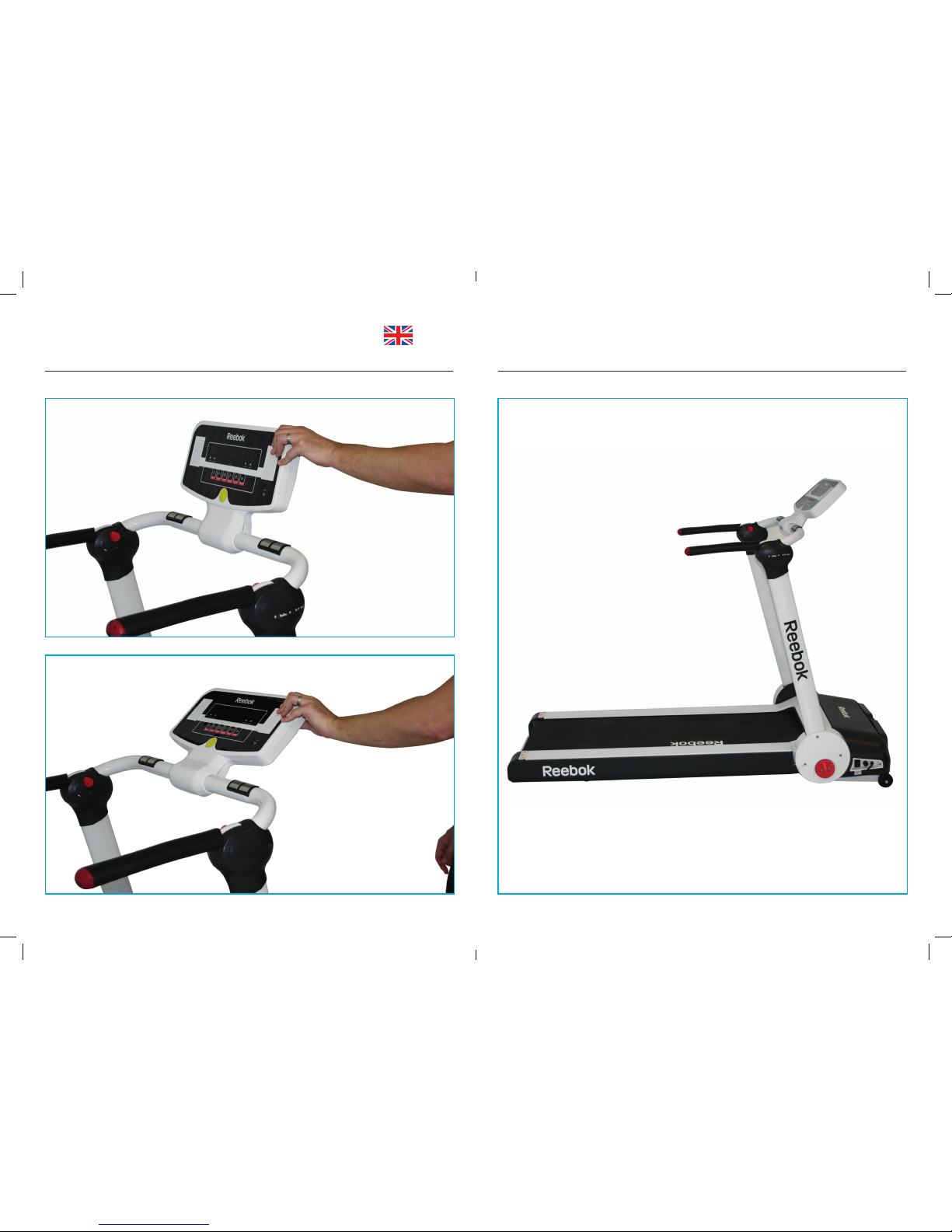

Assembly

Reebok i-Run 3.0 Reebok i-Run 3.0

reebokﬁtnessequipment.com

Customer Support 0800 440 2459

PART NO. PART DESCRIPTION QTY

101 Console Housing (Upper) 1

102 Console Housing 1

103 Rotators Plate  1

104 Rotators Plate  1

105 Safety Key 1

106 Mp3 Connect Wire 1

107 Overlay 1

201 Upright Post (L) 1

202 Upright Post (R) 1

203 Computer Frame 1

204 Handle Pulse 2

205 Main Cable 1

206 Stand Post Cable 1

207 Handle Bar Right 1

208 Handle Bar Right 1

209 Handle Bar Left 1

210 Handle Bar Left 1

211 Ezﬁt Tension Knob 2

212 Bolt Stator 2

213 Spring 2

214 Stationary Shaft Set 2

215 Upright Post Cover(L) 1

216 Upright Post Cover(R) 1

217 Handle 2

218 Turnbuckle 2

219 Spring 14.6×1.8×20 2

220 Flat Head Screws 2

221 Ellipse End Cap 2

222 Foam 2

223 Round Bushings 2

PART NO. PART DESCRIPTION QTY

401 Motor COVER(LOWE) 1

402 Motor cover(up) 1

403 Decorated cover 1

404 Side rail 2

405 Running deck 1

406 Rear cover(L) 1

407 Rear cover(R) 1

408 T shape slider 6

409 Central side rail 2

410 Running belt 1

501 Incline frame 1

502 Wheel62 2

503 Shock absorber 2

504 Foot pad 2

505 Pivot pin 2

506 Clamp spring 2

507 Metal plug 2

601 Manual Incline frame 1

602 Bushings 2

603 Wheel 46 2

701 Motor base frame 1

702 Motor 1

703 Square cushion 4

704 Speed sensor 1

801 Philips C.K.S.self-tapping 13

802 Philips C.K.S.self-tapping 14

803 Philips C.K.S.self-tapping 4

804 Allen socket head full 2

805 Philips C.K.S. full thread

screw M4*10

PART NO. PART DESCRIPTION QTY

301 Platform frame 1

302 Rear roller 1

303 Front roller 1

304 Square cushion 8

305 Round guider 8

306 Motor belt 1

307 Column cushion 2

308 Cable tray(l) 1

309 Cable tray(r) 1

310 Switch 1

311 Rest switch 1

312 Base for power cord 1

313 Controller ﬁxing plate 1

314 Controller 1

315 Wire guider 2

316 Ferrite 2

317 Filter(if with ce) 1

318 Choke (if with ce) 1

319 Wire 1

320 Supporting foot cover(l) 1

321 Supporting foot cover(r) 1

322 Bracing tube frame(l) 1

323 Bracing tube frame(r) 1

324 Supporting foot(l) 1

325 Supporting foot(r) 1

326 Foot plug 1

327 Power cord 1

328 Wiring 5

329 Wire (red) 1

330 Wire (black) 1

PART NO. PART DESCRIPTION QTY

806 Philips full thread screw 2

807 Philips C.K.S. full THREAD 10

808 Allen C.K.S half THREAD 2

809 Flat Washer 8 13

810 Hex self-ﬁx nut M8 4

811 Allen socket full THREAD 2

812 Spring washer 8 4

813 Philips self-tapping 38

814 Washer 5 1

815 Allen socket full THREAD 3

816 Flat washer 14 2

817 Allen socket head full 2

818 Philips full thread screw 8

819 Allen socket head half 2

820 Flat washer 10 4

821 Hex self-ﬁx nut M10 4

822 Allen C.K.S full thread 2

823 Allen socket full thread 6

824 Allen socket full thread 2

825 Philips self-tapping screw 4

826 Hex nut M8 2

827 Hex nut M6 2

Parts List

Reebok i-Run 3.0 Reebok i-Run 3.0

reebokﬁtnessequipment.com

Customer Support 0800 440 2459

Exploded Diagram



  





















































































 





 

















 





















 



















 



 

















































































































 







 




















































































