QNAP TS-410E User manual
TS-410E
User Guide
Document Version: 1
27/07/2022
Contents
1. Preface
About This Guide........................................................................................................................................................3
Audience..................................................................................................................................................................... 3
Document Conventions.............................................................................................................................................3
2. Product Overview
About the TS-410E......................................................................................................................................................4
Hardware Specications............................................................................................................................................4
Package Contents...................................................................................................................................................... 6
Components............................................................................................................................................................... 6
Front Panel.............................................................................................................................................................6
Rear Panel.............................................................................................................................................................. 7
Rear Panel LEDs.....................................................................................................................................................7
Drive Numbering...................................................................................................................................................8
Safety Information.....................................................................................................................................................8
Installation Requirements........................................................................................................................................ 9
Setting Up the NAS.................................................................................................................................................. 10
3. Installation and Conguration
Hardware Installation..............................................................................................................................................11
Installing 2.5-inch Solid-state Drives on 2.5-inch Trays.................................................................................. 11
Connecting USB Expansion Units......................................................................................................................17
QTS Installation........................................................................................................................................................19
Installing QTS Using Qnder Pro...................................................................................................................... 19
Installing QTS Using the Cloud Key...................................................................................................................21
4. Basic Operations
Power Button........................................................................................................................................................... 25
Reset Button.............................................................................................................................................................25
LEDs...........................................................................................................................................................................26
Audio Alert................................................................................................................................................................28
5. NAS Migration
NAS Migration Requirements.................................................................................................................................29
Status and Setting Changes after NAS Migration................................................................................................29
Migrating a NAS....................................................................................................................................................... 30
Migrating NAS Data Using HBS 3...........................................................................................................................31
Preparing the Destination NAS......................................................................................................................... 31
Creating a One-Way Sync Job.............................................................................................................................32
Importing Local Users or Group Settings to the Destination NAS................................................................33
6. Troubleshooting
Forcing Qnder Pro or myQNAPcloud to Locate the NAS.................................................................................. 35
Hot-swapping Failed Drives....................................................................................................................................35
Recovering Unintentionally Removed Healthy Drives........................................................................................ 36
Support and Other Resources................................................................................................................................36
7. Glossary
Cloud Key.................................................................................................................................................................. 37
myQNAPcloud.......................................................................................................................................................... 37
TS-410E User Guide
1
myQNAPcloud Link..................................................................................................................................................37
Qnder Pro............................................................................................................................................................... 37
QNAP ID.................................................................................................................................................................... 37
QTS.............................................................................................................................................................................37
8. Notices
Limited Warranty..................................................................................................................................................... 38
Disclaimer................................................................................................................................................................. 38
GNU Public License..................................................................................................................................................38
CE Notice...................................................................................................................................................................46
UKCA Notice..............................................................................................................................................................46
FCC Notice.................................................................................................................................................................46
VCCI Notice............................................................................................................................................................... 47
BSMI Notice.............................................................................................................................................................. 47
SJ/T 11364-2006........................................................................................................................................................47
2
1. Preface
About This Guide
This guide provides information about the device and step-by-step instructions on installing the hardware. It
also provides instructions on basic operations and troubleshooting information.
Audience
This document is intended for consumers and storage administrators. This guide assumes that the user has
a basic understanding of storage and backup concepts.
Document Conventions
Symbol Description
Notes provide default conguration settings and other supplementary
information.
Important notes provide information on required conguration settings and
other critical information.
Tips provide recommendations or alternative methods of performing tasks or
conguring settings.
Warnings provide information that, when ignored, may result in potential loss,
injury, or even death.
TS-410E User Guide
Preface 3
2. Product Overview
This chapter provides basic information about the QNAP TS-410E NAS.
About the TS-410E
The TS-410E is a fanless NAS powered by an Intel® Celeron® J6412 quad-core 2.0 GHz processor. The NAS is
equipped with four hot-swappable SATA 6 Gbps drive bays that support solid-state drives, and four USB 3.2
Gen 2 Type-A ports. It also supports up to two expansion units.
The fanless design is suitable for sound-sensitive environments and is adaptable to the needs of data
centers as well as small and medium-sized businesses.
Hardware Specications
Warning
If your QNAP product has hardware defects, return the product to QNAP or a QNAP-
authorized service center for maintenance or replacement. Any attempt to repair or
perform maintenance procedures on the product by you or an unauthorized third party
invalidates the warranty.
QNAP is not responsible for any damage or data loss caused by unauthorized
modications and installation of unsupported third-party applications.
For details, see the QNAP Warranty Terms and Conditions.
Tip
Model specications are subject to change without prior notice. To see the latest
specications, go to https://www.qnap.com.
Ordering P/N Drive bays Memory
TS-410E-8G 4 8 GB
Component TS-410E
Processor
CPU Intel® Celeron® J6412
Frequency 4-core/4-thread 2.00 GHz base/2.60 GHz turbo
Architecture x86 64-bit
Encryption engine AES-NI
Graphics Intel® UHD Graphics
Memory
Maximum memory 8 GB onboard (non-expandable)
Flash memory 4 GB eMMC
Storage
Drive bays 4 x 2.5-inch SATA 6 Gbps
Tip
The drive bays are backward compatible with SATA 3 Gbps
drives.
TS-410E User Guide
Product Overview 4
Component TS-410E
Drive compatibility 2.5-inch SATA solid-state drives
Tip
• For the list of compatible drive models, go to https://
www.qnap.com/compatibility.
• To avoid excess vibration and heat generation, use: 5400
RPM hard drives; low-temperature, low-noise hard drives; or
low-temperature SSDs.
SSD cache
acceleration support
This device supports SSD cache acceleration for all drives.
Hot-swapping This device supports hot-swapping for all drives.
Network
2.5 Gigabit network
interface
2 x 2.5 GbE RJ45
Note
The 2.5 Gigabit Ethernet ports support the following connectivity
speeds: 2.5 GbE, 1 GbE, 100 Mb, and 10 Mb.
External I/O Ports & Expansion Slots
USB ports 4 x USB 3.2 Gen 2 Type-A
HDMI ports 1 x HDMI 1.4b (up to 3840 x 2160 resolution at 30 Hz with HDR)
Interface
Buttons • Power
• Reset
Dimensions
Form factor Tower
Dimensions (H x W x
D)
60 x 180 x 254 mm
(2.36 x 7.08 x 10 in)
Net weight 2.64 kg (5.82 lbs)
Others
Power supply unit External power adapter, 90W and above, 100-240V AC
System battery CR2032 lithium battery (3V, 225 mAh)
Warning
This battery is a button battery. If swallowed, a lithium button
battery can cause severe or fatal injuries within 2 hours. Keep
batteries out of reach of children.
Operating
temperature
0˚C to 40˚C (32˚F to 104˚F)
Relative humidity • Non-condensing relative humidity: 5% to 95%
• Wet-bulb temperature: 27˚C (80.6˚F)
Security slot Kensington security slot
TS-410E User Guide
Product Overview 5
Package Contents
Item Quantity
TS-410E NAS 1
Power cord 1
AC power adapter 1
Ethernet cable 1 x Cat5e (RJ45)
Screws for 2.5-inch drives 12
NAS stands 2
Quick Installation Guide (QIG) 1
Components
Front Panel
No. Component No. Component
1 Drive LEDs 3 Status LED
2 LAN LED -
TS-410E User Guide
Product Overview 6

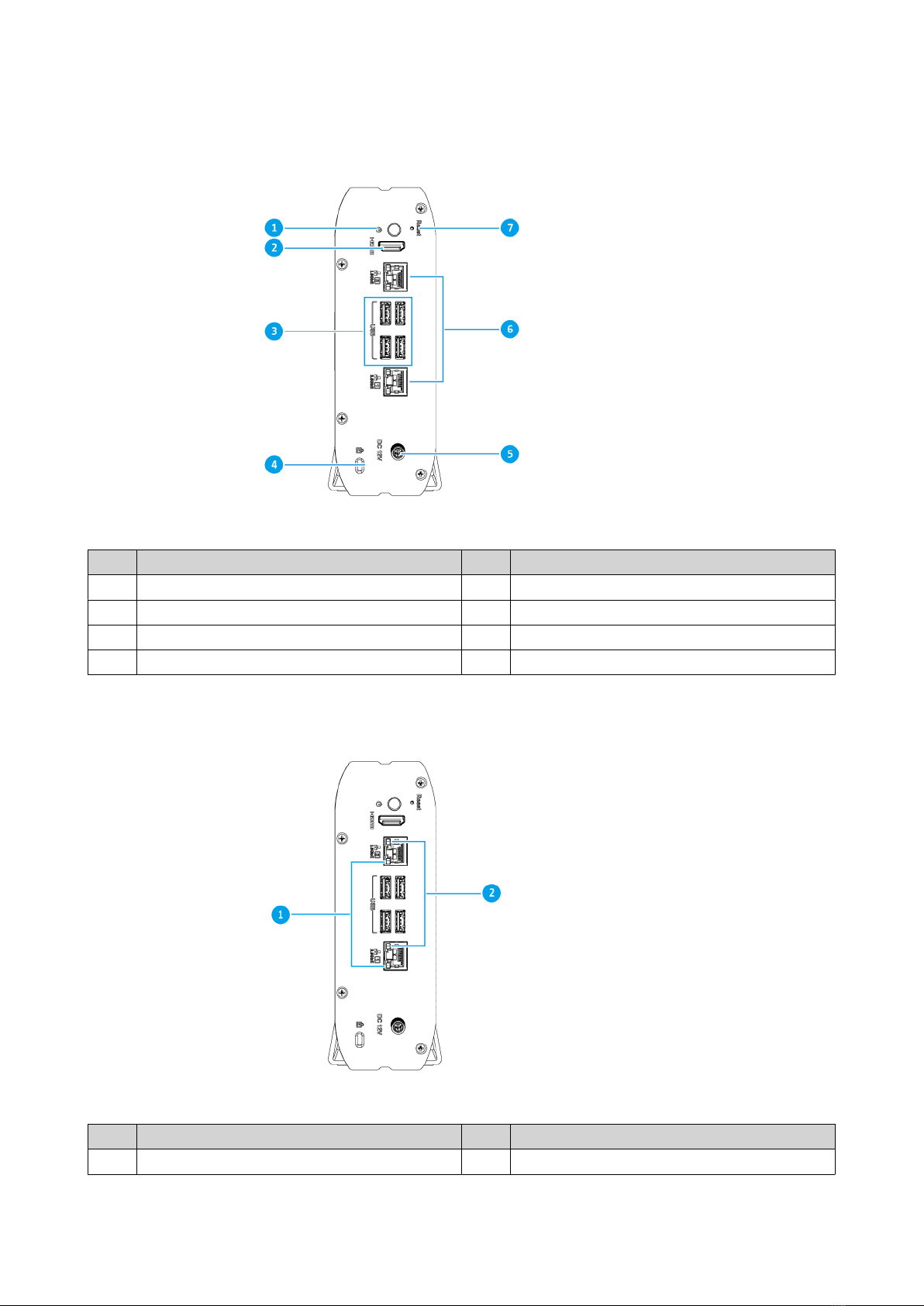

Rear Panel
No. Component No. Component
1 Power button 5 Power input
2 HDMI 1.4b port 6 2.5 Gigabit Ethernet ports (RJ45)
3 USB 3.2 Gen 2 Type-A ports 7 Reset button
4 Kensington security slot - -
Rear Panel LEDs
No. Component No. Component
1 2.5 Gigabit Ethernet activity LED 2 2.5 Gigabit Ethernet speed LED
TS-410E User Guide
Product Overview 7
Drive Numbering
Note
This image shows the device with the front cover removed.
Safety Information
The following instructions help ensure personal safety and environmental safety. Read these instructions
carefully before performing any operation.
General Instructions
• The device should be stored in a secure location with restricted access, controlled through the use of a
tool, lock and key, or any means of security.
• Only qualied, skilled, and authorized persons with knowledge of all restrictions, safety precautions,
and installation and maintenance procedures should have physical access to the device.
• To avoid potential injury or damage to components, ensure that the drives and other internal system
components have cooled before touching them.
• Observe electrostatic discharge (ESD) procedures to avoid potential injury or damage to components.
Power
• To reduce the risk of re or electric shock, ensure that you only connect the power cord to a properly
grounded electrical outlet.
•
Devices with redundant power supply may have one or more power supply unit (PSU) cords. To avoid
serious injuries, a trained service technician must disconnect all PSU cords from the device before
installing or replacing system components.
TS-410E User Guide
Product Overview 8
System Battery
• This product contains a button battery.
• If swallowed, a lithium button battery can cause severe or fatal injuries within 2 hours.
• Keep batteries out of reach of children.
• If you think batteries may have been swallowed or placed inside any part of the body, seek immediate
medical attention.
• To avoid potential battery explosion, causing injury or damage to components, ensure that you replace
the existing battery with a battery of the same type.
• Dispose of used batteries properly according to local regulations or the instructions of the battery
manufacturer.
Moving Parts
•
Moving fan blades: Keep your body parts away from moving fan blades while the device is connected
to a power source.
•
Moving components: Keep your body parts away from other moving components.
• The device is not suitable for use in locations where children are likely to be present.
Installation Requirements
Category Item
Environment • Room temperature: 0˚C to 40˚C (32˚F to 104˚F)
• Non-condensing relative humidity: 5% to 95%
• Wet-bulb temperature: 27˚C (80.6˚F)
• Flat, anti-static surface without exposure to direct sunlight, liquids,
or chemicals
Hardware and peripherals • Computer or NAS
• Storage drives
For the list of compatible drive models, go to https://
www.qnap.com/compatibility.
• Network cable
Tools • Phillips #1 or #2 screwdriver
• Flat head screwdriver
• Anti-static wrist strap
TS-410E User Guide
Product Overview 9
Table of contents
Other QNAP Storage manuals
QNAP
QNAP TS-h3088XU-RP User manual
QNAP
QNAP TVS-H674 User manual
QNAP
QNAP TS-1673U User manual
QNAP
QNAP TS 28A Series User manual
QNAP
QNAP ES NAS Series Specification sheet
QNAP
QNAP TS-h3087XU-RP User manual
QNAP
QNAP TVS 72X Series User manual
QNAP
QNAP TVS-h 74t Series User manual
QNAP
QNAP TS- 83XU Series User manual
QNAP
QNAP TS-h1886XU-RP User manual
QNAP
QNAP ES1686dc Series User manual
QNAP
QNAP TDS-h2489FU User manual
QNAP
QNAP ES1640dc Instructions for use
QNAP
QNAP TS-932X Series User manual
QNAP
QNAP TS-832X Series User manual
QNAP
QNAP TS-453BT3 User manual
QNAP
QNAP TVS-H874-I5-32G User manual
QNAP
QNAP ES1642dc Instructions for use
QNAP
QNAP TS-269 Pro User manual
QNAP
QNAP TS-1685 Instructions for use
