6 TFT LCD COLOR MONITOR

OPERATING INSTRUCTIONS

Before operating this set, please read these instructions completely

LCD COLOR MONITOR OPERATING INSTRUCTIONS

Congratulations for purchasing our video mobile multimedia

products, before connecting, operating or adjusting this products,

please read these instructions compactly to make your particular

mobile multimedia products to best perform.

1.Do not repair it by yourself, if any trouble occurs, please

immediately shuts it off and contact our company or local dealer.

This monitor is composed of many precise electronic components,

any detachment or reassembling may result damages to the set.

2.Do not exposed it in humid air, dust, vapor, oil lampblack,

sunlight, etc.

3. Do not use thinner or any other chemical cleaner. Please

choose soft cloth to clean the dirt on the monitor.

4. Keep the monitor far from extremely heating or cooling places.

Storage temperature: -25~ +60 C

Operating temperature: -10- +50 C

5. Prevent the set from falling or struck.

Caution

To ensure security, please do not operate the monitor watch

video or it while driving.

Special hints

There may some blink dots in the screen, it's common

phenomenon in active matrix display technology, but not a

defect or trouble.

LCD COLOR MONITOR OPERATING INSTRUCTIONS

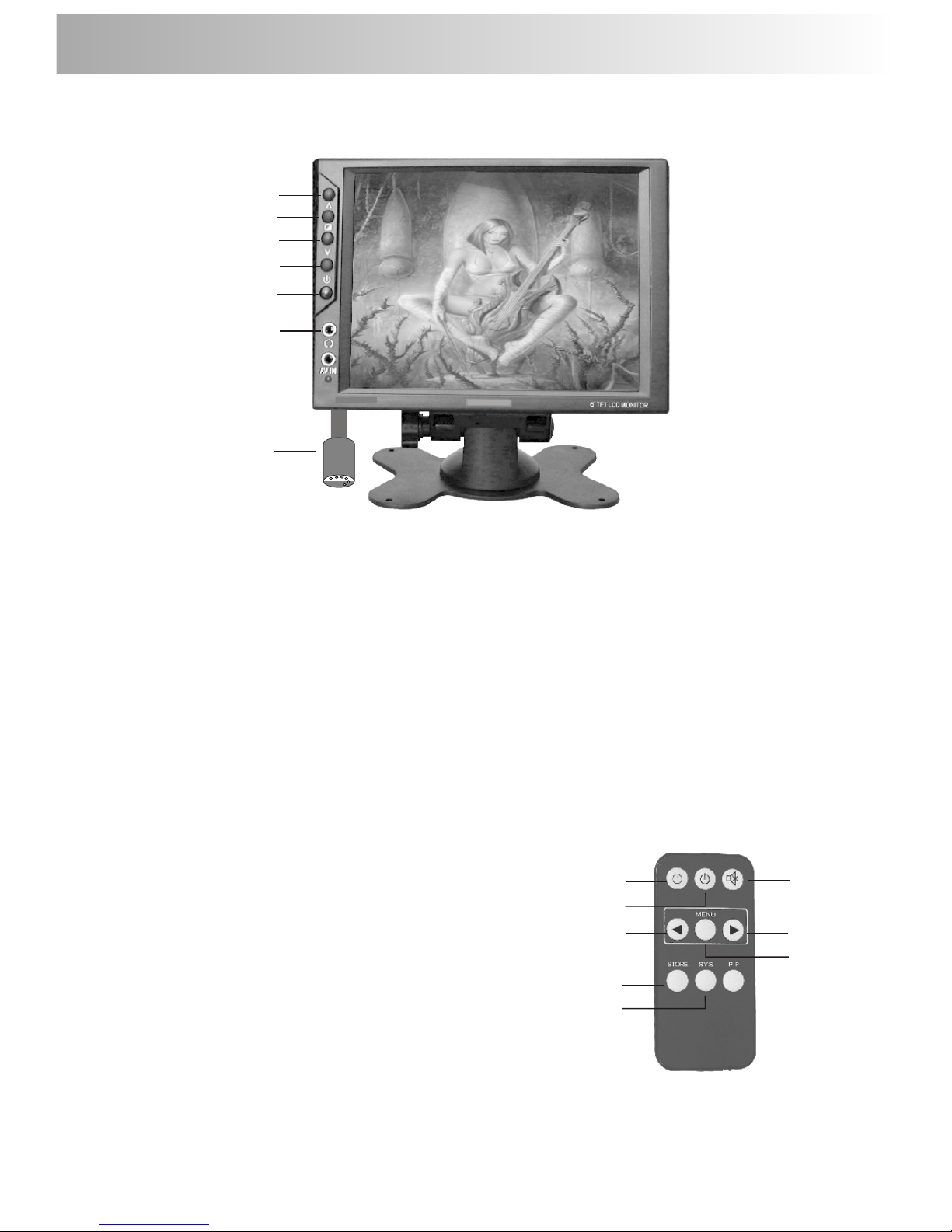

Control and layout

Monitor

(1) Adjust Increase

(2) Menu (volume, brightness, color, contrast)

(3) Adjust Decrease

(4) Power on/off

(5) Remote sensor

(6) Audio out (earplug)

(7) Audio / video in

(8) Connecting cord

Remote Control

(1)

(2) Timer switch

(3) Preference switch

(4)

(5) Mute

(6) Memory

(7) Picture up, down, left, right

(8)

(9)

Power on/off

Adjust Decrease

Adjust Increase

Menu (volume, brightness, color, contrast) 2.

LCD COLOR MONITOR OPERATING INSTRUCTIONS

Installation

Video output

Audio input (red)

Video input (yellow)

Ground (black)

DC 12V power input (red)

Remote Control replacing batteries

PULL OUT PUSH

1) Always use new batteries when replacing the old set.

2)Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.

3)Battery replacement is necessary when remote control acts sporadically or stops

operating this.

4)Do not drop, apply shock or step on the remote control

5)Do not spill water on the remote control

6) Do not place objects between the remote control and remote sensor.

7)Do not use remote controls for other equipments at the same time.

8)If the MONITOR does not operate even when operating the remote control from

a close range, it is time to replace the batteries (use CR-2025), refer to the label

on back of the basic control.

Operating instructions

LCD COLOR MONITOR OPERATING INSTRUCTIONS

1)Press MODE button to select brightness, contrast and volume

control, press +or - to adjust correspondent analog.

2) Press PP to select the preset analog.

3) Store your favorite

When you have set desired brightness, color, contrast and Volume, press

STORE, then press PP, the screen will display STORE PP, press STORE

again, STORE in screen will turn into green, the moment analog has been

stored, in the future to call out this setting return to the stored state, you only

need to press PP button.

Technical parameters

LCD Drive Method: TFT Active Matrix

Display Size: 6 Inch (diagonal)

Aspect: 4:3

Display Format: 320 x RGB x 234

Number of Pixels: 224,640

Video System Input: NTSC

Back Light: High Brightness Type U Shaped CCFT

Power Source: DC12V

Current Consumption: 8W

Dimensions: 113 x 156 x 26 (mm) w/o headrest kit

Supplied accessories

Wire cord

Stand

Remote control

Headrest bracket

Key

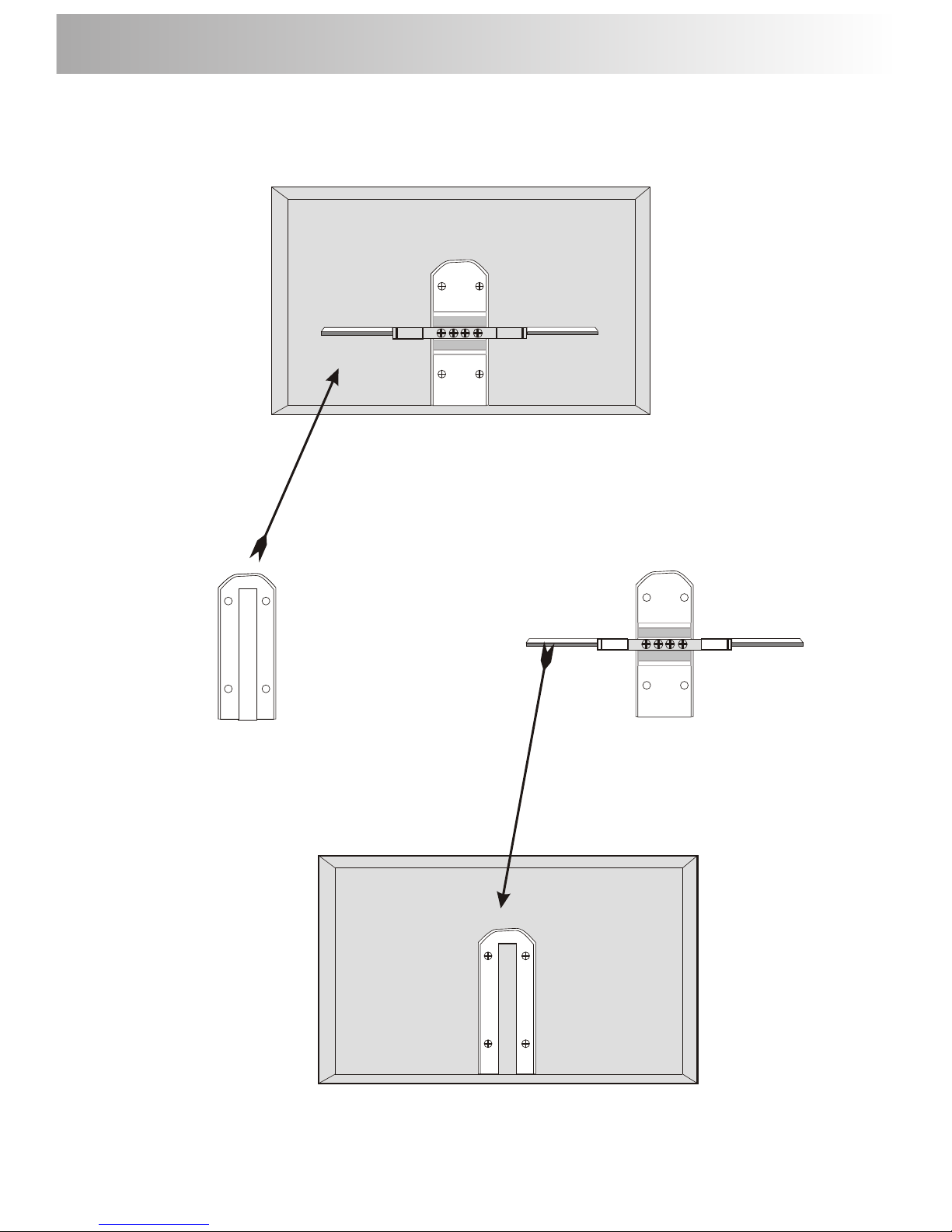

LCD COLOR MONITOR OPERATING INSTRUCTIONS

Bracket 1

for mounting stand style purpose

Bracket 2

for headrest frame style use purpose

Mounting stand Key- for eject the monitor from

headrest frame

Headrest frame

LCD COLOR MONITOR OPERATING INSTRUCTIONS

Bracket 1

for mounting stand style purpose Bracket 2

for headrest frame style use purpose

Use bracket 2 for headrest frame style

Use bracket 1 for stand sytle

Remove the bracket 2 from the

monitor and install bracket 1 as

folloes diagram for stand style use

液晶彩色顯示器使用說明書

LCD COLOR MONITOR OPERATING INSTRUCTIONS

Step of install headrest frame

Setup work

Measurements

Cut the headrest

Remove the headrest and set it in an

uncluttered work area. Take the appropriate

precautions to ensure that it is not damaged

during the installation.

Push on the headliner with your fingers to make

sure there are no obstructions that would hinder

the installation. Use the paper template to mark

the area to be cut.

Using an adjustable-depth blade, start

your cut 1/4 inch inside one corner and

cut diagonalyl across, stopping 1/4 inch in

from the other corner, repeat the procedure

for the other two corners.

LCD COLOR MONITOR OPERATING INSTRUCTIONS

Remove form & obsturctions

Route the cable through th e headrest

Install the headrest frame

Carefully peel back the material. Set the

adjustable blade to one inch depth and cut

around the edges of the hole, staying 1/4 inch

inside the edge. Pull up one corner or the foam

and use the blade to cut underneath. Remove

small section at a time, using the pull up and

cut method for uniform depth. Use a dremel or

other appropriate tool to remove other

obstructions. Insert the monitor to measure the

fit and make adjustment if necessary

Run the supplied cable through the opening

and out the bottom of the headrest. If possible,

conceal the wires using a shaft covering.

Connect the power, ground and video leads to

test the MONITOR.

Before connecting the monitor, pull the

connecting cable assembly through the

headrest frame as shown in diagram. Place

headrest frame into the opening and secure with

correct fasteners.

Pull the connecting cable through the center of

the frame as shown in diagram, the secure with

correct fasteners

液晶彩色顯示器使用說明書

LCD COLOR MONITOR OPERATING INSTRUCTIONS

Preparing to insert monitor

Inert the monitor

Adjust the bracket pin to 90 , run the

cable through the frame as diagram

shown and connect it.

Push to insert the monitor to the

headrest frame
