Pyle PLDVD128 User manual

DVD/VCD/CD/MP3 PLAYERDVD/VCD/CD/MP3 PLAYER

OWNER'S MANUAL

AUDIO/VIDEO

Car Audio Hifi System

-Detachable faceplate -EQ3:ROCK/POP/CLASSIC/FLAT

-5.1 RCA line out:front,rear,center and subwoofer

-30 preset station 18 FM 12 AM

Power

Volume

Eject

Release

Mode

Loud

L/R

Clock

Dsp

Volume setting

Bass setting

Treble setting

Balance setting

Fader setting

Play/Pause

Scan

Repeat

Random

Stop

N/P

Loading and Replacing the battery

Basic operation

Receiption collection

Speaker collection

Install the unit

Remove the unit

Band

Band tuner

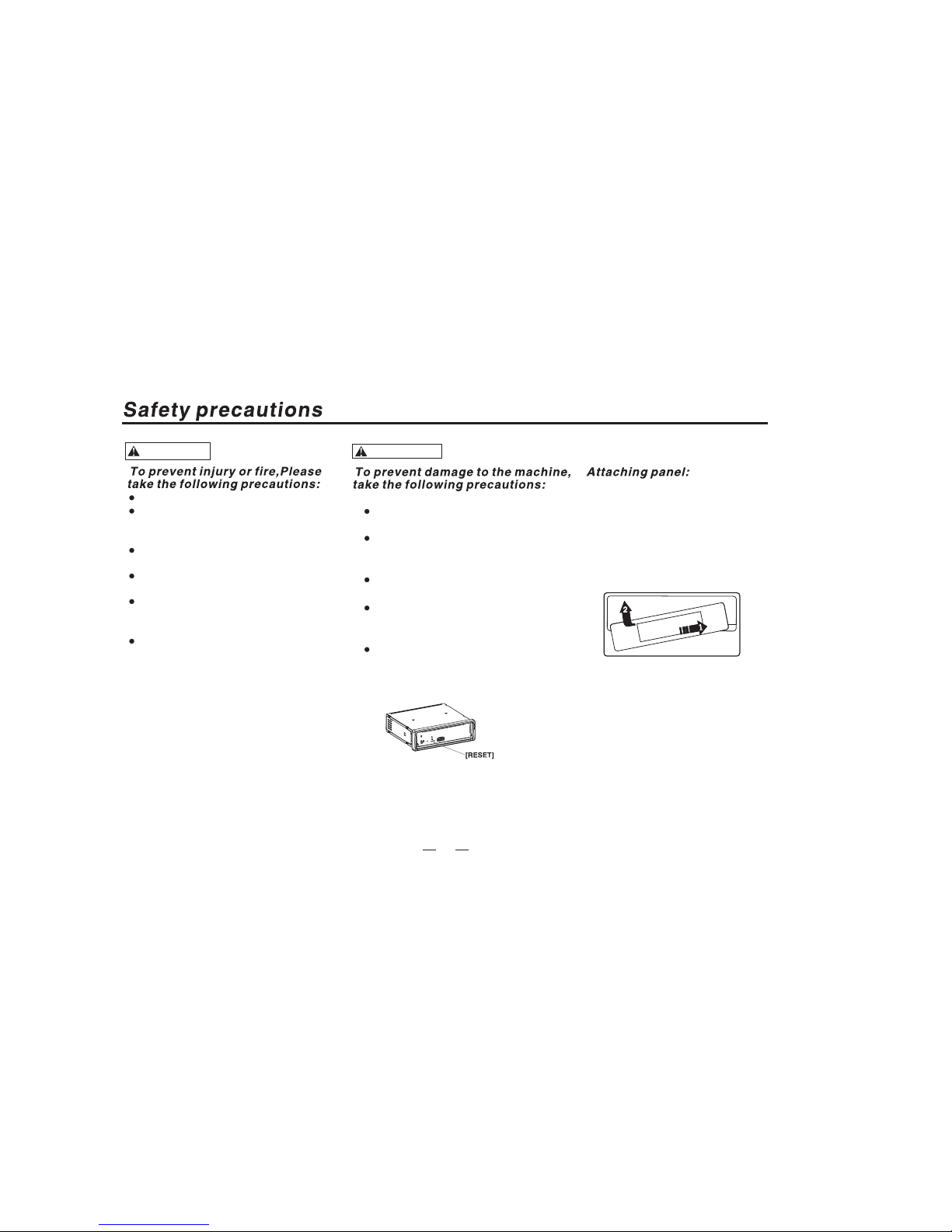

CAUTION

Be sure the unit is connected to a 12V

DC power with a Negative Ground.

Do not install the unit in places where

it is exposed to direct sunlight,high heat

or humidity,water splash or dust.

To change fuse,please use the same

one in specification and capacity.

When changing fuse,please do it

after pulling down power wires to avoid

short circuit.

If the unit seems not work in proper

situation,please press the reset button to

resume the function.

Do not operate when driving.

To prevent electric,etc,Please do not

let

If you smell or see smoke,turn off the

power immediately and consult our dealer.

Be careful not to drop or shock the unit

strongly.

Do not touch the liquid crystal to avoid the

life hurt.If the clothes is stained with it,Please

clean it immediately by soap.

For your driving safety,please link your

brake detecting wire with low power

level,and keep it controlled by manual brake

switch.when driving a car,the brake wire shall

be high power level and now,unit can not

play DVD or VCD disc.

the metal goods(silver,coin,tools..)fall into

the installation.

WARNING

Attach the front panel by fixing the left

Side of it into this unit as 1 showing.

Then push the right side of panel

towards into connecting plug as 2

showing.

Attaching panel

To front left

speaker

To front right

speaker

To rear left

speaker

To rear right

speaker

RED

Green/White

Green

Gray/White

Gray

Brown/White

Brown

Blue/White

Blue

RCH out

WHITE LCH out

YELLOW VIDEO

Lgnition key

swtich

Car fuse box

(main fuse)

Battery

Connect control for antenna

or remote control for amplifier (Orange)

Lgnition wire (Red)

Battery wire (Yellow)

Car fuse box

Ground wire(Black) (To car chassis)

CAR ANTENNA

SURROUND LEFT OUT

SURROUND RIGHT OUT

CENTER

SUBWOOF

FRONT LEFT OUT

FRONT RIGHT OUT

FRONT.L

FRONT.R

REAR.L

REAR.R

Before installing the receiver permanently, fit it in the approximate place in your car ,and connect the

equipment according to the speakers and electrical connections. When

your system is operated properly,(preferably with the

car engine running), follow the instructions

for permanent installation

of your system.

1) Adapter

(not supplied)

2)Bend over tabs

of half sleeve

(supplied)

3)Support strap

(supplied)

Half sleeve

(supplied)

4) Two wrenches for releasing

the unit (supplied)

1)Install half sleeve, can be with or

without adapter. It will fit better

with adapter.

2)Bend over some tabs to secure the

half sleeve inside of dash.

3) Support strap to be strutted under

dash, secure this strip to avoid skipp

ing of disc.

Insert removal wrench into the small

gap on the right side of the unit and pull

the unit slightly out on the same side,

then release the wrench. Repeat the

same action for the left side. By now,

you can remove the unit and unplug

the wires connector.

VOL

1234 56

DSP

PWR

SEL

SEEK

SCN RPT RDM BAND CLOCK MODE

STOP N/P

Press the [PWR]button to turn on/off the unit.

Rotate the SEL/VOL button in

clockwise direction.

Rotate the SEL/VOL button in

anticlockwise direction.

Press the [ ]button to eject the disc out of the unit .

press the " " button to release faceplate.

ON/OFF

CLOCK

EJECT

SELECT

RELEASE

LCD display

MODE

RCOK

DSP/LOUD L/R

VOLUME

VOL

SEL

Selecting radio and play

Each time you press the key,it will switch between radio

position and disc position.

DSP

press the DSP button to emphasize the bass output,

press it again to resume the normal listening.

In VCD mode, press [BAND] button,it will switch between

right channel and left channel position.

Short press CLK can display time even power off .

Long Press CLK for 3 seconds will enter set mode.

there is no operation in 5 seconds, it will quit clock

set mode.

Rotate the SEL/VOL button to set the hour.

Press the SEL/VOL button,and then rotate it to set

the minute.

Press DSP button once to effect [ROCK[ volume, LCD shows

ROCK on.

Press DSP button twice to effect [POPS] volume, LCD

shows CLASSICE on.

Press DSP button third to effect [CLASSIC] volume, LCD

shows POP on.

Press DSP button fourth to effect [FLAT] volume, LCD shows

FLAT on.

Press DSP button again to resume the normal listening.

VOL

PWR

SEL

1234 56

DSP

SEEK

SCN RPT RDM BAND CLOCK MODE

STOP N/P

Press SEL/VOL button once,display will show VOL

on,then rotate the button in clockwise direction to

increase volume level;rotate the button in

anticlockwise direction to

decrease volume level.

Press SEL/VOL button twice,display will show BAS

on,then rotate the button to adjust bass level up/down

in different direction.

Press SEL/VOL button third,

display will show TRE on,

then rotate the button to adjust treble level up/down

in different direction.

Press SEL/VOL button fourth,

display will show BAL on,

then rotate the button to adjust

left and right speakers level up

/down in different direction.

Press SEL/VOL button fifth,display will show FAD

on,then rotate the button to adjust front and rear

speakers level up/down in different direction.

PLAY/PAUSE SCAN N/P

RANDOM STOP

REPEAT

VOL

SEL

SELECT VOLUME

Press the button to repeat the same track continuously,

RPT will appear on the LCD display.

Press the button again to come back normal playing.

Press STOP button to stop music,and press button

to start playing from track one.

In video mode, press this button to exchange between the

PAL and NSTC.

Press this button to play all the track in random order. Press it

again to stop random playing. This button is invalid if the unit is

in PBC On mode.

If with DISC in unit,Press the [ ]to pause music.

Press the [ ]button again , come back DISC playing.

Press this button once for TRACK INTRODUCTION.

The first 10 seconds of each track on the disc will play. And the

track number shows on LCD.

To select a desired song, press [SCN]button while it is playing.

If a disc is loaded,a sector sign will show on the display.

Press BAND button to select among three FM or two AM bands.

(FM1-FM2-FM3-AM1-AM2)

long press button can automatically select higher

frequency station. And long press can automatically

select lower frequency station.

manual tuning:

short press button it can select higher frequency station.

Short press can select lower frequency station.

SEEK+BAND

PRESET MEMORY 1-6

LCD display

RCOK

VOL

PWR

SEL

1234 56

DSP

SEEK

SCN RPT RDM BAND CLOCK MODE

STOP N/P

SEEK-
