Provision ISR DA-352CS DA-322CS User manual

www.provision-isr.com

Digital CCTV Camera

DOME CAMERA

www.provision-isr.com

AWB

BLC

CCD

Auto Iris

MANUAL

English / Spanish

1 2

General

Thank you for using our products. Before use, please read this manual

carefully to ensure correct use of this series of products. Please keep the

manual properly for future use.

This series of cameras take high-sensitivity CCD as the image sensor, all

circuits have long work life and high reliability. Excellent image will be top

choice for your camera.

Main Features

1. Easy to install and assemble.

2. High resolution, high sensitivity and high s/n ratio.

3. Low illumination, high quality image.

4. CCD sensor can prolong the work life of camera.

5. With SONY DSP and CCD chip, image is clear and stable.

Precautions

1. Do not install the camera in places where the temperature is

above 50°C or under -10°C.

2. Do not touch the CCD surface with your finger. If cleaning is

needed, please wipe it using a soft cloth with a little bit of

alcohol.

3. Do not install in places with high humidity, it can seriously

damage the quality of the picture.

4. Do not drop the camera and avoid physical shock.

5. Do not face your camera to a strong light, it can damage the

CCD.

6. Do not expose the camera to rain or dusty surroundings.

7. Its highly important to use the correct and suitable power

supply(DC12V) for the camera.

8. Only professional and qualified technician can install and test

9. During use, if any errors occur, cut off the power immediately

and contact your local distributor.

Note:

In order to avoid electrical

shock or re, please use

proper power according to

the manual.

WARNING

Note: Only professional technicians is

allowed to open the front or back cover

of this camera.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

English Manual

Manual en Español

Nota:

Para prevención de choques

electricos o fuego, por favor

use la corriente apropiada,

acorde con el manual.

ADVERTENCIA

NotA: Solo técnicos profesionales

pueden abrir las cubiertas frontal o

posterior de esta cámara.

PELIGRO DE CHOQUES

NO ABRIR

Content

Operation Steps

①Use one camera and one monitor

②Use Several Cameras and one Monitor

VCN

Monitor

MULTIPLEXER Video Divider

DVR

3 4

⑴Confirm that the power supply for the camera is correct;

Connect Power Supply Socket to the power supplier.

⑵Connect "Video Out" of the camera to the monitor or

other video equipment (DVR) with a 75 ohm cable (RG59).

BNC

DC 12V

Monitor

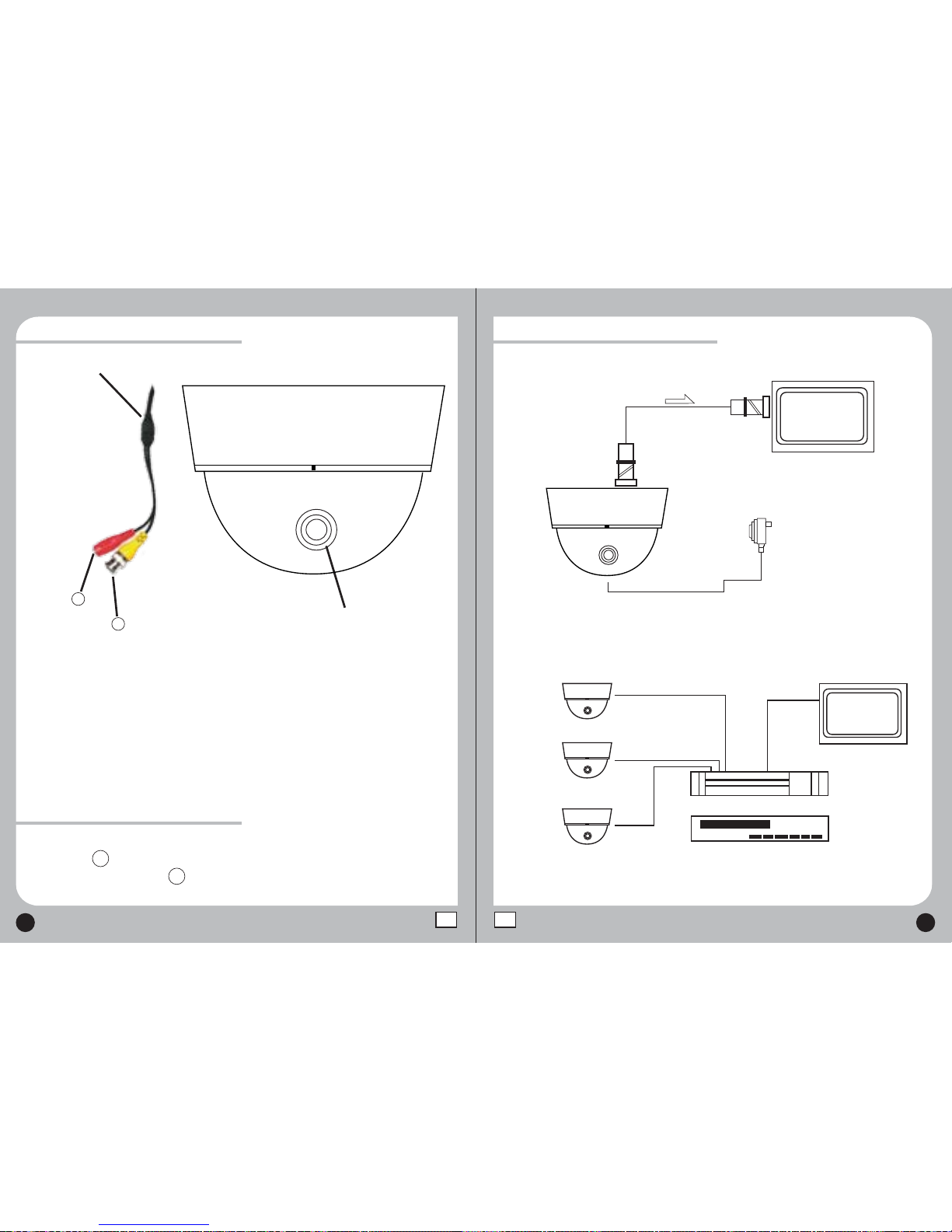

Structure and Components

Lens

Video Cable

Color Camera

AES Auto Electronic Shutter Switch (Auto)

BLC Backlight Compensation Switch (Auto)

AGC Auto Gain Control Switch (Auto)

AWB Auto White Balance Switch (Auto)

Video Cable:

①Power Supply Socket

②Video out

System connection

ENEN

5 6

SONY DSP Chipset

280g

PAL:537(H)×597(V) / NTSC:537(H)×505(V)

0.05 LUX/F1.2 0.5 LUX/F1.2

AWB ON (ATW OFF PUSH) Switchable

84W x 53H mm

1/3” SONY Super HAD CCD 1/4” SONY CCD

DX-322CS DX-425CS

3.6/4/6/8mm Board Lens

Camera Specication Camera Specication

1250g

PAL:537(H)×597(V)

NTSC:537(H)×505(V)

PAL:795(H)x596(V)

NTSC:811(H)x508(V)

0.05 LUX/F2.00.02 LUX/F2.0

AWB / ATW

150W x 110H mm

1/3” SONY Super HAD CCD

DA-322CS

DA-352CS

540TVL 420TVL

SONY DSP ChipsetSONY HQ1

ENEN

7 8

1/3” SONY Super HAD

36PSC

SONY DSP Chipset

4-9mm Vari-focal Lens

30m

DC12V / 110mA

94W x 69H mm

300g

0.5 LUX/F2.0 (0 Lux IR On)

Auto Tracking White Balance

SONY HQ1

420TVL540TVL

PAL:537(H)×597(V)

NTSC:537(H)×505(V)

PAL:795(H)x596(V)

NTSC:811(H)x508(V)

DI-325CSVF

DI-355CSVF

SONY HQ1 DSP Chipset

280g

0.02 LUX/F1.2

AWB ON (ATW OFF PUSH) Switchable

100W x 80H mm

1/3” SONY Super HAD CCD

DX-352CS

PAL:795(H)x596(V) / NTSC:811(H)x508(V)

540TVL

3.6/4/6/8mm Board Lens

Camera Specication Camera Specication

ENEN

910

1/3” SONY Super HAD

24PSC

20m

DC12V / 110mA

94W x 69H mm

-10°C - +50°C

150g

420TVL540TVL

PAL:537(H)×597(V)

NTSC:537(H)×505(V)

PAL:795(H)x596(V)

NTSC:811(H)x508(V)

DI-325CS(PL)

DI-355CS(PL)

0.5 LUX/F2.0 (0 Lux IR On)

SONY DSP ChipsetSONY HQ1

3.6/4/6/8mm Board Lens

1/3” SONY Super HAD

24PSC

20m

DC12V / 110mA

94W x 69H mm

300g

420TVL540TVL

PAL:537(H)×597(V)

NTSC:537(H)×505(V)

PAL:795(H)x596(V)

NTSC:811(H)x508(V)

DI-325CS(FL)

DI-355CS(FL)

0.5 LUX/F2.0 (0 Lux IR On)

SONY DSP ChipsetSONY HQ1

3.6/4/6/8mm Board Lens

Camera Specication Camera Specication

ENEN

PROVISION DSP Chipset

280g

PAL:537H x 597V

NTSC:537H x 505V

0.5 LUX/F1.2

AWB

90W x 60H mm

1/3” CCD

DX-322CP36

3.6mm Board Lens / 3 Axis system

More than 48dB

1.0Vp p composite video signal 75 Ω

PAL / NTSC

1/50 ~ 1/100,000

0.45

Internal

Video/DC Switchable

DC 12V / 110mA

-10° to 50°

CM-325CS

SONY DSP chipset

PAL:537(H)×597(V) / NTSC:537(H)×505(V)

12 PSC

15M

130g

1/3” SONY Super HAD CCD

55W x 85H x 85L

3.6/4/6/8mm Board Lens

Camera Specication Camera Specication

ENEN

13 14

1/3” CCD

DI-322CP36(P)

10 Big Leds / 15m

PROVISION DSP Chipset

3.6mm

DC12V / 110mA

100x65mm

150g

0.5 Lux (0 Lux IR On)

PAL:537H x 597V / NTSC:537H x 505V

1.0Vp p composite video signal 75 Ω

1/60(1/50)~1/100,000 sec

-10° to 50°

420TVL

0.45

Image Sensor

DSP System

TV System

Effective Pixels

Minimum Illumination

Horizontal Resolution

Lens Mount

S/N Ratio

Electronic Shutter

Gamma Modification

Gain Control

White Balance

Synchronous System

Leds Number

Operating Temperature

Video Output

Power Supply

Dimensions

Weight

Infra Lamps Control

420TVL

Day/night Turn off/on Automatic

More than 48dB

Auto

Internal

Camera Specication

ESEN

General

Gracias por utilizar nuestros productos. Antes de usar, por favor lea

atentamente este manual para garantizar el correcto uso de los

mismos. Por favor, guarde el manual correctamente para uso futuro.

Esta serie de cámaras tienen un CCD de alta sensibilidad como sensor

de imagen, todos los circuitos tienen una larga vida útil y alta fiabilidad.

Una excelente imagen que sera la mejor elección para su cámara.

Características principales

1.Fácil de instalar y ensamblar.

2.Alta resolución, alta sensibilidad y alto rango s/n.

3.Baja iluminación, alta calidad de imágen.

4.El sensor CCD prolonga la vida útil de la cámara.

5.Con DSP y chip CCD SONY, imagen clara y estable.

Precauciones

1. No instale la cámara en lugares donde la temperatura es mayor

a 50°C o inferior a -10°C.

2. No toque la superficie del CCD con el dedo. Si es necesario limpiar,

use un trapo suave con un poco de alcohol.

3. No instalar en lugares altamente húmedos,puede causar serios

daños en la imágen.

4. Cuidar de que no reciba golpes fuertes o se caiga.

5. No exponer la cámara frente a luz fuerte, esto puede dañar el CCD.

6. No exponga la cámara a un ambiente polvoriento o lluvioso.

7. Es sumamente importante usar la electricidad correcta (DC12V)

para la cámara.

8. Solo personal profesional y calificado tecnicamente

puede instalar y probar esta cámara.

9. Durante el uso, si alguna falla ocurre, corte la corriente

inmediata mente y contacte a su distribuidor local.

Pasos de operación

①Uso de una cámara y un monitor.

②Uso de varias cámaras y un monitor.

VCN

Monitor

MULTIPLEXER Video Divider

DVR

15 16

⑴Confirme que el suministro de energía es el correcto;

Conecte la entrada de corriente al adaptador.

⑵Conecte la "Salida de Video" de la cámara al monitor u

otro equipo de video (DVR) con un cable de 75 ohm (RG59).

BNC

DC 12V

Monitor

Estructura y componentes

Lentes

Cable de Video

Color Camera

AES Botón de Auto Obturador Electrónico (Auto)

BLC Compensación de contraluz (Auto)

AGC Control de auto-ganancia (Auto)

AWB Balance automático de blancos (Auto)

Cable de Video:

①Entrada de corriente

②SalidadeVideo

Conexión del sistema

ESES

17 18

SONY DSP Chipset

280g

PAL:537(H)×597(V) / NTSC:537(H)×505(V)

0.05 LUX/F1.2 0.5 LUX/F1.2

AWB ON (ATW OFF PUSH) Cambiable

84W x 53H mm

1/3” SONY Super HAD CCD 1/4” SONY CCD

DX-322CS DX-425CS

3.6/4/6/8mm Board Lens

MODELO

Disp. de imágen

Sistema DSP

Sistema de video

Temp. en operación

Dimensiones

Peso neto

Control auto iris

Lentes

Fuente alimentación

Velocidad disparo

Corrección gama

Sistema de sinc.

Rango S/N

Salida video

Balance de blancos

Pixels efectivos

Res. horizontál

Iluminación máx.

Video/DC Cambiable

Compuesta

Interno

Especicaciones Especicaciones

Video/DC Cambiable

1250g

PAL:537(H)×597(V)

NTSC:537(H)×505(V)

PAL:795(H)x596(V)

NTSC:811(H)x508(V)

0.05 LUX/F2.00.02 LUX/F2.0

150W x 110H mm

1/3” SONY Super HAD CCD

DA-322CS

DA-352CS

540TVL 420TVL

SONY DSP ChipsetSONY HQ1

MODELO

Disp. de imágen

Sistema DSP

Sistema de video

Temp. en operación

Dimensiones

Peso neto

Control auto iris

Lentes

Fuente alimentación

Velocidad disparo

Corrección gama

Sistema de sinc.

Rango S/N

Salida video

Balance de blancos

Pixels efectivos

Res. horizontál

Iluminación máx.

Compuesta

AWB / ATW Cambiable

Interno

ESES

This manual suits for next models

Table of contents

Other Provision ISR Security Camera manuals

Provision ISR

Provision ISR Ultra-Z Z-20AHD-1(IR) User manual

Provision ISR

Provision ISR Effio-E Infra Red User manual

Provision ISR

Provision ISR Mini Ultra-Z Z-10AHD-1 (IR) PTZ User manual

Provision ISR

Provision ISR PRO-AHD series User manual

Provision ISR

Provision ISR DAIPT-390AX4 User manual

Provision ISR

Provision ISR PT-737 Operating and maintenance instructions

Provision ISR

Provision ISR AUTO SYNC FOCUS SERIES User manual

Provision ISR

Provision ISR DAI-390IPVF User manual

Provision ISR

Provision ISR UltraVision Series User manual

Provision ISR

Provision ISR Ultra-Z-18s User manual

Provision ISR

Provision ISR I5PT-390AHDX4 User manual

Provision ISR

Provision ISR I5PT-390IPX4 User manual

Provision ISR

Provision ISR I4-380IPVF User manual

Provision ISR

Provision ISR I2-320A-28 User manual

Provision ISR

Provision ISR I1-380AHDB36 User manual

Provision ISR

Provision ISR Ultra-Z IP series User manual

Provision ISR

Provision ISR I1-325CS User manual

Provision ISR

Provision ISR Z-22IR User manual

Provision ISR

Provision ISR ZP-20A-2(IR) User manual

Provision ISR

Provision ISR I2-350A-28 User manual

Provision ISR

Provision ISR 1080P Pro-AHD Series User manual

Provision ISR

Provision ISR BX-380IP User manual

Provision ISR

Provision ISR PT-737 User manual

Provision ISR

Provision ISR DI-380AHD36 User manual

Popular Security Camera manuals by other brands

Okina USA

Okina USA SIR36-870VF650LP user manual

Divio

Divio NDR155PA user manual

Canon

Canon VB-C500D Specifications

Easy Access

Easy Access EasyGuard user manual

Vivotek

Vivotek FD9389-EHV-v2 Quick installation guide

TUYA

TUYA COSMO W2 manual

Eusso

Eusso UNC7500-IR Advanced installation guide

urmet domus

urmet domus 1096/204 user manual

VC VC20 series operating manual

Axis

Axis Q1614 installation guide

ieGeek

ieGeek DD201 manual

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Installation and user guide

Vicon

Vicon V662-D-1 Installation and operation guide

Grundig

Grundig GCH-K0274P owner's manual

Lorex

Lorex VANTAGE LBC7032 quick start guide

4xem

4xem WPT Specifications

Samsung

Samsung SCV-3082 Specifications

Vitek

Vitek VTC-C544 Specifications
