ProtoArc XK02 User manual
Triple Folding Keyboard with Touchpad
User Manual
XK02
Multifunctional Hotkeys
Charging Indicator / Bluetooth 1 Indicator
Caps Lock Indicator / Bluetooth 2 Indicator
Bluetooth 3 Indicator
Left Mouse Button
Right Mouse Button
Front
Back
Product Function
Bluetooth Connection Method
Bluetooth Channel 1 Bluetooth Channel 2
Type-C Charging Port
3
12
3
1. Unfold the Keyboard. 2. Short press “Fn+BT1" to choose
Bluetooth Channel 1, the BT1 white
indicator will flash once, then long press
“Fn+BT1", the BT1 white indicator flashes
quickly, keyboard enters into pairing mode.
Bluetooth Channel 3
3. Short press “Fn+BT2" to choose
Bluetooth Channel 2, the BT2 white
indicator will flash once, then long press
“Fn+BT2", the BT2 white indicator flashes
quickly, keyboard enters into pairing mode.
4
5
6
Windows 10 System
Devices
Bluetooth, printers, mouse

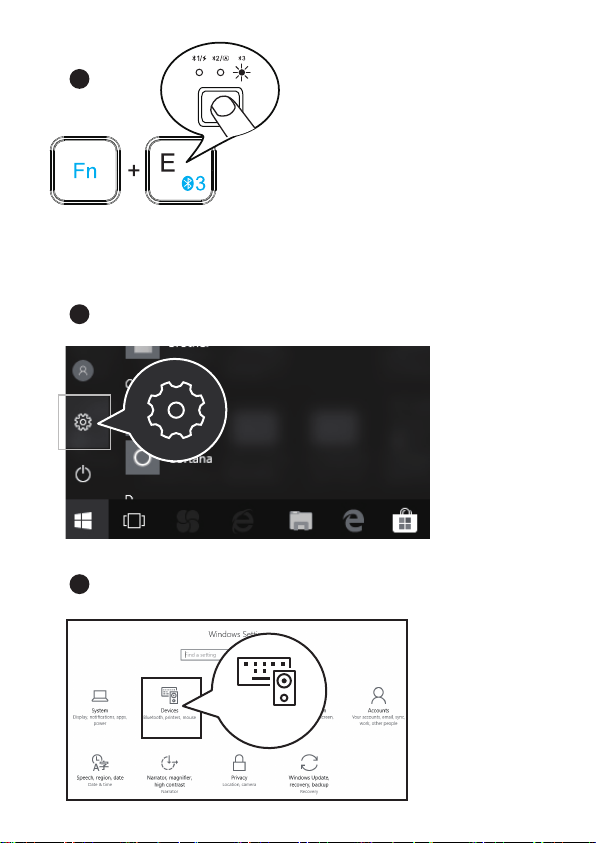

4. Short press “Fn+BT3" to choose
Bluetooth Channel 3, the BT3 white
indicator will flash once, then long press
“Fn+BT3", the BT3 white indicator flashes
quickly, keyboard enters into pairing mode.
Click SETTING - DEVICES.
Click ADDING BLUETOOTH OR OTHER DEVICES.
Bluetooth
Bluetooth
on
ProtoArc XK02
Ready to pair
Pair
ProtoArc XK02
Connected
7
8
When the devices find ProtoArc XK02, click PAIR.
When ProtoArc XK02 shows CONNECTED, the keyboard is ready to
use.
5
6
7
Mac OS System
“forter” mouse
ProtoArc XK02
Connected
Before pairing the keyboard, please operate as step 1,2,3,4 to make sure
the keyboard entering into pairing mode.
Click SYSTEM PREFERENCES - BLUETOOTH.
When the devices find ProtoArc XK02, click PAIR.
When ProtoArc XK02 shows CONNECTED, the keyboard is ready to
use.
ProtoArc XK02 Pair
“forter” mouse
5
6
7
ProtoArc XK02 Connected
Bluetooth Pairing Requset
“ProtoArc XK02” would
like to pair with your iPad.
Cancel Pair
Bluetooth On
iOS System
On
Bluetooth
Settings Bluetooth
Bluetooth
ProtoArc XK02
OnBluetooth
Settings Bluetooth
Bluetooth
ProtoArc XK02 Connected
DEVICES
Click SETTING and turn on the BLUETOOTH.
When ProtoArc XK02 shows CONNECTED, the keyboard is ready to
use.
When the devices find ProtoArc XK02, click PAIR.
Before pairing the keyboard, please operate as step 1,2,3,4 to make sure
the keyboard entering into pairing mode.
5
6
7
Android System
Settings
Bluetooth ON
Bluetooth
ProtoArc XK02
Bluetooth
ProtoArc XK02
Connected
Click SETTING and turn on the BLUETOOTH.
When the devices find ProtoArc XK02, click PAIR.
When ProtoArc XK02 shows CONNECTED, the keyboard is ready to
use.
Before pairing the keyboard, please operate as step 1,2,3,4 to make sure
the keyboard entering into pairing mode.
Keyboard Charging
How to Switch Between Three Device
BT1 ConnectionBT3 Connection
BT2 Connection
Type C Charging Cord
After successfully connected to 2 or 3 devices, you can switch between them
easily by pressing "Fn" + "BT1/BT2/BT3".
1. When the keyboard is in low power condition, the corresponding BT channel
in use will flash in White light. Also there will be a delay or lag while typing,
which will affect normal use.
2. Please recharge the keyboard in time via the type C cable to ensure the
keyboard has sufficient power for using.
Touchpad Function Guide
One finger click
- Left click
One finger click twice
- Double click
One finger slide
- Move cursor
Two fingers click
- Right click
Two fingers slide up/down/left/right
- Mouse Scroll
One finger double click to drag
- Drag
