Prorack K674 User manual
K674
Fitting Kit
EN Fitting Instructions for Basic Carrier
x 2 x 2 x 4 x 4
Revision No: 2B 1
Fitting Kit K674
MAX kgs (lbs)
W/P WHD
Foton
Tunland Double Cab, 4dr Ute 12-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
Tunland Double Cab, 4dr Ute 12-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
Tunland Double Cab, 4dr Ute 12-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
Tunland Single Cab, 2dr Ute Nov 12-+ AU 35 kgs (77 lbs) 35 kgs (77 lbs)
Tunland Single Cab, 2dr Ute Nov 12-+ NZ 35 kgs (77 lbs) 35 kgs (77 lbs)
Tunland Single Cab, 2dr Ute Nov 12-+ ZA 35 kgs (77 lbs) 35 kgs (77 lbs)
2
Fitting Kit K674
X
A B C 1 2 3
Tunland Double Cab, 4dr Ute 12-+ (NZ) -140mm 610mm - 880mm 830mm -
-5 -1/2ths" 24" - 34 5/8ths" 32 11/16ths" -
Tunland Double Cab, 4dr Ute 12-+ (AU) -140mm 610mm - 880mm 830mm -
-5 -1/2ths" 24" - 34 5/8ths" 32 11/16ths" -
Tunland Double Cab, 4dr Ute 12-+ (ZA) -140mm 610mm - 880mm 830mm -
-5 -1/2ths" 24" - 34 5/8ths" 32 11/16ths" -
Tunland Single Cab, 2dr Ute Nov 12-+ (AU) -130mm - - 874mm - -
-5 -1/8ths" - - 34 7/16ths" - -
Tunland Single Cab, 2dr Ute Nov 12-+ (NZ) -130mm - - 874mm - -
-5 -1/8ths" - - 34 7/16ths" - -
Tunland Single Cab, 2dr Ute Nov 12-+ (ZA) -130mm - - 874mm - -
-5 -1/8ths" - - 34 7/16ths" - -
3
Fitting Kit EN
K674
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●This kit fits type A, B, C and D.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
NOTE: Clamp images in these instructions may
not be representative of the clamps in this kit
4
Fitting Kit EN
K674
●Use keys to remove covers.
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
5
Fitting Kit EN
K674
●Remove locking screw.
●Refer to the underside of the pad for the
part number.
●Place rubber pads (supplied with fitting kit)
on the vehicle roof. Pad may vary in shape
to that shown.
6
Fitting Kit EN
K674

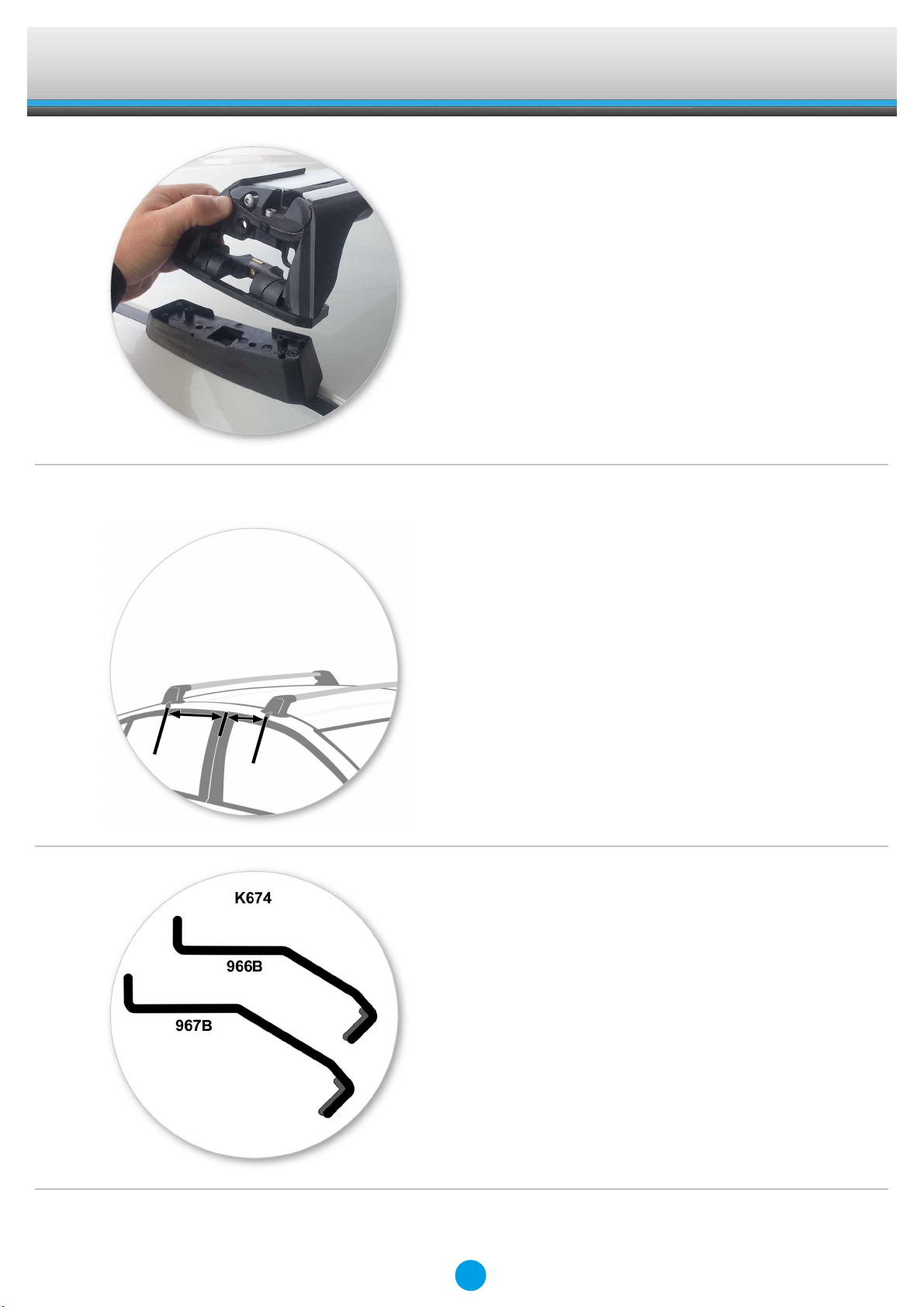

●Make sure the pad fits into the holes
underneath the foot.
Fitment
●Clamps directly to edge of roof under the
doors
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Place crossbar on vehicle. Minimum
recommended spacing between the bars is
700mm (27 1/2") (unless otherwise stated).
●Apply protective strip as shown.
Trim if required.
7
Fitting Kit EN
K674
●This setup is applicable for one crossbar
only.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 966B
●This setup is applicable for two crossbars
only.
●It is important to put the clamps in the
correct position on the vehicle.
●Letters refer to the part numbers stamped
on clamps.
●Clamp Part Number:
A = 966B
B = 967B
●Attach clamp to each leg. NOTE; clamps
may have labels showing their positions on
the vehicle (For example; "Front Right").
8
Fitting Kit EN
K674
●Refit locking screw so that it goes through
the hole in the clamp. Do not begin to
tighten the locking screw.
●Adjust the legs on the crossbar so that they
are positioned equally from the ends of the
crossbar, and the clamps engage firmly on
the body work of the vehicle.
●Tighten adjusting screw to 2 Nm (1.5 ft lb)
hand tight.
9
Fitting Kit EN
K674
●Tighten locking screw on both legs evenly.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
10
