Prorack K452 User manual

K452

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 1 x 8 x 4 x 4

x 4 x 1 x 1 x 2

x 4 x

Revision No: 4C 1

Fitting Kit K452

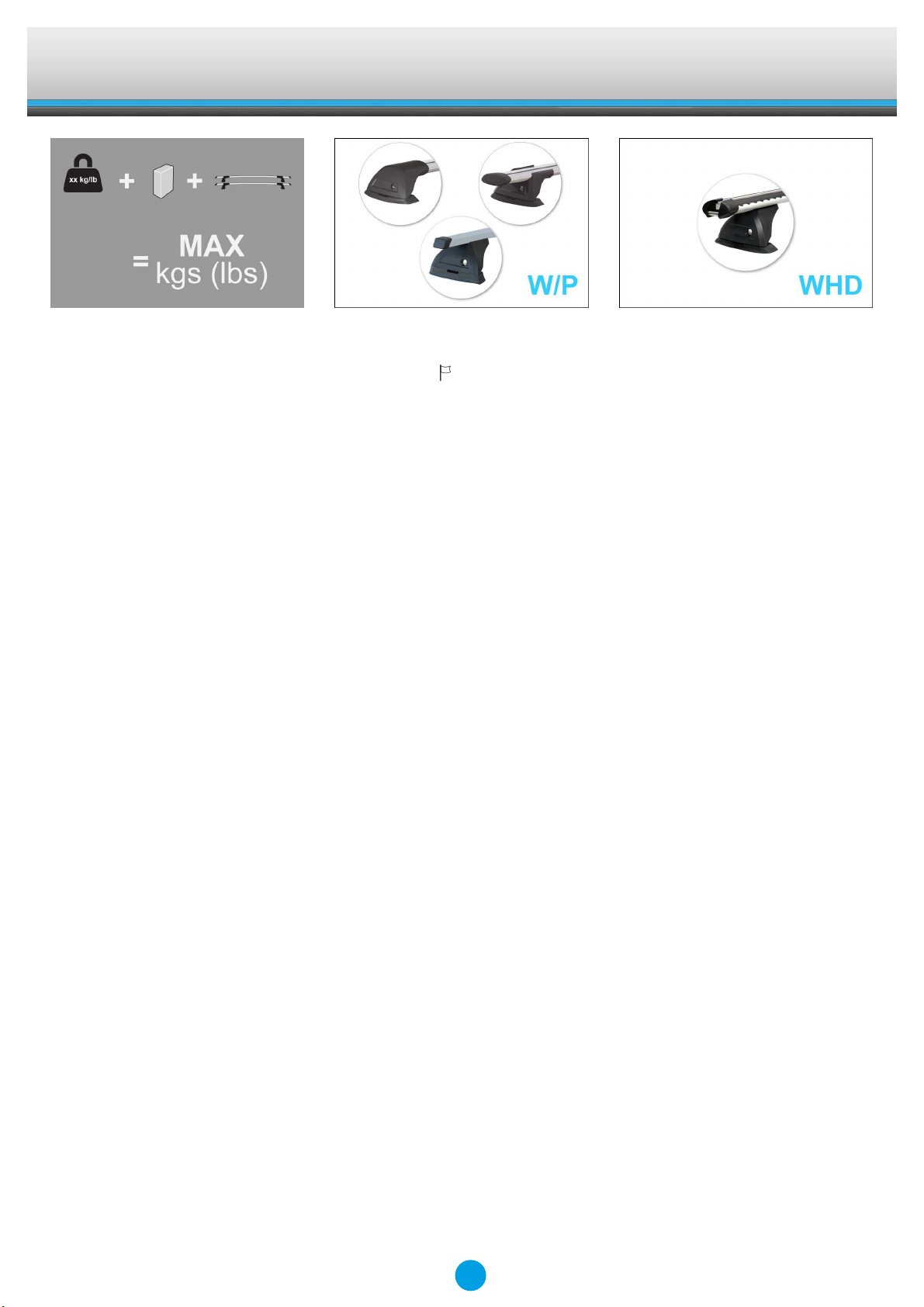

MAX kgs (lbs)

W/P WHD

Honda

CR-V , 5dr SUV 02-06 US 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V , 5dr SUV 02-07 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V , 5dr SUV 02-07 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V , 5dr SUV Mar 02-Jan 07 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

CR-V , 5dr SUV Mar 02-Jan 07 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K452

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K452

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Attaches to factory-fitted mounting points

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K452

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

Fitting Kit EN

K452

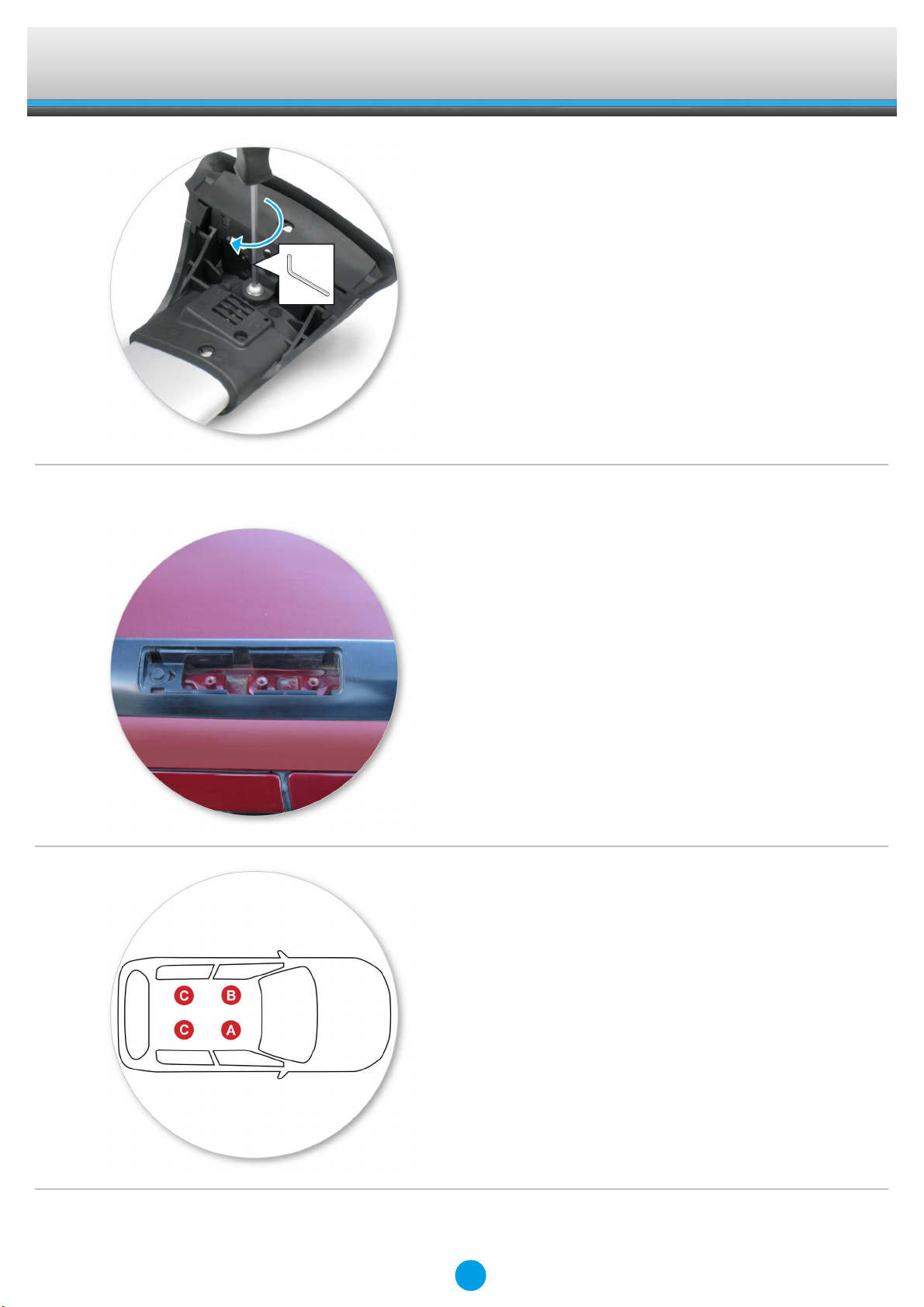

●Detach foot from leg. Store loose parts in a

safe place.

●Repeat for all legs.

●Assemble metal loadplate and rubber pad

from the fitting kit.

●Repeat for all four items.

●Assemble metal loadplate into leg. Ensure

loadplate interlocks with the leg.

Fitting Kit EN

K452

●Using short capscrew and washer, secure

assembly onto leg (use Hex Screwdriver

supplied with crossbar to assist)

●Repeat for all legs.

Fitment

●Open or remove fixed-point covers.

●Store items away in a safe place.

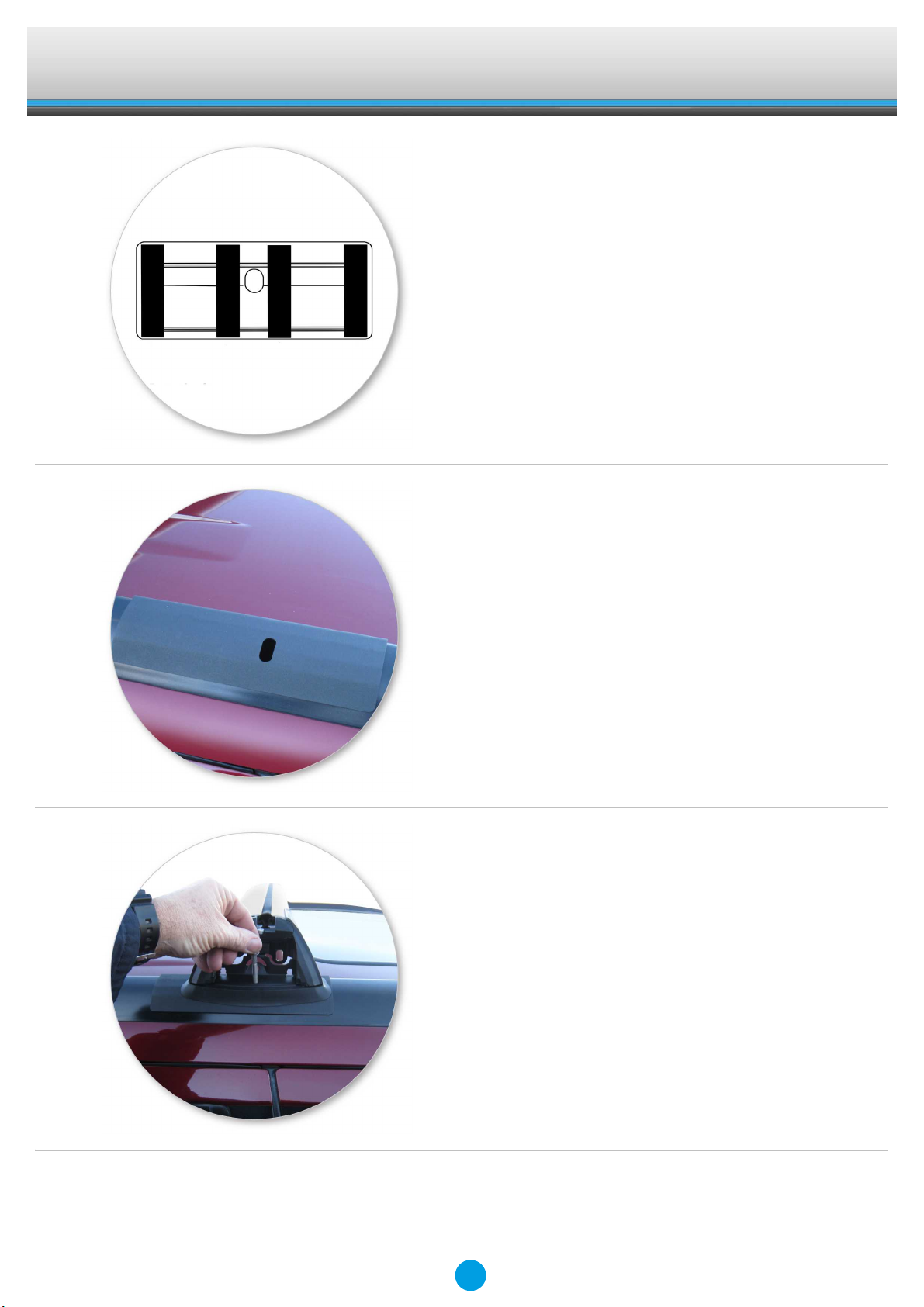

●Cover plate location

A = 465A

B = 466A

C = 603A

Fitting Kit EN

K452

●Apply protective strip as shown.

Trim if required.

●Fit cover plates over opening.

●Slot in cover should line up over centre

fixed point thread.

●Fit the M6 socket head screw and M6

washer.

●Leave loose until both sides have had the

screw fitted.

Fitting Kit EN

K452

●Tighten foot and cover plate down using

the Hex Key.

●Ensure that the cover plate and foot sit

firmly on the roof.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K452

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
