Progress Lighting AirPro P2568 User manual

Ceiling Fan Installation Manual

P256893089927_A

Date Purch as ed

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

109226

Limited Lifetime Warranty

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so

long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and metal finishes are warranted to

be free from defects in materials or workmanship for a period of 1 year from the date of purchase. Warping of wooden or plastic

blades is not covered by this warranty nor is corrosion and/or deterioration of any finishes for fans installed within ten miles of

any sea coast. Extended warranties for ENERGY STAR®qualified products may apply.

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal conditions of use, are

warranted to be free from defects in material and workmanship which cause the light sources to fail to operate in accordance

with the specifications for (i) five (5) years from the date of purchase on the LED Light modules and electrical components for

fans used in single family residences, and (ii) three (3) years from the date of purchase on the LED Light modules and electrical

components for fans used in multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no

warranty other than manufacturer’s warranty. Non-LED bulbs carry no warranty.

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the first 30 days for

replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864) 678-1000 for repair or replacement

which shall be determined in Progress Lighting’s sole discretion and shall be purchaser’s sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor (including, but not

limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration, misuse, abuse or

neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser or a third party, including without

limitation improper voltage supply or power surge, use of improper parts or accessories, unauthorized repair (made or

attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION AND

ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS. PROGRESS

LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL, INCIDENTIAL OR

CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF WARRANTY,

BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES,

WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations of incidental or

consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific rights

and you may have other rights which vary from state to state.

P2568

785247221578

785247221561

785247221554

1. Safety Rules

1. To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code and

local electrical codes. Electrical installation should be performed by a

qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not use

this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of fire, electric shock, or personal injury,

mount to outlet box marked "Acceptable for Fan Support of 15.9 kg (35 lbs.)

Or Less" and use mounting screws provided with the outlet box. Most outlet

boxes commonly used for the support of light fixtures are not acceptable for

fan support and may need to be replaced. Due to the complexity of the

installation of this fan, a qualified licensed electrician is strongly

recommended.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less.

Use only UL-listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 ft (2.1m) clearance from

the trailing edge of the blades to the floor.

7. To operate the reverse function on this fan, press the reversing button while

the fan is running.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan blades. A

dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

11. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

12. Electrical diagrams are for reference only. Light kits that are not packed

with the fan must be UL Listed and marked suitable for use with the

model fan you are installing. Switches must be UL General Use

Switches. Refer to the Instructions packaged with the light kits

NOTE

READ AND SAVE ALL INSTRUCTIONS!

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

WARNING

THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF

CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS AND /OR OTHER

REPRODUCTIVE HARM. THOROUGHLY WASH HANDS AFTER

INSTALLING, HANDLING, CLEANING, OR OTHERWISE TOUCHING

THIS PRODUCT.

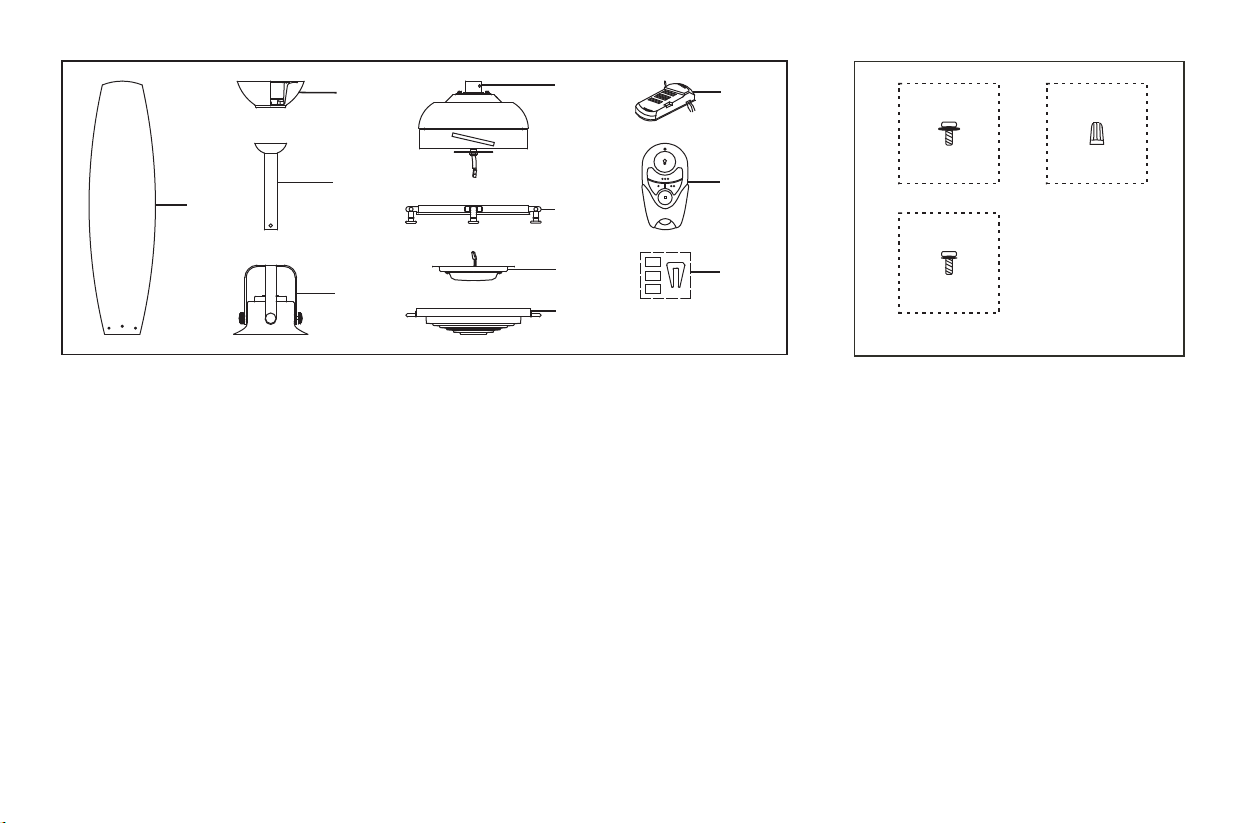

Unpack your fan and check the contents. You should have the following items:

Unpacking Your Fan 2.

12. Loose parts bag containing:

a. Blade attachment hardware

(16 screws with fiber washers )

b. Blade bracket attachment hardware

(1 screws with lock washers)

c. Mounting hardware

Wire nuts (3)

1. Fan blades (5)

2. Canopy assembly

3. Ball/downrod assembly

4. Coupling cover

5. Fan motor assembly

6. Mounting plate

7. LED light kit

8. Light kit shade

9. Receiver with 6 wire nuts

10. Transmitter incl. 2 mounting screws

11. Balancing kit

Tools Required

Phillips screw driver, straight slot screw driver,

adjustable wrench, step ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed mounting box,

then read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the

fan (at least 35 lbs). Do not use plastic outlet

boxes.

Figure 4

Figure 3

Figure 1

Figure 2

Outlet box

Outlet box Outlet box

Note: You may need a longer downrod to

maintain proper blade clearance when installing

on a steep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at your Progress Lighting Retailer).

3. Installing Your Fan

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR OTHER PERSONAL INJURY,

MOUNT FAN ONLY TO AN OUTLET BOX

MARKED ACCEPTABLE FOR FAN SUPPORT

AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX. OUTLET

BOXES COMMONLY USED FOR THE

SUPPORT OF LIGHTING FIXTURES MAY NOT

BE ACCEPTABLE FOR FAN SUPPORT AND

MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Angled ceiling

maximum

18.5 angle

Recessed

outlet box

Provide strong support

Ceiling

hanger

bracket

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly:

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counter clockwise.(Fig. 5)

Step 2. Remove the mounting bracket from

the canopy by removing the 1 of 2 screws

from the bottom of the mounting bracket and

loosening the other one a half turn from the

screw head. Next, turn the canopy counter

clockwise to removing the mounting bracket

from the canopy. (Fig. 5)

Step 3. Pass the 120-volt supply wires

through the center hole in the ceiling hanger

bracket as shown in Fig. 6.

Step 4. Secure the hanger bracket to the

ceiling outlet box with the screws and

washers provided with your outlet box.

Step 5. Remove the hanger pin, lock pin and

set screws from the top of the motor

assembly.

Step 6. Route wires exiting from the top of

the fan motor through the collar cover,

canopy cover, canopy and then through the

ball / downrod. (Fig. 7)

Step 7. Align the holes at the bottom of the downrod

with the holes in the collar on top of the motor

housing (Fig. 7). Carefully insert the hanger pin

through the holes in the collar and downrod. Be

careful not to jam the pin against the wiring inside the

downrod. Insert the locking pin through the hole near

the end of the hanger pin until it snaps into its locked

position, as noted in the circle inset of Fig. 7.

Step 8. Tighten two set screws on top of the fan

motor firmly. (Figure 7)

Step 9. Place the downrod ball into the hanger

bracket socket.

WARNING

FAILURE TO PROPERLY INSTALL

LOCKING PIN AS NOTED IN STEP 7

COULD RESULT IN FAN LOOSENING AND

POSSIBLY FALLING.

Ceiling

hanger

bracket

Ceiling

canopy

Canopy

cover

CUL Listed

electrical

box

Ceiling

hanger

bracket

Hook Washers

120V Wires

Mounting

screws

(supplied with

electrical box)

Ball/downrod

assembly

Ceiling

canopy

Motor wires Pin in locked

position

Tighten

screws

firmly

Locking pin

Canopy cover

Motor collar

Hanger pin

Collar cover

Figure 5

Figure 6

Figure 7

Make the Electric

Connections

WARNING: To avoid possible electrical shock,

be sure electricity is turned off at the main fuse box

before wiring.

NOTE: This remote control unit is equipped with

16 code combinations to prevent possible

interference from or to other remote units. The

frequency switches on your receiver and

transmitter have been preset at the factory. Please

recheck to make sure the switches on the

transmitter and the receiver are set to the same

position, any combination of settings will operate

the fan as long as the transmitter and receiver are

set to the same position.(Figure 8)

Step 1. (Figure 9) Insert the receiver into the

mounting bracket with the flat side of the receiver

facing the ceiling.

Step 2. (Fig. 10) Motor to Receiver Electrical

Connections: Connect the Black wire from the fan

to Black wire marked "TO MOTOR L". Connect

the White wire from the fan to the White wire

marked "TO MOTOR N" from the receiver.

Connect the Blue wire from the fan to the Blue

wire marked "For Light" from the receiver. Secure

wire connections with the plastic wire nuts

provided.

Step 3. (Figure 10) Receiver to House Supply

Wires Electrical Connections: Connect the black

(hot) wire from the ceiling to the black wire

marked "AC in L" from the receiver. Connect the

white(neutral) wire from the ceiling to the white

wire marked "AC in N" f r o m t h e R e c e i v e r.

S e c u r e t h e w i r e connections with the plastic

wire nuts provided.

Step 4. (Figure 10) If your outlet box has a ground

wire (green or bare copper) connect it to the fan

ground wires; otherwise connect the hanging

bracket ground wire to the mounting bracket.

Secure the wire connection with a plastic nut

provided. After connecting the wires spread them

apart so that the green and white wires are on one

side of the outlet box and black and blue wires are

on he other side. Carefully tuck the wire

connections up into the outlet box.

NOTE: Fan must be installed at a maximum

distance of 20 feet from the transmitting unit for

proper signal transmission between the

transmitting unit and the fan's receiving unit.

Figure 9

Receiver

Hanger

bracket

Figure 8

Code switch

Outlet box

Canopy

cover

Canopy

Hanger

bracket

Figure 11

Screws

SUPPLY CIRCUIT

Ground

Conductor

Outlet Box

Green

Ground

Lead

Ground to

Downrod

BLACK

WHITE

BLACK

BLUE

GREEN

Figure 10

Finishing the Installation

Step 1. Tuck connections neatly into ceiling outlet

box.

Step 2. Slide the canopy up to mounting bracket and

place the key hole on the canopy over the screw on

the mounting bracket, turn canopy until it locks in

place at the narrow section of the key holes. (Fig.

11)

Step 3. Align the circular hole on canopy with the

remaining hole on the mounting bracket, secure by

tightening the two set screws. Note: Adjust the

canopy screws as necessary until the canopy and

canopy cover are snug.

WARNING

Make sure the notch on the hanging bracket properly

sits in the groove in the hanger ball before attaching

the canopy to the bracket by turning the housing until

it drops into place.

Attaching the Fan

Blades

Insert the blade through the slot in housing. Align

holes in blade and motor and secure with 3 screws

and fiber washers. Repeat process with the other

blades. (Fig. 12)

Figure 12

Fiber washer

Screws

Blade

Slot

Blade Balancing

All blades are grouped by weight. Because

natural woods very in density, the fan may

wobble even though the blades are weighed

equally.

The following procedure should correct most

fan wobbling problems. Check after each step.

1. Check that all blade and blade arm screws are

secure.

2. Most fan wobbling problems are caused

when blade levels are unequal. Check this

level by selecting a point on the ceiling

above the tip of one of the blades. Measure

this distance as shown in Figure 13. Rotate

the fan until the next blade is positioned for

measurement. Repeat for each blade. The

distance deviation should be equal within

1/8".

3. Use the enclosed Blade Balancing Kit if the

blade wobble is still noticeable.

4. If the blade wobble is still noticeable,

interchanging two adjacent (side by side)

blades can redistribute the weight and

possibly result in smoother operation.

Touching

ceiling

Figure 13

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

HOLDERS WHILE INSTALLING,

BALANCING THE BLADES, OR CLEANING

THE FAN. DO NOT INSERT FOREIGN

OBJECTS BETWEEN ROTATING FAN

BLADES.

Figure 14

Mounting plate

Mounting ring

Screws

Installing the Mounting

Plate

Step 1.

Remove 1 of the 3 screws from the

mounting ring and loosen the other 2 screws. (Do

not remove)

Step 2.

Place the key holes on the mounting

plate over the 2 screws previously loosened from

the mounting ring, turn mounting plate until it

locks in place at the narrow section of the key

holes. Secure by tightening the 2 screws

previously loosened and the one previously

removed. (Fig. 14)

Step 3.

Rotate up the four padlocks on side of

the mounting plate.

Padlocks

This manual suits for next models

Table of contents

Languages:

Other Progress Lighting Fan manuals

Progress Lighting

Progress Lighting AirPro P250024 User manual

Progress Lighting

Progress Lighting AirPro P250036 User manual

Progress Lighting

Progress Lighting AirPro Willacy P250063 User manual

Progress Lighting

Progress Lighting AirPro P2540-14330K User manual

Progress Lighting

Progress Lighting AirPro P250100 User manual

Progress Lighting

Progress Lighting Springer P260004 User manual

Progress Lighting

Progress Lighting AirPro P2578 Operating and maintenance instructions

Progress Lighting

Progress Lighting AirPro P250038 User manual

Progress Lighting

Progress Lighting AirPro P2542 User manual

Progress Lighting

Progress Lighting AirPro P250065 User manual

Progress Lighting

Progress Lighting AirPro P250009 User manual

Progress Lighting

Progress Lighting AirPro P2539 User manual

Progress Lighting

Progress Lighting AirPro P2578 User manual

Progress Lighting

Progress Lighting P2667 Programming manual

Progress Lighting

Progress Lighting AirPro P2552 User manual

Progress Lighting

Progress Lighting AirPro P250110 User manual

Progress Lighting

Progress Lighting AirPro P250000 User manual

Progress Lighting

Progress Lighting AirPro P2576 User manual

Progress Lighting

Progress Lighting AirPro P2554 User manual

Progress Lighting

Progress Lighting AirPro P250066 User manual

Progress Lighting

Progress Lighting AirPro P2556 User manual

Progress Lighting

Progress Lighting AirPro P2554 User manual

Progress Lighting

Progress Lighting AirPro P250006 User manual

Progress Lighting

Progress Lighting AirPro P250058 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
