Progress Lighting AirPro P2594 User manual

Ceiling Fan Installation Manual

P2594

93099650_B

Date Purchased

Store Purchased

Model No.

Serial No.

Vendor No.

UPC

109226

Limited Lifetime Warranty

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so

long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and metal finishes are warranted to

be free from defects in materials or workmanship for a period of 1 year from the date of purchase. Warping of wooden or plastic

blades is not covered by this warranty nor is corrosion and/or deterioration of any finishes for fans installed within ten miles of

any sea coast. Extended warranties for ENERGY STAR®qualified products may apply.

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal conditions of use, are

warranted to be free from defects in material and workmanship which cause the light sources to fail to operate in accordance

with the specifications for (i) five (5) years from the date of purchase on the LED Light modules and electrical components for

fans used in single family residences, and (ii) three (3) years from the date of purchase on the LED Light modules and electrical

components for fans used in multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no

warranty other than manufacturer’s warranty. Non-LED bulbs carry no warranty.

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the first 30 days for

replacement. After 30 days, the original purchaser MUST contact Progress Lighting at (864) 678-1000 for repair or replacement

which shall be determined in Progress Lighting’s sole discretion and shall be purchaser’s sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor (including, but not

limited to, electrician’s fees) required to install, remove, or replace a fan or any fan parts.

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration, misuse, abuse or

neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser or a third party, including without

limitation improper voltage supply or power surge, use of improper parts or accessories, unauthorized repair (made or

attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING’S ENTIRE WARRANTY OBLIGATION AND

ORIGINAL PURCHASER’S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS. PROGRESS

LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL, INCIDENTIAL OR

CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF WARRANTY,

BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES,

WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations of incidental or

consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific rights

and you may have other rights which vary from state to state.

785247230310

785247230327

Table of Contents

Safety Rules.....................................................................................................................................................................................

Unpacking Your Fan .......................................................................................................................................................................

Installing Your Fan ..........................................................................................................................................................................

Operating Your Transmitter ............................................................................................................................................................

Care of Your Fan ............................................................................................................................................................................

Troubleshooting ............................................................................................................................................................................

Specifications ................................................................................................................................................................................

10.

11.

1. Safety Rules

1. To reduce the risk of electric shock, insure electricity has been turned off

at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code and

local electrical codes. Electrical installation should be performed by a

qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not use

this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of fire, electric shock, or personal injury,

mount to outlet box marked "Acceptable for Fan Support of 15.9 kg (35 lbs.)

Or Less" and use mounting screws provided with the outlet box. Most outlet

boxes commonly used for the support of light fixtures are not acceptable for

fan support and may need to be replaced. Due to the complexity of the

installation of this fan, a qualified licensed electrician is strongly

recommended.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR

FAN SUPPORT.

5. The outlet box and support structure must be securely mounted and

capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less.

Use only cUL-listed outlet boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 ft (2.1m) clearance from

the bottom of the fan guard to the floor.

7. Avoid placing objects in the path of the blades.

8. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan blades. A

dry dust cloth or lightly dampened cloth will be suitable for most

cleaning.

10. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into the outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

11. Electrical diagrams are for reference only. Light kits that are not packed

with the fan must be cUL Listed and marked suitable for use with the

model fan you are installing. Switches must be cUL General Use

Switches. Refer to the Instructions packaged with the light kits

NOTE

READ AND SAVE ALL INSTRUCTIONS!

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

Unpack your fan and check the contents. You should have the following items:

Unpacking Your Fan 2.

8. Loose parts bag containing:

a. Mounting hardware

Wire nuts (3)

b. Blade attachment hardware

Allen wrench

c. Mounting bracket hardware

Screws (2), Wood screws (2)

Star washers (2), Lock washers (2),

Flat washers (2)

1. Canopy assembly

2. Ball/downrod assembly

3.Coupling cover

4. Fan motor assembly

5. Receiver with 6 wire nuts

6. Transmitter incl. 2 mounting screws

7. 12V MN21/A23 battery

Tools Required

Phillips screw driver, straight slot screw driver,

adjustable wrench, step ladder, and wire cutters.

Mounting Options

If there isn't an existing cUL listed mounting

box, then read the following instructions.

Disconnect the power by removing fuses or

turning off circuit breakers.

Secure the outlet box directly to the building

structure. Use appropriate fasteners and building

materials. The outlet box and its support must be

able to fully support the moving weight of the

fan (at least 35 lbs). Do not use plastic outlet

boxes.

3. Installing Your Fan

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR OTHER PERSONAL INJURY,

MOUNT FAN ONLY TO AN OUTLET BOX

MARKED ACCEPTABLE FOR FAN SUPPORT

AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX. OUTLET

BOXES COMMONLY USED FOR THE

SUPPORT OF LIGHTING FIXTURES MAY NOT

BE ACCEPTABLE FOR FAN SUPPORT AND

MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Figure

Outlet box

Outlet box Outlet box

Note: You may need a longer downrod to

maintain proper clearance when installing on a

steep, sloped ceiling.

To hang your fan where there is an existing

fixture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4

(available at your Progress Lighting Retailer).

Angled ceiling

maximum

18.5 angle

Recessed

outlet box

Provide strong support

Ceiling

hanger

bracket

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly:

Step 1. Remove the decorative canopy bottom

cover from the canopy by turning the cover

counter clockwise.(Fig. 5)

Step 2. Remove the mounting bracket from

the canopy by removing the 1 of 2 screws

from the bottom of the mounting bracket and

loosening the other one a half turn from the

screw head. Next, turn the canopy counter

clockwise to removing the mounting bracket

from the canopy. (Fig. 5)

Step 3. Pass the 120-volt supply wires

through the center hole in the ceiling hanger

bracket as shown in Fig. 6.

Step 4. Secure the hanger bracket to the

ceiling outlet box with the screws and

washers provided with your outlet box.

Step 5. Remove the hanger pin, lock pin and

set screws from the top of the motor

assembly. (Fig. 7)

Step 6. Route the safety cable and wires

exiting from the top of the fan motor through

the collar cover, canopy cover, canopy and

then through the ball / downrod. (Fig. 7)

Step 7. Align the holes at the bottom of the

downrod with the holes in the collar on top of

the motor housing (Fig. 7). Carefully insert the hanger

pin through the holes in the collar and downrod. Be

careful not to jam the pin against the wiring inside the

downrod. Insert the locking pin through the hole near

the end of the hanger pin until it snaps into its locked

position, as noted in the circle inset of Fig. 7.

WARNING

FAILURE TO PROPERLY INSTALL

LOCKING PIN AS NOTED IN STEP 7

COULD RESULT IN FAN LOOSENING AND

POSSIBLY FALLING.

Figure 6

Ceiling

hanger

bracket

Mounting screws

(supplied with

electrical box)

CUL Listed

electrical

box

120V Wires

Washers

Supply wires

Downrod

Hanger pin Lock pin

Set screws

Canopy

Canopy cover

Collar cover

Pin in locked

position

Step 8. Tighten two set screws on top of the fan

motor firmly. (Fig. 7)

Step 9. Place the downrod ball into the hanger

bracket socket.

Step 10. Secure the safety cable to the building

structure with a wood screw. (wood screw not

supplied)

Figure 5

Ceiling hanger

bracket

Ceiling

canopy

Canopy

cover

Figure 7

Safety cable

Make the Electric

Connections

WARNING: To avoid possible electrical shock,

be sure electricity is turned off at the main fuse box

before wiring.

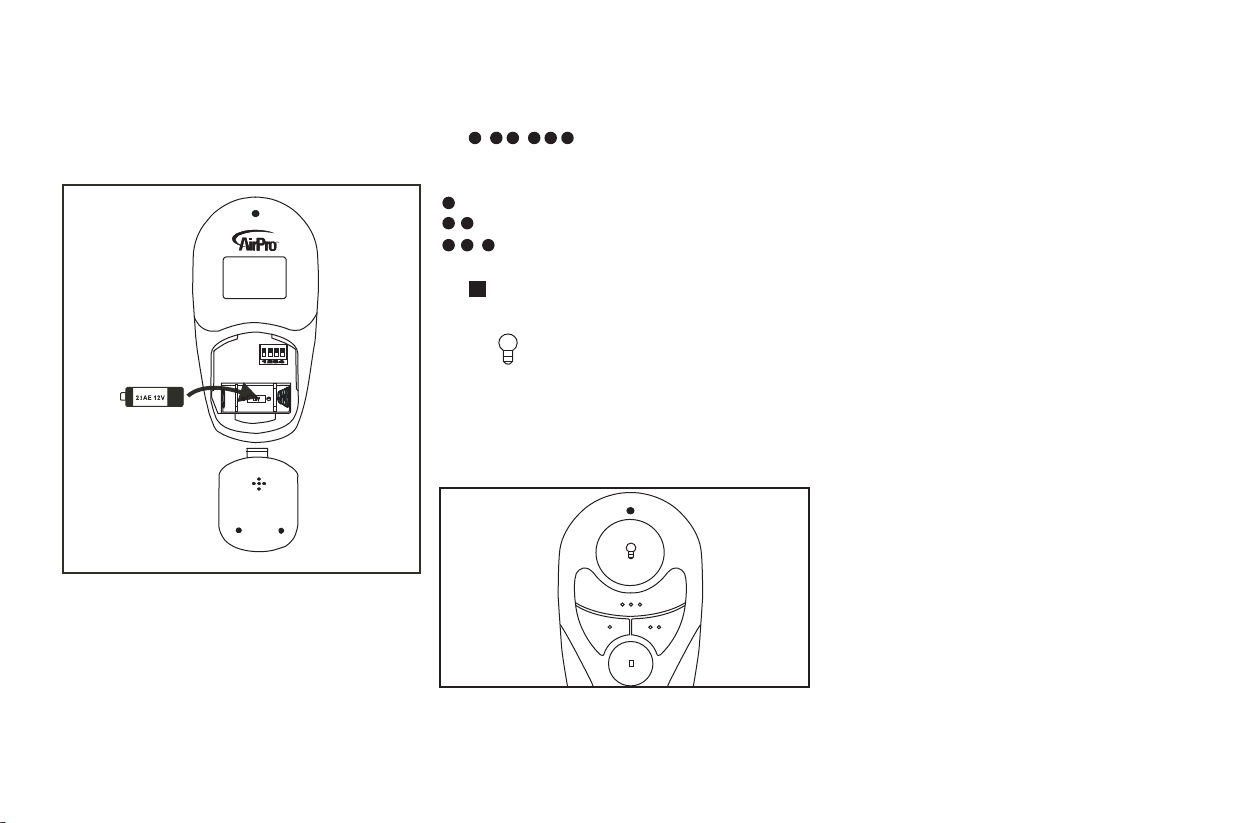

NOTE: This remote control unit is equipped with

16 code combinations to prevent possible

interference from or to other remote units. The

frequency switches on your receiver and

transmitter have been preset at the factory. Please

recheck to make sure the switches on the

transmitter and the receiver are set to the same

position, any combination of settings will operate

the fan as long as the transmitter and receiver are

set to the same position.(Fig. 8)

Step 1. (Fig. 9) Insert the receiver into the

mounting bracket with the flat side of the receiver

facing the ceiling.

Step 2. (Fig. 10) Motor to Receiver Electrical

Connections: Connect the Black wire from the fan

to Black wire marked "TO MOTOR L". Connect

the White wire from the fan to the White wire

marked "TO MOTOR N" from the receiver.

Connect the blue (light) wire to the blue wire from

the Receiver. Secure wire connections with the

plastic wire nuts provided.

Step 3. (Fig. 10) Receiver to House Supply Wires

Electrical Connections: Connect the black (hot)

wire from the ceiling to the black wire marked

"AC in L" from the receiver. Connect the white

(neutral) wire from the ceiling to the white wire

marked "AC in N" from the Receiver. Secure the

wire connections with the plastic wire nuts

provided.

Step 4. (Fig. 10) If your outlet box has a ground

wire (green or bare copper) connect it to the fan

ground wires; otherwise connect the hanging

bracket ground wire to the mounting bracket.

Secure the wire connection with a plastic nut

provided. After connecting the wires spread them

apart so that the green and white wires are on one

side of the outlet box and black and blue wires are

on he other side. Carefully tuck the wire

connections up into the outlet box.

NOTE: Fan must be installed at a maximum

distance of 20 feet from the transmitting unit for

proper signal transmission between the

transmitting unit and the fan's receiving unit.

Figure 9

Receiver

Hanger

bracket

Figure 8

Code switch

Outlet box

Canopy cover

Canopy

Hanger

bracket

Figure 11

Screws

Figure 10

Finishing the Installation

Step 1. Tuck connections neatly into ceiling outlet

box.

Step 2. Slide the canopy up to mounting bracket and

place the key hole on the canopy over the screw on

the mounting bracket, turn canopy until it locks in

place at the narrow section of the key holes. (Fig.

11)

Step 3. Align the circular hole on canopy with the

remaining hole on the mounting bracket, secure by

tightening the two set screws. Note: Adjust the

canopy screws as necessary until the canopy and

canopy cover are snug.

WARNING

Make sure the notch on the hanging bracket properly

sits in the groove in the hanger ball before attaching

the canopy to the bracket by turning the housing until

it drops into place.

White (neutral)

Green or bare

copper (ground)

White ("AC IN N")

Outlet box

Black (hot)

Black ("AC IN L")

Receiver

White (neutral)

White

("to motor N")

Ground (green)

(Connect to ground

wire on hanger bracket

if no house ground wire

exists.)

Black ("to motor L")

Blue (for light)

Black (motor)

Operating Your Transmitter

Installing the battery

Install 12V MN21/A23 battery (included), to prevent

damage to transmitter, remove the battery if not used

for long periods.

Figure 12

The Reverse switch is located on the motor

housing. Slide the switch to the Left for warm

weather operation. Slide the switch to the Right

for cool weather operation.

NOTE: Wait for fan to stop before changing the setting

of the slide switch.

Speed settings for warm or cool weather depend on

factors such as the room size, ceiling height, number of

fans, etc.

Warm weather - (Forward) A downward air flow

creates a cooling effect as shown in Figure 14. This

allows you to set your air conditioner on a higher

setting without affecting your comfort.

Cool weather - (Reverse) An upward airflow moves

warm air off the ceiling area as shown in Figure 15.

This allows you to set your heating unit on a lower

setting without affecting your comfort.

Figure 13

Restore power to ceiling fan and test for proper

operation.

1. " , , " buttons:

These three buttons are used to set the fan

speed as follows:

= Low speed

= Medium speed

= High speed

2. " " button:

This button turns the fan off.

3. The " " button turns the light ON or OFF and also

controls the brightness setting. Press and release the

button to turn the light ON or OFF. Press and hold the

button to set the desired brightness. The light key has an

auto-resume, it will stay at the same brightness as the

last time it was turned off.

Table of contents

Languages:

Other Progress Lighting Fan manuals

Progress Lighting

Progress Lighting AirPro P250093 User manual

Progress Lighting

Progress Lighting AirPro P250059 User manual

Progress Lighting

Progress Lighting AirPro P2542-3030K User manual

Progress Lighting

Progress Lighting AirPro P2556 User manual

Progress Lighting

Progress Lighting AirPro Huff P250030-031 User manual

Progress Lighting

Progress Lighting P2514 User manual

Progress Lighting

Progress Lighting AirPro P250070 User manual

Progress Lighting

Progress Lighting AirPro P2574 User manual

Progress Lighting

Progress Lighting AirPro P2578 Operating and maintenance instructions

Progress Lighting

Progress Lighting AirPro P2596 User manual

Progress Lighting

Progress Lighting AirPro P2540-14330K User manual

Progress Lighting

Progress Lighting AirPro P2560 User manual

Progress Lighting

Progress Lighting P250020 User manual

Progress Lighting

Progress Lighting AirPro P250026 User manual

Progress Lighting

Progress Lighting AirPro P250030 User manual

Progress Lighting

Progress Lighting AirPro P250110 User manual

Progress Lighting

Progress Lighting AirPro P250107 User manual

Progress Lighting

Progress Lighting AirPro P2553 User manual

Progress Lighting

Progress Lighting AirPro P250058 User manual

Progress Lighting

Progress Lighting AirPro P250094 User manual

Progress Lighting

Progress Lighting AirPro P250062 User manual

Progress Lighting

Progress Lighting AirPro P2564 User manual

Progress Lighting

Progress Lighting AirPro P250000 User manual

Progress Lighting

Progress Lighting AirPro P250006 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
