ProAudio SCR-2115sm User manual
SCR-2115sm
Installation Guide
sm
SCR-2115sm Installation Guide Rev A 121014
SCR-2115sm

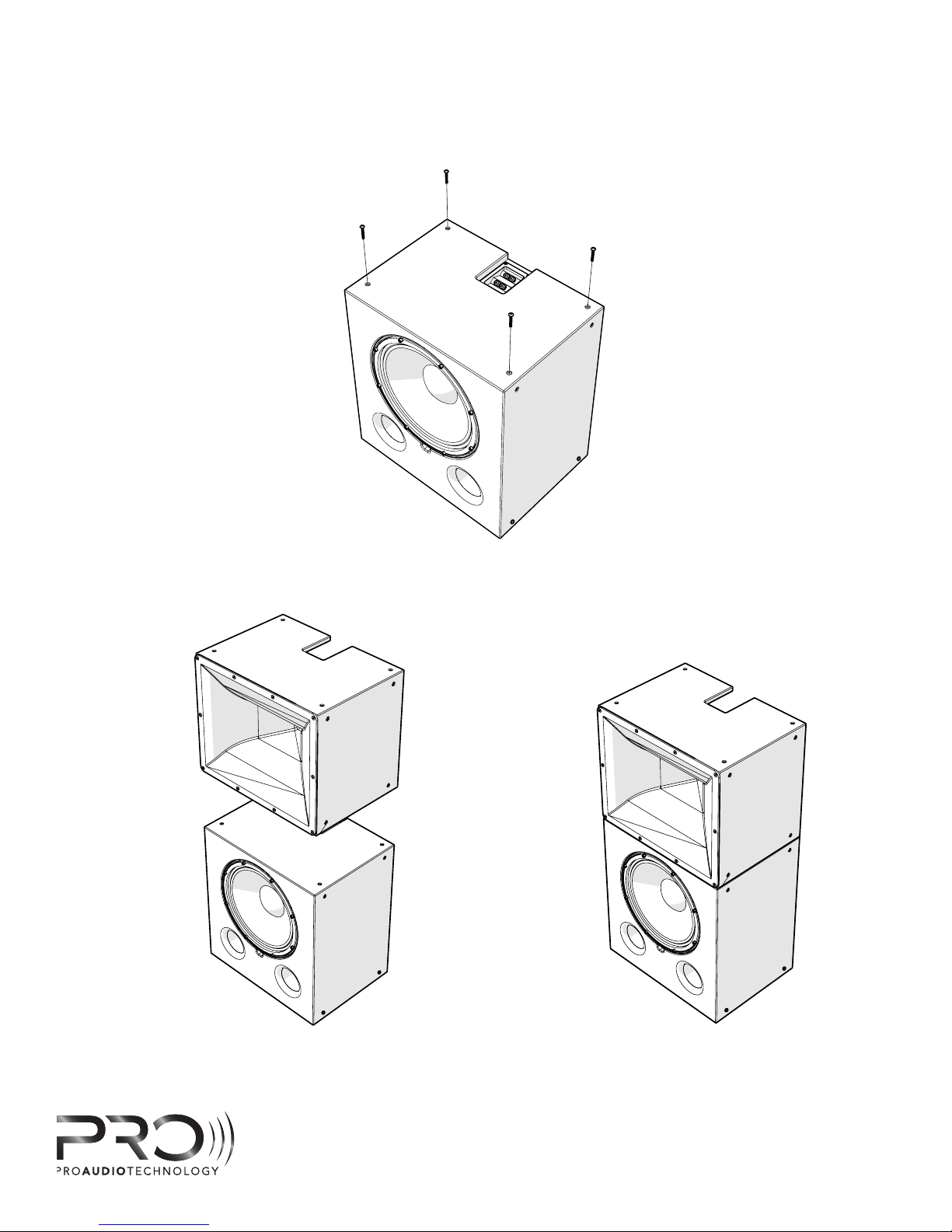

STEP 1 ATTACH HF UNIT TO LF UNIT
1a. Remove four screws on top surface of LF Unit
1b. Place HF Unit on LF Unit, aligning front-to-back, side-to-side
SCR-2115sm
1c. Reinstall screws fastening HF Unit to LF Unit
STEP 2 CONNECT LF UNIT
3a. Connect loudspeaker wires from amplier LF channel output to either binding post pair on
the LF unit. Be sure to observe correct polarity.
Connect To Woofer (LF) Amplifier Channel Negative Output
Connect To Woofer (LF) Amplifier Channel Positive Output
LF
Note: The two pairs of binding posts
on the LF unit are wired together inside
the loudspeaker, therefore, either set
may be used, or you may use all four
to increase current capability by using
four wires from your amplifer. If you
use four, connect the two negative
wires together and the two positive
wires together at the amplier end and
then to the corresponding amplier
output terminal.
CAUTION: DO NOT CONNECT NEGA-
TIVE AND POSITIVE WIRES TOGETHER.
AMPLIFIER DAMAGE WILL RESULT.
SCR-2115sm
STEP 3 CONNECT MF AND HF DRIVER
4a. Connect loudspeaker wires from amplier MF channel output directly to OUTER binding post
pair on MF/HF driver. Be sure to observe correct polarity.
4b. Connect loudspeaker wires from amplier HF channel output directly to INNER binding post
pair on MF/HF driver. Be sure to observe correct polarity.
Connect To Midrange Amplifier Channel Positive Output
Connect To Midrange Amplifier Channel Negative Output Connect To Tweeter (HF) Amplifier Channel Negative Output
Connect To Tweeter (HF) Amplifier Channel Positive Output
MF HF
Professional Home Cinema, LLC
dba Pro Audio Technology
5445 Oceanus Drive, Suite 110
Huntington Beach, CA 92649
Tel: 714-890-0418 Tel: 800-272-6085
Fax: 714-890-0536
