PROAIM Tango P-TNGO-01 User manual

What’s In The Box

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

Tango 360° Camera Rotang Dutch Angle Rig (P-TNGO-01)

Assembly Manual

Camera Plaorm

Tango 360° Camera Rotang Dutch Angle Rig

Camera Plaorm Rods with Stopper

1.5mm L

Type Allen Key

 Loosen and remove the stopper of the camera

plaorm rods, as shown in the picture.

 Loosen and remove the stoppers from the

camera plaorm rods, as shown in the

picture.

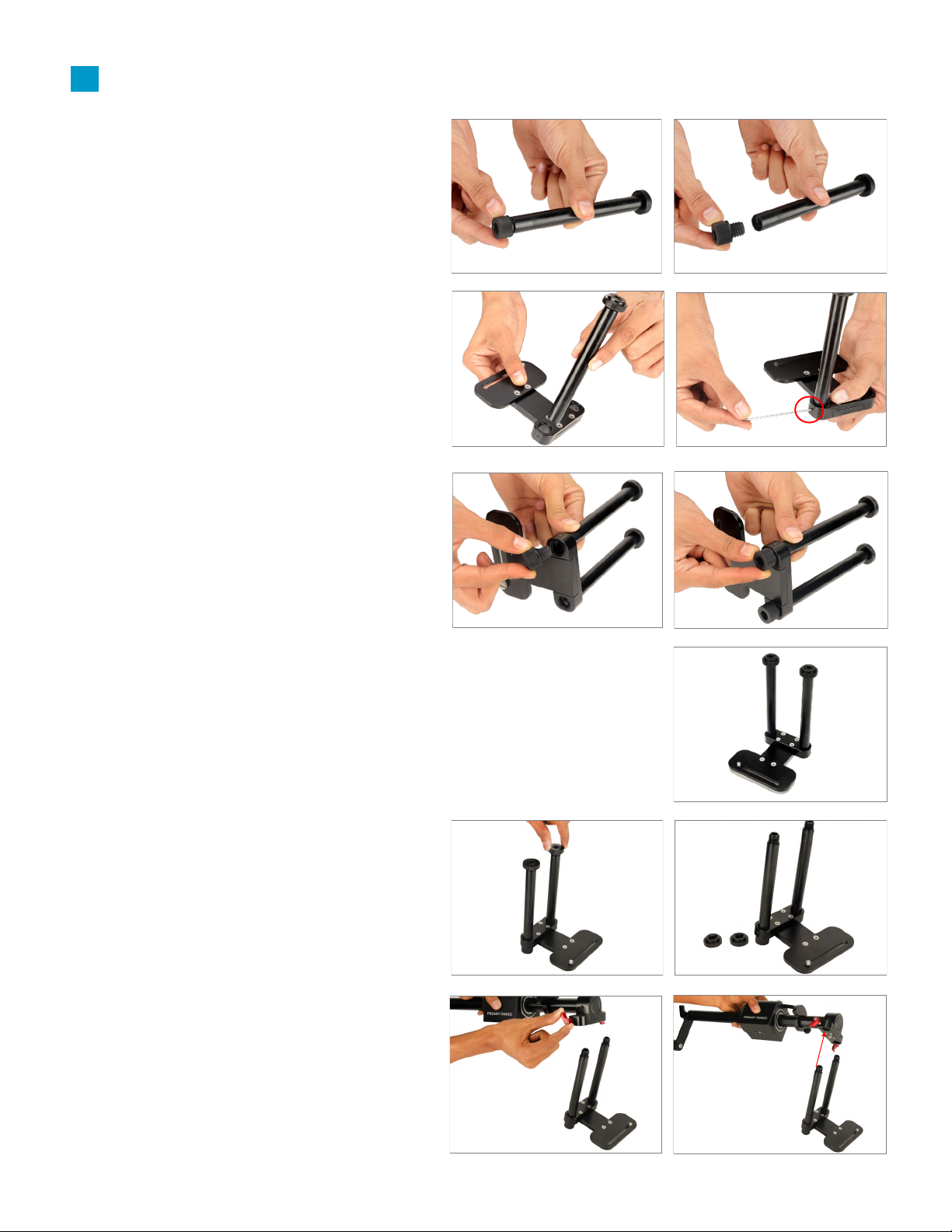

Tango 360° Rig Setup

 Insert the rods into the camera plaorm and

then secure them properly using a 1.5mm

Allen key. Follow the same process on the

other side as well.

 Loosen the red knob of the Tango 360°

camera rotang Dutch angle rig and then

insert it into the rods.

 Follow the same process on other side.

 Aer inserng the rods into the camera

plaorm hole, insert the stoppers from the

boom and ghten them to secure properly.

 Aer inserng it into the rods, secure it

properly with the help of the red knob and

then secure the rods properly from the top

with the help of stoppers.

 Properly aach the Ball Head (Not Included)

to the tripod, by matching it with the 3/8”

thread of the Tripod.

NOTE: Tripod comes with a (1/4” & 3/8”) quick

tripod mounng threads.

 Remove the camera plate as shown.

Camera Setup

 To give the Ball Head a 360° rotaon, loosen

the knob a lile and then rotate the knob to

ghten it again. To remove the Camera Plate,

loosen the knob.

 Aach the camera plate to the boom

mounng 1/4” thread of tango dutch angle rig

and secure it with the help of an Allen key.

 Rods are properly secured via stopper.

 Then mount it on the Ball Head (Not Included)

and properly secure it with the help of the

knob.

 To move the camera platform’s position up

and down, loosen the red knob, then

according to your requirement, set the height

at a position where you want your camera

and then properly tighten its knob.

NOTE: Height-adjustable camera plaorm, lets

you posion the camera at an accurate level

where the shot requires.

 Fix your setup on the Tango 360° Camera

Rotang Dutch Angle Rig at a specic angle

and secure it properly using the rotaon lock.

It facilitates a camera rotaon lock so that

you keep it to a specic angle for a stac shot.

NOTE: Tango 360° Camera Rotang Dutch Angle

Rig has a 360° rotaon feature, It oers full 360°

rotaon around its lens and also, allows you to

set the rotaon angle

NOTE: Reproduce the shot without trouble, has

angular ring and stopper to set rotaon.

 Mount the camera (Not Included) on the

camera plaorm plate. It is provided with a

(1/4”-20) Screw, properly secure it with the

help of the Allen key.

NOTE: Camera plaorm adapts DSLR cameras

with ¼” screw.

 Now your Setup is ready to use.

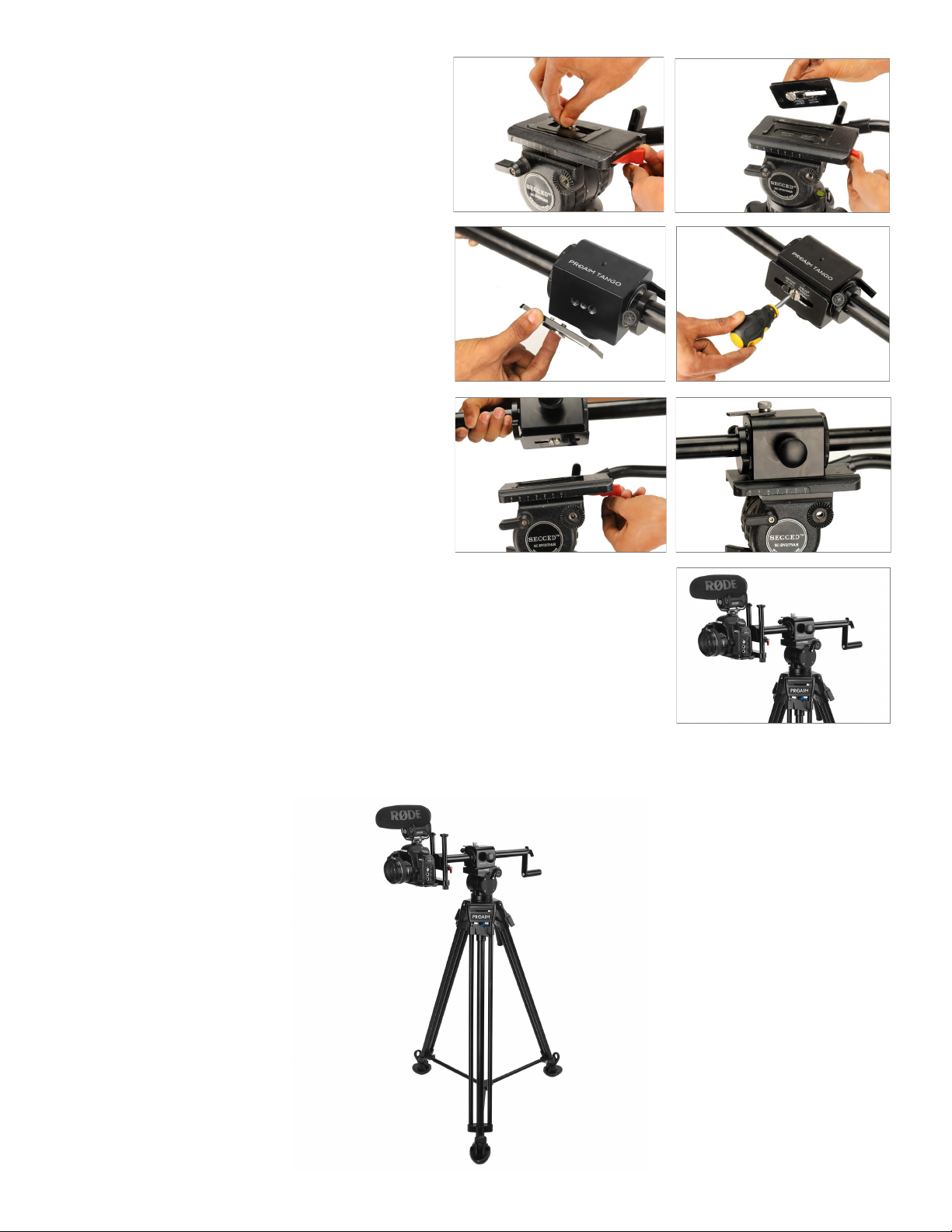

 Aer aaching the uid head’s top plate,

mount it on the top of the uid head

(Not Included) and then push the red knob, as

shown in the picture.

 Aach the uid head (Not Included) by

matching its top plate thread with boom

side of tango and secure them properly using

an Allen key.

 To mount the tango angle rig on the uid

head (Not Included) release the top plate of

the uid head by pulling the red knob.

YOUR PROAIM TANGO 360° CAMERA ROTATING DUTCH ANGLE RIG

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

most support and care unl you use our product.
