PROAIM CH-FS7-TB User manual

Top & Base Plate

(CH-FS7-TB)

CAMTREE HUNT

INSTRUCTION MANUAL

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied by

the applicable copyright statutes or in wring by the Publisher.

Camtree Hunt Top & Base Plate 2

INTRODUCTION

Accessorize your professional camera with our Camtree Hunt top & base plate designed as a best

support system for your Sony PXW-FS7 Camera. The High-Grade CNC Aluminum constructed TOP

PLATE features numerous accessory mounng threads for expanding the system.

Well-Designed BASE PLATE acts as a secure base for your professional camera and can be

aached directly to the camera. The supremacy craed base plate allows easy tripod mounng.

Hunt for searching an IDEAL Buddy to accessorize your camera comes to end with Camtree Hunt

Top & Base Plate For Sony PXW-FS7 Camera.

IN THE BOX

Please inspect the contents of your shipped package to ensure you have received all that is

pictured and listed below.

Base plate Top Plates

2 x 300mm female rods 2x 150mm female rods

Lens Support

ASSEMBLING YOUR TOP & BASE PLATE

NOTE: The base plate is compable with

VCT-U14 plate or 1/4”-20 & 3/8”-16 .

Camtree Hunt Top & Base Plate 3

 You can also aach it with tripod

mounng plate with mounng holes.

 Aach the base plate with your VCT-U14 plate (NOT INCLUDED) and mount it on tripod.

Tighten well to secure it.

ATTACHING WITH VCT-U14 PLATE

ATTACHING DIRECT WITH 1/4”-20 &

3/8”-16 TRIPOD MOUNTING HOLES.

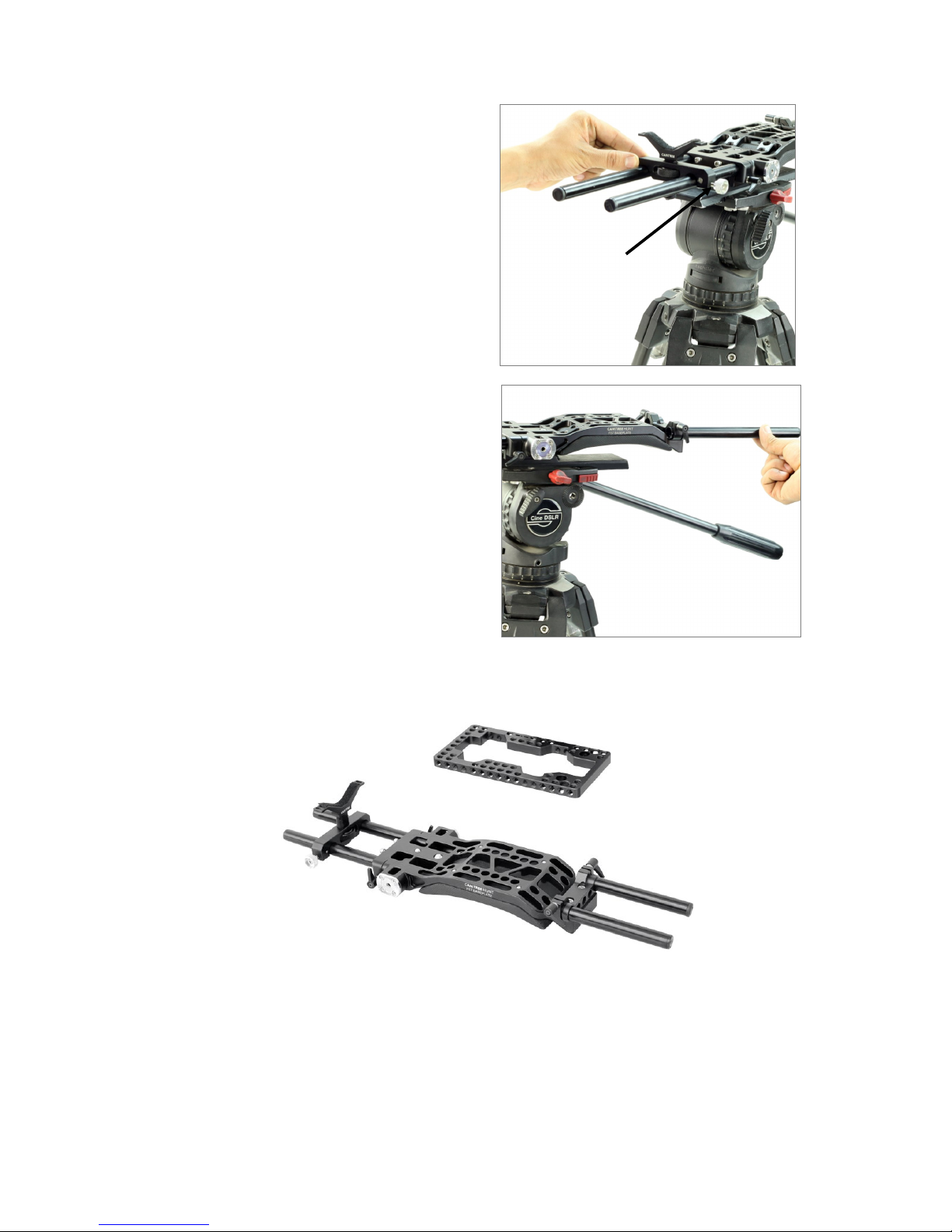

 Insert 300mm female rods into the front of base plate and ghten the knob.

Camtree Hunt Top & Base Plate 4

 Insert the lens support into the front of

rods and ghten the knob to secure it.

Knob

 Insert 150mm female rods into back of

base plate,

YOUR CAMTREE HUNT TOP & BASE PLATE

ALL DRESSED UP AND GOOD TO GO

WARRANTY

We oer a one year warranty for our products from the date of purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or

crasmanship obtained during normal use or handling based on the user manual. Please note

that we will not cover any shipping costs for returning the product to us. If any VAT or import

dues are applied to the return, we will also charge these costs to the customer.

Camtree Hunt Top & Base Plate 5

The warranty does not include, by the way of example, damage caused by products that we do

not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product ,

or service by anyone other than our company.

We are not liable for incidental or consequenal damages resulng from the use of the unit or

occurring due to any breach of this warranty.

Replacement parts of the product will be provided at nominal cost (covering the cost price of the

replacement parts only) to the customers aer the Warranty Period has expired. We will cover

the complete cost of sending replacement parts within the warranty period. Aer that, nominal

cost of the product & Actual shipping cost will be charged.

Do not send the unit to us without rst geng a response and geng the approval to send back

the item.

In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our

best to help you out.

For any other assistance you can reach us via email.
