Precor Experience Series 700 Line User manual
700/600 Line Treadmill
Assembly Guide
Treadmill Assembly Guide
Follow the steps in the order listed in this assembly guide. For more product
information, visit us at www.precor.com.
WARNING
At least two people are required to assemble the equipment. DO NOT
attempt assembly by yourself.
Assembly requirements
IMPORTANT
Before you fully tighten a fastener, check that its head is ush with the surface of
the equipment. If not, cross-threading may have occurred. DO NOT attempt to
rework the assembly as more damage to the equipment will occur. Instead,
contact Customer Service at www.precor.com.
We recommend you:
• Assemble the equipment close to where you plan to use it.
• Assemble the equipment on a solid, at surface so that it remains level and
stable.
• Locate the equipment a minimum of 19.7 in. (0.5 m) on each side of the treadmill
and 78 in (2 m) behind the treadmill.
• DO NOT move the equipment without assistance.
Torque measurements
Use the following torque measurements to tighten the fasteners. If a torque is not
provided, then fully tighten the fastener with the appropriate tool.
• Socket head cap screw - 25 ft-lb (33.90 Nm)
• Button head screw - 25 ft-lb (33.90 Nm)
Right upright
support
Left upright
support
Base side
cover
Dash assembly
Hood
Arm cover
Bottom arm
cover
Heart rate
bar assembly
Safety key
assembly
Adjustable foot
Front arm
cover
4
Hardware kit
NOTE
There may be extra hardware included with the tread.
Required tools
• #3 Phillips head screwdriver
• 5/16-inch hex wrench
Component Description Quantity
Washer
(3/8-inch)
6
Self-tapping pan head
screw
(1/4 x 1-inch)
6
Self-tapping pan head
screw (1/4 x .75-inch)
29
Socket head cap screw
(3/8 x 5/8-inch)
6
Plastic grommet
(1/4-inch)
6
Star tooth washer
(3/8-inch)
12
Button head screw
(3/8 x 1-inch)
12
• 7/32-inch hex wrench
• 1/4-inch hex wrench
• Torque wrench with tension to at least 25 ft-lbs (33.90 Nm) with 5/16-inch and
7/32-inch drivers
5
Begin Assembly
WARNING
DO NOT attempt to connect electrical power until all assembly
procedures are complete and the console is properly installed.
To attach the uprights to the treadmill:
1. Remove the hood from the treadmill base and set it aside.
2. Position a base side cover against the treadmill frame so that the tabs t into
the frame.
Figure 1
3. Attach the base side cover using two screws : one for the side attachment
and one for the front attachment.
Figure 2
4. Position the right side upright support near the base frame and route the data
cable inside of the base side cover and up through the right upright.
IMPORTANT
DO NOT pinch or crush the cable during assembly.
Figure 3
5. Position the right upright support onto the base frame so that the side cover
lip ts inside the upright support and attach it using three screws and
three washers . Partially tighten the fasteners.
Figure 4
6. Repeat Steps 2 through 5 to attach the left upright support.
NOTE
Route PVS and network cables through the inside of the left upright
support. Be careful not to pinch the cables.
6
Dash attachment
IMPORTANT
Two people are required to assemble the dash.
To attach the dash:
1. With assistance, set the dash assembly on top of the upright supports.
NOTE
The dash slips down into the uprights. Pull it up slightly so that the screw
holes line up correctly.
2. Attach the dash assembly to each upright using three screws and three
washers . Partially tighten the screws.
Figure 5
3. Tighten all 12 screws to 25 ft-lb (33.90 Nm) of torque. Tighten the lower
upright screws in the order shown in Figure 6.
Figure 6
To complete the dash assembly:
1. Remove the two screws from the back of the dash cover. Remove the dash
cover and set it aside with the screws.
2. Route the data cable through the right tube of the dash assembly, up the back
frame, and out through the top hole.
NOTE
If you are attaching a PVS or networked console, route those cables
through the left side of the dash assembly at this time.
Figure 7
7
To attach the heart rate bar:
1. Position the heart rate bar assembly against the dash frame and attach it
using two screws and two washers . Partially tighten the fasteners.
Figure 8
2. Route the heart rate cable up through the back frame and out through the top
hole (Figure 8).
3. Remove the screw from the bottom of the tread arm.
Figure 9
4. Remove the bottom and front plastic covers from each tread arm.
5. Fit the tread arm into the heart rate bar and against the dash assembly. Attach
it using two screws and two washers . Use a hex key to partially tighten
the screws.
Figure 10
6. Attach the underside of each heart rate arm using one screw . Fully tighten
the fasteners.
Figure 11
7. Repeat Steps 3 through 6 to attach the other arm and then tighten all six
socket head screws to 25 ft-lb (33.90 Nm) of torque.
NOTE
To install a touchscreen console, continue with the next section.
To install a non-touchscreen console, continue with the section Attach the
treadmill.
8
To attach the filter to the drive power cable:
1. Disconnect the existing power cable from the drive unit, power lter, and
ground terminal. Then completely remove it from the treadmill.
Figure 12
2. Connect the new power cable according to Figure 13 and Table 1.
Figure 13
Table 1
Position Connector
Drive input connectors
Brown lead with quick-connect terminal
Blue lead with quick-connect terminal
Green and yellow lead with quick-connect terminal
AC input cable to the power cable
3. Use the Velcro fasteners to attach the power supply on the right side of the
treadmill base. Plug the AC input cable into the socket on the power supply.
4. Route the DC output cable through the cable ties behind the power supply,
toward the upright support on your right. Bend the cable ties over the DC
output cable to hold it in place.
NOTE
Bundle the excess cable and secure it under the cable clips.
5. Connect the black AC power cable on the AC wiring harness to the socket on
the power supply.
9
Install the accessory jack
IMPORTANT
The touchscreen console includes an accessory jack panel that you must install on
the treadmill. The panel connects the TV and Ethernet cables to the facility’s
network.
For touchscreen consoles only:
1. Remove the screws securing the blank plate at the right-front corner of the
treadmill. Discard the blank plate.
Figure 15
2. Thread the cable assembly down through the channel in the upright support
on your right. Drape excess cable over the inside edge of the support and tape
into place, if necessary.
Figure 16
3. Pass the lower end of the TV cable through the right-hand grommet, and
insert it into the connector inside the panel. Use a 7/16-inch torque wrench to
tighten the connectors to 30 in-lb (3.39 Nm) of torque.
4. Pass the lower end of the Ethernet cable through the right-hand grommet and
snap it into the eight-pin coupler in the panel.
5. Fit the lower ends of any optional console cables into the notch in the upper
edge of the panel.
6. Replace the panel and fully tighten the corresponding screws.
WARNING
Before you nish assembling the treadmill base, examine the
electrical bleed line between the belt motor and the frame. Make
sure the bleed line is connected securely to both the motor and the
frame as shown in the following gure, and verify that it is not
damaged.
DO NOT connect the treadmill to electrical power while the hood is
removed.
Figure 17
10

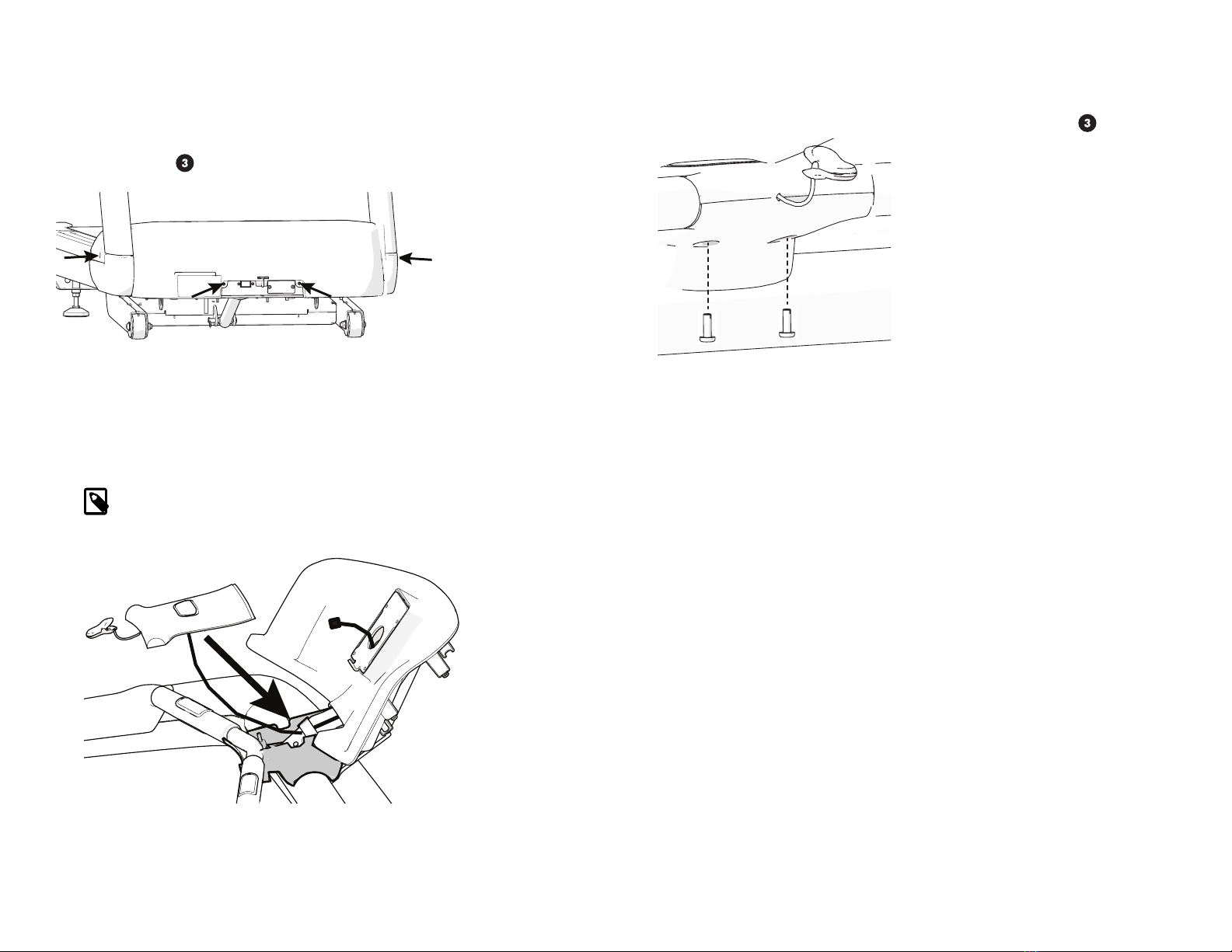

Attach the treadmill hood
Place the hood onto the treadmill. Using a #3 Phillips head screwdriver, attach it
using four screws . Fully tighten the fasteners.
Figure 18
To attach the safety key assembly:
1. Fit the bottom part of the safety key assembly onto the bottom of the dash
assembly and heart rate arms.
NOTE
Flex the plastic to snap it into place.
2. Position the top piece of the safety key assembly on top of the bottom part.
Figure 19
3. Route the cable under the black bar on the safety key assembly and up
through the dash (Figure 19).
4. Attach the top part of the safety key assembly using two screws .
Figure 20
11
