PR Lighting TANGO FRAMING User manual

TANGO FRAMING

PR-6611

The user manual contains important information about thesafe installation and use of a projector. Pleaseread and

followtheseinstructionscarefullyandkeepthe manualina safeplaceforfuturereference.

PR LIGHTING LTD.

http://www.pr-lighting.com

INDEX

SAFETYANDWARNINGS ………………………………………………………………………………………

INSTRUCTIONS……………………………………………………………………………………………………

APPEARANCE………………………………………………………………………………………………………

INSTALLATION……………………………………………………………………………………………………

SETUPANDCONFIGURATION……………………………………………………………………………………

OPERATIONMENU ………………………………………………………………………………………………

DMXPROTOCOL …………………………………………………………………………………………………

TECHNICALDATA ………………………………………………………………………………………………

CIRCUITDIAGRAM& PCBCONNECTIONS……………………………………………………………………

10.

COMPONENTORDERCODES……………………………………………………………………………………

ACCESSORIES

The followingitems are supplied withtheprojectorandpleasecheck:

Name

Quantity

Unit

Remark

Power cord

Safetycord

Pcs

User manual

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change

without notice. Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the

course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any

consequence arising from them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in

good condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not

use the unit. Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.

Any future technical change in the user manual won’t be with any notice.

Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the

delivery date but the light source is not within the warranty

1. SAFETYANDWARNINGS

NOTE

Before a projector’s installation, power-on, operation and maintenance, please carefully read

thesafety informationhereinafter!

Thefollowingsafetysignsareusedinthe usermanual.

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

High

Temperature

● When unpacking , check if there is transportation damage before using the projector. Should there be any

damage causedbytransportation,consultyourdealeranddonotuseit.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector as

he/she likes

●Please benoted thatthe damagecausedbychangingtheprojectoratwill isnot warranted.

●Do nothesitate to contact the dealer or the manufacturer if any questions or advice.

● The projector is forindooror outdoor use only, for its IPrating,pleaserefertoTechnicalData inusermanual.

● The projector should be keptindryplace, avoiddamp, over-heatandover-dustyplaces.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while being

operated

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the operation

must strictlyfollowtheproceduresinthe manual

●Norepairable partsintheprojectoranddo notopencovers for maintenancebyyourself.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyeswillbeburned.

●Do notconnect thisdevice to anytypeofdimmerpack

●Afterprojector switchedon,theminimumdistancebetween the projector and illuminated surfaceis 10m

●lens and other opticalpartsshall be replaced immediately if theyhave deformed or been damaged,otherwise the light

outputwillbe compromised.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a projector

whilecovers(housing)areoff

●Keepthelamp cleanand do not touchit withbare hands.

●While operatingit, wearprotective items.

●Any electrical connection must be carried out by a qualified person .

●Before installation, please confirm the voltage supplied matches what is required fortheprojector

●Each projector must be properly earthed andinstalled asperrelated electrical standards.

●Do not use power cord with its insulator damaged and connect the power cord with other cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefullyor bypullingthe

powercable.

●All power cords must conform to related safety and regulations

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other electrical parts’

lifewill beshortened.

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety cord supplied through

thesafetycordholesfor safetysupport.

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from power mains.

●After running for 5minutes under steady temperature, the temperature of the housing of the projector is 55℃.After stable

operation,itstemperatureis70℃.

●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not mean the projector

hassomedefects.

●During its use, don’t touch the covers with bare hands(theyare veryhot)!

●Do not mount the projector directly on inflammable surface.

●Do not project the beam straightly on combustible items and the minimum distance between the projector andilluminated items

is10m.

●A projector should be installed with good ventilation and the minimum distance between the projector and walls is 50cm. At the

sametime,pleaseensurethefansandairinletsandoutletsareworkable.

2. INSTRUCTIONS

●CLEANINGANDMAINTENANCE

The accumulationofoil, smokeanddustonthelenswillcompromisethelightoutput. Cleaningaprojectoris verynecessaryto ensure areliableuseofit.

The projector is of IP65(waterproof projector), unless approved by a professional technician to replace some internal components, it’s forbidden to

dismantleaprojector.

Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning work. It’s advised

externalopticalsystembecleanedevery20days.Keeplensclean anddonottouchopticalpartswithbarehands.

●Beforeanymaintenanceandcleaning,pleaseensuretheprojectisoffthepower

●Onlyqualifiedpersonisallowedtodomaintenance

●Duringmaintenanceandbefore maintenance, theprojectormust beoffpower.

●To avoid damage a projector internally, where it is in use or not, don’t let sunlight or other light beam penetrate through the

frontlens.

●Do not use alcohol or other organic solvent to clean the housingtoavoiddamage.

●Do not use any solvent with chemical elements to clean color filters or hot mirror.

●TROUBLESHOOTING

PROBLEM

ACTION

Theprojector can’t be switched on

Check ifthepowercordisconnectedwell.

Check if the switching power supply is bad or not connected well. A

professional technicianisrequired for therepair

Check if the control board is connected well. .Aprofessional technician

isrequired fortherepair

Theprojector canbeswitchedon,but the LED

lamp’s brightness can’t be controlled

Check if the LED driver board is connected well. A professional

technicianisrequired for therepair

The projectorcanbeswitchedonnormally,but

not controlledbytheDMXcontroller

Makesurethattheprojector’s start address is right

Replaceorrepair the XLRsignalcable.

The beamis not bright anditsbrightness

decreasessharply

Makesurethefansareworkingwellorfansandtheirshieldsarenotblocked

bydust.

3.APPEARANCE

4.INSTALLATION

●RIGGING

Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached to

eachclamp. Hang the fixture on the structure and fasten the screws attached to eachclamp. (See the WARNINGon the underside of

the base as shown above) To pass the SAFETY CORD throughthe HOLES for safety! Always ensure thatthe projector is firmly

anchored to avoid vibration and slipping whilstfunctioning. Always ensure that the structure that youare going to mount the projector

toissecure and strongenoughto support the weight of the unit.

(Ifa projectoris withwireless control function, while rigging, theantenna should facedownwards)

WARNING:

●The projectorMUSTbe lifted or carriedbytheHANDLESinstead ofclamps.

●.Forsafetythesafetycord should afford 10 times the Projector’s weight.

●POWERCONNECTION

HEAD

SUPPOR

BASE

SAFETY

CORD

SUPPOR

WARMING

Forsafety, please run thesafety

cords through safety holes and

ensuretheyarelockedwell.

Connectthepower cordasfollows:

L(live)=brown

E(earth) =yellow/green

N(neutral) =blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each

projector be connectedwithpowerseparatelyso that theymaybeindividuallyswitchedonand off.

Note: If projectors are connected in series, please connect POWERIN port of the 1st projector withthe Power Mains, then connect its

POWER OUT with POWER IN of the 2nd projector, and so on till all fixtures are connected.Ifthe voltage supplied is 200V-240V,

the maximum projectors connected is 8pcs, if it is 100V-120V, the maximum is 4pcs. The diameter of the cores of the wires for the

Power in/out cablesmust be equalorbiggerthan2.5mm2.

●The earth wire(yellow/green) must be connected to the ground. And electrical connection

mustbeinaccordancewiththestandardsconcerned.

●If any questions about the electrical installation, do not continue but consult a qualified

electrician.

●DMXCONTROLCONNECTION:

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with each

wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the projector)

or 5pin XLR plugsand sockets.The XLR's areconnected asshown in the figure above.

Note: care should be taken to ensure that none ofthe pins touchthe metallic bodyof the plug or each other. XLR plugs and sockets mustn’t

be connected in any way other than mentioned in the above figure. The XR330BWS accepts digital control signals in protocol DMX512

(1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second fixture’s

DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX terminator asshown

inthefigurebelow.

●DMXTERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output hasto be connected withaDMX terminator. This prevents electrical

noise fromdisturbingand corruptingtheDMXcontrol signals.

The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is then plugged into

4N/C

N/C

PIN FUNCTION

GND

3 DATA+

DATA-

DMX 512

2DATA-

DATA+3

1GND

FUNCTION

五芯

三芯

DMX OUT DMX IN

DMX IN

DMX OUT

theoutput socketonthelastprojectorinthechain.Theconnectionsare illustratedbelow.

5.SETUPANDCONFIGURATION

●FRONT PANEL OPERATION

Projector configuration canbe setconveniently viapushbuttonandLCDdisplay.

Launch the projector and press button ENTER for more than 3 seconds to unlockthe panel, the LCD will show the function menuof the

projector, each main menu has itssubmenus and each submenu has a specific function. For details, please see the “OPERATION

MENU” section.

To set up or browse through its functions, press buttonUP or DOWN

Pressbutton ENTER to saveyour settingsorenter thesubmenu.

Pressbutton UP or DOWN tochange values(plusor minus)

Pressbutton FUNC, it willreturnto theupper menu. Ifbutton FUNC notpressed, the defaultwill showdisplaystatusautomatically.

●DMXSTARTADDRESS

Each unit must be givena DMX startaddressso thatthe correctprojectorrespondsto the correct control signals. This DMXstartaddress is

the channel number from which the projector starts to “listen” to the digital control information being sent out from the controller. The unit

has 3 DMX modes. There are standard mode(29channles) ,short mode(26channles) and extended mode(39channles). For example

standard mode has 29 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 030, No. 3 projector’s address 059,No.4

projector’s address088,and so on.

Launchthe projector. Press button ENTER more than 3secondsto unlock panel.

Pressbutton ENTER to displayDMXaddress;

Pressbutton UP and DOWN,youcanset the address;

Pressbutton ENTER to confirm;after powered on nexttime, the default willbe last value saved

Pressbutton FUNC, it willreturnto the upper menu

●DMXWIRELESSCONTROL(Iftheprojectorhasthe function)

The projectorhaswireless controlfunction withwirelessreceiver moduleand antenna forremotecontrol.

The setup ofitisbelow:

1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN

2. Select DMX control Mode---- Wireless First (Note: do not select XLR ONLY),then wireless indication in the front

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor

across pins 2 and 3 in an XLR plug

and insert into the DMX out socket

on the last unit in the chain. PIN 3

PIN 2

panelwillbe on, meaning wireless controlfunction is activated.

Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press

“Enter” for the menu of Unlink Wireless under the upper level menu of Config Settigns .

●STAND-ALONEMODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the

projector will run in Stand-Alone mode automatically.

DMX address can be set at any number within 512.

●MASTER/SLAVEMODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,

connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second

fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the last

fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can be

set accordingly.

AfterPowered on,the group willruninMaster/Slave Mode

6. OPERATIONMENU

1st levelmenu

2nd levelmenu

3rd levelmenu

4th levelmenu

ADDR

(DMXaddress)

1-484

Rese

(Reset)

YES

CONF

DMX

DMX Mode

（Default：Standardmode ）

Std 29

(Standard mode)

Ext 38

(Extended mode )

Shor 26

(Short mode)

LOSS

(LossofDMXsignal)

（Default：Out）

Out

(Device shutoff)

Hold

(Holdlaststatus)

SIGS

(WirelessMode)

（Default：XLRFirst）

XLRF

(XLRfirst)

XLRO

(OnlyXLR)

Wi O

(Onlywireless)

WIF

(WirelessFirst)

WTOX

(WirelesstoXLR)

MORS

Master/Slave

（Default：SLAV）

Slav

(Slave)

Mast

(Master)

DISM

DisplayMode

（Default：Offafterdelay）

Dela

(Offafter delay)

(Always on)

DimA

(AllDimmer)

XXX

0-128

UNLW

(Unlinkwireless)

YES

ResL

(Resetlamphours)

YES

ResU

(Resetuser memory)

YES

ResO

(Resetoptions)

YES

FactS

(Factorysettings)

YES

ParT

(Parameterstransmitted)

YES

Opti

Options

CoLP

(Color wheelpositon)

（Default：Step）

Step

Linear

DimI

(Dimmer invert)

（Default：Off）

Off

ZooI

(Zoominvert)

（Default：Off）

Off

Info

PowH

(Power-on hours)

XXXX

VER

(Softwareversion)

AXXX

Displayboard X.X.X

CXXX

Driverboard 1 X.X.X

DXXX

Driverboard 2 X.X.X

EXXX

Driverboard 3 X.X.X

FXXX

Fan board X.X.X

TEMP

(Temperature)

HXXX

Headsensor

A XXX

Displayboard

CXXX

Driverboard 1

DXXX

Driverboard2

EXXX

Driverboard3

FXXX

Fanboard

DMXV

(DMXvalue)

Channel XXX=XXX

ESN

(ElectronicID.)

SN=XXXXXXXXXXXX

RDMD

(RDM version)

(RDM Devicelabel)

RDM

SENE

(Positionsensor)

Co1H

(Magnetsensor for colorwheel 1)

Co2H

(Magnet sensor forcolor wheel 2)

EFFH

(Magnet sensor foreffectwheel)

RGH

(Magnet sensor forrotatinggobowheel)

GRH

(Magnetsensorforgoborotation)

FOCH

(Magnet sensor forfocus)

ZOOH

(Magnet sensor forzoom)

PR1H

(Prism1)

RR1H

(Prism1 rotation)

PR2H

(Prism1)

RR2H

(Prism2 rotation)

TEST

SelT

(Selftest)

YES

Stro

(Strobe)

Open

Str1

Strobe1

Str2

Strobe2

Co1W

(Color wheel1)

Whit

White

Col1-Col6

color1-6

Rota

Forwardrotation

Reve

Reverserotation

Co2W

(Color wheel2)

Whit

White

Col1-Col6

color1-6

Rota

Forwardrotation

Reve

Reverserotation

R-G

(Rotatinggobowheel)

White

GOB1-6

Gobo 1-6

Rota

Forwardrotation

Reve

Reverserotation

SHA1-6

Shakeeffect1-6

R-G

(Goborotation)

Stop

Rota

Forwardrotation

Reve

Reverserotation

This manual suits for next models

Table of contents

Other PR Lighting Lighting Equipment manuals

PR Lighting

PR Lighting XL 1500 User manual

PR Lighting

PR Lighting XR 1400 Framing User manual

PR Lighting

PR Lighting XLED 4007 BEAM User manual

PR Lighting

PR Lighting TANGO SPOT User manual

PR Lighting

PR Lighting AQUA 580 BWS User manual

PR Lighting

PR Lighting AQUA 380 BEAM User manual

PR Lighting

PR Lighting PR-2203 XR 200 User manual

PR Lighting

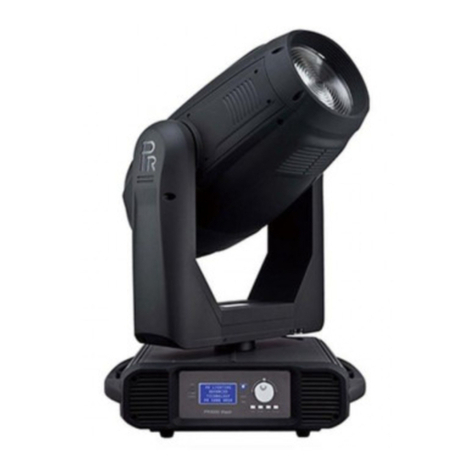

PR Lighting PR5000 User manual

PR Lighting

PR Lighting AQUA LED 3000-W FRAMING User manual

PR Lighting

PR Lighting AQUA 380 BWS User manual

PR Lighting

PR Lighting XR130 Beam User manual

PR Lighting

PR Lighting Mega Colour 2500 User manual

PR Lighting

PR Lighting PR-8170A User manual

PR Lighting

PR Lighting PR5000 User manual

PR Lighting

PR Lighting PR-8121 User manual

PR Lighting

PR Lighting XR250 User manual

PR Lighting

PR Lighting ARC LED 372 User manual

PR Lighting

PR Lighting Junior JNR-8142D User manual

PR Lighting

PR Lighting XPar 360 User manual

PR Lighting

PR Lighting PR-2001L User manual

PR Lighting

PR Lighting CHAMELEON PR-2012H User manual

PR Lighting

PR Lighting XR 230 Beam User manual

PR Lighting

PR Lighting XPAR 354 User manual

PR Lighting

PR Lighting PR-8920 User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
