PR Lighting AQUA LED 3000-W FRAMING User manual

AQUA LED 3000-W FRAMING

PR-8139

This product manual contains important information about the safe installation and use of this projector.

Pleaseread and followthese instructions carefullyand keepthismanualinasafeplaceforfuturereference.

PR LIGHTING LTD.

http://www.pr-lighting.com

INDEX

1. SAFETYANDWARNINGS……………………………………………………………………………………

2. INSTRUCTIONS………………………………………………………………………………………………

3.APPEARANCE…………………………………………………………………………………………………

4.INSTALLATION…………………………………………………………………………………………………

5.SETUPANDCONFIGURATION………………………………………………………………………………

6.OPERATION MENU……………………………………………………………………………………………

7.DMXPROTOCOL………………………………………………………………………………………………

8.SINGSONTHETOUCHSCREEN……………………………………………………………………………

9.ERRORMESSAGES……………………………………………………………………………………………

10.TECHNICALDATA……………………………………………………………………………………………

11.CIRCUITDIAGRAMANDPCB CONNECTIONS……………………………………………………………

12.COMPONENTORDERCODES………………………………………………………………………………

The following items are suppliedwith theprojector andplease check:

Name

Quantity

Unit

Remark

Gclamp

Pcs

XLRconnector

Set

Maleandfemale

Safetycord

Pcs

User manual

Ω clamp

Pcs

Optional

Power cord

Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change

without notice. Whilstevery careistakeninthe preparationof themanualwereservetherighttochange specificationsin the

course of product improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any

consequencearisingfromthem.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are

in good condition before installation anduse. Should there be any damage caused by transportation, consult your dealerand

donotusetheunit.Anydamagecausedby improperuse will notbeassumedbythemanufacturerand/ordealer.

Anyfuturetechnicalchangesarenotsubjecttofurthernotice.

Note: Forthe products made by Guangzhou PR lighting Ltd, the warranty forthe whole product is one yearstarting from

the deliverydate butthelight sourceisnotwithinthewarranty.

1. SAFETYANDWARNINGS

NOTE

Before a projector’s installation, power-on, operation and maintenance, please carefully read

the safety information hereinafter!

Thefollowingsafetysignsareusedintheusermanual.

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

High

Temperature

● When unpacking , check if there is transportation damage before using the projector. Should there be any

damagecausedbytransportation,consultyour dealeranddo notuseit.

●The manufacture is not responsible for loss caused by the user not following the manual or changing the

projectoras he/shelikes.

●Please be noted that the damage caused by changing the projector atwill is not warranted.

● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.

● The projector is ratedasIP66.

●The projector canbe used over-dustyanddamp places.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

beingoperated.

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operationmuststrictlyfollowtheproceduresinthemanual.

●The projector is not for a user for any replacements and the user shouldn't open the projector for repair and

maintenance.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyeswillbeburned..

●Do notconnectthisdevice to anytypeofdimmerpack.

●Ifthelamp, lensandscreenprotectivecoverofthea lightingfixturehaveobviousdamage,i.e.,to theextentthat

ithurtstheperformancelikecrackingordeformation.Please stopuse itand replacethemwiththeoriginalparts,

otherwise itsperformance willbecompromised.

● For the location of a lighting fixture, it shouldn’t be seen in the distance of less than 4 meters.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projector whilecovers(housing)areoff.

●Keepthe lampcleananddo not touch itwithbare hands.

●Whileoperatingit,wear protective items.

●Anyelectrical connectionmustbecarriedoutbyaqualifiedperson.

●Before installation,pleaseconfirmthe voltagesupplied matcheswhat isrequired forthe projector.

●Eachprojectormustbeproperlyearthed and installedasperrelatedelectrical standards.

●Do notuse power cord withits insulator damaged and connect thepowercord withother cables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefullyor

bypullingthepower cable.

●Allpower cordsmustconformtorelatedsafetyandregulations.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electrical parts’ life will be shortened .

●There are safety cord holesat the bottom ofthe base ofa projector. In view of safety, please run the safety cord

suppliedthroughthesafetycord holesforsafetysupport.

●Beforeanyinstallation,maintenanceandcleaningwork,pleaseensuretheprojector isdisconnected frompower

mains.

●.After stable operation under normal ambient temperature ,the temperature of the external surface of the housing

ofaprojector(thesurfaceoftheheatsink)is80℃after thestablerunning.

●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not

mean theprojector has some defects.

●Whiletheprojectorrunning,donnottouchthe metallichousing toavoidbeingburned.

●Do notmounttheprojectordirectlyoninflammablesurface.

●Do notprojectthebeamstraightlyoncombustibleitemsandtheminimumdistancebetweentheprojector

andilluminateditemsis5m.

●A projector should be installed with good ventilation and the minimum distance between the projector and

wallsis50cm.At the sametime,pleaseensure thefansand airinlets andoutlets are workable.

●Do not let the front lens exposed to sunlight or other strong light sources at anyangle, otherwise beam focused

inside via the frontlenscanresultinfire.

●TheproductmeetsTheGeneralTechnicalRequirementsandStandards for Recycle and UseOfExpired

ApplianceandElectronicProducts.

●Whentheproductmeetsdisposalstandardsand needsto bedisposed,aclientneedstodisposeandrecycle it.

2.INSTRUCTIONS

●CLEANINGANDMAINTENANCE

If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the

projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the

projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,

restart theprojector.

The accumulationof oil, smoke and dust on the lens, heat sink and fans will compromise the light output. Cleaning a projector is

verynecessarytoensureareliableuseofit.

The cleaning frequency of cooling fans and heatsink is decided by the operations, environment and climate. It is advised to clean

itevery15daysorless. Userubberorbushorothernon-metallic tools to carry out cleaning. The tools can’t scratch or deform the

heat sinkand fans.

Cleaningfrequencyis to bedecided by operations and itsenvironment. Use softclothand normaldetergent for glassfor cleaning

work. It’s advised external optical system be cleaned every 20days. Keep lens clean and do not touch optical parts with bare

hands.

SPECIALNOTE:

It’s normal phenomena that there will be mild water mist on the lens while the waterproof product is in use.

●Before any maintenance and cleaning, please ensure the project is off the power.

●Only qualified person is allowed to do maintenance.

●During maintenance and before maintenance, the projector must be off power.

●To avoid sunlight or other light penetrating into the head via the front lens, resulting in high temperature internally

causing damagesto theprojector. Beforepower-off, please useTiltchannel to move the headand make itfacing

downward.

● Do notusealcoholorotherorganic solvent to cleanthe housing to avoiddamage.

● Do notuseany solventwith chemical elementstoclean color filtersor hot mirror.

●LUBRICATION

To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 2 sliding bars for zoom and

focuslensbelubricated every2 months. Highquality and hightemperature lubricant/grease is advised..

●TROUBLESHOOTING

PROBLEM

ACTION

Theprojectorcan’t be switched on

Check ifthe fuse isburned

Check ifthe power cord isconnected well

Check if the switching power supply is bad or not connected well. A

professionaltechnicianisrequired for therepair

Check if the control board is connected well. .Aprofessional technician

isrequiredfortherepair

Theprojectorcanbe switchedon,buttheLED

lamp’s brightness can’t be controlled

Check if the LED driver board is connected well. A professional

technicianisrequired fortherepair

Theprojectorcanbe switched onnormally,but

notcontrolledbytheDMXcontroller

Makesurethatthe fixture’s start address is right

ReplaceorrepairtheXLRsignalcable.

Thebeamisnotbright and itsbrightness

decreasessharply

Makesurethefansareworkingwellorfansandtheirshieldsarenotblocked

bydust.

Makesurethattheinternalopticsisclean.

Theprojectimageappearsto have ahalo

CarefullycleantheLEDlamp,opticallensesandothercomponents.

HeavilyDefectiveBeam

Check if lensareingoodcondition(notcracked)

Cleandustorgreaseonthelens.

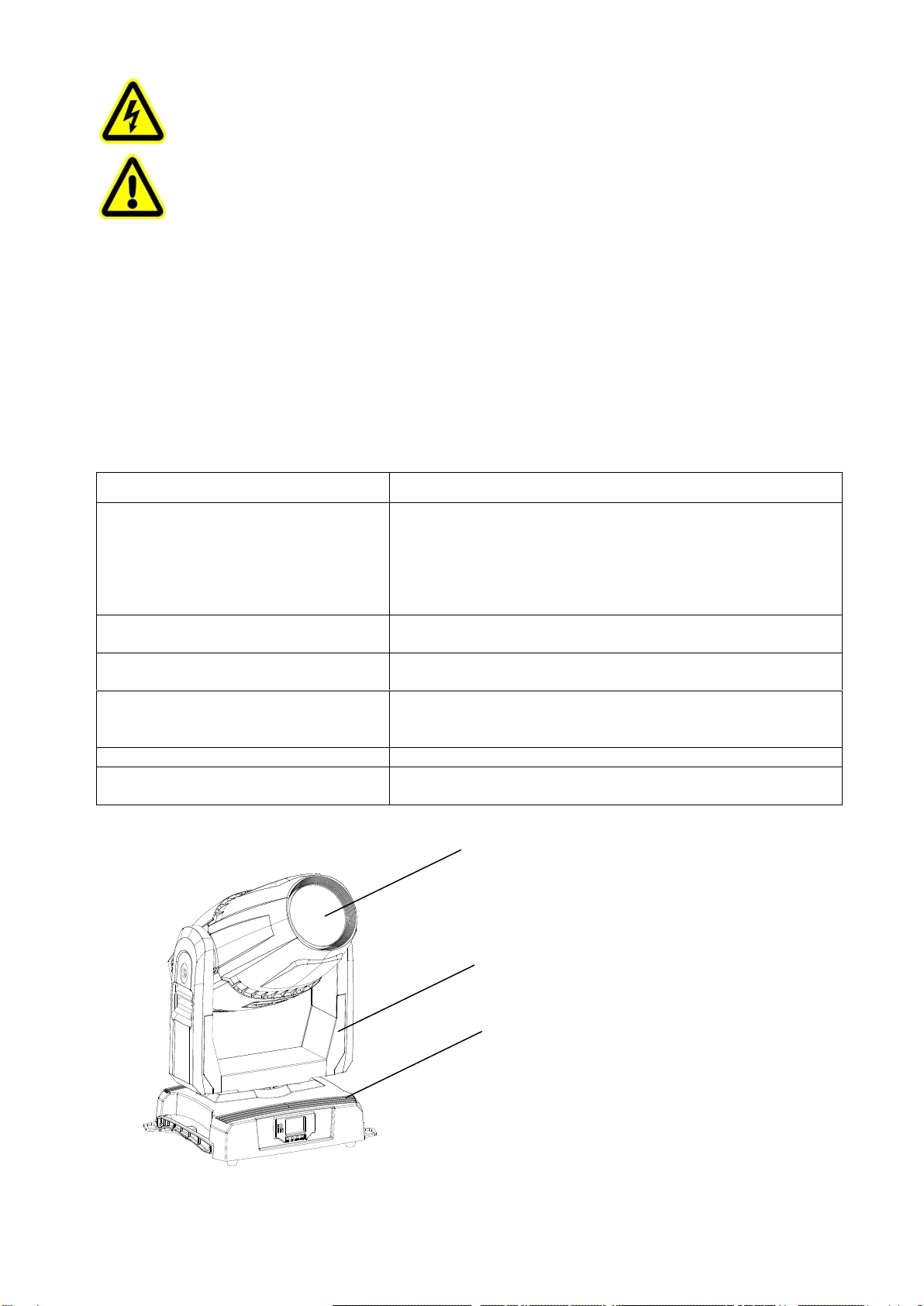

3. APPEARANCE

Head

Arm

Base

3PIN

DMX512

PIN FUNCTION

1 GND

2 DATA-

3 DATA+

DMX INDMX OUT

234

432

5PIN

DMX512

PIN FUNCTION

1 GND

2 DATA-

3 DATA+

4 N/C

5 N/C

DMX IN

DMX OUT

4. INSTALLATION

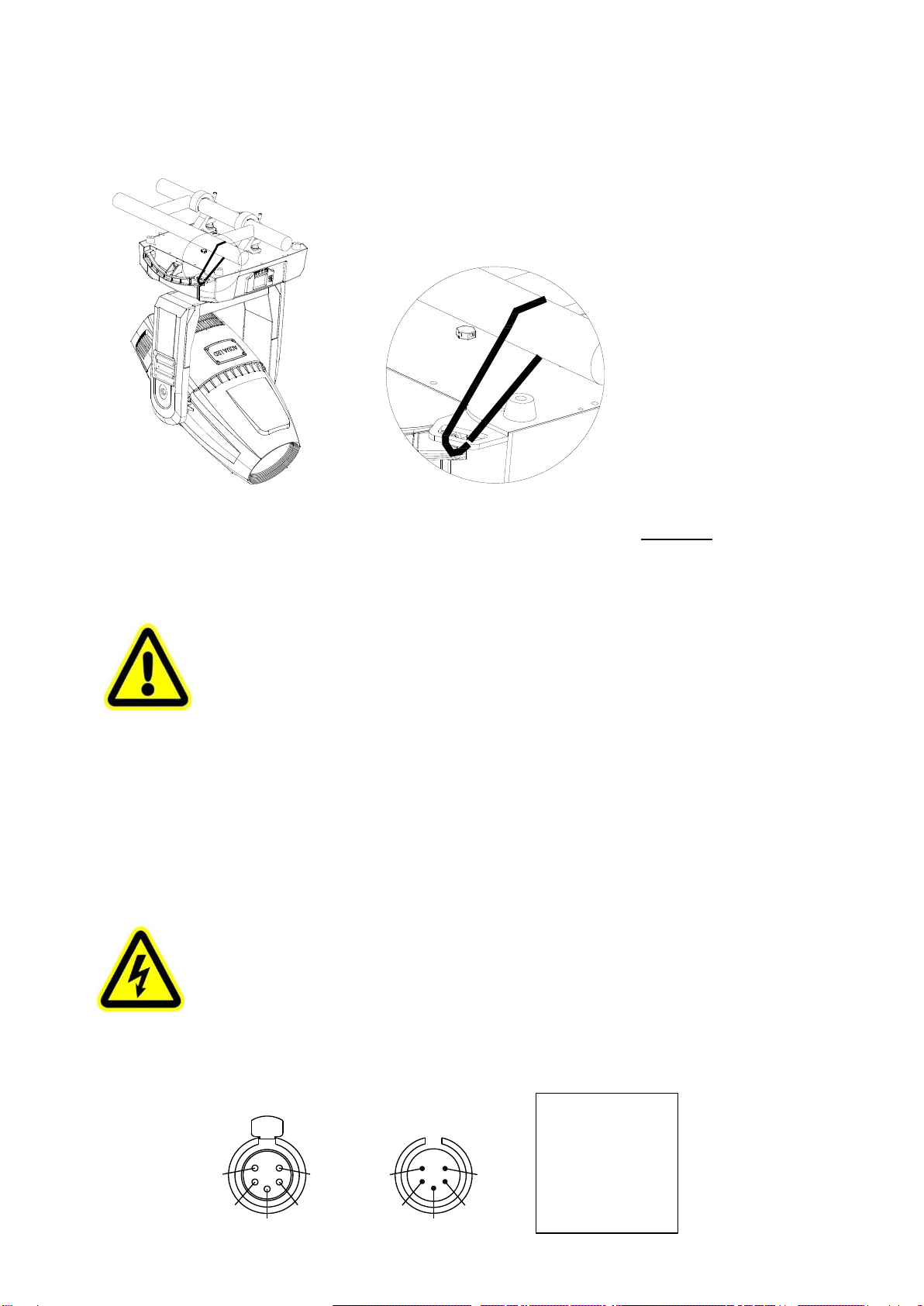

●RIGGING

During transportation, please lock the projector well; Before the use of projector please unlock the head. It’s forbidden to run the

projector withoutunlock PanandTilt

Take 2 clamps and 2 safety cords out from the package and mount 2 clamps on the underside of fixture with 4 retainers attached to

each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the underside of

the base as shown above) Always ensure that the projector is firmly anchored to avoid vibration and slipping whilst functioning.

Always ensure that the structure that youare going to mount the projector is secure and is strong enough to supportthe weight ofthe

fixture.

WARNING:

●TheprojectorMUSTbeliftedorcarriedbythe HANDLESinsteadofclamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

●.Forsafety, it should notbe hungbyitssides.

●POWERCONNECTIONS

Connectthepowercord as follows:

L(live)=brown

E(earth) =yellow/green

N(neutral)=blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each

projectorbe connected withpowerseparatelyso thatthey maybeindividuallyswitchedonandoff.

●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in

accordancewiththe standardsconcerned.

●Ifanyquestionsabout the electricalinstallation,donotcontinuebutconsult aqualifiedelectrician.

● The lighting fixture is with waterproof power socket, it should be equipped with same IPrating power

plug.

●DMX CONTROLCONNECTION

WARNING

Please run safety cord through

thesafetyholetoensuresafety.

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with

each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the

projector)or5pinXLRplugsand sockets.TheXLR'sareconnectedas showninthefigureabove.

Note: care should be taken to ensure that none of the pins touch the metallic bodyof the plug or each other. XLR plugs and sockets

mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol

DMX512(1990).

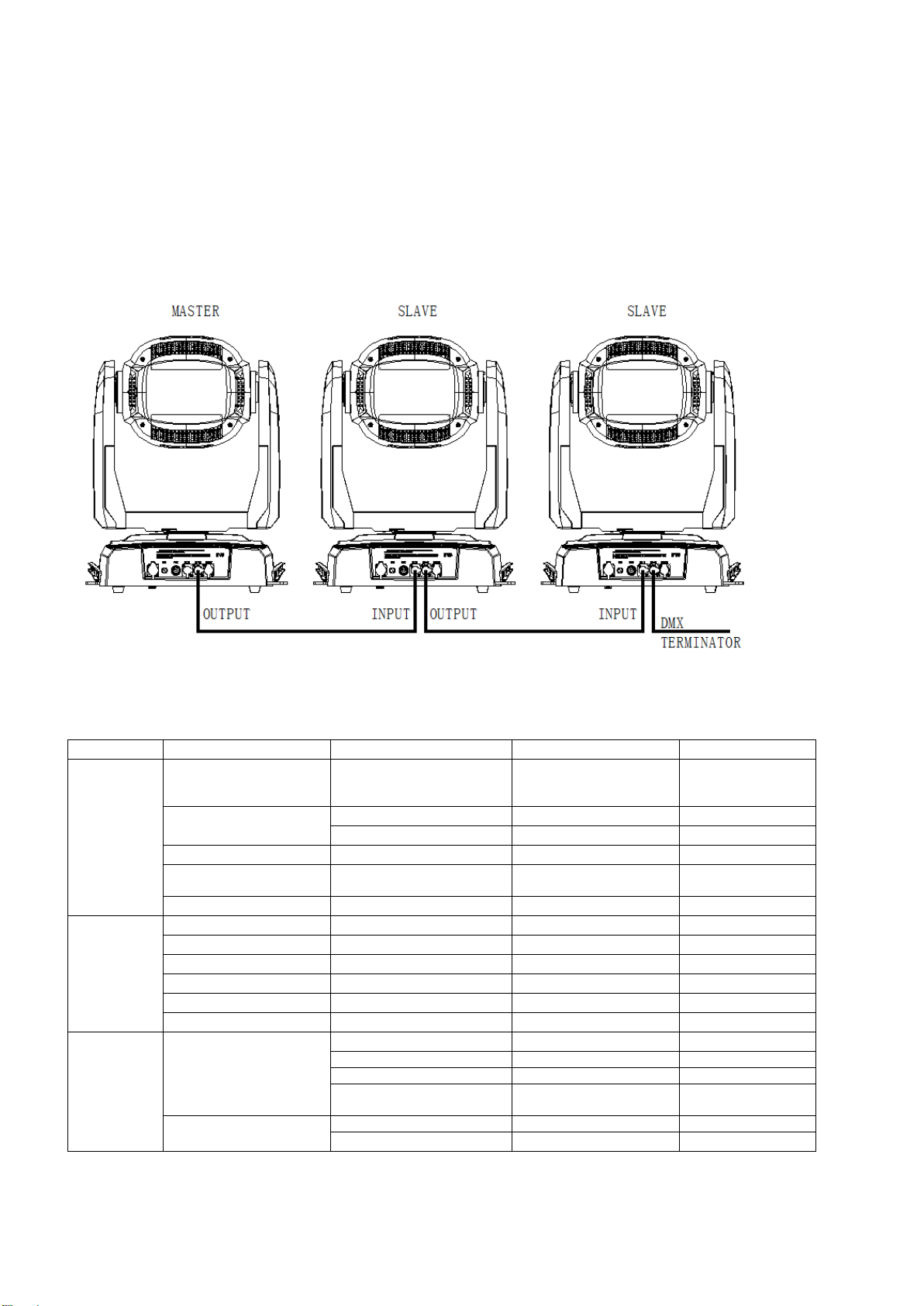

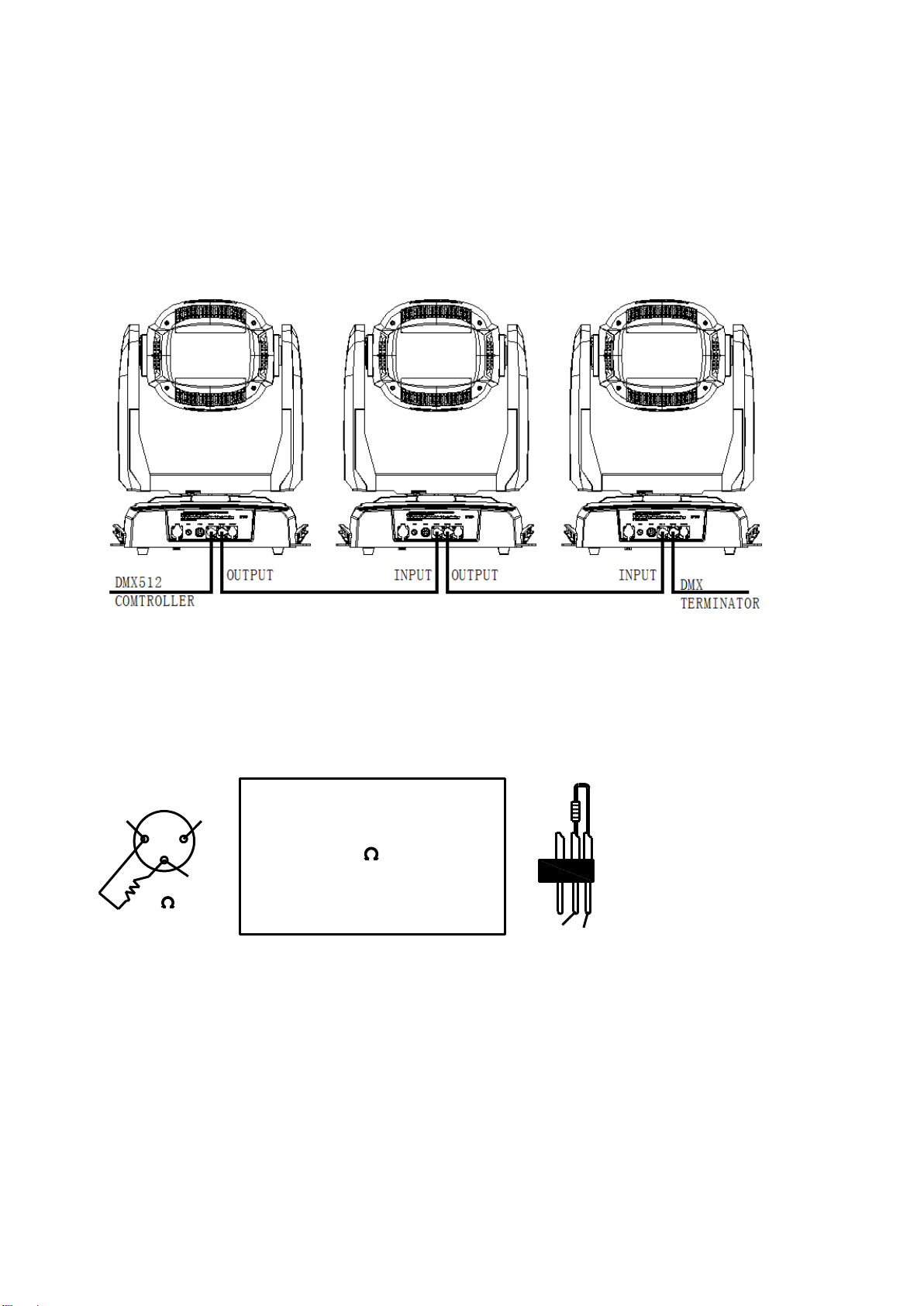

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second

fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX

terminatorasshowninthefigurebelow.

●DMXTERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents

electrical noisefromdisturbingandcorruptingtheDMXcontrolsignals.

The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is thenplugged

intotheoutputsocket onthe lastprojector in the chain.The connectionsare illustrated below

●REPLACEMENTOFGOBOS

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor

across pins 2 and 3 in an XLR plug

and insert into the DMX out socket

on the last unit in the chain. PIN 3

PIN 2

图案片安装滤色片安装

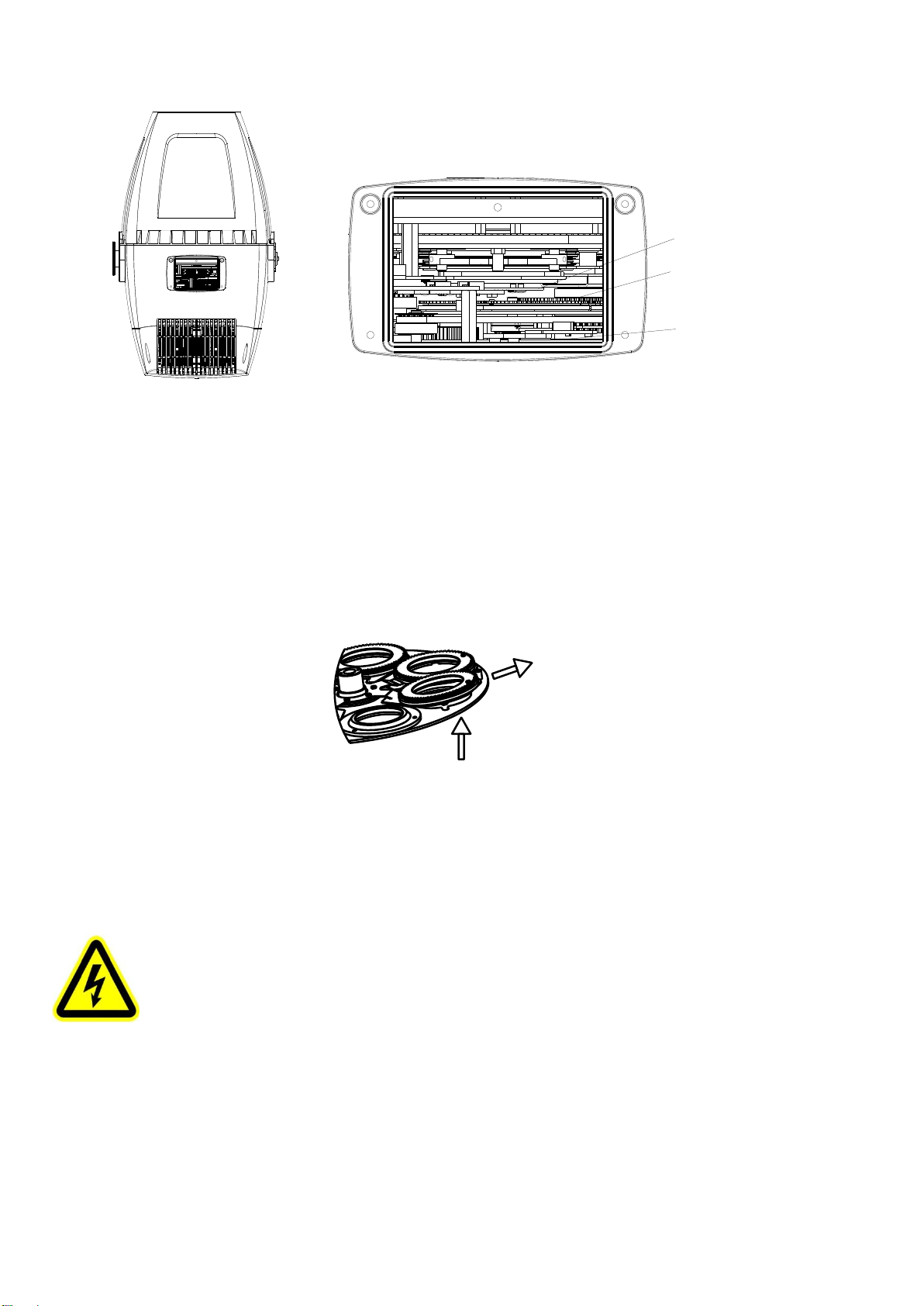

Lock the tilt and loosen the 4 fast-fit screws on the upper cover ,After removing the cover, you will see the structures as the figure

above.

To replace a gobo on the rotating gobo wheel: take the rotator from the wheel in the sequence of 1→2 , take the gobo out from the

rotator by removing the tightening spring. Put the new gobo back to the rotator, then tighten it with the spring. Please ensure the

spring is in the narrow location of the rotator, whichis the internal ring ofit and flatten it. At last, pull up the springstrip using proper

tool and put the rotator back to the wheel with the assistance by another hand. Its installation is of the opposite sequence of

removal(（2→1）.

NOTE:Do nottouchtheglassgobo withbare hand.Placecleanandsoftpaperorclothbetweenhand and glassgobos.

Tighten4 hexagonscrewsafterthe coverison.Unlockthetilt.

DANGER!

BEFORE REPLACEMENT OF GOBOS/COLOR FILTERS, A PROJECTOR MUST BE OFF THE

POWER!

Fixgobowheel

Rotatinggobowheel

Colorwheel

Gobo Installation

5.SETUPANDCONFIGURATION

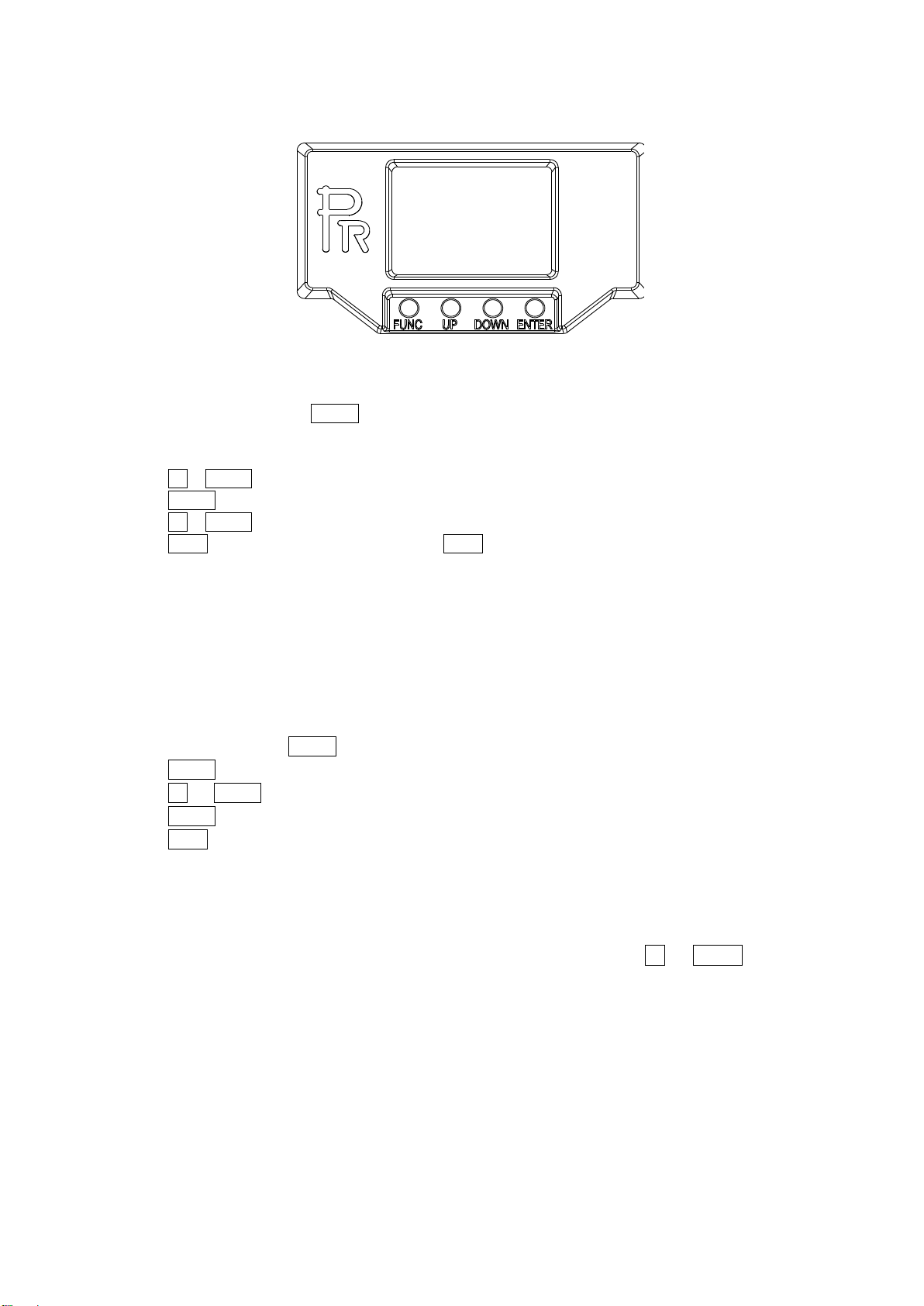

●FRONTPANELOPERATION

Projectorconfigurationcanbesetconvenientlyviapushbuttonandcolortouchscreen.

Launch the projector and press button ENTER for morethan 5 secondsto unlock the panel, the LCD will show the function menuof

the projector, each main menu has its submenus and each submenu has a specific function. For details, please see the

“OPERATION MENU” section.

Pressbutton UP or DOWN ifyouwanttobrowsethroughthevariousSetupOptions.

Pressbutton ENTER to save your settingsorenterthesubmenu.

Pressbutton UP or DOWN tochangevalues(plusorminus)

Pressbutton FUNC,it will returnto the upper menu.Ifbutton FUNC notpressed, thedefault willshowdisplaystatusautomatically.

●DMX STARTADDRESS

Eachprojector must be givena DMX start address so that the correct projector responds to the correct controlsignals.ThisDMX start

address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the

controller. The projector has 3 DMXmodes. There are short mode ,standard mode and extended mode. For example standard mode

has 38 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 039, No. 3 projector’s address 077, No. 4

projector’s address115, and so on.

Launch theprojector. Pressbutton ENTER morethan3secondsto unlockpanel.

Pressbutton ENTER todisplayDMXaddress;

Pressbutton UP and DOWN, youcanset theaddress;

Pressbutton ENTER to confirm;afterpoweredonnexttime,thedefault willbe lastvalue saved

Pressbutton FUNC, itwillreturnto the uppermenu

●DMXWIRELESSCONTROL

Theprojector has wirelesscontrolfunction with wirelessreceivermoduleandantenna for remotecontrol.

The setupofitisbelow:

1. Enter into the projector’s menu. Select the menu “Config Settigns” via the bottoms of UP and DOWN

2. Select DMX control Mode---- Wireless First (Note: Do not select XLR ONLY). The DMX wireless control

function is activated.

Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press

“Enter” for the menu ofUnlinkWirelessunderthe upperlevel menuofConfigSettigns.

●STAND-ALONEMODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the

projector will run in Stand-Alone mode automatically.

DMX address can be set at any number within 512.

●MASTER/SLAVEMODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,

connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR controlcable and then connect the second

fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the

last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation modecan

besetaccordingly.

AfterPoweredon,thegroup willrunin Master/SlaveMode

6. OPERATIONMENU

1st LEVEL

2ndLEVEL

3rdLEVEL

4thLEVEL

5thLEVEL

Address

DMXAddress

1-478（ShortMode）

1-475（StandardMode）

1-459（ExtendedMode）

IP Address

DefaultIPAddress

2.X.X.X/10.X.X.X

CustomIPAddress

X.X.X.X

SubNetMask

X.X.X.X

ArtNet

ArtNetUniverse

0-255

sACNUniverse

1-63999

Reset

Total Reset

ReallyReset?

Confirm/Cancel

Pan&TiltReset

ReallyReset?

Confirm/Cancel

ColourSystemReset

ReallyReset?

Confirm/Cancel

GoboReset

ReallyReset?

Confirm/Cancel

Zo.Fo.Fr.Pr.Reset

ReallyReset?

Confirm/Cancel

OtherReset

ReallyReset?

Confirm/Cancel

ConfigSettings

DMXChannelMode

ShortMode35CH

StandardMode38CH

ExtendedMode54CH

ViewSelected Mode

Strobe

…..

Signal Select

XLROnly

XLRFirst

This manual suits for next models

Table of contents

Other PR Lighting Lighting Equipment manuals

PR Lighting

PR Lighting PR-2001L User manual

PR Lighting

PR Lighting XR130 Beam User manual

PR Lighting

PR Lighting XLED 590 User manual

PR Lighting

PR Lighting XR 1400 Framing User manual

PR Lighting

PR Lighting XR 200 BEAM Guide

PR Lighting

PR Lighting ARC LED 372 User manual

PR Lighting

PR Lighting PR-8846 User manual

PR Lighting

PR Lighting PR-8121 User manual

PR Lighting

PR Lighting PR-111ER MOON User manual

PR Lighting

PR Lighting PR5000 User manual

PR Lighting

PR Lighting XL 1500 User manual

PR Lighting

PR Lighting AQUA 380 BWS User manual

PR Lighting

PR Lighting XR250 User manual

PR Lighting

PR Lighting XR 230 Beam User manual

PR Lighting

PR Lighting LS150 TREE User manual

PR Lighting

PR Lighting PR-8836 User manual

PR Lighting

PR Lighting PR-2330 User manual

PR Lighting

PR Lighting XL 1500 User manual

PR Lighting

PR Lighting DESIGN 150 User manual

PR Lighting

PR Lighting CUBIX300 User manual

PR Lighting

PR Lighting AQUA 380 BEAM User manual

PR Lighting

PR Lighting PR-8920 User manual

PR Lighting

PR Lighting Junior JNR-8142D User manual

PR Lighting

PR Lighting PR-2203 XR 200 User manual

Popular Lighting Equipment manuals by other brands

Brizo

Brizo 8SP-MU-4 manual

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 installation instructions

IKEA

IKEA BJÖRKSPIREA manual

Laserworld

Laserworld Evolution Series ES-400RGB manual

Alien

Alien RG STAR user manual

EuroLite

EuroLite LED B-40 user manual

Qazqa

Qazqa Suplux SL 3 Black 103062 instruction manual

Commercial Electric

Commercial Electric 54568141 Use and care guide

CREE LIGHTING

CREE LIGHTING 304 Series installation instructions

Goobay

Goobay 49867 user manual

ECOMAN ITALIA

ECOMAN ITALIA LED T8 instruction manual

Alkalite

Alkalite Krypton KT-81 user manual

Clas Ohlson

Clas Ohlson GU10 manual

DTS

DTS DELTA 10 F user manual

ring

ring Solar Steplight manual

One Stop Gardens

One Stop Gardens 57696 Owner's manual & safety instructions

Chauvet DJ

Chauvet DJ COREpar UV120 ILS user manual

SIREM

SIREM Swimeo A2 instructions
