PowerLeap PL-P4/N™Quick
QuickQuick
Quick Start Guide
Pentium™4 Socket 423 to Pentium™4/P4-Celeron™Socket 478 Upgrade Adapter
The PL-P4/N™ is a unique Socket 423 to Socket 478 CPU upgrade adapter; it will automatically set the appropriate core voltage
and multiplier for your new Socket 478 Pentium™ 4 or P4-Celeron CPU.
The PL-P4/N™supports the “Northwood” core-based Socket 478 Pentium™4 (512KB L2 cache) CPUs, the “Willamette”
core-based Socket 478 Intel Pentium™ 4 (256KB L2 cache) and the P4-Celeron™(128KB L2 cache, 1.7GHz and up) CPUs.
To insert a new Socket 478 Pentium™ 4 or P4-Celeron CPU into the PL-P4/N™:
1. Place your new Intel Pentium™ 4/Celeron CPU into the 478-pin ZIF (Zero Insertion Force) socket on the PL-P4/N™
adapter. You need to lift the arm of the ZIF socket up to accommodate the CPU, and then put the arm down to lock it.
2. Verify that the pin 1 alignment is correct. Important: If the CPU does not easily fit into the socket, do not force it.
Inserting a new Socket-478 CPU into the
PL-P4/N onboard CPU socket. Removing the original heatsink/fan and
CPU, then insert the PL-P4/N into the ZIF
Socket-423.
Locking the arm of the ZIF Socket down,
thus the PL-P4/N will seat firmly.
Inserting the supplied power cable to the
PL-P4/N power connector. Putting the Powerleap heatsink/fan on top
of the new PL-P4/N CPU. Hooking the clip of the PL-P4/N customized
heatsink/fan.
To install the PL-P4/N™ in a 423-pin Pentium™ 4 ZIF socket:
1. Unplug the computer and remove the computer cover.
2. Lift the arm of the computer’s ZIF socket and remove the original Socket 423 Pentium™ 4 CPU and its heatsink/fan.
3. Install the PL-P4/N™ into your computer’s ZIF socket. Lock the PL-P4/N™ into the ZIF socket by pressing the socket
arm down, then attach the supplied power cable to the PL-P4/N’s power connector. Note that you need to connect the
other end to the power connector of the main power-supply unit.
4. The photo shows using the Powerleap® customized HSF (heatsink/fan). If you want to use the original Socket-423
HSF, please refer to the “Appendix” (Using our screw tool to raise the height of the retention mechanism).
Quick Start Guid
e
5. Attach the heatsink/fan clip to the hood on the motherboard. Note: Due to the added height of the CPU with the
PL-P4/N™, PowerLeap® has custom-designed the heatsink/fan for the PL-P4/N™ as an option.
6. Carefully attach the power cables for the heatsink/fan to the power connector on the mainboard. Power on, and you
have your Pentium™-4 PC “Powerleaped”!
Troubleshooting and Tips:
If the PL-P4/N™ doesn’t work (blank screen), most likely the CPU and its power cable are NOT well connected (if you
installed the CPU by yourself). Please reseat them firmly.
If the system stops after the memory count or during system initialization, use more conservative BIOS settings for the
main memory and cache memory (i.e., change the “CL=2” setting to “CL=3”), and load the “Fail-Safe” settings or “BIOS
Default Values” option in the BIOS setup.
If your BIOS can’t detect and report the new CPU speed and type, or displays an error message during POST (but the
system boots and operates normally), please just ignore it. The old BIOS was programmed long before the newer CPU
became available. This won’t affect the performance or compatibility at all. Please use software such as WCPUID
(www.h-oda.com) or SiSoftware Sandra (www.sisoftware.demon.co.uk/sandra/index.htm) to identify the new CPU.

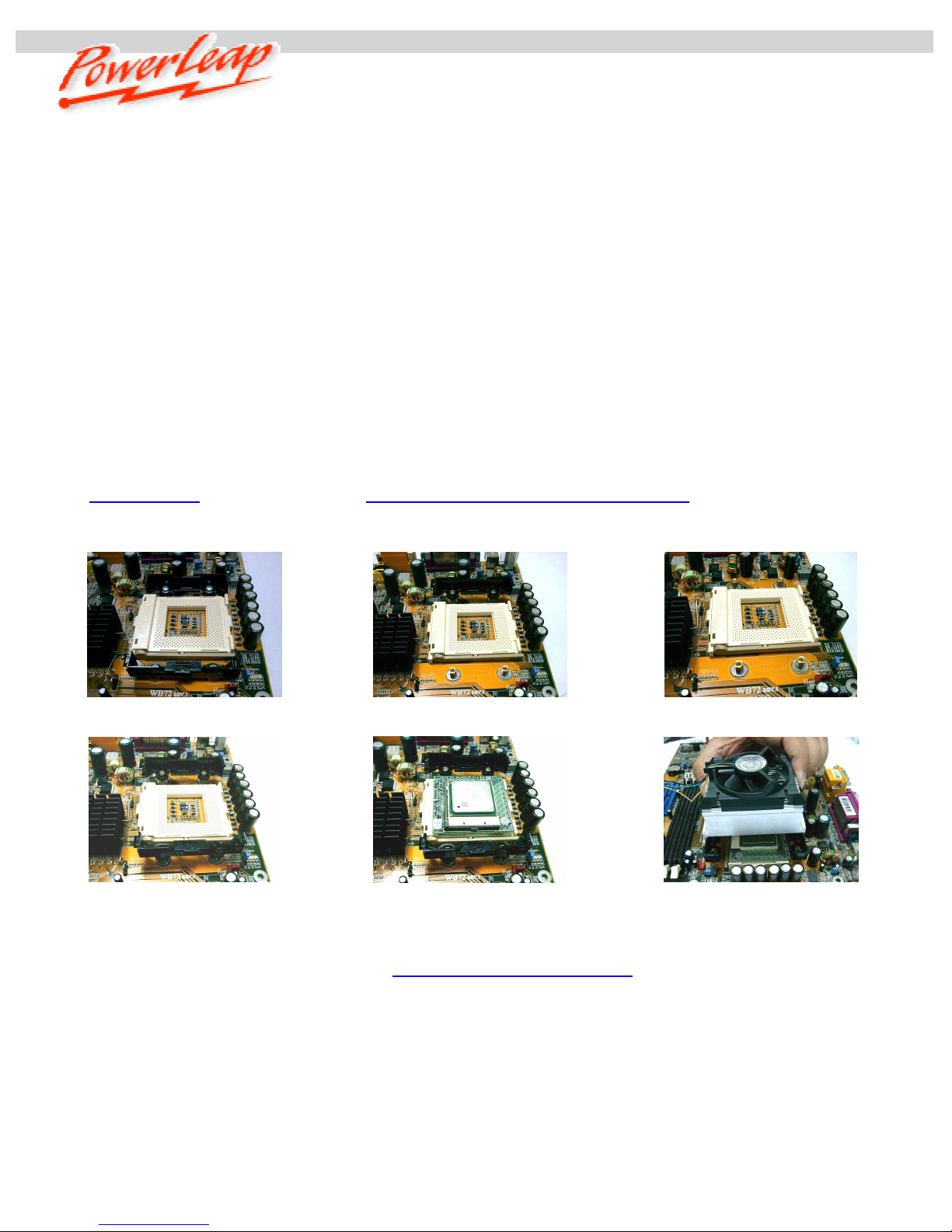

Appendix: Use the original Intel Socket-423 Heatsink/fan by adding our screw tools
Step-1 Step-2 Step-3
Step-4 Step-5 Step-6
Visit our online technical support area at www.powerleap.com/support
Copyright 2002 PowerLeap Products, Inc. All Rights Reserved. PowerLeap is a registered trademark of
PowerLeap Products Inc. PL-Neo/T is a trademark of PowerLeap Products Inc. Intel, MMX, and Pentium are
registered trademarks of Intel Corporation. Other product names mentioned herein are used for identification
purposes only and may be trademarks and/or registered trademarks of their respective companies. The information
in this document is subject to change without prior notice in order to improve reliability, design and function and does
not represent a commitment on the part of the manufacturer.
