POSIFLEX PS-3415 User manual
1
Package Contents
Fanless LCD touch terminal…….(x 1)
Power adaptor…………………...(x 1)
Power cord………………………(x 1)
User Manual……………………..(x 1)
Recovery DVD………………….(x 1)
(for pre-loaded OS model only)
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct
the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than
the authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise.
The manufacturer is by no means responsible for any damage or hazard caused by improper
application.
警告使用者
此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況
下，使用者會被要求採取某些適當的對策。
SAFETY INSTRUCTIONS
This equipment is not suitable for use in locations where children are likely to be present.
PS-3415/3415E
Fanless LCD Touch Terminal
User Manual
13110902040 Ver. C0
2
CONSIGNES DE SÉCURITÉ
Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des
enfants.
BATTERY CAUTION NOTES
Dispose of used batteries according to the instructions.
Replacement of a battery with an incorrect type that can defeat a safeguard (for
example, in the case of some lithium battery types)
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a
battery that can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment that
can result in an explosion or the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure that may result in an explosion or
the leakage of flammable liquid or gas.
BATTERIE ATTENTION NOTES
Jetez les piles usagées conformément aux instructions.
Remplacement d'une batterie avec un type incorrect qui peut annuler une sauvegarde
(par exemple, dans le cas de certains types de batterie au lithium)
Mise au rebut d'une batterie dans le feu ou dans un four chaud, ou écrasement ou
coupure mécanique d'une batterie pouvant entraîner une explosion.
Laisser une batterie dans un environnement environnant à des températures
extrêmement élevées pouvant entraîner une explosion ou la fuite de liquide ou de
gaz inflammable.
Une batterie soumise à une pression atmosphérique extrêmement basse pouvant
provoquer une explosion ou une fuite de liquide ou de gaz inflammable.
警告
本電池如果更換不正確會有爆炸的危險，請依製造商說明書處理用過之電池。
Product Features
Fanless terminal
Intel® Celeron® Bay Trail J1800 Celeron processor, up to 2.58 GHz,
Dual Core, 1MB Cache for PS-3415 /
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) for PS-
3415E
Foldable base that allows PS Series to be configured into different
configurations
Projected-capacitive touch
Integrated structure for side mount upgrade kit:
SA-105/205/305/405/505; back mount display: LM-6807U / 6810U and
PD-360R/360UE/2609UE/6807U;
40-key dynakey attachment with MSR or RFID option:
KP-500
Water resistant structure designed for easy cleaning
3
Views of the PS-3415/3415E
Front View
Rear View
Left Side View Right Side View
Bottom View
4
View of I/O Interface
Top I/O Ports Rear I/O Ports
1
COM4 Port
3
Parallel (LPT) Port
Connector
2
USB 2.0 Port
4
PS/2_KB Pin Header
※
The top I/O ports are provided for COM-based and USB-based peripheral
devices, for example, customer display.
Bottom I/O Ports
1
RJ45 LAN Port
2
USB 2.0 Port
3
VGA Port
4
COM Port
(COM3/COM2/COM1)
5
RJ11 Cash Drawer Port
6
12VDC-IN Power Jack
Positioning your POS for a Perfect Viewing Angle
The adjustable Gen7 base is designed to help you determine an ideal
position for PS-3415/3415E using its unique tilt adjustment mechanism.
As the below figures suggest, Gen7 base basically provides three
standard positioning solutions for your terminal: Flat Folded mode,
Low Profile mode, and Full Extended mode.
1
2
3
4
5
6
5
PS-3415/3415E with Gen7 Base
Flat Folded mode
Low Profile mode
Full Extended mode
In general, PS-3415/3415E will be set up beforehand in Flat Folded
mode and then packaged into the box for shipping. After it is unpacked,
you may re-adjust the terminal in either Low Profile mode or Full
Extended mode according to your situation. Below will provide
instructions on how to adjust the specific base connected to the POS
system. As a reminder, please be careful not to touch the LCD panel
while setting up the tilt angle. Please refer to the following instructions
on how to switch among different positioning modes to find an ideal
viewing angle for PS-3415/3415E with Gen7 base.
1. Unpack XT-3415/3415E, which is supposed
to be set in flat folded mode, out of the
package box and then lay your POS system
on a flat surface.
2. Steady the base with one hand, and then tilt
the screen downwards.

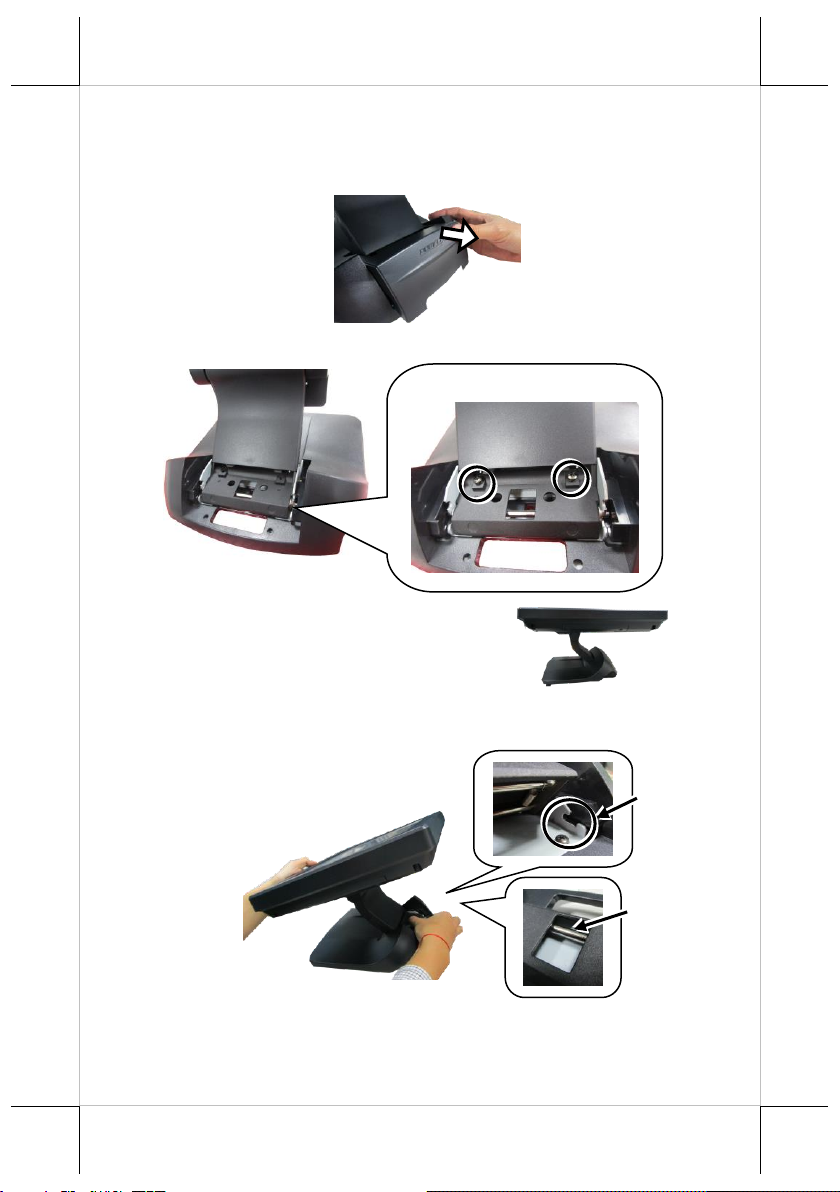

3. Position your terminal in Full Extended mode
3.1 After grabbing the bottom edge of the screen with your hand, gently
move the screen upward until the screen is locked into place with a
click sound.
6
3.2 Support the screen with one hand holding onto its bottom edge.
Then, while pulling the lever backwards, move the display upwards
until the lever is snapped into the lower hook to raise the screen as
shown in the below figure.
3.3 With the screen facing toward you, tilt the screen up or down to your
desired angle. Please do not press on the LCD panel while setting up
the tilt angle.
3.4 Remove the cable cover from the base.
3.5 Fix the base with two #/6/32-14L screws.
Lever
Lower
hook
7

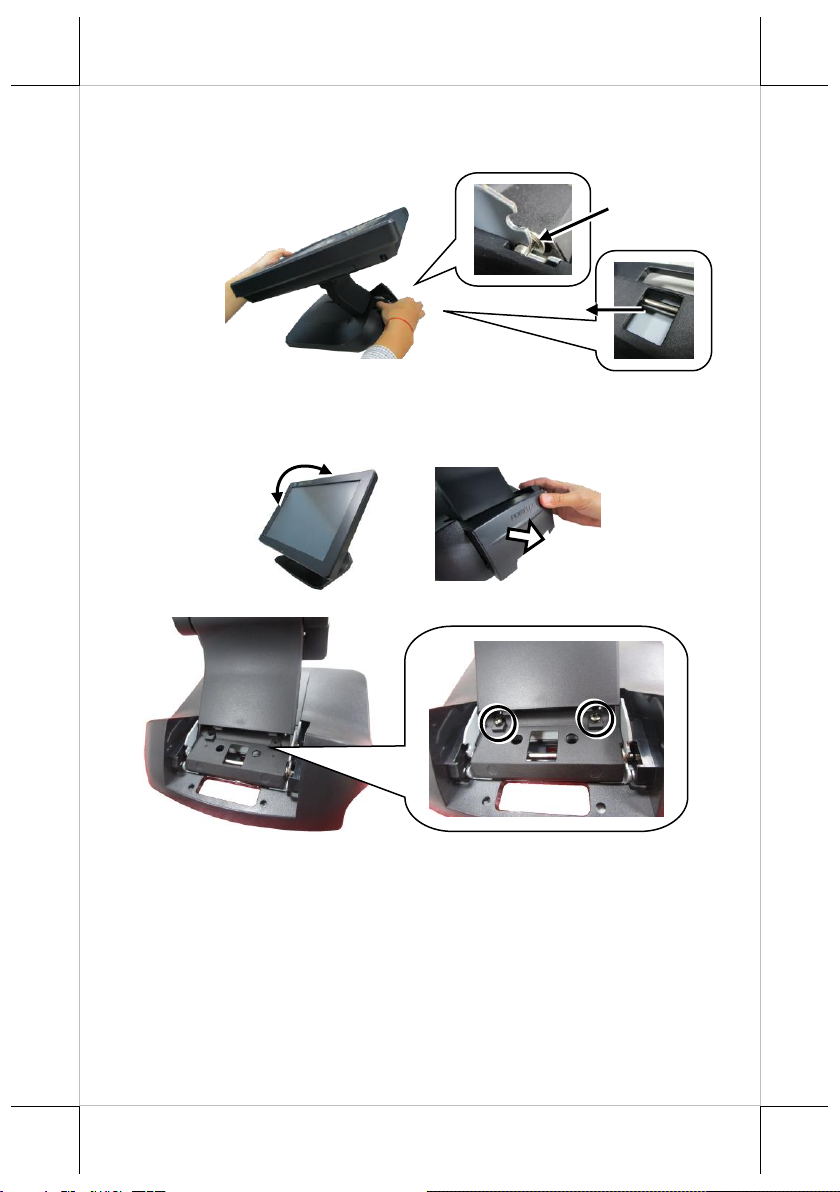

4. Return your terminal back to Flat Folded mode from Full Extended
mode.
4.1 Remove the cable cover from the base.
4.2 Remove the two screws from the base.
4.3 Tilt your screen in a horizontal position.
4.4 Support the screen with one hand holding onto its bottom edge.
While pulling the lever backwards, move the display downwards
until the lever is lifted off the hook as shown in the figure.
Remove the two screws.
Hook
Lever
8
4.5 Push the cable cover back.
4.6 Tilt the screen again to the horizontal
position.
5. Position the terminal in Low Profile mode.
5.1 Follow Step 4 to set up the termimal in Flat
Folded mode.
5.2 Tilt the screen all the way down
5.3 To tilt screen up or down to your desired
angle, please be advised to keep the base
steady with one hand to do so. Do NOT
press on the LCD panel while setting up the
tilt angle.
Installing Optional Upgrade Kits and Peripherals
PS-3415/3415E can work with multiple optional upgrade kits and peripheral
devices, such as magnetic stripe reader (MSR), LCD monitor, cash drawer and
the like.
Before installing an optional upgrade kit and/or peripheral device, make sure
that the system is powered off and the external power source is removed from
the POS box to prevent electric hazard! Failure to follow the warning
description will void the product warranty!
For the detailed instruction, refer to each of the user manuals of the optional
upgrade kits and peripheral devices.
9
Connecting Power Adapter and I/O Cables
Before connecting power adapter and I/O cables to the I/O ports of PS series
terminal, please route and arranging the cables. Refer to the following step-by-
step instruction of cable routing and arrangement for the details. Here, an
equivalent model with GEN 7 base is taken below for example.
1. Press the circled section of the cable
cover with your thumb.
2. Pull out the cable cover.
3. Push and tilt the terminal to the end in
the direction as shown by the arrow.
10
4. Determine that the terminal is tilted to the
end, as shown in the right figure.
5. Press the circled section with two thumbs
and pull by force the two sides of the
locking hook with two forefingers as
indicated by the arrow.
6. Remove the neck cover from the base
stand.
7. Tilt the terminal slightly at a little angle in the direction as shown by the
arrow, making cables easily pass through the cable passage.
This manual suits for next models
