Planet XGS3-24042 User manual

24-Port Gigabit with 4 Optional 10G Slots

Layer 3 Managed Stackable Switch

XGS3-24042

Quick Installation Guide

Table of Contents

1. Package Content......................................................................................... 3

2. Switch Management.................................................................................... 4

3. Requirements ............................................................................................. 5

4. Terminal Setup ........................................................................................... 6

5. Logon on the Console ................................................................................. 7

6. CongureIPAddress .................................................................................. 8

7. Telnet Management....................................................................................10

8. Start Web Management..............................................................................11

9. SavetheConguration...............................................................................12

10.LogintheManagedSwitch .........................................................................13

11. Customer Support.....................................................................................14

1. Package Content

ThankyouforpurchasingPLANETLayer3IPv6/IPv4ManagedSwitch,XGS3-24042.

Terms of “Managed Switch”meanstheSwitchmentionedtitledinthecoverpage

ofthisquickinstallationguide.

Open the box of the Managed Switch and carefully unpack it. The box should

contain the following items:

TheXGS3ManagedSwitchx1l

ThisQuickInstallationGuidex1l

User’s Manual CD x 1l

RJ-45-to-DB9ConsoleCablex1l

PowerCordx1l

Rubber Feet x 4l

TwoRack-mountingBracketswithAttachmentScrewsx1l

SFP Dust Caps x 4l

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Switch Management

To setup the Managed Switch, the user needs to congure the Managed Switch

for network management. The XGS3 Managed Switch provides two management

options: Out-of-Band managementandIn-Band management.

Out-of-Band Management

Out-of-band management is the management through Console interface.

Generally, the user will use out-of-band management for the initial switch

conguration,orwhenin-bandmanagementisnotavailable.

IMPORTANT!

The Managed Switch is shipped without IP address assigned by

default. User must assign an IP address to the Managed Switch

viatheConsoleinterface tobeabletoremoteaccessthe Managed

Switch through Telnet or HTTP.

In-Band Management

In-band management refers to the management by login to the Managed Switch

usingTelnet,HTTP,orusingSNMPmanagementsoftwaretoconguretheManaged

Switch. In-band management enables management of the Managed Switch for

some devices attached to the Switch. Following procedures are required to enable

In-bandmanagement:

1. Logon Console

2.Assign/CongureIPAddress

3. Create a remote login account

4.EnableHTTPorTelnetserverontheManagedSwitch

In the case when in-band management fails due to Managed Switch conguration

changes, out-of-band management can be used for conguring and managing the

ManagedSwitch.

3. Requirements

The Managed Switch provide remote login interface for manage; the following

equipments are necessary for further management.

Workstation running Windows XP/2003/Vista/Windows 7, MAC OS X, Linux,

Fedora,Ubuntuorotherplatform.

Serial Port connect (Terminal)

AboveWorkstationwithCOMPort(DB9)orUSB-to-RS-232converter.

Above Workstation has installed with terminal emulator, such as Hyper

TerminalincludedinWindowsXP/2003/WindowsVista.

Serial cable: One end attach to the RS-232 serial port, the other end to the

ConsoleportoftheManagedSwitch.

Ethernet Port connect

AboveWorkstationwithrunningOScompatiblewithTCP/IPprotocols.

AboveWorkstationinstalledwithEthernetNIC(NetworkCard).

Networkcables-Usestandardnetwork(UTP)cableswithRJ-45connectors.

 AboveWorkstationhas installedwithWEB Browser and JAVA runtime environ-

mentPlug-in.

Note

It is recommended to use Internet Explore 7.0 or above to access

the Managed Switch. If the Web interface of the Managed Switch

is not accessible, please turn off the anti-virus software or firewall

then try again.

4. Terminal Setup

To congure the system, connect a serial cable to a COM port on a PC or

notebook computer and to serial (console) port of the XGS3 Managed Switch. The

console port of the Managed Switch is DCE already, so that you can connect the

consoleportdirectlythroughPCwithouttheneedofNullModem.

RJ-45 Type Serial Port

9600,8,n,1

XGS3 Layer 3

Managed Switch

RJ-45 DB9 RS-232 cable

Serial Port

PC / Workstation with

Terminal emulation software

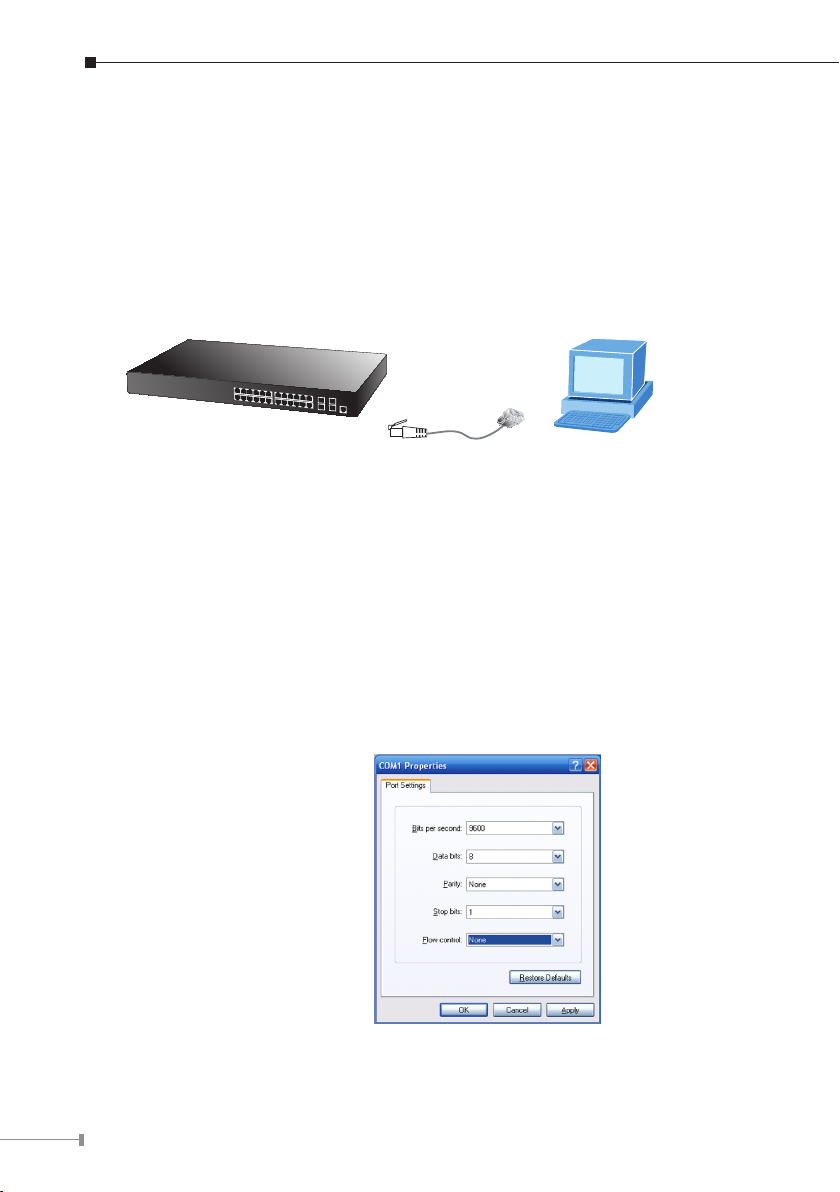

Figure 4-1 XGS3 Managed Switch Console connection

A terminal program is required to make the software connection to the XGS3

Managed Switch. Windows’ Hyper Terminal program may be a good choice. The

HyperTerminalcanbeaccessedfromtheStart menu.

1. Click STARTmenu,thenPrograms, AccessoriesandthenHyper Terminal.

2.TypeanameforopeningHyperTerminal,suchas“COM1_9600”.

3.When the following screen appears, make sure that the COM port should be

conguredas:

Baud:9600l

Parity:Nonel

Data bits : 8l

Stop bits : 1l

FlowControl:Nonel

Figure 4-2 Hyper Terminal COM port conguration

5. Logon on the Console

Once the terminal has connected to the device, power on the XGS3 Managed

Switch,theterminalwilldisplaythatitisrunningtestingprocedures.

Then, the following message asks the login user name and password. The factory

default user name and password as following and the login screen in Figure 5-1

appears.

Username: admin

Password:admin

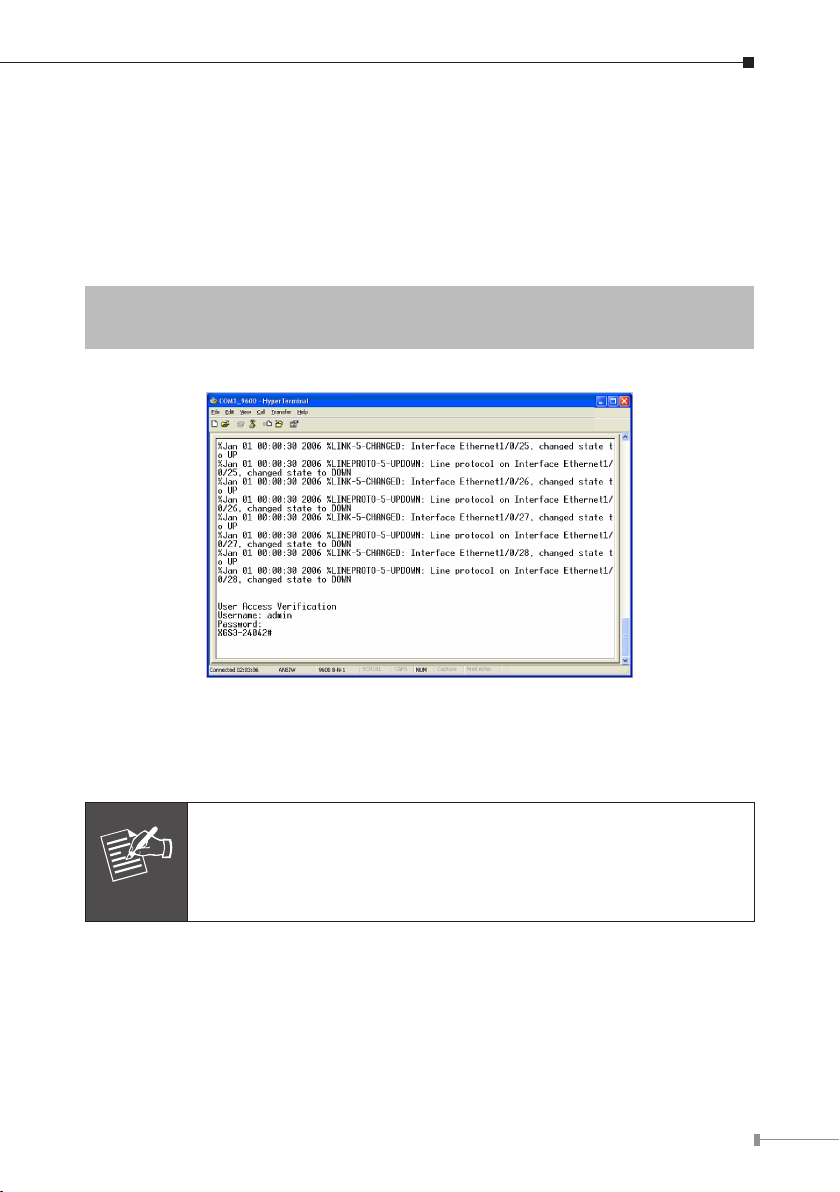

Figure 5-1 XGS3 Managed Switch Console Login screen

The user can now enter commands to manage the Switch. For a detailed

descriptionforthecommands,pleaserefertothefollowingchapters.

Note

1.Forsecurityreason,pleasechangeandmemorizethenewpass-

wordafterthisfirstsetup.

2.Onlyacceptcommandinlowercaseletterunderconsoleinter-

face.

6.CongureIPAddress

The IP address conguration commands for VLAN1 interface are listed below.

Before in-band management, the Managed Switch must be congured with an

IP address by out-of-band management (i.e. Console mode), the conguration

commands are as follows (All switch conguration prompts are assumed to be

“XGS3-24042”hereafterifnototherwisespecied):

XGS3-24042>

XGS3-24042>enable

XGS3-24042# cong

XGS3-24042(cong)# interface vlan 1

XGS3-24042(Cong-if-Vlan1)# ip address 192.168.1.254 255.255.255.0

ThepreviouscommandwouldapplythefollowsettingsfortheManagedSwitch.

IPv4 Address: 192.168.1.254

Subnet Mask: 255.255.255.0

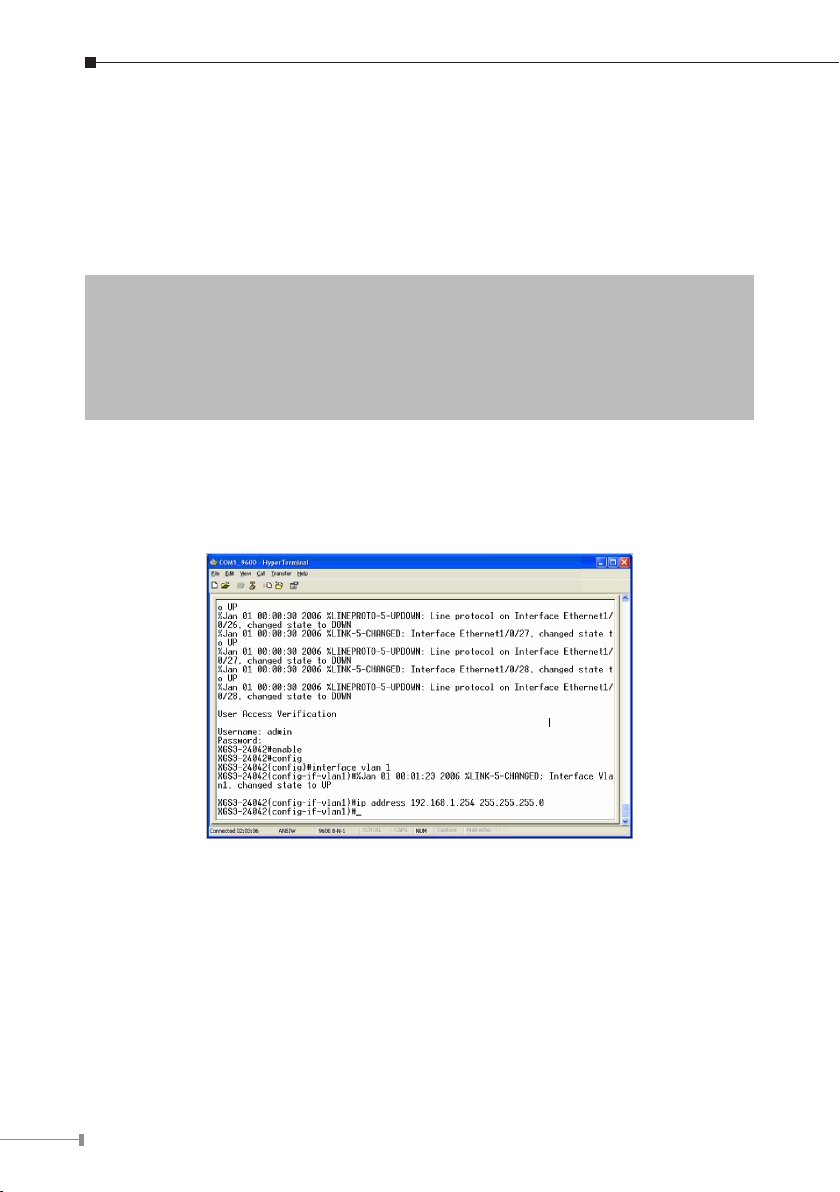

Figure 6-1 Congure IPv4 address screen

TocheckthecurrentIPaddressormodifyanewIPaddressfortheSwitch,please

usetheproceduresasfollow:

Show the current IP address

1. On "XGS3-24042#”prompt,enter“show ip interface brief”.

2.Thescreendisplays the currentIPaddress,SubnetMaskandGateway.Asshow

inFigure6-2.

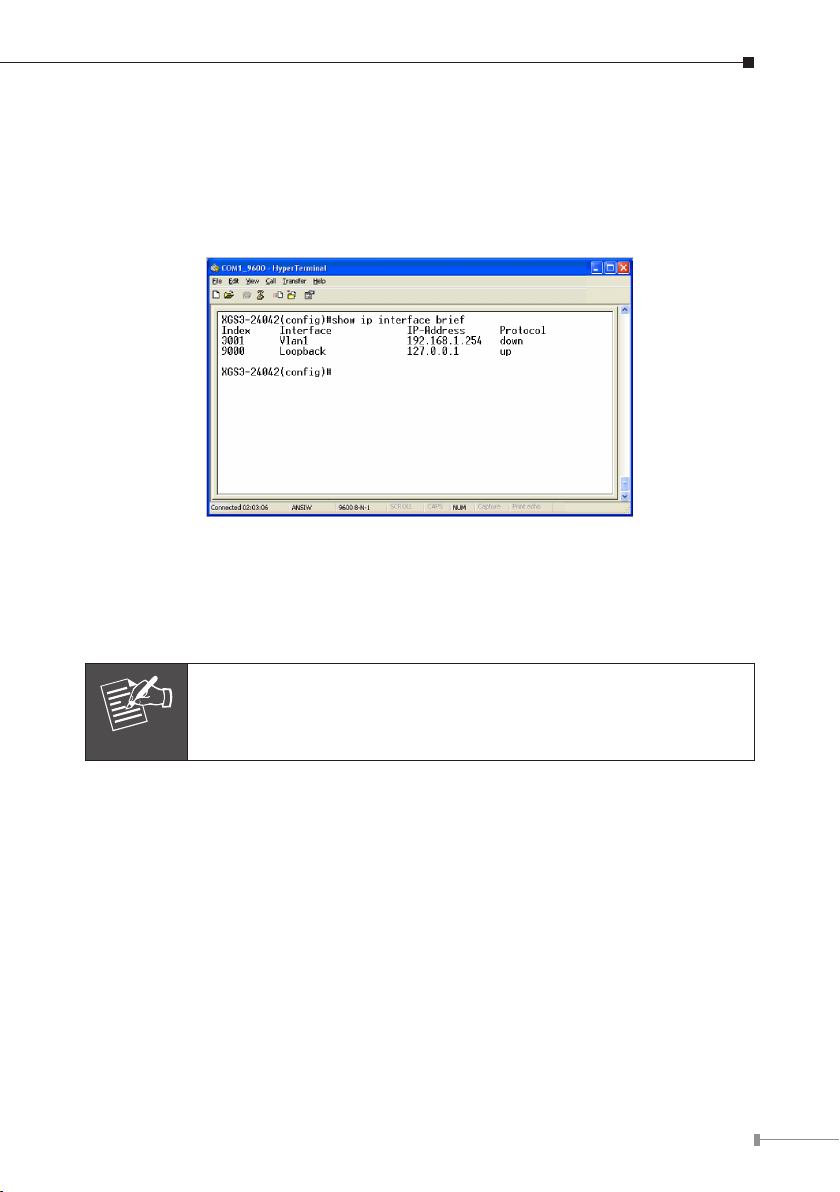

Figure 6-2 Show IP information screen

If the IP is successfully congured, the Managed Switch will apply the new IP

address setting immediately. You can access the Web interface of XGS3 Managed

SwitchthroughthenewIPaddress.

Note

If you do not familiar with console command or the related param-

eter,enter“help”anytimeinconsoletogetthehelpdescription.

7. Telnet Management

required, otherwise the Managed Switch will reject Telnet access. This is a method

to protect the Managed Switch from unauthorized access. As a result, when

Telnet is enabled for conguring and managing the Managed Switch, username

and password for authorized Telnet users must be congured with the following

command:

username <username> privilege <privilege> [password (0|7)

<password>]

Privilege option must exist and just is 15. Assume an authorized user in the

Managed Switch has a username of “admin”, and password of “admin”, the

congurationprocedureshouldlikethefollowing:

XGS3-24042>enable

XGS3-24042#cong

XGS3-24042(cong)# username admin privilege 15 password 0 admin

Enter valid login name and password in the Telnet conguration interface, Telnet

user will be able to enter the Managed Switch’s CLI conguration interface. The

commands used in the Telnet CLI interface after login is the same as that in the

Console interface.

Figure 7-1 Telnet Conguration Interface
