Planet GSD-808HP User manual
8-Port 10/100/1000Mbps 802.3at PoE+ Desktop Switch
GSD-808HP
User’s Manual
Table Of Contents
1. Package contents ......................................................................................... 3
2. Product Features .......................................................................................... 4
3. Product Specications ................................................................................... 6
4. Hardware Description ................................................................................... 8
4.1 Front Panel ............................................................................................ 8
4.2 Rear Panel ............................................................................................. 8
5. Hardware Installation...................................................................................10
5.1 Desktop Installation ...............................................................................10
5.2 Rack Mounting ......................................................................................11
6. Troubleshooting...........................................................................................13
7. Customer Support .......................................................................................14
3
1. Package contents
Thank you for purchasing PLANET 802.3at PoE Gigabit Switch, GSD-808HP. Open
the box of the Gigabit PoE Switch and carefully unpack it. The box should contain
the following items:
Gigabit PoE Switch x 1 User’s Manual x 1
Power Cord x 1 Accessories x 1
If any of these are missing or damaged, please contact your dealer immediately;
if possible, retain the carton including the original packing material, and use them
again to repack the product in case there is a need to return it to us for repair.
4
2. Product Features
Physical Port
8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+
Injector
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
Up to 8 IEEE 802.3af/802.3at devices powered
Supports PoE power up to 30 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
PoE Usage Alarm LED
Remote power feeding up to 100m
Switching
Hardware based 10/100/1000Mbps auto-Negotiation and auto MDI/MDI-X
Flow control for full duplex operation and back pressure for half duplex opera-
tion
Integrates address look-up engine, supporting 4K absolute MAC addresses
9K jumbo frame supports all speeds (10/100/1000Mbps)
Automatic address learning and address aging
SupportsPre-Energy-EfcientEthernet(EEE)function(IEEE802.3az)
Case and Installation
12-inchdesktopsize,1Uheight
LED indicators for PoE ready, PoE activity and PoE Usage Alarm
Fanless design
Rack-mountable, Plug-and-Play installation
Ethernet Link Energy-saving technology
Link down power saving
Intelligent scales power based on cable length
5
Note
PSE (Power Sourcing Equipment) is a device (switch or hub
for instance) that will provide power in a PoE setup. The maximum
allowed continuous output power per such device in IEEE 802.3af is
15.4 watts and in IEEE 802.3at is 30 watts.
PD (Powered Device) such as IP phone, network camera or wire-
less access point is a PoE-enabled terminal that consumes energy
supplied by PSE.
6
3. Product Specications
Model GSD-808HP
HardwareSpecications
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X
ports
PoE Inject Port 8 ports with 802.3at/af PoE injector function
with Port-1 to Port-8
LED Indicators
System: Power (Green)
PoE Usage Alarm: 1-4 (Orange)
5-8 (Orange)
Port 1 to Port 8
1000 LNK/ACT (Green)
10/100 LNK/ACT (Orange)
PoE-in-Use (Orange)
Switch Architecture Store-and-Forward
Address Table 4K entries, automatic source address learning
and aging
Switch Fabric 16Gbps/non-blocking
Throughput
(packet per second) 11.9Mpps@64 bytes
Jumbo Frames 9Kbytes
Power Requirement AC100~240V,50/60Hz,2Amax.
Power Consumption Max. 150 watts/511 BTU
Dimensions (W x D x H) 280 x 180 x 44 mm
Weight 1670g
7
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet/PSE
IEEE 802.3at Power over Ethernet Plus/PSE
PoE Power Supply Type End-span
PoE Power Output Per port 52V DC max. 30.8 watts
Power Pin Assignment 1/2(+), 3/6(-)
PoE Power Budget 130 watts
Max. number of Class 2 PDs 8
Max. number of Class 3 PDs 8
Max. number of Class 4 PDs 4
Standards Conformance
Regulatory Compliance FCC Part 15 Class B, CE
Standards Compliance
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3ab Gigabit 1000T
IEEE802.3xowcontrolandbackpressure
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE802.3az:Energy-EfcientEthernet
Environment
Operating Temperature 0 ~ 50 degrees C
Storage Temperature 0 ~ 50 degrees C
Humidity 5 ~ 95% (non-condensing)
8
4. Hardware Description
4.1 Front Panel
The Front Panel of the GSD-808HP PoE Ethernet Switch consists of 8x auto-sensing
10/100/1000Mbps Ethernet RJ45 ports. The LED Indicators are also located on the
front panel of the GSD-808HP.
Figure 4-1: GSD-808HP Switch Front Panel
4.2 Rear Panel
The rear panel of the GSD-808HP indicates an AC inlet power socket, which
acceptsinputpowerfrom100to240VAC,50-60Hz.
100~240V AC
50 / 60Hz, 2A max.
Figure 4-2: GSD-808HP Switch Rear Panel
Power
Notice
1. The device is a power-required device, meaning it will not work
till it is powered. If your networks should be active all the time,
please consider using UPS (Uninterrupted Power Supply) for your
device. It will prevent you from network data loss or network
downtime.
2. In some areas, installing a surge suppression device may also
help to protect your GSD-808HP from being damaged by unreg-
ulated surge or current to the GSD-808HP or the power adapter.
9
LED Denition
System
LED Color Function
PWR Green Lights to indicate the Switch has power.
Per 10/100/1000Mbps Port
LED Color Function
1000
LNK/ACT Green
Lights to indicate the link through that port is
successfully established at 1000Mbps.
Blinks to indicate that the Switch is actively sending or
receiving data over that port.
10/100
LNK/ACT Orange
Lights to indicate the link through that port is
successfully established at 10/100Mbps.
Blinks to indicate that the Switch is actively sending or
receiving data over that port.
PoE In Use Orange Lights to indicate the port is providing 52V DC in-line
power.
PoE Usage Alarm Port
LED Color Function
1-4 Orange Lights to indicate the PoE usage is over 80%
Blinks to indicate the PoE usage is over 95%
5-8 Orange Light to indicate the PoE usage is over 80%
Blinks to indicate the PoE usage is over 95%
10
5. Hardware Installation
This section describes the functionalities of the Gigabit Ethernet Switch’s
components and guides how to install it on the desktop and rack mount. Basic
knowledge of networking is assumed. Please read this chapter completely before
continuing.
Note
This following picture shows the user how to install the device, but
the device is not the GSD-808HP.
5.1 Desktop Installation
To install the Switch on the desktop, simply follow the steps below:

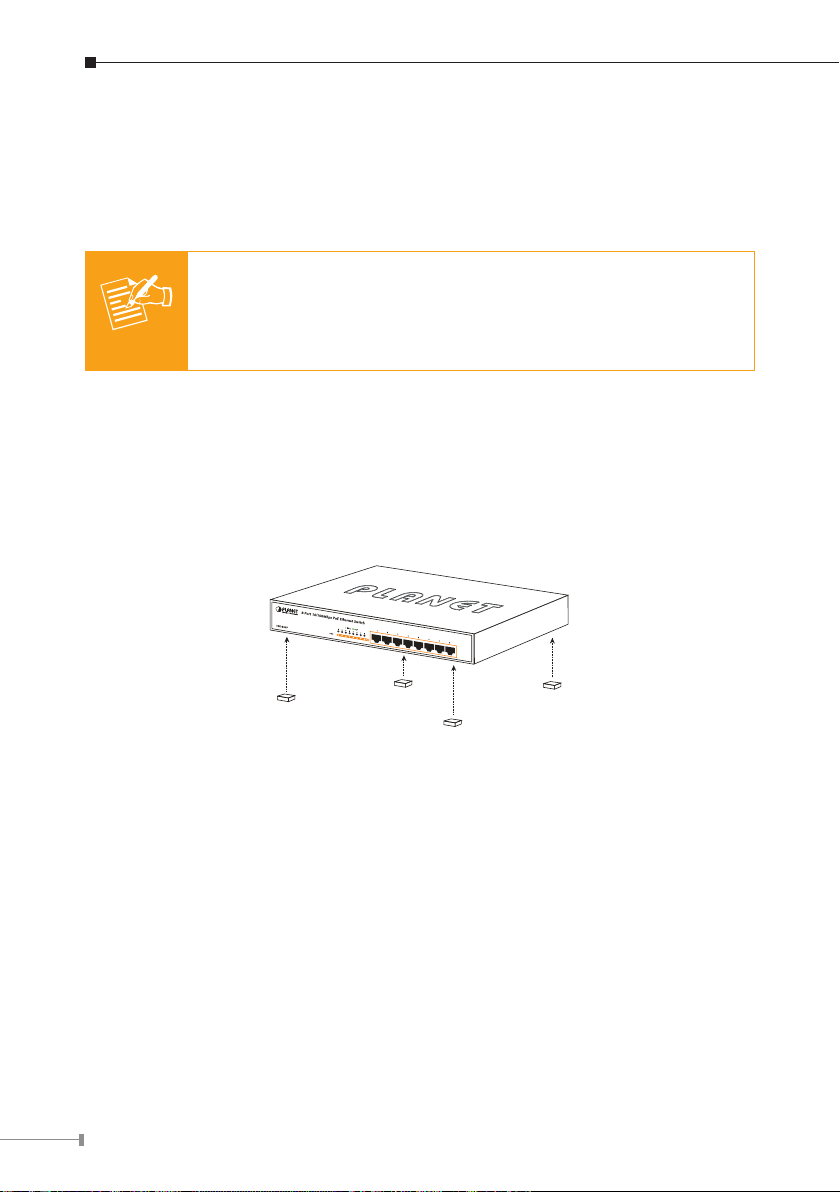

Step1: Attach the rubber feet to the recessed areas on the bottom of the Switch,
as shown in Figure 5-1.
Figure 5-1: Attaching the Rubber Feet to the Switch
Step 2: Place the Switch on the desktop near an AC power source.
Step 3: Keep enough ventilation space between the Switch and the surrounding
objects.
Step 4: Connect your Switch to 802.3af/at complied powered devices and other
network devices.
A. Connect one end of a standard network cable to the 10/100/1000 RJ45
ports on the front panel of the Switch.
B. Connect the other end of the cable to the network devices such as
printer servers, workstations and router.
