Planet WGSW-48000 User manual

48-Port 10/100/1000Base-T with 4 Shared SFP

Managed Gigabit Switch

WGSW-48000

Quick Installation Guide

Table of Contents

1. Package Content.......................................................................................... 3

2. Requirements .............................................................................................. 4

3. Terminal Setup ............................................................................................ 5

4. Logon to the Console ................................................................................... 6

5. Congure IP address.................................................................................... 7

6. Start Web Management................................................................................ 9

Customer Support .........................................................................................12

1. Package Content

Thank you for purchasing PLANET Layer 2 Managed Switch, WGSW-48000. Terms

of “Managed Switch” means the Switch mentioned titled in the cover page of

this Quick installation guide, i.e. WGSW-48000.

Open the box of the Managed Switch and carefully unpack it. The box should

contain the following items:

The WGSW Managed Switch x 1

User’s Manual CD x 1

Quick Installation Guide x 1

RS232 Cable x 1

Rubber Feet x 4

Two Rack-mounting Brackets with Attachment Screws x 1

Power Cord x 1

If any item is found missing or damaged, please contact your local reseller for

replacement.

2. Requirements

Workstations of subscribers running Windows 98/ME, NT4.0, 2000/XP, MAC OS9

or later, Linux, UNIX or other platform compatible with TCP/IP protocols.

Workstation installed with Ethernet NIC (Network Card)

Serial Port connect (Terminal)

t Above PC with COM Port (DB-9)

Ethernet Port connect

t Network cables - Use standard network (UTP) cables with RJ45 connectors.

t Above PC installed with WEB Browser and JAVA runtime environment Plug-in

Note

It is recommended to use Internet Explore 6.0 or above to access

WGSW Managed Switch.

3. Terminal Setup

To congure the system, connect a serial cable to a COM port on a PC or

notebook computer and to serial (console) port of the WGSW Managed Switch. The

console port of the Managed Switch is DCE already, so that you can connect the

console port directly through PC without the need of Null Modem.

PC / Workstation

with

Terminal emulation software

WGSW Managed Switch

Serial Port

RS-232

Serial Port

38400,8,n,1

A terminal program is required to make the software connection to the WGSW

Managed Switch. Windows’ Hyper Terminal program may be a good choice. The

Hyper Terminal can be accessed from the Start menu.

1. Click START, then Programs, Accessories and then Hyper Terminal.

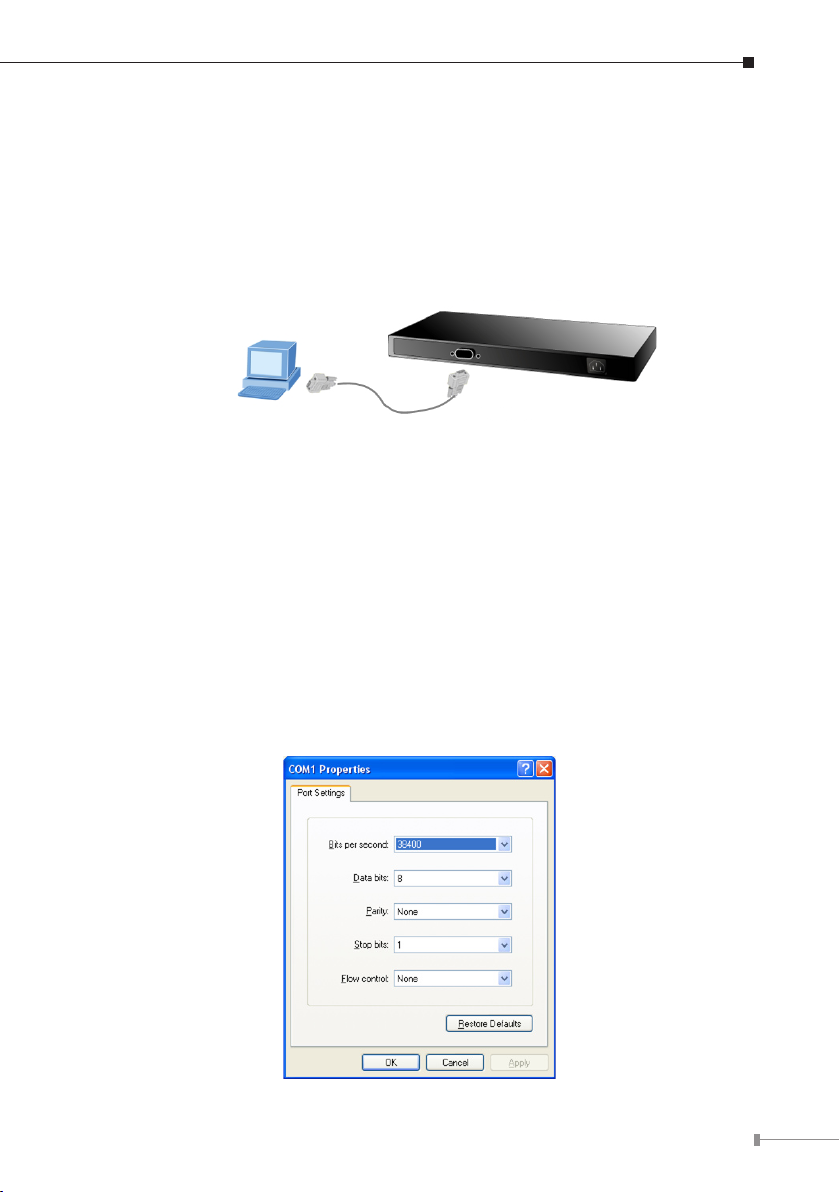

2. When the following screen appears, make sure that the COM port should be

congured as:

Baud: 38400

Parity: None

Data bits: 8

Stop bits: 1

Flow Control: None

4. Logon to the Console

Once the terminal has connected to the device, power on the WGSW Managed

Switch, the terminal will display that it is running testing procedures.

Then, the following message asks the login user name and password. The factory

default username and password as following and the login screen in Figure 4-1

appears.

Password: admin

To have access to the full suite of commands, the operator must enter the

Privileged Mode. Enter “enable” to into the Privileged Mode and it requires

password authentication. From Privileged Mode, the operator can issue any Exec

command to enter the Global Conguration mode.

Command> enable

Username: admin

Password: admin

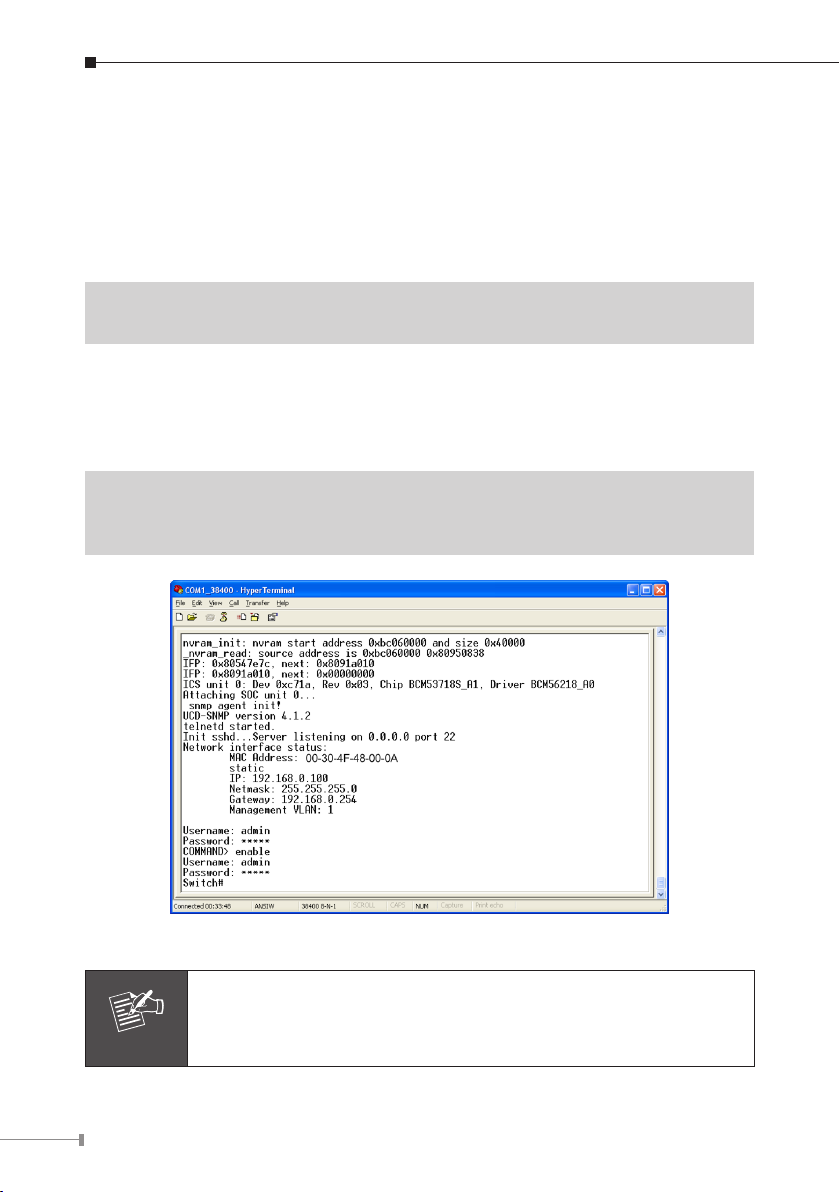

Figure 4-1 WGSW Managed Switch Console Login screen

Note

1. For security reason, please change and memorize the new pass-

word after this first setup.

2. Only accept command in lowercase letter under console inter-

face.

5. Congure IP address

The WGSW Managed Switch is shipped with default IP address as following.

IP Address : 192.168.0.100

Subnet Mask : 255.255.255.0

To check the current IP address or modify a new IP address for the Managed

Switch, please use the procedures as follow:

nShow the current IP address

1. On “Switch#” prompt, enter “show network”.

2. The screen displays the current IP address, Subnet Mask and Gateway. As show

in Figure 5-1.

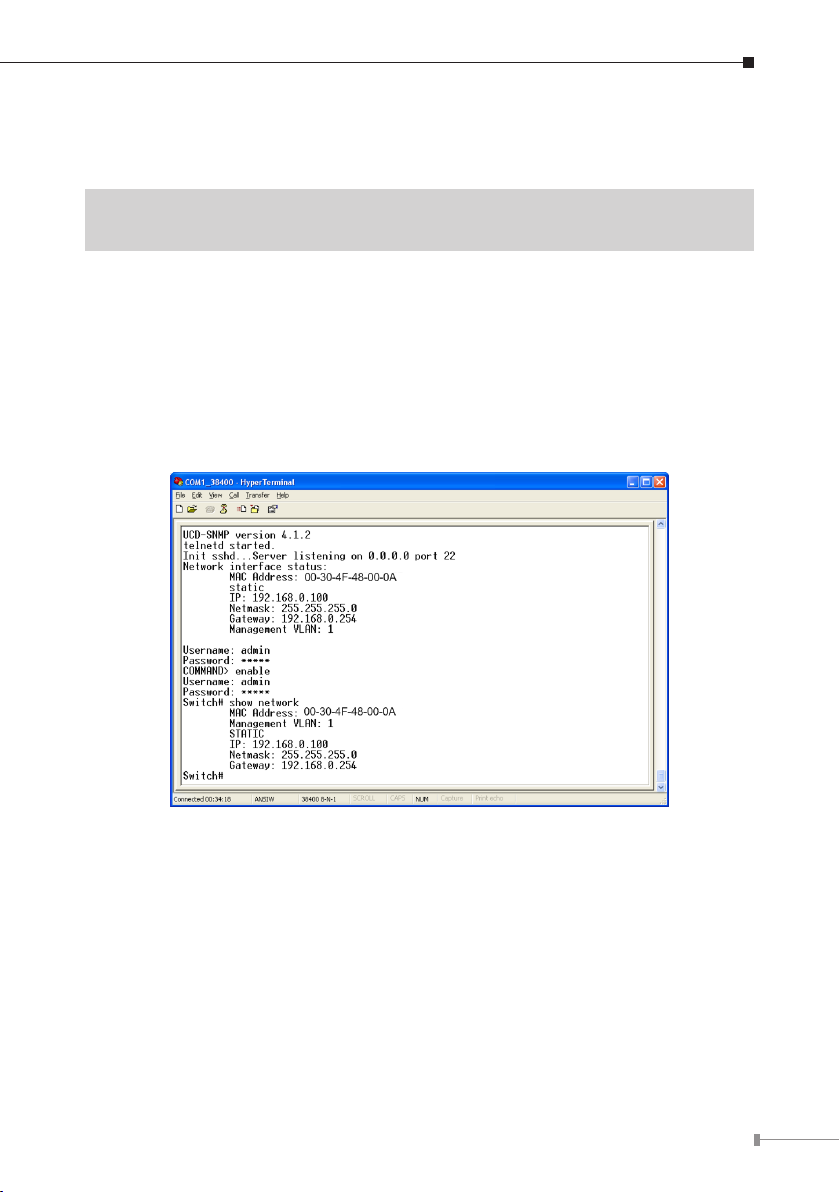

Figure 5-1 Show IP information screen

n Congure IP address

3. On “Switch#” prompt, type “conguration” to enter into global conguration

mode.

4. On “Switch(Cong)#” prompt, enter the following command and press

<Enter>. As show in Figure 5-2.

Switch(Cong)# network parms 192.168.1.100 255.255.255.0

192.168.1.1

The previous command would apply the follow settings for the Managed Switch.

IP: 192.168.1.100

Subnet Mask: 255.255.255.0

Gateway: 192.168.1.1

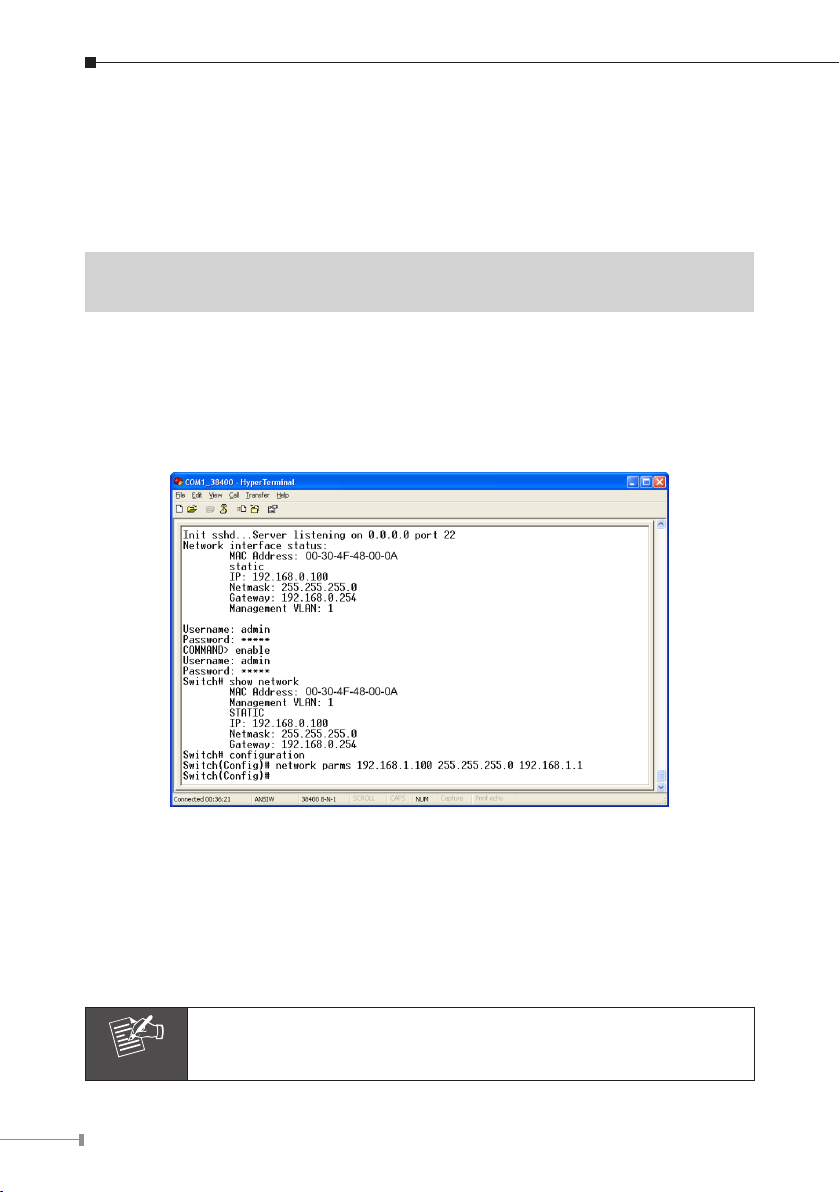

Figure 5-2 Set IP address screen

5. Repeat Step 1 to check if the IP address is changed.

6. On “Switch#” prompt, type “Save” to save the current conguration.

If the IP is successfully congured, the Managed Switch will apply the new IP

address setting immediately. You can access the Web interface of WGSW Managed

Switch through the new IP address.

Note

If you do not familiar with console command or the related param-

eter, enter “?” anytime in console to get the help description.

6. Start Web Management

The following shows how to startup the Web Management of the WGSW Managed

Switch. Note the Managed Switch is congured through an Ethernet connection,

please make sure the manager PC must be set on the same IP subnet address.

For example, the default IP address of the WGSW Managed Switch is

192.168.0.100, then the manager PC should be set at 192.168.0.x

(where x is a number between 1 and 254, except 100), and the default

subnet mask is 255.255.255.0.

WGSW Managed Switch

RJ-45 / UTP Cable

PC / Workstation

with

IE Browser

IP Address:

192.168.0.x

IP Address:

192.168.0.100

Figure 6-1 IP Management diagram

nLogin the Managed Switch

1. Use Internet Explorer 6.0 or above Web browser, enter IP address

http://192.168.0.100 (the factory-default IP address or that you have just

changed in console) to access the Web interface.

2. When the following dialog box appears, please enter the default username

“admin” and password “admin” (or the password you have changed via

console). The login screen in Figure 6-2 appears.

Username: admin

Password: admin

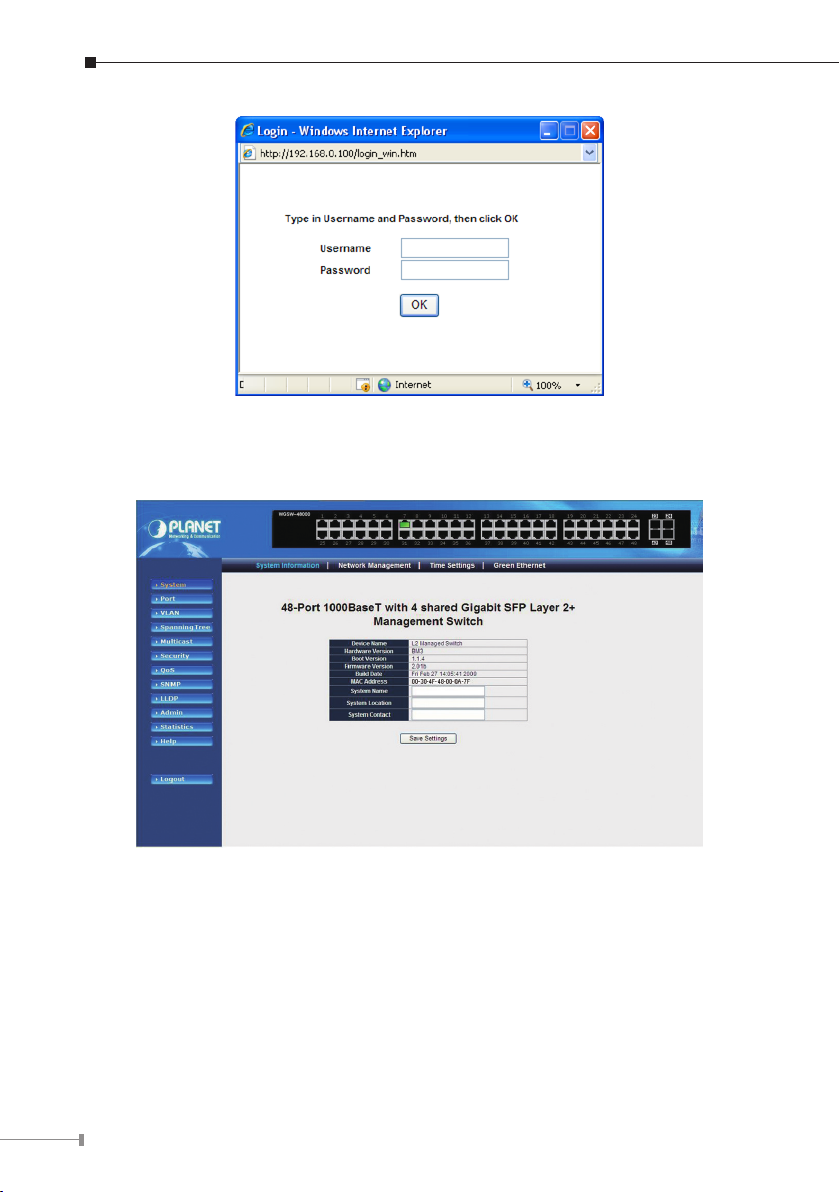

Figure 6-2 Login screen

3. After entering the password, the main screen appears as Figure 6-3.

Figure 6-3 Web Main Screen of WGSW Managed Switch
