Planet IGS-4215-16T2S User manual
Industrial 16-Port 10/100/1000T + 2-Port 100/1000X SFP
Managed Gigabit Ethernet Switch
IGS-4215-16T2S
Quick Installation Guide
Table of Contents
1. Package Contents ....................................................................................... 3
2. Requirements ............................................................................................. 4
3. Wiring the Power Inputs.............................................................................. 5
4. Terminal Setup ........................................................................................... 6
4.1 Logging on to the Console.................................................................... 7
4.2 ConguringIPAddressviatheConsole ................................................. 8
4.3 StoringCurrentSwitchConguration..................................................... 9
5. Starting Web Management .........................................................................10
5.1 LoggingintotheIndustrialManagedSwitch.........................................11
5.2 SavingCongurationviatheWeb ........................................................13
6. RecoveringBacktoDefaultConguration.....................................................14
7. Customer Support .....................................................................................15
3

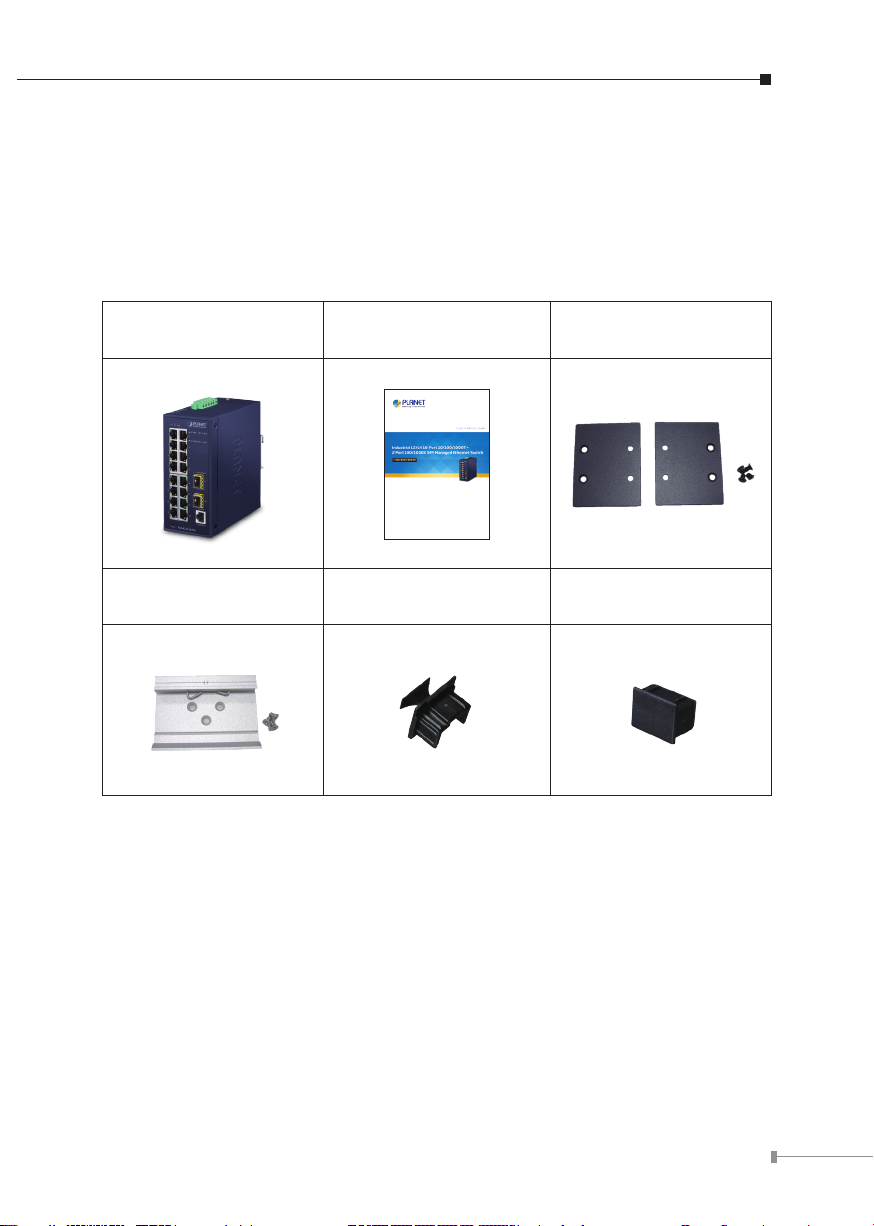

1. Package Contents
Thank you for purchasing PLANET Industrial L2/L4 Managed Gigabit Ethernet
Switch, IGS-4215-16T2S. “Industrial Managed Switch” mentioned in this Quick
InstallationGuidereferstotheIGS-4215-16T2S.
Open the box of the Industrial Managed Switch and carefully unpack it. The box
shouldcontainthefollowingitems:
IndustrialManaged
Switch x 1
QuickInstallation
Guidex1
Wall-mountPlate
w/Screwsx1Set
DIN-railBracket
w/Screwsx1 RJ45DustCapx17 SFPDustCapx2
If any item is found missing or damaged, please contact your local reseller for
replacement.
4
2. Requirements
The Industrial Managed Switch provides local and remote login interface for
management purposes. The following equipment is necessary for further
management:
zWorkstations running Windows XP/2003/Vista/7/8/10/2008/10, MAC OS X or
later,Linux,UNIX,orotherplatformsarecompatiblewithTCP/IPprotocols.
zSerial Port Connection (Terminal)
The above Workstations come with COM Port (DB9) or USB-to-RS232
converter.
TheaboveWorkstationshavebeen installedwithterminal emulator, such as
HyperTerminalincludedinWindowsXP/2003,puttyorteraterm.
Serial cable -- one end is attached to the RS232 serial port, while the other
endstotheRJ45 console portoftheIndustrialManagedSwitch.
zWorkstationsareinstalledwithEthernetNIC(NetworkInterfaceCard)
zEthernetPortConnection
Network cables--Usestandardnetwork(UTP)cableswithRJ45connectors.
TheabovePCisinstalledwithWebbrowser.
Note
It is recommended to use Internet Explorer 8.0 or above to access
the Industrial Managed Switch. If the Web interface of the Indus-
trialManagedSwitchisnot accessible,pleaseturnoff theanti-virus
softwareorfirewallandthentryitagain.
5

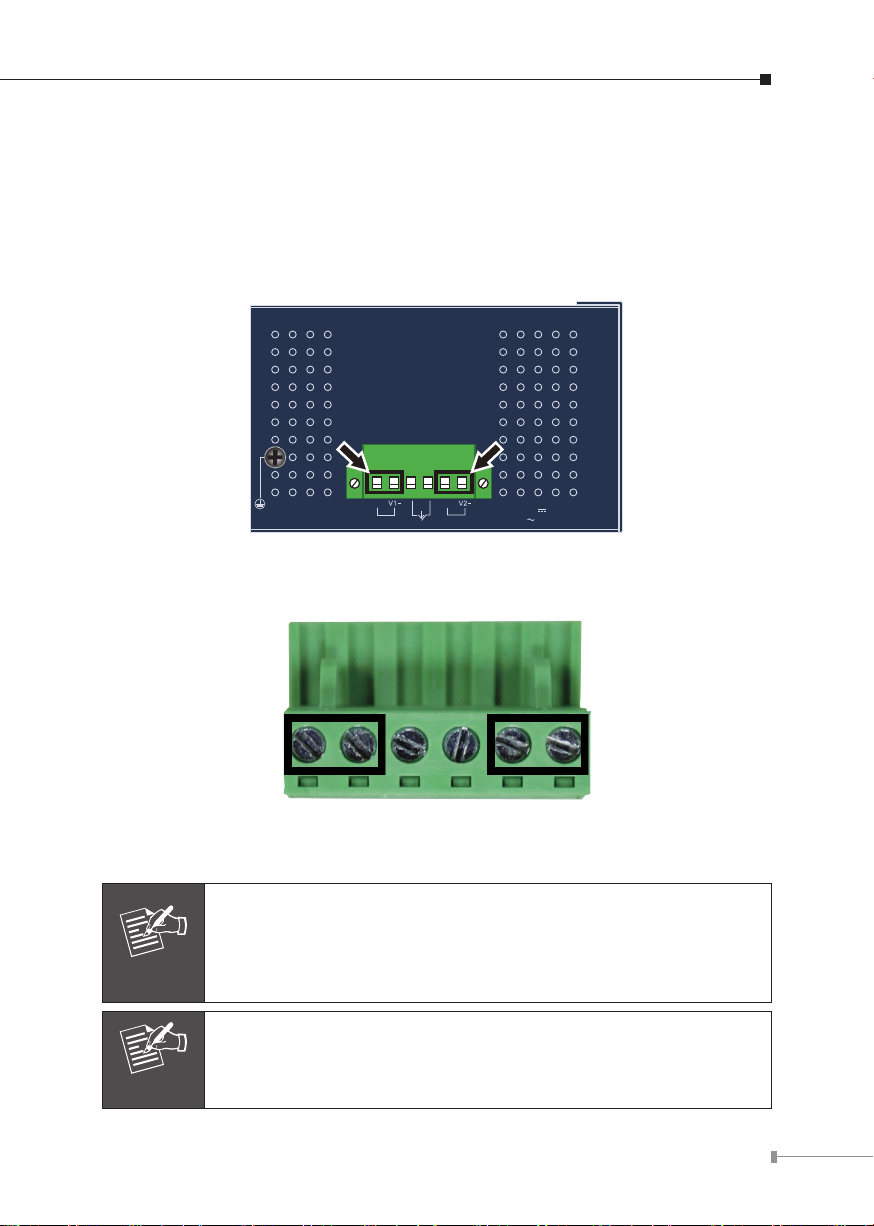

3. Wiring the Power Inputs
The Upper Panel of the Industrial Managed Switch consists of one terminal block
connectorwithin6contacts for tworedundantpowerinputsand faultalarm.Please
followthestepsbelowtoinsertthepowerwire.
1.Insert positive/negative DC power wires into contacts 1 and 2 for Power 1 or 5
and6forPower2.
Fault
V1+ V2+
PWR2PWR1
Max. fault loading: 24V, 1A
DC Input: 12-48V , 1.5A max.
AC Input: 24V , 1A max.
1 2 3 4 5 6
Figure 3-1: Industrial Managed Switch Inlet Power Socket
2.Tightenthewire-clampscrewsforpreventingthewiresfromloosening.
123456
V1+ V1- V2+ V2-
Power 1 Power 2
Note
The wire gauge for the terminal block should be in the range from
12 to 24 AWG.
Pleasecheck thewire AWGAmperespecification beforeconnecting
PLANETIndustrialManagedSwitch.
Note
The power input range is DC 12~48VandsupportsAC 24V.
6

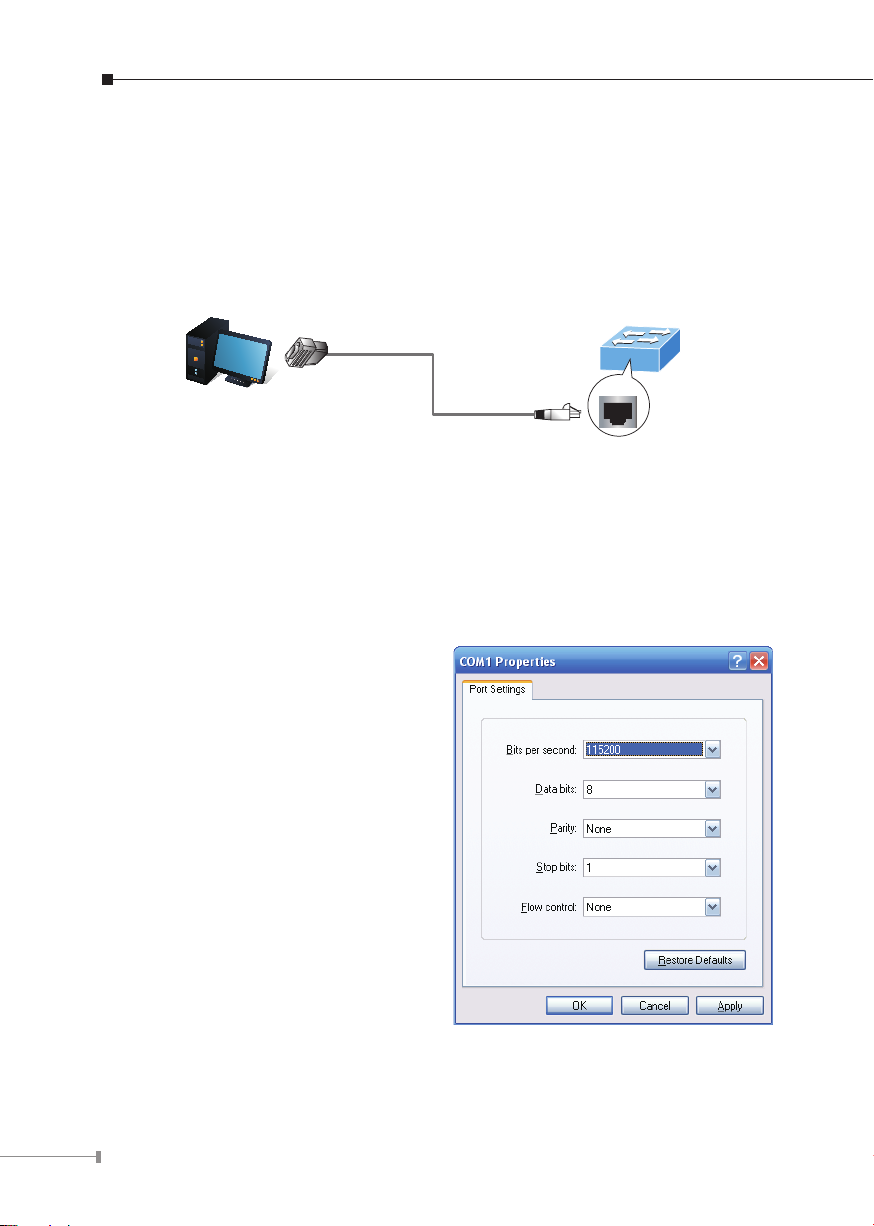

4. Terminal Setup
Tocongure the system,connectaserial cabletoaCOM port onaPCor notebook
computer and to the RJ45 type serial (console) port of the Industrial Managed
Switch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45
Figure 4-1: Industrial Managed Switch Console Connectivity
A terminal program is required to make the software connection to the Industrial
ManagedSwitch.
1. Run terminal program on the OS.
2.When the following screen appears, make sure that the COM port should be
conguredas:
zBaud:115200
zDatabits:8
zParity:None
zStopbits:1
zFlowcontrol:None
7

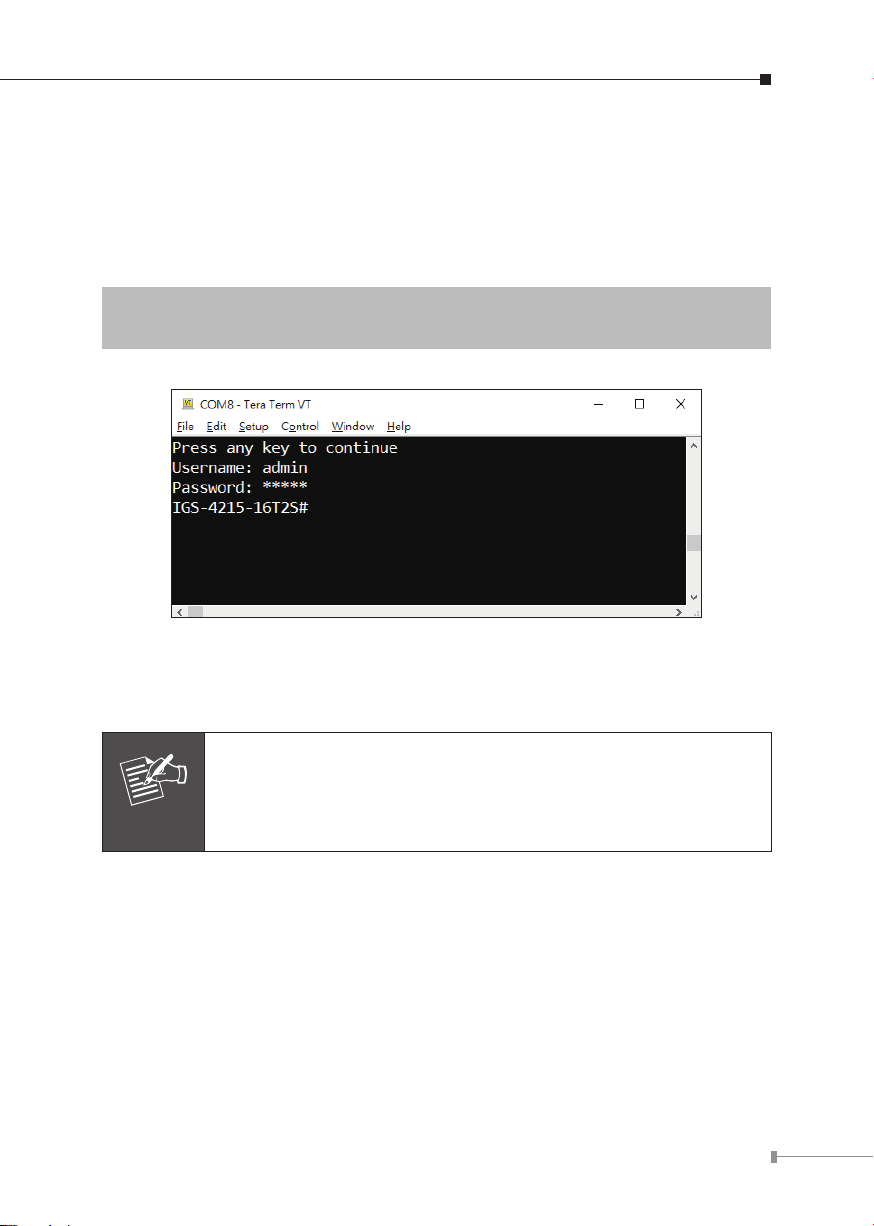

4.1 Logging on to the Console
Once the terminal has been connected to the device, power on the Industrial
Managed Switch and the terminal will display “running testing procedures”. Then,
the following message asks to login user name and password. The factory default
user name and password are shown as follows, and the login screen in Figure 4-1
appears.
Username:admin
Password:admin
Figure 4-1: Industrial Managed Switch Console Login Screen
The user can now enter commands to manage the Industrial Managed Switch. For
adetaileddescriptionofthecommands,pleaserefertothefollowingchapters.
Note
1. For security reason, please change and memorize the new
password after this first setup.
2.Onlyacceptcommandinlowercaseletterunderconsoleinterface.
8
4.2 ConguringIPAddressviatheConsole
TheIndustrialManagedSwitchisshippedwithdefaultIPaddressasfollows:
IPAddress:192.168.0.100
SubnetMask:255.255.255.0
To check the current IP address or modify a new IP address for the Industrial
ManagedSwitch,pleaseusetheproceduresasfollows:

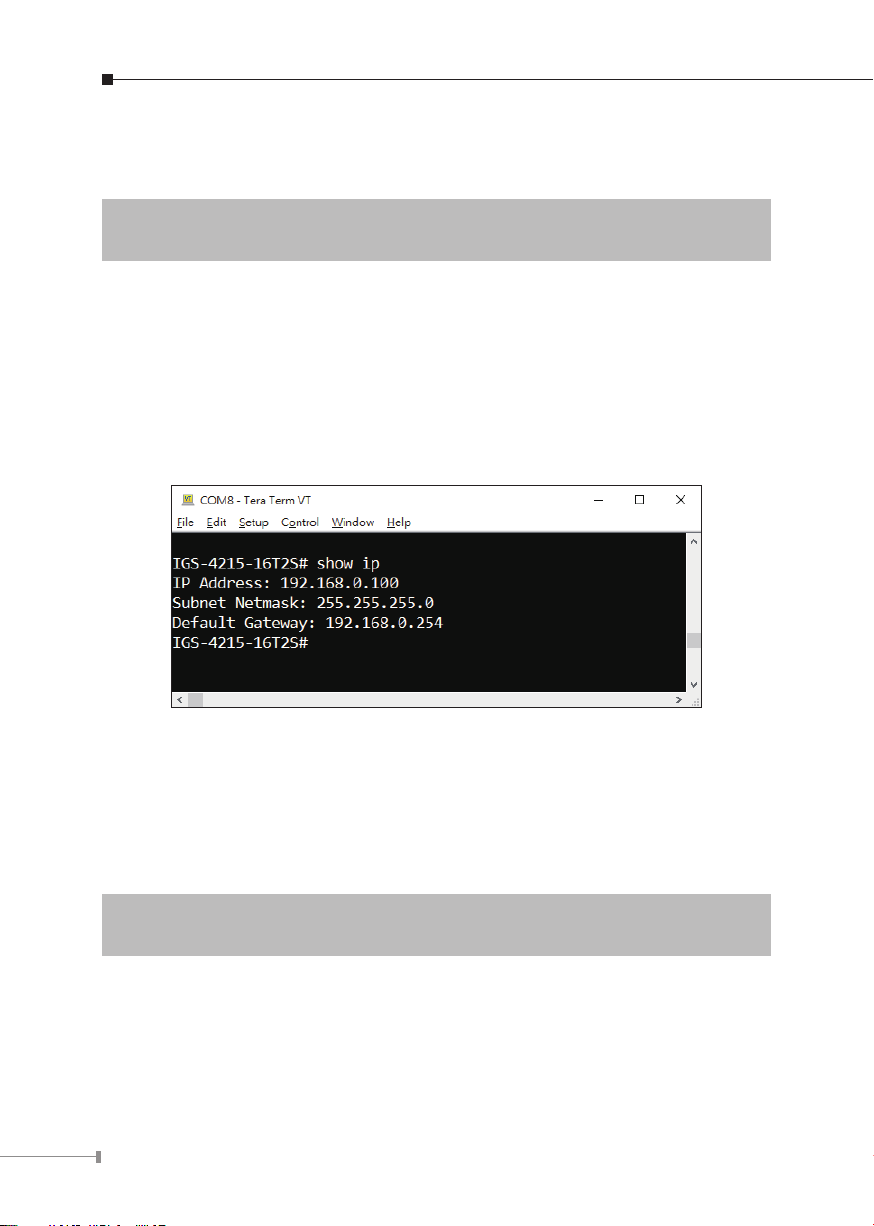

Display of current IP address
1.Atthe“IGS-4215-16T2S#” prompt, enter “show ip”.
2.The screen displays the current IP address, subnet mask and gateway as shown
inFigure4-2.
Figure 4-2: IP Information Screen
CongurationoftheIPaddress
1.Atthe“IGS-4215-16T2S #” prompt, enter “congure”.
2.At the “IGS-4215-16T2S (cong)#” prompt, enter the following command
andpress<Enter>asshowninFigure4-3.
IGS-4215-16T2S(cong)# ip address 192.168.1.100 mask 255.255.255.0
IGS-4215-16T2S(cong)# ip default-gateway 192.168.1.254
The previous command would apply the following settings for the Industrial
ManagedSwitch.
IP Address: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.254
9

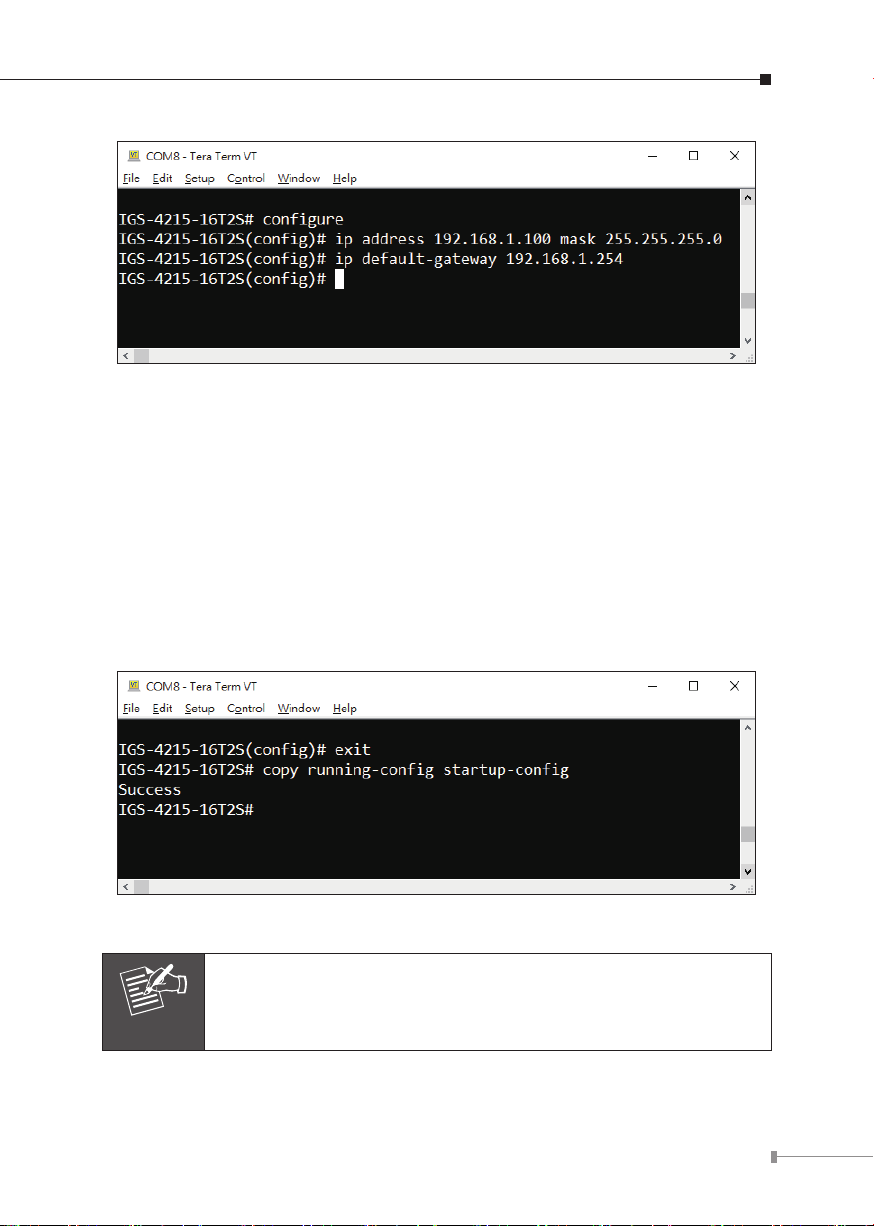

Figure 4-3: Conguring IP Address Screen
3.RepeatStep1tocheckiftheIPaddresshaschanged.
If the IP is successfully congured, the Industrial Managed Switch will apply the
new IP address setting immediately. You can access the Web interface of the
IndustrialManagedSwitchthroughthenewIPaddress.
4.3 StoringCurrentSwitchConguration
At the “IGS-4215-16T2S#” prompt, enter “copy running-cong startup-cong” as
showninFigure4-4.
Figure 4-4: Saving current Conguration Command Screen
Note
Ifyouarenotfamiliarwithconsolecommandortherelatedparam-
eter,enter“?”anytimeinconsoletogetthehelpdescription.
10
5. Starting Web Management
The following shows how to start up the Web Management of the Industrial
Managed Switch. Note the Industrial Managed Switch is congured through an
Ethernet connection. Please make sure the manager PC must be set to the same
IP subnet address.
For example, the default IP address of the Industrial Managed Switch is
192.168.0.100, then the manager PC should be set to 192.168.0.x (where x
is a number between 1 and 254, except 100), and the default subnet mask is
255.255.255.0.

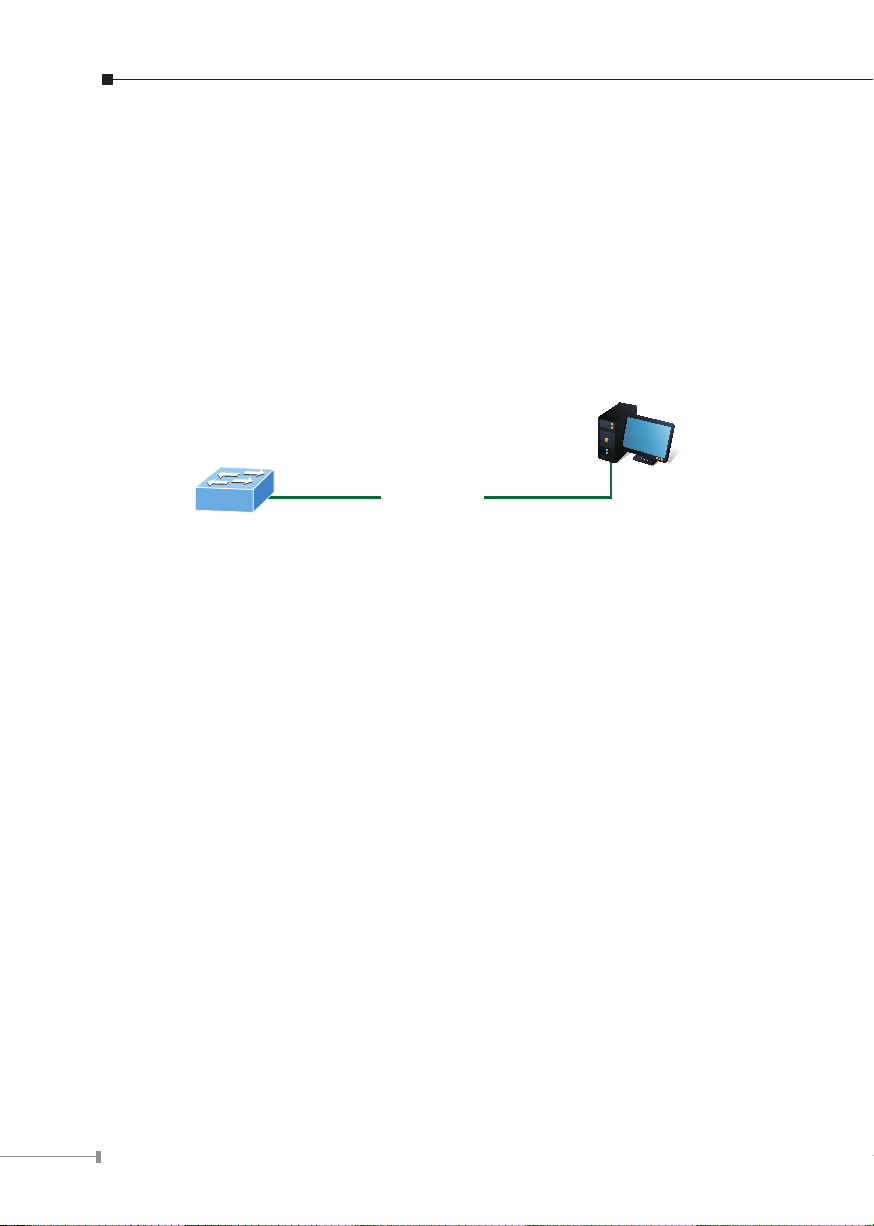

PC / Workstation
with Web Browser
192.168.0.x
Managed Switch
RJ45/UTP Cable
IP Address:
192.168.0.100
Figure 5-1: IP Management Diagram
