Pioneer DEH-P700R User manual

PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan

PIONEER ELECTRONICS SERVICE INC. P.O.Box 1760, Long Beach, CA 90801-1760 U.S.A.

PIONEER ELECTRONIC [EUROPE] N.V. Haven 1087 Keetberglaan 1, 9120 Melsele, Belgium

PIONEER ELECTRONICS ASIACENTRE PTE.LTD. 253 Alexandra Road, #04-01, Singapore 159936

C PIONEER ELECTRONIC CORPORATION 1999 K-ZZD. FEB. 1999 Printed in Japan

ORDER NO.

CRT2373

MULTI-CD CONTROL HIGH POWER CD PLAYER WITH RDS TUNER

DEH-P700R UC

Service

Manual

CONTENTS

1. SAFETY INFORMATION ............................................2

2. EXPLODED VIEWS AND PARTS LIST.......................2

3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM ...14

4. PCB CONNECTION DIAGRAM ................................46

5. ELECTRICAL PARTS LIST ........................................56

6. ADJUSTMENT..........................................................70

7. GENERAL INFORMATION .......................................74

7.1 PARTS .................................................................74

7.1.1 IC................................................................74

7.1.2 DISPLAY....................................................84

7.2 DIAGNOSIS ........................................................86

7.2.1 DISASSEMBLY .........................................86

7.2.2 TEST MODE..............................................90

8. OPERATIONS AND SPECIFICATIONS.....................94

-See the separate manual CX-916(CRT2300) for the CD mechanism description, disassembly and circuit

description.

-The CD mechanism employed in this model is one of S8 series.

-This device employs an inverter as the power supply for EL. The inverter has an output voltage reach

approximately 500 volts(AC). Utmost care should be used not to suffer from a possible electric shock,

accordingly.

-When executing an operation, be aware that the in around IC651 can become quite hot to the touch.

DEH-P7000R UC

DEH-P7050 ES

DEH-P700R/UC

MULTI-CD CONTROL HIGH POWER CD PLAYER WITH FM/AM TUNER

DEH-P700R,P7000R,P7050

-CD Player Service Precautions

1. For pickup unit(CXX1285) handling, please refer

to"Disassembly"(see page 86).

During replacement, handling precautions shall be

taken to prevent an electrostatic discharge(protection

by a short pin).

2. During disassembly, be sure to turn the power off

since an internal IC might be destroyed when a con-

nector is plugged or unplugged.

3. Please checking the grating after changing the ser-

vice pickup unit(see page 72).

CAUTION

This service manual is intended for qualified service technicians; it is not meant for the casual do-it-yourselfer.

Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair

complex products such as those covered by this manual.

Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty.

If you are not qualified to perform the repair of this product properly and safely; you should not risk trying to do so

and refer the repair to a qualified service technician.

WARNING

This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of

California to cause cancer, birth defects or other reproductive harm.

Health & Safety Code Section 25249.6 - Proposition 65

1. SAFETY INFORMATION

2. EXPLODED VIEWS AND PARTS LIST

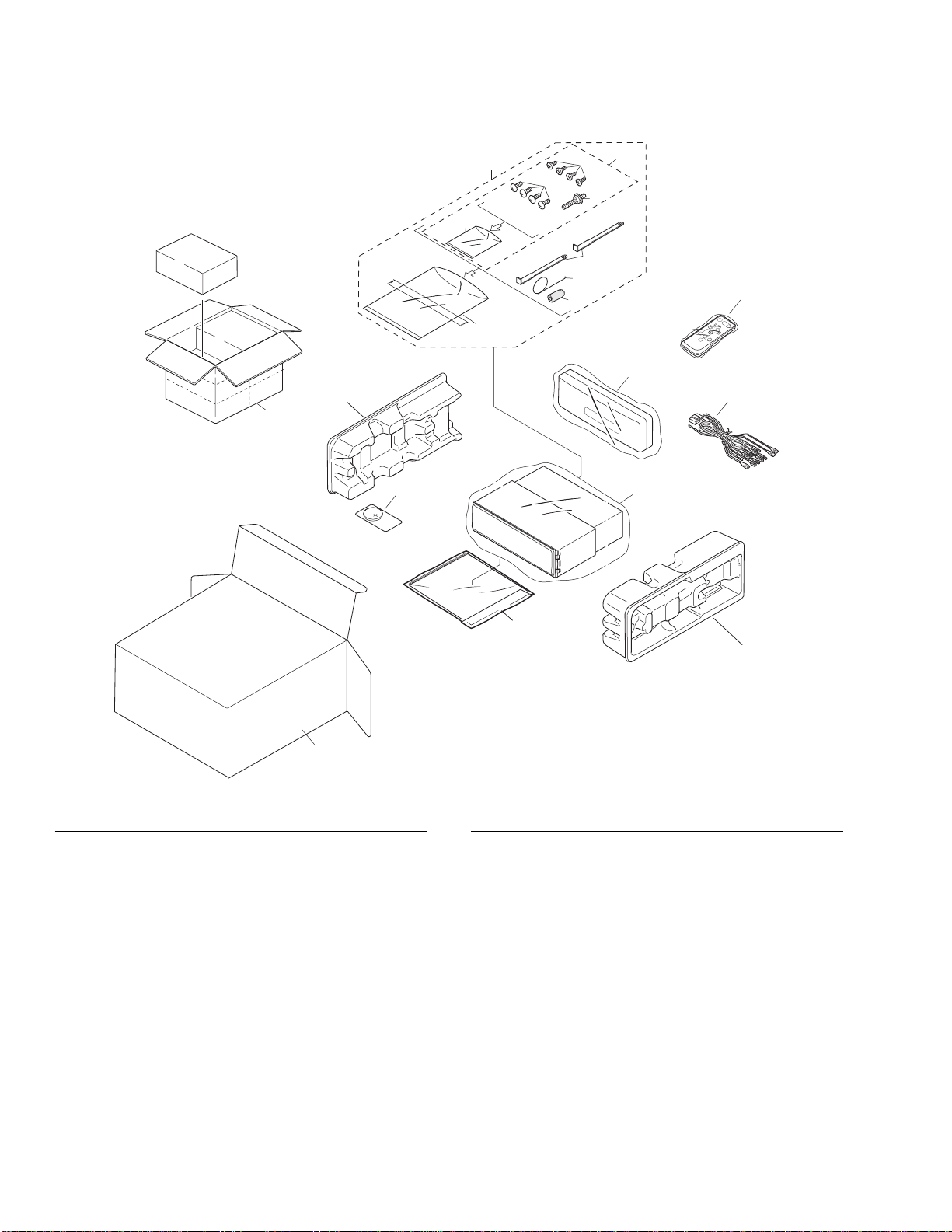

2.1 PACKING(DEH-P700R/UC)

23 22

DEH-P700R,P7000R,P7050

1 Cord Assy CDE5829

* 2 Accessory Assy CEA2395

3 Spring CBH1650

* 4 Screw Assy CEA2396

5 Screw CBA1002

* 6 Polyethylene Bag CEG-127

7 Screw CRZ50P090FMC

8 Screw TRZ50P080FMC

* 9 Polyethylene Bag CEG-158

10 Handle CNC5395

11 Bush CNV3930

12 Polyethylene Bag CEG1173

13 Battery CEX1006

14 Carton CHG3749

15 Contain Box CHL3749

16 Protector CHP2101

17 Protector CHP2102

18 Remote Control Assy CXB3875

19 Case Assy CXB3520

20-1 Owner’s Manual CRD2906

(English, French)

20-2 Installation Manual CRD2907

(English, French)

* 20-3 Warranty Card CRY1070

20-4 Polyethylene Bag CEG1116

* 20-5 Label CRW1343

21 Base Assy CEA2426

* 22 Base CNS5031

* 23 Sheet CZA3371

24 Polyethylene Bag CZE3188

25 Inner Box CHW1759

Mark No. Description Part No. Mark No. Description Part No.

-PACKING SECTION PARTS LIST

NOTE:

-Parts marked by “*” are generally unavailable because they are not in our Master Spare Parts List.

-Screws adjacent to ∇mark on the product are used for disassembly.

DEH-P700R,P7000R,P7050

2.2 PACKING(DEH-P7000R/UC)

1 Cord Assy CDE5827

* 2 Accessory Assy CEA2395

3 Spring CBH1650

* 4 Screw Assy CEA2396

5 Screw CBA1002

* 6 Polyethylene Bag CEG-127

7 Screw CRZ50P090FMC

8 Screw TRZ50P080FMC

* 9 Polyethylene Bag CEG-158

10 Handle CNC5395

11 Bush CNV3930

12 Polyethylene Bag CEG1173

13 Battery CEX1030

14 Carton CHG3748

15 Contain Box CHL3748

16 Protector CHP2101

17 Protector CHP2102

18 Remote Control Unit CXB3455

19 Case Assy CXB3520

20-1 Owner’s Manual CRD2908

(English, French)

20-2 Installation Manual CRD2909

(English, French)

* 20-3 Card ARY1048

20-4 Polyethylene Bag CEG1116

* 20-5 Label CRW1343

Mark No. Description Part No. Mark No. Description Part No.

-PACKING SECTION PARTS LIST

DEH-P700R,P7000R,P7050

2.3 PACKING(DEH-P7050/ES)

23 22

1 Cord Assy CDE5828

* 2 Accessory Assy CEA2395

3 Spring CBH1650

* 4 Screw Assy CEA2396

5 Screw CBA1002

* 6 Polyethylene Bag CEG-127

7 Screw CRZ50P090FMC

8 Screw TRZ50P080FMC

* 9 Polyethylene Bag CEG-158

10 Handle CNC5395

11 Bush CNV3930

12 Polyethylene Bag CEG-162

13 Battery CEX1006

14 Carton CHG3747

15 Contain Box CHL3747

16 Protector CHP2101

17 Protector CHP2102

18 Remote Control Assy CXB3875

19 Case Assy CXB3520

20-1 Owner’s Manual CRD2903

(English, Spanish, Portuguese)

20-2 Owner’s Manual CRD2904

(Arabic, Chinese)

20-3 Installation Manual CRD2905

(English, Spanish, Portuguese,

Arabic, Chinese)

20-4 Polyethylene Bag CEG1116

21 Base Assy CEA2426

* 22 Base CNS5031

* 23 Sheet CZA3371

24 Polyethylene Bag CZE3188

25 Inner Box CHW1759

Mark No. Description Part No. Mark No. Description Part No.

-PACKING SECTION PARTS LIST

DEH-P700R,P7000R,P7050

107

104

20 4

105

106

101

103

102

97 94

100

95 99

4640 21

2.4 EXTERIOR(DEH-P700R/UC)

DEH-P700R,P7000R,P7050

1 Screw BMZ30P040FMC

2 Screw BSZ26P060FMC

3 Screw BSZ30P060FMC

4 Screw BSZ30P100FMC

5 Cord Assy CDE5821

6 Cord Assy CDE5829

7 Fuse(10A) CEK1136

8 Connector CDE6049

9 Antenna Cable CDH1266

10 Transistor(Q954,991) 2SD2396

11 IC(IC551) PAL005A

12 Case CNB2508

13 Holder CNC6798

14 Holder CNC8300

15 Holder CNC8357

16 Spacer CNM4913

17 Insulator CNM6075

18 Panel CNS5148

19 Cap CNV2680

20 Tuner Amp Unit CWM6188

21 Screw ASZ26P080FMC

22 Screw BPZ26P060FMC

23 Screw BSZ26P160FMC

24 Clamper CEF1009

25 Pin Jack(CN431) CKB1028

26 Terminal(CN501) CKF1059

27 Plug(CN951) CKM1296

28 Plug(CN652) CKS-783

29 Connector(CN411) CKS3408

30 Connector(CN433) CKS3602

31 Connector(CN681) CKS3838

32 Connector(CN651) CKS4077

33 Mini Pin Jack(CN502) CKX1046

34 Panel CNB2375

35 Holder CNC7533

36 Case CNC8138

37 Holder CNC8298

38 Holder CNC8299

39 Case CNC8301

40 Case CNC8376

41 Case CNC8377

42 Heat Sink CNC8437

43 Insulator CNM5967

44 Insulator CNM6249

45 Insulator CNM6250

46 Insulator CNM6298

47 Insulator CNM6299

48 Heat Sink CNR1550

49 Insulator CNV5816

50 FM/AM Tuner Unit CWE1501

51 Holder CNC7532

52 Chassis Unit CXB3306

53 •••••

54 Screw BPZ20P060FMC

55 Screw CBA1082

56 Screw CBA1176

57 Washer CBF1001

58 Spring CBH2063

59 Spring CBH2204

60 Cord CDE5800

61 Connector CKS2780

62 Roller CLA3386

63 Sheet CNM6109

64 Cover CNM6118

65 Cushion CNM6376

66 PCB CNP5383

67 PCB CNP5430

68 Holder CNS5157

69 Holder CNS5165

70 Panel CNS5280

71 Cover CNS5389

72 Lighting Conductor CNV5540

73 Switch(S651) CSN1027

74 Holder Unit CXB3049

75 Holder Unit CXB3050

76 Holder Unit CXB3051

77 Coil(L652,L653) CTH1228

78 Damper Unit CXB3180

79 Screw IMS20P040FZK

80 Detach Grille Assy CXB3684

81 Screw BPZ20P060FMC

82 Screw BPZ20P080FZK

83 Button(OPEN) CAC5804

84 Button(EJECT) CAC5805

85 Button(SOURCE) CAC5806

86 Button(EQ) CAC5808

87 Button(DISP) CAC5809

88 Button(1-6) CAC5811

89 Button(BAND) CAC5936

90 Spring CBH2205

91 Cover CNS5146

92 Holder CNV5537

93 Keyboard Unit CWM6196

94 LCD CAW1519

95 EL CEL1592

96 Connector(CN901) CKS2733

97 Holder CNC8157

98 Spacer CNM6379

99 Double Sided Tape CNM6380

100 Connector CNV5539

101 Grille Unit CXB4090

102 Remote Control Assy CXB3875

103 Battery Cover CNS5032

104 CD Mechanism Module CXK5200

105 Screw ISS26P055FUC

106 Screw CBA1492

107 Spacer CNM6421

-EXTERIOR SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

DEH-P700R,P7000R,P7050

107

104

20 4

105

106

101

97 94

100

95 99

4640 21

103

102

2.5 EXTERIOR(DEH-P7000R/UC)

DEH-P700R,P7000R,P7050

1 Screw BMZ30P040FMC

2 Screw BSZ26P060FMC

3 Screw BSZ30P060FMC

4 Screw BSZ30P100FMC

5 Cord Assy CDE5821

6 Cord Assy CDE5827

7 Fuse(10A) CEK1136

8 Connector CDE6049

9 Antenna Cable CDH1266

10 Transistor(Q954,991) 2SD2396

11 IC(IC551) PAL005A

12 Case CNB2508

13 Holder CNC6798

14 Holder CNC8300

15 Holder CNC8357

16 Spacer CNM4913

17 Insulator CNM6075

18 Panel CNS5148

19 Cap CNV2680

20 Tuner Amp Unit CWM6189

21 Screw ASZ26P080FMC

22 Screw BPZ26P060FMC

23 Screw BSZ26P160FMC

24 Clamper CEF1009

25 Pin Jack(CN431) CKB1028

26 Terminal(CN501) CKF1059

27 Plug(CN952) CKM1294

28 Plug(CN652) CKS-783

29 Connector(CN411) CKS3408

30 Connector(CN433) CKS3602

31 Connector(CN681) CKS3838

32 Connector(CN651) CKS4077

33 Mini Pin Jack(CN502) CKX1046

34 Panel CNB2376

35 Holder CNC7533

36 Case CNC8138

37 Holder CNC8298

38 Holder CNC8299

39 Case CNC8301

40 Case CNC8376

41 Case CNC8377

42 Heat Sink CNC8437

43 Insulator CNM5967

44 Insulator CNM6249

45 Insulator CNM6250

46 Insulator CNM6298

47 Insulator CNM6299

48 Heat Sink CNR1550

49 Insulator CNV5816

50 FM/AM Tuner Unit CWE1501

51 Holder CNC7532

52 Chassis Unit CXB3306

53 •••••

54 Screw BPZ20P060FMC

55 Screw CBA1082

56 Screw CBA1176

57 Washer CBF1001

58 Spring CBH2063

59 Spring CBH2204

60 Cord CDE5800

61 Connector CKS2780

62 Roller CLA3386

63 Sheet CNM6109

64 Cover CNM6118

65 Cushion CNM6376

66 PCB CNP5383

67 PCB CNP5430

68 Holder CNS5157

69 Holder CNS5165

70 Panel CNS5280

71 Cover CNS5389

72 Lighting Conductor CNV5540

73 Switch(S651) CSN1027

74 Holder Unit CXB3049

75 Holder Unit CXB3050

76 Holder Unit CXB3051

77 Coil(L652,L653) CTH1228

78 Damper Unit CXB3180

79 Screw IMS20P040FZK

80 Detach Grille Assy CXB3685

81 Screw BPZ20P060FMC

82 Screw BPZ20P080FZK

83 Button(OPEN) CAC5804

84 Button(EJECT) CAC5805

85 Button(SOURCE) CAC5806

86 Button(EQ) CAC5808

87 Button(DISP) CAC5809

88 Button(1-6) CAC5811

89 Button(BAND) CAC5936

90 Spring CBH2205

91 Cover CNS5146

92 Holder CNV5537

93 Keyboard Unit CWM6196

94 LCD CAW1519

95 EL CEL1592

96 Connector(CN901) CKS2733

97 Holder CNC8157

98 Spacer CNM6379

99 Double Sided Tape CNM6380

100 Connector CNV5539

101 Grille Unit CXB4091

102 Remote Control Unit CXB3455

103 Cover CNS4948

104 CD Mechanism Module CXK5200

105 Screw ISS26P055FUC

106 Screw CBA1492

107 Spacer CNM6421

-EXTERIOR SECTION PARTS LIST

Mark No. Description Part No. Mark No. Description Part No.

DEH-P700R,P7000R,P7050

107

104

20 4

105

106

101

103

102

97 94

100

95 99

4640 21

2.6 EXTERIOR(DEH-P7050/ES)

This manual suits for next models

Table of contents

Other Pioneer CD Player manuals

Pioneer

Pioneer Elite PD-D6-J User manual

Pioneer

Pioneer CLD-901 User manual

Pioneer

Pioneer PD-F958 User manual

Pioneer

Pioneer DEH-P4850MP User manual

Pioneer

Pioneer PD-M407 User manual

Pioneer

Pioneer CDX-P650 User manual

Pioneer

Pioneer CDX-FM1277 User manual

Pioneer

Pioneer CDJ-200 User manual

Pioneer

Pioneer CDX-M2086ZBM User manual

Pioneer

Pioneer CDX-P1270 Setup guide

Pioneer

Pioneer LD-V8000 Level I User manual

Pioneer

Pioneer MEP-7000 Installation guide

Pioneer

Pioneer CDJ 1000MK3 - Professional CD/MP3 Turntable User manual

Pioneer

Pioneer DEH-4 User manual

Pioneer

Pioneer PD-F705 User manual

Pioneer

Pioneer PD-T303 User manual

Pioneer

Pioneer CDX-M2086ZBM User manual

Pioneer

Pioneer LaserDisc CLD-1450 User manual

Pioneer

Pioneer Super Tuner IIID DEH-P5800MP User manual

Pioneer

Pioneer CDJ-400 - Cd/Media Player Use and maintenance manual

Pioneer

Pioneer PR-8210 User manual

Pioneer

Pioneer CRT2416 User manual

Pioneer

Pioneer PD-6700 User manual

Pioneer

Pioneer CLD-V300 User manual

Popular CD Player manuals by other brands

RCA

RCA RP-7923 instruction manual

Philips

Philips AZ1207 owner's manual

Philips

Philips CD582 user manual

Philips

Philips AZ 6821 operating manual

Lasonic

Lasonic MSU-2020 user manual

THOMSON

THOMSON RCD150 user manual

Denon

Denon DCD-1420 Service manual

Panasonic

Panasonic SJ-MR100 operating instructions

Onkyo

Onkyo DX-7210 instruction manual

Sony

Sony MZ-R3 operating instructions

Denon

Denon DVM-4800 Service manual

JBL

JBL MR-32 Operation manual

RCA

RCA RCD152 Specifications

Technics

Technics SL-PS770A Service manual

Clarion

Clarion compact disc owner's manual

Sony

Sony MZ-M10 operating instructions

Philips

Philips Expanium AZ 1538 user manual

Rotel

Rotel RCD 975 owner's manual
