Operating

CD

CDV

LD

PLAYER

LecorPice

BUTT

WITS.

Instructions

—

CLD-1450

a

i

<=

:

bigitaLAUDIO

CD

VIDEO

Laserviston

CLOM450

Thank

you

for

buying

this

Pioneer

product.

Please

read

through

these

operating

instructions

so

you

will

know

how

to

operate

your

model

properly.

After

you

have

finished

reading

the

instructions,

put

them

away

ina

safe

place

for

future

reference.

In

some

countries

or

regions,

the

shape

of

the

power

plug

and

power

outlet

may

sometimes

differ

from

that

shown

in

the

explanatory

drawings.

However,

the

method

of

connecting

and

operating

the

unit

is

the

same

WARNING:

To

PREVENT

FIRE

OR

SHOCK

HAZARD,

LINE

VOLTAGE

SELECTOR

SWITCH

DO

NOT

EXPOSE

THIS

APPLIANCE

TO

RAIN

OR

Only

multi-voltage

models

are

provided

with

this

MOISTURE.

switch.

Mains

voltages

in

Saudi

Arabia

are

127V

and

220V

only.

Never

use

this

model

with

110V

setting

in

Saudi

Arabia.

The

line

voltage

selector

switch

is

located

on

the

rear

panel

of

this

player.

Before

your

player

is

shipped

from

the

factory,

the

switch

is

set

to

the

power

requirements

of

the

player's

destination.

Check

that

it

is

set

properly

before

plugging

the

power

cord

into

the

outlet.

If

the

voltage

is

not

porperly

set

or

if

you

move

to

an

area

where

the

voltage

requirements

differ,

adjust

the

selector

switch

as

follows:

Use

a

medium-sized

(flat

blade)

screwdriver.

Insert

the

tip

of

the

screwdriver

into

the

groove

of

the

selector

switch

and

turn

it

to

set

the

player

to

the

power

voltage

of

your

area.

Set

the

selector

so

that

arrow

points

power

voltage

of

your

area

(Figure

shows

arrow

point-

ing

to

110

voits.}

Y

PIONEER’

The

future

of

sound

and

vision.

IMPCRTANT

The

lightning

fiash

with

arrowhead,

within

an

equilateral

triangle,

is

intended

to

alert

the

user

of

the

presence

of

uninsulsted

“dangerous

voltage”

within

the

product's

enciosure

that

may

be

of

sufficient

magnitude

to

constitute

a

risk

of

electric

shock

to

persons.

CAUTION

RISK

OF

ELECTRIC

SHOCK

DO

NOT

OPEN

CAUTION:

The

exclamation

point

within

an

equilateral

triangle

is

JO

PREVENT

THE

RISK

OF

ELECTRIC

SHOCK.

DO

intended

to

alert

the

user

of

the

presence

of

important

NOT

REMOVE

COVER

{OR

SACK).

NO

USER-

operating

and

maintenance

{servicing}

instructions

in

SERVICEABLE

PARTS

INSIDE.

REFER

SERVIC-

the

literature

accompanying

the

appliance,

ING

TO

QUALIFIED

SERVICE

PERSONNEL.

IMPORTANT

CAUTION

The

following

caution

labels

appear

on

your

player:

Location:

On

the

rear

panel

of

the

player

On

the

bonnet

of

the

player

CLASS

1

LASER

PRODUCT

This

product

contains

a

laser

diode

of

higher

class

than

1.

To

ensure

continued

safety,

do

not

remove

any

covers

or

attempt

to

gain

access

to

the

inside

of

the

product.

Refer

all

servicing

to

qualified

personnel.

CAUTION

INVISIBLE

LASER

RADIATION

WHEN

OPEN,

AVOID

EXPOSURE

TO

BEAM

PRW1018

VRW-328

|

“This

product

is

manufactured

to

comply

with

the

radio

|

inerference

requirements

of

EEC

Directive

76/889/EEC

and

82/499/EEC.”

IMPORTANT

|

#f

the

apparatus

is

fitted

with

AC

mains

power

outlet{s},

sae

REAR

PANEL

FACILITIES

for

convenient

connection

of

additonal

Hi-Fi

component(s).

Make

ail

connections

to

the

AC

outlet(s}

and

the

signat

terminals

first.

Connect

the

plug

to

wall

socket

last.

make

sure

that

the

power

switch

is

off.

FOR USE

IN

THE

UNITED

As

the

colours

of

wires

in

the

mains

lead

of

this

apparatus

may

not

correspond

with

the

coloured

KINGDOM

marking

identifying

the

terminals

in

your

plug

proceed

as

fotiows:

The

wires

in

this

mains

lead

are

coloured

in

accordance

The

wire

which

is

coloured

blue

must

be

connected

to

with

the

following

code

the

terminal

which

is

marked

with

the

letter

N

or

Blue

Neutral

coloured

black.

Brown:

Live

The

wire

which

is

coloured

brown

must

be

connected

to

the

terminal

which

is

matked

with

the

fetter

L

or

|

coloured

red.

i"

Equipment

sold

in

the

U.K.

is

not

supplied

with

a

ea

plug.

<VRB1022>

Precautions

................

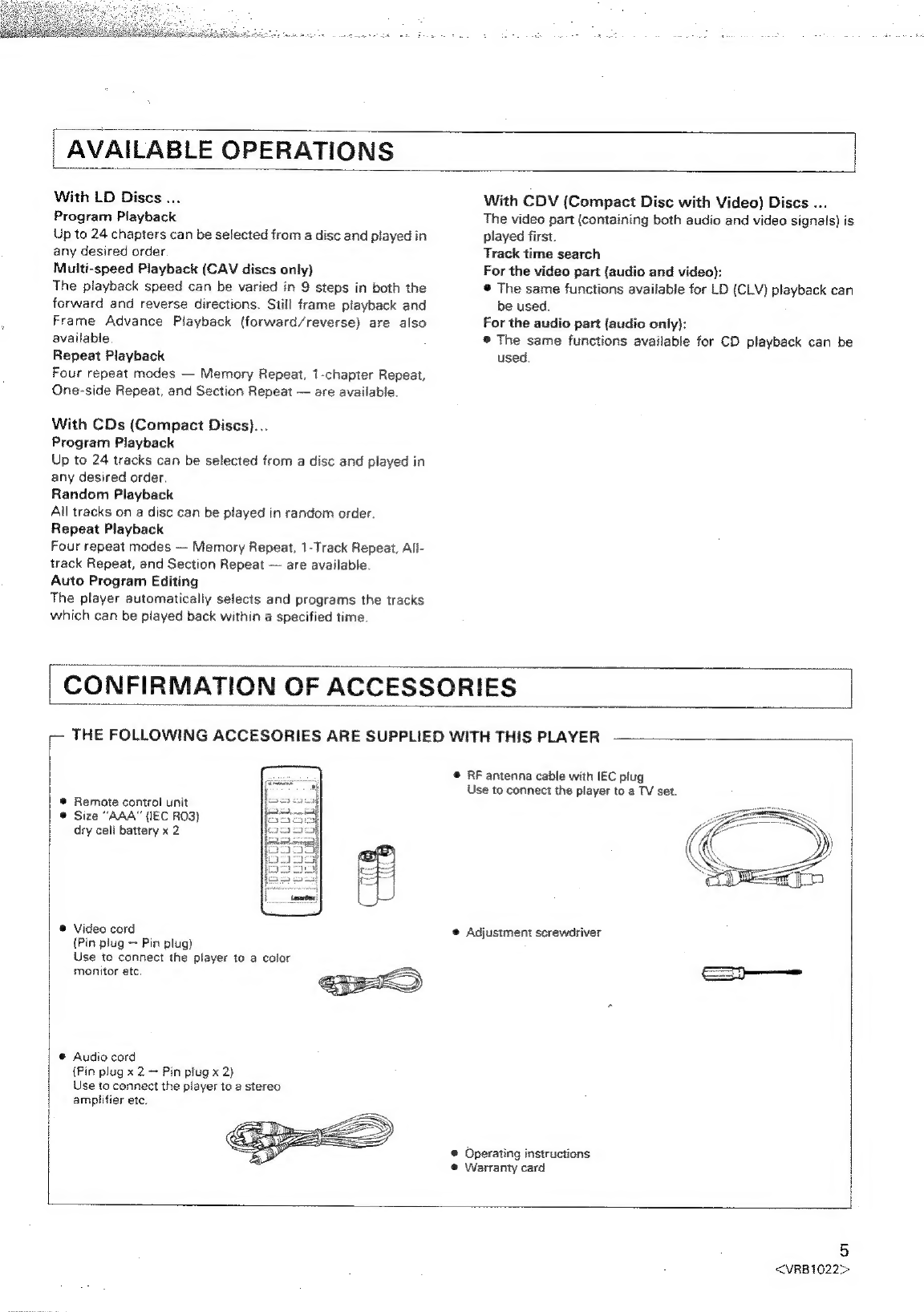

Available

Operations

....

Confirmation

of

Accessories

.

Discs

.......

Care

of

Discs

Connections

To

Watch

a

TV

Broadcas'

Front

Panel

Facilities

......

Remote

Control!

Unit

Facilities...

Display

Switching

To

Play

LD/CDV/CD

To

Search

for

a

Particular

Passage

(Manual

Search

by

Fast

Forward

or

Fast

Reverse

Key)

2.0.0.0...

.o.cceccceeececesececureee

19

To

Search

for

a

Particular

Chapter/Track

(Chapter

Skip/Track

Search)

............0....cceeeeee

19

To

Search

for

a

Particular

Time

To

Play

Each

Beginning

of

All

Chapters/Tracks

To

Play

All

Tracks

in

a

Random

Order

To

Play

Only

the

Desired

Passage

To

Play

Only

the

Desired

Scenes/Tracks

Extra

Playback

(CAV

discs

only)

...

Programming

Tracks

to

be

Played

Back

within

a

Troubleshooting

Specifications

{Search

for

a

Time

Number)

.....00..00..00000..ceeee

20

(intlo

Scan):

eek

ens

al

laws

sonny

eae

sewe

20

(Random

Playback)

...

(Repeat

Playback)

........0..

00...

cess

eceeceseceeeeaees

22

(Program

Playback}

Specified

Time

Period

(Auto

Program

Editing)

......

26

®@

This

player

is

used

with

discs

bearing

the

following

symbols.

LaserVision

Players

and

discs

which

bear

this

symbol

and

use

the

same

television

system,

are

mutually

compatibie.

(Compact

Disc)

(*CD

VIDEO

SYSTEM)

COMPACT

<zs

dsc

=

a>

1D

CDVIDEO

'

DIGITAL

AUDIO

*

CD

Video

discs

are

recorded

with

subcodes,

which

are

the

non-

audio

recordings

of

TOC

data

such

as

track

numbers,

index

numbers,

ete.

Only

one

disc

can

be

loaded

at

any

one

time.

Loading

an

LD

Disc,

a

Compact

Disc,

an

8cm

Compact

Disc

or

a

Compact

Disc

with

Video

on

top

of

one

another

may

result

in

breakdown,

or

in

scratching

of

the

discs.

Please

load

only

one

disc

at

a

time.

3

<VRB1022>

PRECAUTIONS

Eirpceen

|

Always

remove

the

disc

when

this

unit

is

moved

or

packed

for

transportation.

After

removing

the

disc,

return

the

disc

table

and

turn

the

power

OFF.

INSTALLING

THE

PLAYER

@

Place

a

player

on

a

stable

platform

next

to

the

television

and

stereo

system

to

be

used

with

the

player.

~

®

When

using

the

player

with

a

stereo

system,

your

speakers

should

be

placed

away

from

your

television

(or

TV

monitor).

®@

Do

not

place

heavy

objects

such

as

a

television

or

TV

monitor

on

top

of

the

player.

®

Do

not

piace

the

player

on

top

of

your

TV

set

or

TV

monitor.

Also,

keep

the

player

away

from

devices

such

as

Cassette

decks

which

are

sensitive

to

magnetic

fields.

When

FM

or

AM

stations

are

being

received,

signa!

noise

may

be

generated

if

the

player

is

turned

on.

Turn

off

the

player

when

not

in

use.

Also,

if

there

is

signal

noise

when

receiving

radio

stations

with

an

indoor

antenna,

adjust

the

position

or

direction

of

the

antenna.

INSTALL

THE

PLAYER

IN

A

WELL

VENTILATED

PLACE

AWAY

FROM

HEAT

AND

HUMIDITY

Do

not

install

the

player

in

a

location

subject

to

direct

sunlight,

or

near

a

stove

or

radiator

etc.

This

could

adversely

affect

the

cabinet

and

internal

components.

Also

avoid

installing

the

player

in

a

humid

or

dusty

location.

This

could

result

in

a

malfunction

or

accident.

Do

not

install

near

a

cookstove

where

the

player

could

be

affected

by

smoke,

steam,

or

heat.

AVOID

SOURCES

OF

HEAT

Do

not

put

the

player

on

sources

of

heat,

such

as

an

amplifier.

When

installing

with

audio

components

on

a

rack,

avoid

components

that

generate

heat,

by

placing

the

player

below

such

components

where

there

is

adequate

ventilation

and

not

much

dust.

Avoid

placing

the

player

on

surfaces

such

as

shaggy

carpets,

beds,

and

sofas

which

may

block

ventilation

under

the

player

and

cause

damage.

CAUTIONS

FOR

AUTOMATIC

LOADING

OPERATIONS

Since

this

player

has

an

automatic

loading

construction,

use

the

key

on

the

player

or

the

remote

contro!

for

opening

and

closing

of

the

disc

table.

To

avoid

damage,

be

careful

not

to

apply

any

force

to

the

moving

disc

table.

4

<VRB1022>

STRIPE

PATTERNS

APPEARING

ON

ATV

PROGRAM

Stripe

patterns

may

appear

during

a

TV

program

if

the

player

unit

is

turned

on,

depending

on

the

quality

of

reception

of

the

TV

station.

This

is

neither

a

malfunction

of

the

television

nor

the

player.

If

stripes

appear

while

watching

the

TV,

or

when

watching

the

TV

for

long

periods

of

time,

turn

the

player

off,

CONDENSATION

Moisture

will

form

in

the

operating

section

of

the

player

if

the

player

is

brought

from

cool

surroundings

into

a

warm

room

or

if

the

temperature

of

the

room

rises

suddenly.

When

this

happens,

player's

performance

will

be

impaired.

To

prevent

this,

let

the

player

stand

in

its

new

surroundings

for

about

an

hour

before

switching

it

on,

or

make

sure

that

the

room

temperature

rises

gradually,

The

same,

symptoms

of

condensation

may

be

caused

during

summer,

if

the

player

is

exposed

to

the

breeze

from

an

air

conditioner.

In

such

cases

change

the

location

of

the

player.

POWER-CORD

CAUTION

Handie

the

power

cord

by

the

plug.

Do

not

pull

out

the

plug

by

tugging

the

cord

and

never

touch

the

power

cord

when

your

hands

are

wet

as

this

could

cause

a

short

circuit

or

electric

shock.

Do

not

place

the

unit,

a

piece

of

furniture,

etc.,

on

the

power

cord,

or

pinch

the

cord.

Never

make

a

knot

in

the

cord

or

tie

it

with

other

cords.

The

power

cords

should

be

routed

such

that

they

are

not

likely

to

be

stepped

on.

A

damaged

power

cord

can

cause

fire

or

give

you

an

electrical

shock.

Check

the

power

cord

once

in

a

while.

When

you

find

it

damaged,

ask

your

nearest

PIONEER

authorized

service

center

or

your

dealer

for

a

replacement

CLEANING

CARE

—

Use

a

soft,

dry

cloth

for

cleaning.

For

stubborn

dirt,

soak

the

cloth

in

a

weak

detergent

solution;

wring

well

first

and

wipe.

Use

a

dry

cloth

to

wipe

it

dry.

Do

not

use

any

volatile

agents

such

as

benzene

or

paint

thinner,

as

it

may

damage

the

surface

of

the

player.

AVAILABLE

OPERATIONS

With

LD

Discs

...

Program

Playback

Up

to

24

chapters

can

be

selected

from

a

disc

and

played

in

any

desired

order

Multi-speed

Playback

(CAV

discs

only)

The

playback

speed

can

be

varied

in

9

steps

in

both

the

forward

and

reverse

directions.

Still

frame

playback

and

Frame

Advance

Playback

(forward/reverse)

are

also

available

Repeat

Playback

Four

repeat

modes

—

Memory

Repeat,

1-chapter

Repeat,

One-side

Repeat,

and

Section

Repeat

—

are

available.

With

CDs

(Compact

Discs)...

Program

Playback

Up

to

24

tracks

can

be

selected

from

a

disc

and

played

in

any

desired

order.

Random

Playback

All

tracks

on

a

disc

can

be

played

in

random

order.

Repeat

Playback

Four

repeat

modes

—

Memory

Repeat,

1-Track

Repeat,

Ail-

track

Repeat,

and

Section

Repeat

—

are

available.

Auto

Program

Editing

The

player

automatically

selects

and

programs

the

tracks

which

can

be

played

back

within

a

specified

time.

With

CDV

(Compact

Disc

with

Video)

Discs

...

The

video

part

(containing

both

audio

and

video

signals)

is

played

first.

Track

time

search

For

the

video

part

(audio

and

video):

®

The

same

functions

available

for

LD

(CLV)

playback

can

be

used.

For the

audio

part

(audio

only):

®

The

same

functions

available

for

CD

playback

can

be

used

_

CONFIRMATION

OF

ACCESSORIES

THE

FOLLOWING

ACCESORIES

ARE

SUPPLIED

WITH

THIS

PLAYER

®

Remote

control

unit

©

Size

“AAA"

(IEC

RO3)

dry

cell

battery

x

2

@

Video

cord

{Pin

plug

-

Pin

plug)

|

Use

to

connect

the

player

to

a

color

monitor

etc.

®

Audio

cord

{Pin

plug

x

2

—

Pin

plug

x

2}

Use

to

connect

the

player

to

a

stereo

amplifier

etc.

®

RF

antenna

cable

with

IEC

plug

@

Operating

instructions

@

Warranty

card

Use

to

connect

the

player

to

a

TV

set.

@

Adjustment

screwdriver

|

5

<VRB1022>

DISCS

~

LD

GLOSSARY

Chapter

number

Chapter

numbers

are

used

to

indicate

the

boundaries

of

the

sections

on

a

disc,

similar

to

the

“chapters”

in

a

book.

If

chapter

numbers

are

recorded

on

a

disc,

it

is

so

indicated

on

the

jacket

of

the

disc,

etc.

Chapter

numbers

can

be

used

to

search

for

desired

chapters

(Chapter

Search).

Frame

number

Frame

numbers

are

the

numbers

assigned

to

each


frame

on

a

CAV

disc.

Frame

numbers

can

be

used

to

search

for

desired

frames

(Frame

Search).

Time

number

Time

numbers

indicate

the

time

elapsed

from

the

beginning

of

a

CLV

disc.

Time

numbers

can

be

used

to

search

for

desired

scenes

(Time

Search).

CDV/CD

GLOSSARY

Track

number

Track

numbers

indicate

the

boundaries

of

the

sections,

or

“tracks”,

on

a

disc.

Track

numbers

are

assigned

consist-

ently

throughout

the

audio

part

and

video

part

of

a

disc.

Track

numbers

can

be

used

to

search

for

desired

tracks

(Track

Search)

or

to

repeat

desired

tracks

(Track

Repeat).

TOC

Every

CD/CDV-type

disc

is

provided

with

a

section

called

TOC

(Table

Of

Contents)

at

the

beginning

of

the

disc.

The

TOC

section

is

just

like

the

table

of

contents

of

a

book,

and

contains

information

on

the

contents

(number

of

tracks,

playing

time,

etc.)

of

the

disc.

®

Some

LO

discs

are

also

provided

with

a

TOC

section.

6

<VRB1022>

LD

DISCS

The

CLD-1450

can

play

both

LD

Discs

and

Compact

Discs.

Unlike

conventional

phonograph

records,

these

discs

are

played

back

from

the

inside

edge

out.

LD

Discs

are

available

as

both

standard

play

discs

and

extended

play

discs.

®

Active/standard

play

(CAV)

discs

-

Standard

play

discs

are

played

at

constant

angular

velocity

(CAV).

®@

Long/extended

play

(CLV)

discs

These

discs

are

played

back

at

constant

linear

velocity

(CLV),

and

are

therefore

able

to

play

for

a

longer

time

than

standard

play

discs.

7

tc

ong

rere

mr

tee

RC

SA

|

CARE

OF

DISCS

How

to

hold

discs

When

loading

or

removing

discs,

try

not

to

touch

their

playing

surfaces.

|

coker

we

a

Cleaning

Fingerprints

or

other

dirt

on

the

disc

may

affect

sound

and


quality.

To

clean

your

discs,

use

a

soft

clean

cloth

to

wipe

them.

If

necessary,

moisten

a

soft

cloth

with

diluted

neutral

detergent

to

remove

heavy

dirt

or

fingerprints.

Gently

wipe

from

the

inside

toward

the

outer

edge.

Do

not

wipe

ina

circular

direction

Discs

may

not

be

cleaned

with

record

cleaning

sprays,

or

static

prevertion

sprays,

etc.

Also

do

not

use

volatile

liquids

such

as

benzene,

or

thinner,

etc.

DO

NOT

PLAY

CRACKED

OR

WARPED

DISCS.

@

Thedisc

revolves

on

the

player

at

a

high

speed

when

it

is

played.

Never

play

a

cracked,

scratched

or

warped

disc.

This

may

damage

the

player

or

cause

it

to

malfunction.

After

using

discs,

store

them

upright

After

playing

a

disc,

always

remove

it

from

the

player

and

return

it

to

its

jacket.

Then

store

it

standing

upright

away

from

heat

and

humidity.

®

Store

discs

carefully.

If

you

store

discs

at

an

angle,

or

stacked

on

top

of

each

other,

discs

may

become

warped

even

when

in

their

jackets.

®

Do

not

leave

discs

in

locations

such

as

the

seat

of

car,

which

may

become

excessively

hot.

if

an

LD

disc

is

warped

...

if

an

LD

disc

is

warped,

put

the

disc

into

its

protective

envelope,

and

then

place

it

between

two

flat

plates

of

glass.

Then

place

heavy

books

on

top

of

the

plates

so

that

approximately

4

to

5

kgs

(10

Ibs)

is

applied.

Leave

the

disc

like

this

for

a

day

or

so.

This

may

correct

the

warp.

Heavy

books

4

—

5

kgs (10

Ibs)

Glass

plate

LD

di

——

=

——

Protective

Glass

plate

envelope

CAUTION

WHEN

USING

THE

DISC

Ail

rights

reserved,

Unauthorized

public

performance,

broadcasting

or

copying

is

a

violation

of

applicable

laws.

7

<VRB1022>

CONNECTIONS

USING

TELEVISION

WITH

AUDIO

AND

VIDEO

JACKS

CLD-1450,

stereo

system,

monitor

television

~

UHF

I

antenna

I

i

i

[

iF

outlet

VIDEO

IN

|

~~

Video

cord

ay

.

ee

Audio

cord

AUDIO

IN

|

jaa

oN

-

TV

monitor

Sas

ee

edi

ada!

Amplifier

®

Connect

the

VIDEO

OUT

jack

of

the

player

to

the

video

@

When

using

a

video

TV

monitor

{or

TV}

with

“VIDEO/

input

jack

of

the

monitor

television.

AUDIO”

input

terminal,

connect

the

“VIDEO

AUDIO”

®

Connect

the

AUDIO

OUT

jacks

to

the

stereo

amplifier

input

terminal

to

the

VIDEO/AUDIO

OUT

terminal

of

the

AUX,

CD

or

other

jacks,

except

the

PHONO

input

jacks.

player.

The

television

speakers

can

also

be

used

by

connecting

For

this

purpose

you

need

a

special

lead,

please

obtain

a

the

television

audio

input

jacks

and

the

player

AUDIO

suitable

lead

from

your

dealer.

OUT

jacks,

however

connection

to

a

stereo

amplifier

is

recommended

to

obtain

superior

audio

playback

quality

for

Compact

Discs

and

LD

Discs.

No

need

to

change

the

television

antenna

and

VCR

connections.

8

<VRB1022>

USING

TELEVISION

WITHOUT

AUDIO

AND

VIDEO

JACKS

CLD-1450,

regular

television,

stereo

system,

(VCR)

Refer

to

next

page

concerning

the

identified

numbers.

Make

the

connections

in

this

order.

Channel

adjustment

RF

antenna

cable

with

IEC

plug

SUB

CODE

OUT

Audio

cord

O)|O

Stereo

amplitier

To

power

outlet

i

UHF

antenna

UHF

input

See

>

Cismewnn]

gue

ne

Ss

oe)

$

UHF

output

When

the

sound

from

a

LaserVision

Disc

or

Compact

Disc

is

output

from

a

television

speaker

it

becomes

monaural

sound.

9

<VRB1022>

|

[4]

UHF

TV

ANTENNA

CONNECTION

Detach

the

antenna

cable

from

the

antenna

terminal

of

your

TV

set,

and

connect

the

cable

to

the

ANTENNA

terminal

on

the

player.

|

(2)

CONNECTING

TO

TV

SET

Connect

the

TV

terminal

of

the

player

to

the

antenna

terminal

of

your

TV

set

with

the

accessory

RF

antenna

cable.

NOTE:

i

®

Push

the

plug

in

firmly.

If

the

plug

is

not

properly

inserted.

it

may

result

in

snow

on

the

screen

or

noise.

®

The

shape

of

the

antenna

input

termina!

and

the

method

of

connecting

the

antenna

cable

may

differ

from

one

TV

set

to

another.

For

details,

please

refer

to

your

TV

instruction

manual.

|

[S]

CONNECTING

TO

STEREO

AMPLIFIER

Connect

the

AUDIO

OUT

jacks

of

the

player

to

the

AUX

or

CD

input

jacks

of

stereo

amplifier.

NOTE:

®

Do

not

connect

these

terminals

to

your

amplitier

PHONO

input

Jacks.

[4]

PLUG

THE

POWER CORDS

INTO

AC

OUTLET

Plug

the

AC

power

cords

of

the

player,

stereo

amplifier

and

TV

set

into

an

AC

outlet

TIMER

CONNECTION

CLO-1450

Stereo

amplifier

+(s009)

Audio

timer

[ie:oo

Bees)

AC

outlet

<n

=)

10

<VRB1022>

S|;

UHF

CHANNEL

ADJUSTMENT

FOR

PLAYBACK

|

(1)

Turn

on

the

TV

and

tune

to

channel

36.

|

(2)

Turn

on

the

player.

(3)

lf

the

TV

is

correctly

tuned,

a

blue

background


|

will

appear

on

the

screen.

®

If

you

are

using

a

VCR

tuned

to

channel

36,

the

player

must

be

retuned

to

a

different

channel.

To

change

the

player

channel,

use

the

accessory

screwariver

to

turn

the

screw

inside

the

opening

in

the

rear

panel

marked

|

CHANNEL

SELECTOR

(from

CH

32

to

CH

40).

Note

that

the

screw

only

needs

to

be

turned

a

little.

Turn

the

screw.

SUB

CODE

OUT

jack/

&

Terminals

used

to

extend

the

utility

of

this

player

in

the

future.

CAUTION

;

BE

SURE

TO

USE

THE

SHIELDED

CABLE

WITH

THE

LENGTH

OF

LESS

THAN

2

METERS

WHEN

CONNECT-

ING

THE

SUB

CODE

OUT

JACK

TO

SOME

ADAPTER

IN

ORDER

TO

COMPLY

WITH

THE

RADIO

INTERFERENCE

REQUIREMENT.
