Philips SPA1260/12 User manual
Register your product and get support at
www.philips.com/support SPA1260
EN User manual
cb
e
a
d f
(R)(L)
(R)(L)
(R)(L)
(R)(L)
AUX
c
b
e
a
d f
(R)(L)
(R)(L)
(R)(L)
(R)(L)
AUX
c
b
e
a
d f
(R)(L)
(R)(L)
(R)(L)
(R)(L)
AUX
cb
e
a
d
f
(R)(L)
(R)(L)
(R)(L)
(R)(L)
AUX
cb
e
a
d f
(R)(L)
(R)(L)
(R)(L)
(R)(L)
AUX
cb
e
a
d
f
(R)(L)
(R)(L)
(R)(L)
(R)(L)
AUX
EN
Warning:
• The product shall not be exposed to dripping or splashing and
no objects lled with liquids, such as vases, shall be placed on the
product.
• To completely disconnect the power input, the mains plug of the
product shall be disconnected from the mains.
• The mains plug of the product should not be obstructed OR should
be easily accessed during intended use.
• No naked ame sources, such as lighted candles, shall be placed on
the products.
• Risk of damage to eyes! Do not look at the red LED light directly.
Note:
• Make sure that the Multimedia Speakers are installed properly
before using.
• You can see obvious color distortion if you place the Multimedia
Speakers close to CRT display.
System Requirements:
PC Mac
Windows® 98SE, Windows® ME, Windows® 2000,
Windows® XP, or Windows® Vista™, Windows 7
Mac OS9/OS® X,
or later
Installation:

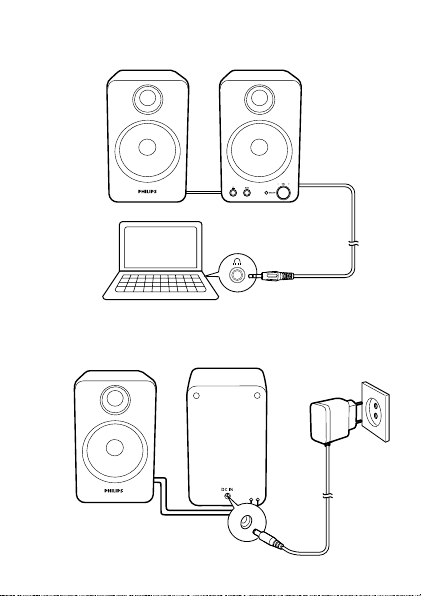

1 Connect the audio input plug to the audio output of your computer ( ).
2 Connect the AC power adaptor to ( ):
• the power socket at the back of the right speaker.
• the wall socket.

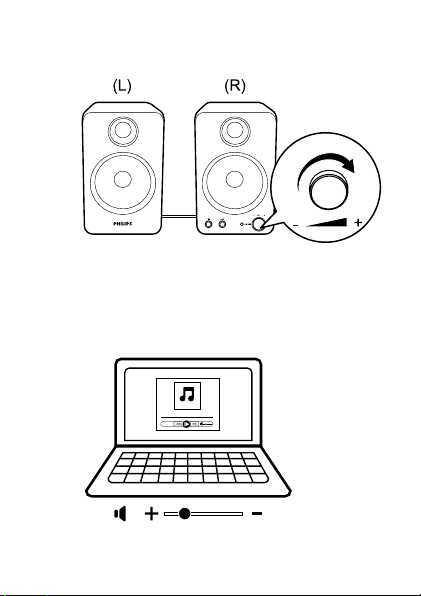

3 Turn the volume knob clockwise to switch on the Multimedia Speakers ( ).
» The indicator on the right speaker lights up.
4 Adjust the volume by the volume knob, or by the computer
application. ( & ).
5 After use, switch off the speakers and unplug.
Optional function

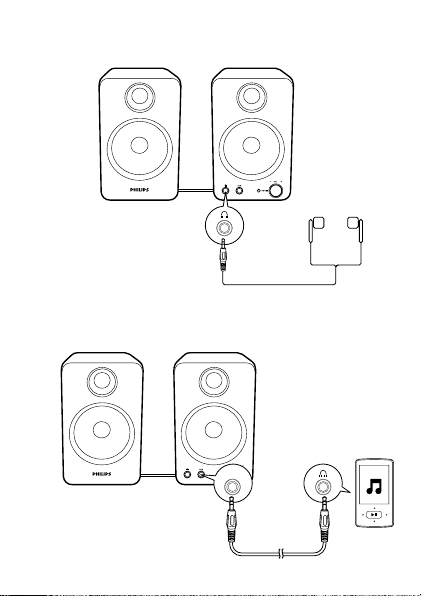

To listen through a headphone:
Connect it to the socket on the right speaker ( ).
To play music from an external audio device such as an MP3 player ( ):
1 Connect an MP3 link cable to the AUX socket on the right speaker
and the headphone socket on the device .
2 Play music on the device.
Specications
Amplier
Rated Output Power 1.5 W per channel X 2
Frequency Response 100Hz - 18 KHz, -3 dB
Signal to Noise Ratio >50 dB
Total Harmonic Distortion <2%
MP3 link 600 mV
Speakers
Speaker Impedance 4 ohm
Speaker Driver 2.5”x2
General information
AC power Model: AS030-090-EE033 (Philips);
Input: 100-240V ~, 50/60 Hz, 0.15 A;
Output: 9 V 0.33 A
Operation Power Consumption 3W
Standby Power Consumption <0.5W
Dimensions
- Main Unit (W x H x D) 90 x 145 x 105 mm
Weight
- With Packing
- Main Unit
1.4 kg
1.1 kg
Hearing safety
Caution
• To avoid hearing damage, limit the time you use the headphones
at high volume and set the volume to a safe level. The louder the
volume, the shorter is the safe listening time.
Be sure to observe the following guidelines when using your headphones.
• Listen at reasonable volumes for reasonable periods of time.
• Be careful not to adjust the volume continuously upwards as your
hearing adapts.
• Do not turn up the volume so high that you can’t hear what’s
around you.
• You should use caution or temporarily discontinue use in potentially
hazardous situations.
• Excessive sound pressure from earphones and headphones can
cause hearing loss.
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
Please inform yourself about the local separate collection system
for electrical and electronic products, including those marked
by the crossed-out wheel bin symbol. Please act according to your
local rules and do not dispose of your old products with your normal
household waste.
2015 © Gibson Innovations Limited. All rights reserved.
This product has been manufactured by, and is sold under
the responsibility of Gibson Innovations Ltd., and Gibson
Innovations Ltd. is the warrantor in relation to this product.
Philips and the Philips Shield Emblem are registered
trademarks of Koninklijke Philips N.V. and are used under
license from Koninklijke Philips N.V.
SPA1260_12_UM_V4.0
