Philips TownTune BDP260 User manual
BGP221/231
TownTune
Central Post-Top
1/12
583 443000020784_A
© 01 / 2019, Signify Holding. All rights reserved
Photobiological Risk
Luminaire Surge Protection
Luminaire Surge Protection with SPD *optional
RG1 (valid for Neutral and Warm White)
DM/CM 6/8 kV (C-I/C-II)
DM/CM 10/10 kV (C-I) - 10/8 kV (C-II) - 10/10 kV (C-II) (optional ground for installer)
Printed in Spain
Data subject to change without notice
Keep for future reference: www.philips.com/lighting
740
LED14 12 10 1400
0,042 6,8kg*
LED16 12 11 1600
LED18
12 12
1800
LED20
12 13
2000
LED22
12 14
2200
LED24
12 16
2400
LED27
12 18
2700
LED30
12 20
3000
LED35
12 24
3500
LED39
12 27
3900
LED45
20 29
4500
LED50
20 32
5000
LED55
20 35
5600
LED59
20 38
6000
LED64
20 42
6400
LED69
40 41
7000
LED74
40 44
7400
LED79
40 47
8000
LED84
40 50
8400
LED90
40 53
9000
LED94
40 56
9400
LED100
40 60
10000
BDP260/261/262/263
Standard luminaire housing BDP260 is IK10. Added accessories are rated at IK08.
As accessories are not a structural part of the luminaire housing, the IK rating for the luminaire housing remains IK10.
2/12
Temperature protection:
The LED drivers have temperature protection circuits to switch o the output when the device gets too warm.
Power will return automatically when the temperature has dropped again.
Remark:
Photometric data will be provided upon customer request.
830
LED12
12 10
1200
0,042 6,8kg*
LED14
12 12
1400
LED16
12 13
1600
LED18
12 15
1800
LED20
12 16
2000
LED22
12 18
2200
LED24
12 20
2400
LED27
12 22
2700
LED30
12 25
3000
LED35
20 28
3500
LED39
20 31
4000
LED45
20 36
4500
LED50
20 40
5000
LED55
40 40
5600
LED59
40 43
6000
LED64
40 47
6400
LED69
40 51
7000
LED74
40 55
7400
LED79
40 59
8000
Surface to the wind (m2) without embellishment accesories
* Weight without mounting devices
Weight of decorative ring 0,6 kg
Weight of top accessory cone 1,1 kg
Weight of top accessory dome 0,8 kg
WARNING
This luminaire must be installed only by qualied personnel.
If the external exible cable or cord of this luminaire is damaged, it shall be
exclusively replaced by the manufacturer or his service agent or a similar
qualied person in order to avoid a hazard.
The light source contained in this luminaire shall only be replaced by the
manufacturer or his service agent or a similar qualied person
Disconnect before servicing
Use gloves to manipulate the luminaire
The space between lyre and luminaire could be a pinch point
Keep hands clear during operation.
Free rotation of the lyre can cause damage in painted parts
Follow this mounting instructions to x install and maintain
Never modify the luminaire or the xations
Risk of accident due to incorrect tightening torque
TOWNTUNE CENTRAL POSTTOP
(Wind surface 0,042m2 / SCx 0,033m2 )
TOWNTUNE CENTRAL POSTTOP DR
(Wind surface 0,066m2/ SCx 0,036m2 )
TOWNTUNE CENTRAL POSTTOP DTD
(Wind surface 0,082m2/ SCx 0,039m2 )
TOWNTUNE CENTRAL POSTTOP DR DTD
(Wind surface 0,11m2/ SCx 0,057m2 )
TOWNTUNE CENTRAL POSTTOP DTC
(Wind surface 0,11m2/ SCx 0,052m2 )
TOWNTUNE CENTRAL POSTTOP DR DTC
(Wind surface 0,13m2/ SCx 0,071m2 )
3/12
OPEN / CLOSE / MOUNTING CABLE
LC05 VERSION
STANDARD VERSION
Allowed cable range Ø5-Ø8,7-Ø12 mm
4/12
DECORATIVE RING FIXATION
SPIGOT FIXATION
5/12
1

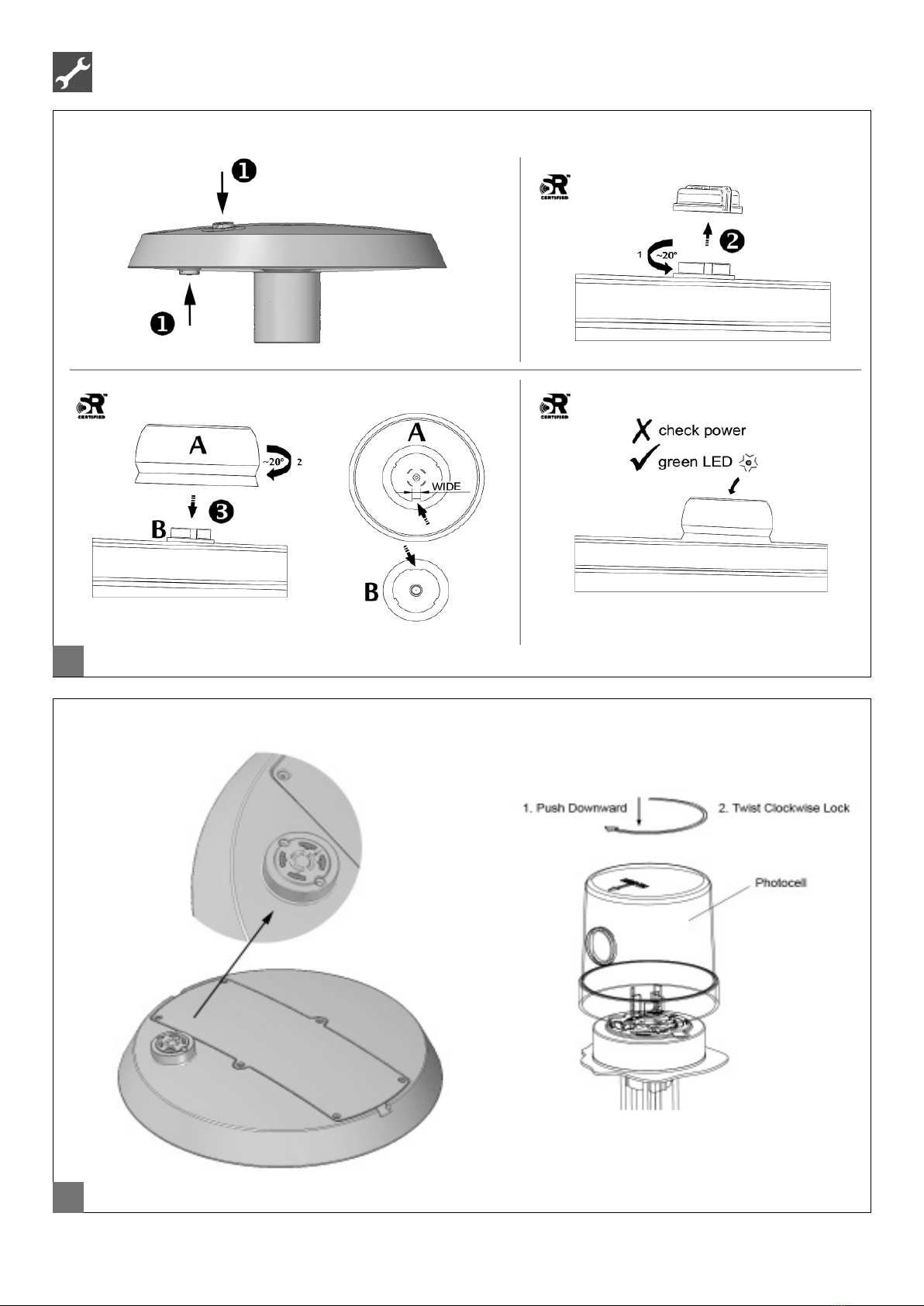

MOUNTING OF PHOTOCELLS
Citytouch OLC COM SR
2
Citytouch OLC NEMA SR
6/12
TYPES OF MAIN CONNECTION STANDARD VERSION
(PSU) (PSA) (PSDD) CONNECTION
Class-I Class-II
3LINE
(Brown) 1LINE
(Brown)
NNEUTRAL
(Blue) 2NEUTRAL
(Blue)
GROUND
(Yellow &
Green)
3
(Optional
for installer)
GROUND
1 - 4 -
2 - 5 -
(PSD) CONNECTION
Class-I Class-II
3LINE
(Brown) 1LINE
(Brown)
NNEUTRAL
(Blue) 2NEUTRAL
(Blue)
GROUND
(Yellow &
Green)
3
(Optional
for installer)
GROUND
1 DALI 4 DALI
2 DALI 5 DALI
(PSR) CONNECTION
Class-I Class-II
3LINE
(Brown) 1LINE
(Brown)
NNEUTRAL
(Blue) 2NEUTRAL
(Blue)
GROUND
(Yellow &
Green)
3
(Optional
for installer)
GROUND
1 - 4 -
2 Lineswitch 5 Lineswicth
7/12
TYPES OF MAIN CONNECTION LC05 VERSION
(PSU) (PSA) (PSDD) CONNECTION
Class-I Class-II
LLINE
(Brown) LLINE
(Brown)
GROUND
(Yellow &
Green)
NNEUTRAL
(Blue)
NNEUTRAL
(Blue) - -
(PSD) CONNECTION
Class-I Class-II
LLINE
(Brown) LLINE
(Brown)
GROUND
(Yellow &
Green)
NNEUTRAL
(Blue)
NNEUTRAL
(Blue) DA DALI
DA/L DALI DA DALI
DA/N DALI --
(PSD) CONNECTION (with Surge Protection) (PSU) (PSA) (PSDD) CONNECTION (with Surge Protection)
Class-II
LLINE
(Brown) LLINE
(Brown)
X
(Optional for
installer)
GROUND
X
(Optional for
installe)
GROUND
NNEUTRAL
(Blue) NNEUTRAL
(Blue)
DA DALI - -
DA DALI - -
(PSR) CONNECTION
Class-I Class-II
LLINE
(Brown) LLINE
(Brown)
GROUND
(Yellow &
Green)
X
(Optional for
installer)
GROUND
NNEUTRAL
(Blue) NNEUTRAL
(Blue)
Lc LineSwich Lc LineSwich
(PHOTOCELL) CONNECTION
Class-I Class-II
LLINE
(Brown) LLINE
(Brown)
GROUND
(Yellow &
Green)
X
(Optional for
installer)
GROUND
NNEUTRAL
(Blue) NNEUTRAL
(Blue)
8/12
CLEANING
The luminaire is protected against water ingress to IP66. Sealed design ensures that this rating
will be maintained over the full lifetime of the product.
The luminaire may be cleaned by brush with short&soft bristles.
Extra care must be taken when cleaning around the external cables and
connector in order to prevent damage.
Do not use high pressure water jet or high pressure cleaners.
If clear water is not sucent for cleaning, use a neutral, synthetic, not-scratching and non-abrasive
subtances.
Never use alkaline and/or acetous cleaning substances. Make sure that cleaning substance is fully
removed by rinsing with clean water.
Full Prog Coded Mains System Ready
The maximum number of luminaires with driver
40W to be connected in MCB 16A TYPE B
(mains impedance 200 m + 400 µH)
20 20 21
Inrush current lpeak* 22 A 22 A 21 A
Inrush current Twidth ** 290 µs 290 µs 300 µs
* input voltaje 230V
** input voltaje 230V, measured at 50% lpeak
Full Prog Coded Mains System Ready
The maximum number of luminaires with driver
75W to be connected in MCB 16A TYPE B
(mains impedance 200 m + 400 µH)
11 11 6
Inrush current lpeak* 65 A 65 A 21 A
Inrush current Twidth ** 330 µs 330 µs 300 µs
* input voltaje 230V
** input voltaje 230V, measured at 50% lpeak
9/12
10/12
Have you already downloaded the
Philips Service tag app?
It helps you make LED maintenance easier and faster!
1.Download the app
App herunterladen
Descargar la app
Télécharger l’application
iOS
Android
2.Place tag on the fuse box
Stelle den Tag auf den Sicherungskasten
Colocar la etiqueta en la caja de fusibles
Placer le tag sur le boîtier appareillage
3.Register the product
Produktregistrierung
Registrar el producto
Enregistrer le produit
And also…
Und ebenso... Y también... Et aussi...
SPARE PARTS
Mounting instructions
Montageanleitung
Instrucciones de montaje
Instructions de montage
Troubleshooting
Problembehebung
Resolución de problemas
Dépannage
Spare parts list
Ersatzteilliste
Listado de repuestos
Liste des pièces de rechange
Driver re-programming
Treiber Neuprogrammierung
Reprogramación del driver
Reprogrammation du Driver
Want to know more about Service tag?
Go to www.philips.com/servicetag
10 KV PROTECTION
10kV extra surge protection
(SRG10) is ensuring Dierential
mode protection.
In class II:
In order to also cover Common
mode, PE(Protective Earth)
connection to the SPD is to be
added at installation. Surges due
to discharge for electrostatic elds
(ESD) are not covered when
installed onto insulated material
poles (to protect an equipotencial
connection is required between
the metal housing of the luminaire
and the earth; in that case it is
better to use a Class I (luminaire).
