Philco PTL 8610 User manual

PTL 8610

PTL 8710 D

PTL 8712 D

WASHING MACHINE

Thank-you for choosing a Philco washing

machine. We are proud to always offer

new, innovative and technologically

advanced products, with a complete range

of home appliances to ensure true

assistance in your daily routine.

Carefully read this manual for correct and

safe appliance use and for helpful tips on

efficient maintenance.

Only use the washing machine

after carefully reading these instructions.

We recommend you always keep this

manual on hand and in good condition for

any future owners.

Please check that the appliance is

delivered with this instruction manual,

warranty certificate, service centre address

and energy efficiency label. Also check that

plugs, drain hose support hook and liquid

detergent or bleach tray (only on some

models) are included. We recommend you

keep all these components.

Each product is identified by a unique 16-

character code, also called the “serial

number”, printed on the sticker. This can

be found inside the door opening. This

code is a unique code for your product that

you will need to register the product

warranty, or if you need to contact the

Customer Service Centre.

This appliance is marked according to

the European directive 2012/19/EU

on Waste Electrical and Electronic

Equipment (WEEE).

WEEE contains both polluting substances (which

can cause negative consequences for the

environment) and basic components (which can

be re-used). It is important to have WEEE

subjected to specific treatments, in order to

remove and dispose properly all pollutants, and

recover and recycle all materials. Individuals can

play an important role in ensuring that WEEE

does not become an environmental issue; it is

essential to follow some basic rules:

!WEEE should not be treated as household

waste;

!WEEE should be handed over to the relevant

collection points managed by the municipality or

by registered companies. In many countries, for

large WEEE, home collection could be present.

In many countries, when you buy a new

appliance, the old one may be returned to the

retailer who has to collect it free of charge on a

one-to-one basis, as long as the equipment is of

equivalent type and has the same functions as

the supplied equipment.

1. GENERAL SAFETY RULES

2. INSTALLATION

3. PRACTICAL TIPS

4. MAINTENANCE AND CLEANING

5. QUICK USER GUIDE

6. CONTROLS AND PROGRAMS

THROUBLESHOOTING AND WARRANTY

Environmental conditions

Contents

1. GENERAL SAFETY

RULES

!This appliances is intended to

be used in household and

similar applications such as:

- Staff kitchen areas in shops, offices

and other working environments;

- Farm houses;

- By clients in hotels, motels and

other residential type environments;

- Bed and breakfast type environments.

A different use of this appliance

from household environment

or from typical housekeeping

functions, as commercial use by

expert or trained users, is excluded

even in the above applications. If

the appliance is used in a manner

inconsistent with this it may reduce

the life of the appliance and may

void the manufacturer’s warranty.

Any damage to the appliance or

other damage or loss arising

through use that is not consistent

with domestic or household use

(even if located in a domestic or

household environment) shall not

be accepted by the manufacturer to

the fullest extent permitted by law.

!This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance

in a safe way and understand the

hazards involved.

Children shall not play with the

appliance. Cleaning and user

maintenance shall not be made

by children without supervision.

!Children should be supervised

to ensure that they do not play

with the appliance.

!Children of less than 3 years

should be kept away unless

continuously supervised.

!If the supply cord is damaged, it

must be replaced by the

manufacturer, its service agent

or similarly qualified persons in

order to avoid a hazard.

!Only use the hose-sets

supplied with the appliance for

the water supply connection

(do not reuse old hose-sets).

!Water pressure must be between

0,05 MPa and 0,8 MPa.

!Make sure that a carpet do not

obstruct the base of the machine

and ventilation openings.

!The OFF condition is reached

placing the reference mark on

the programmes control/knob in

the vertical position. Any other

different position of such control

sets the machine in ON condition

(only for models with programmes

knob).

!After installation, the appliance

must be positioned so that the

plug is accessible.

!The maximum load capacity of

dry clothes depends on the

model used (see control panel).

!To consult the product fiche

please refer to the manufacturer

website.

!Before cleaning or maintaining

the washing machine, unplug

the appliance and turn off the

water faucet.

!Make sure the electrical system

is grounded. Otherwise, seek

qualified professional assistance.

!Please do not use converters,

multiple sockets or extension

cords.

!Do not pull on the power cord

or appliance to unplug the

machine.

!Do not expose the washing

machine to rain, direct sunlight

or other weather elements.

!In the event of fault and/or

malfunction, turn off the

washing machine, close the

water faucet and do not tamper

with the appliance.

Immediately contact the

Customer Service Centre and

only use original spare parts.

Failure to observe these

instruction may jeopardise

appliance safety.

By placing the

mark on this

product, we are confirming

compliance to all relevant

European safety, health and

environmental requirements which

are applicable in legislation for

this product.

Safety instructions

WARNING:

water may reach very high

temperatures during the

wash cycle.

2. INSTALLATION

!Remove the 4screws "A" from

both clamps and the 4screws

"B" (fig. 1).

!Replace the 4screws "A" and

fit the trims provided "C" (fig. 2).

min 50 cm

max 85 cm

+2,6 mt

max

max 100 cm

min 4 cm

!The washing machine should be

connected to the water mains via the

new tube supplied with the

appliance (inside the drum). Do not

use the old tube for this purpose.

!Connect one end of the water inlet

pipe with the elbow bend to the

electrovalve (top rear part of the

machine) and the other end to a tap

or a plumbed-in 3/4" gas threaded

connection.

Place the washing machine close to

the wall, ensuring that there are no

bends or kinks anywhere in the tube.

Hook the outlet pipe to the edge of

the sink or preferably to a fixed

drainage outlet of a diameter greater

than that of the outlet pipe and at a

height of min. 50 cm. and a

maximum of 85 cm. from the floor

(fig. 4).

!If necessary, use the curved

accessory to attach and support

the outlet pipe more securely.

If your model offers this function:

!To move the washing machine

easily, turn the trolley lever to the

right. Once you have finished

moving the machine, return the lever

to its original position.

!Level the machine by adjusting the

front feet (fig. 5).

a) Turn the nut clockwise to release

the screw on the foot.

b) Raise or lower the foot by rotating

it until it stands firmly on the floor.

c) Lock the foot in position by turning

the nut anticlockwise until it comes

up against the bottom of the

washing machine.

!Check that the appliance is properly

levelled.

!Check that the washing machine

does not rock by trying to move two

diagonally opposite top corners at

the same time.

!If you move the washing machine

from one place to another, you must

level the feet again afterwards.

!Connect the water hose to the water

supply tap (fig. 6) only using the hose

supplied with the appliance (do not reuse

old hose-sets).

!Some models may include one or more of

the following features:

!HOT&COLD (fig. 7):

water mains connection settings with hot

and cold water for higher energy savings.

Connect the grey tube to the cold water

faucet and the red one to the hot water

faucet. The machine can be connected to

the cold water faucet only: in this case,

some programs may start a few minutes

later.

!AQUASTOP (fig. 8):

a device located on the supply tube that

stops water flow if the tube deteriorates;

in this case, a red mark will appear in the

window “A” and the tube must be

replaced. To unscrew the nut, press the

one-way lock device "B".

!AQUAPROTECT – SUPPLY TUBE WITH

GUARD (fig. 9):

Should water leak from the primary

internal tube "C", the transparent

containment sheath "D" will contain water

to permit the washing cycle to complete.

At the end of the cycle, contact the

Customer Service Centre to replace the

supply tube.

Hydraulic connections

3. PRACTICAL TIPS

WARNING: when sorting laundry, make

sure:

- have eliminated metallic objects such as

hair clips, pins, coins, from laundry;

- to have buttoned pillow cases, closed

zips, tied loose belts and long robe

ribbons;

- to have removed rollers, hooks or clips

from curtains;

- to have carefully read clothing washing

labels;

- to have removed any persistent stains

using specific detergents.

!When washing rugs, bedcovers or other

heavy clothing, we recommend you avoid

the spinning cycle.

!To wash wool, make sure the item can be

machine washed. Check the fabric label.

A guide environmentally friendly and

economic use of your appliance.

Maximise The Load Size

!Achieve the best use of energy, water,

detergent and time by using the

recommended maximum load size.

Save up to 50% energy by washing a full

load instead of 2 half loads.

Do you need to pre-wash?

!For heavily soiled laundry only!

SAVE detergent, time, water and

between 5 to 15% energy consumption

by NOT selecting Prewash for slight to

normally soiled laundry.

Is a hot wash required?

!Pretreat stains with stain remover or soak

dried in stains in water before washing to

reduce the necessity of a hot wash

programme. Save energy by using a low

temperature wash programme.

Before using a drying programme

(WASHER-DRYERS)

!SAVE energy and time by selecting a

high spin speed to reduce the water

content in laundry before using a drying

programme.

Following is a quick guide with tips and

recommendations on detergent use at the

various temperatures. In any case, always

read the instructions on the detergent for

correct use and doses.

Load tips

Helpful suggestions for the user

When washing heavily soiled whites,

we recommend using cotton

programs of 60°C or above and a

normal washing powder (heavy duty)

that contains bleaching agents that at

medium/high temperatures provide

excellent results.

For washes between 40°C and 60°C

the type of detergent used needs to be

appropriate for the type of fabric and

level of soiling.

Normal powders are suitable for “white”

or colour fast fabrics with high soiling,

while liquid detergents or “colour

protecting” powders are suitable for

coloured fabrics with light levels of

soiling.

For washing at temperatures below

40°C we recommend the use of liquid

detergents or detergents specifically

labeled as suitable for low temperature

washing.

For washing wool or silk, only use

detergents specifically formulated for

these fabrics.

4. MAINTENANCE AND

CLEANING

To clean the washing machine exterior, use a

damp cloth, avoiding abrasives, alcohol and/or

solvents. The washing machine does not

require any special care for ordinary cleaning:

clean drawer compartments and the filter;

some tips on how to move the machine or on

long periods of disuse are provided below.

!The washing machine comes with a

special filter able to trap large residue,

such as buttons or coins, which could

clog the drain.

!Only available on certain models: pull out

the corrugated hose, remove the stopper

and drain the water into a container.

!Before unscrewing the filter, we

recommend you place an absorbent cloth

under it to keep the floor dry.

!Turn the filter counter-clockwise to the

limit stop in the vertical position.

!Remove and clean the filter; when

finished, replace it turning it clockwise.

!Repeat the previous steps in reverse

order to reassemble all parts.

!Should the washing machine be stored in

an unheated room for a long period of

time, drain all water from tubes.

!Unplug the washing machine.

!Detach the tube from the strap and lower

it, fully draining water into a bowl.

!Secure the drain tube with the strap when

finished.

!Press button (A).

!Hold down the button and turn the

detergent dispenser outwards.

!Remove the dispenser and clean it.

!It is recommended to remove any

remamining detergent in the

compartments to avoid any build up that

could cause blockages and restrict the

water flow from the dispenser to drum.

!Pulling out and extract the trap/traps (S)

that are located in the back part of the

dispenser and clean them carefully.

!Remove any solid residue which could

block the holes in the compartments.

Fit in the tabs as shown (B).

Turn the detergent dispenser towards the housing

Filter cleaning

Suggestions for moves or

prolonged disuse

Cleaning the detergent dispenser

and its compartments

Fitting

5. QUICK USER GUIDE

This washing machine automatically adjusts

the level of the water to the type and

quantity of washing. This system gives a

reduction in energy consumption and a

saving in washing times.

!Turn on the washing machine and select

the required program.

!Adjust the washing temperature if

necessary and press the required "option"

buttons.

!Press the START/PAUSE button to start

washing.

Should power go out when the washing

machine is running, a special memory

saves the settings and, when power

returns, the machine resumes the cycle

from where it left off.

!At the end of the programme, the

message "End" will appear on the display

or, on some models.

!Turn off the washing machine.

For any type of wash, see the program

table and follow the operating sequence

as indicated.

Water pressure:

min 0.05 Mpa / max 0.8 Mpa

(0.05 MPa dispenses approximately 1 litre

of water in 10 seconds)

Spin r.p.m.: See rating plate.

Power input / Power current fuse amp /

Supply voltage: See rating plate.

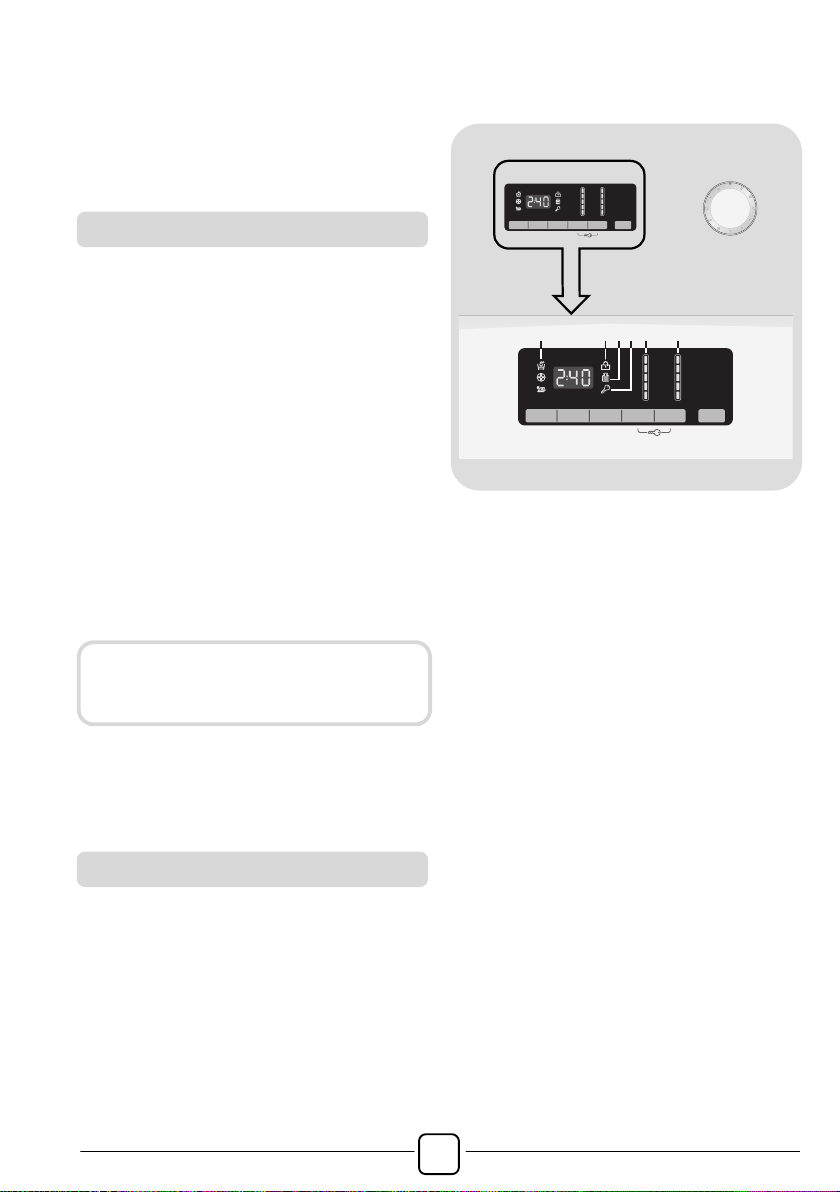

6. CONTROLS AND

PROGRAMS

OPLMN

DFGCB

Programme selector with OFF

position

START/PAUSE button

DELAY START button

OPTIONS button

RAPID / STAIN LEVEL button

TEMPERATURE SELECTION

button

SPIN SPEED button

F+G

KEY LOCK

Digital display

OPTIONS indicator lights

DOOR LOCKED indicator light

KG MODE indicator light

KEY LOCK indicator light

TEMPERATURE SELECTION

indicator lights

SPIN SPEED indicator lights

Program selection

Wait until the door locked light turns

off: about 2 minutes after the program

ends.

Technical data

This manual suits for next models

Table of contents

Other Philco Washer manuals

Philco

Philco PFL510CLFW3CF User manual

Philco

Philco PL 1062 D CHIVA User manual

Philco

Philco PLWD 14961 CHIVA User manual

Philco

Philco PLD 1261-5TL User manual

Philco

Philco PLDI 147 B King User manual

Philco

Philco PSW81400V User manual

Philco

Philco PW6P User manual

Philco

Philco PV810DX User manual

Philco

Philco PLDI 148 AJW steam User manual

Philco

Philco PWD 12SN User manual

Philco

Philco PLD 1473 F User manual

Philco

Philco GJW55P User manual

Philco

Philco PLDS 1261 F User manual

Philco

Philco PWM 15 PL User manual

Philco

Philco PLD 1261-5TL User manual

Philco

Philco PLDSA 1241 CHIVA User manual

Philco

Philco PTL6105 Manual

Philco

Philco PLDS 106 DG User manual

Philco

Philco PSW71400V User manual

Philco

Philco PW7508DX User manual

Philco

Philco PSW 71200 User manual

Philco

Philco PLD 127 D QTL User manual

Philco

Philco PLDI 148 A steam User manual

Philco

Philco PLD 1483 Crown User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
