Thank you for choosing this product.

We are proud to offer the ideal product for

you and the best complete range of home

appliances for your daily routine.

Carefully read this manual for correct and

safe appliance use and for helpful tips on

efficient maintenance.

Only use the washing machine after

carefully reading these instructions. We

recommend you always keep this manual on

hand and in good condition for any future

owners.

Each product is identified by a unique

found inside the door opening. This code is

a unique code for your product that you will

need to register the product warranty, or if

you need to contact the Customer Service

Centre.

This appliance is marked according to

the European directive 2012/19/EU

on Waste Electrical and Electronic

Equipment (WEEE).

WEEE contains both polluting substances (which

can cause negative consequences for the

environment) and basic components (which can

be re-used). It is important to have WEEE

subjected to specific treatments, in order to

remove and dispose properly all pollutants, and

recover and recycle all materials. Individuals can

play an important role in ensuring that WEEE

does not become an environmental issue; it is

essential tofollow some basic rules:

WEEE should not be treated as household

waste;

WEEE should be handed over to the relevant

collection points managed by the municipality or

by registered companies. In many countries, for

large WEEE, home collection could be present.

. GENERAL SAFETY RULES

. INSTALLATION

. PRACTICAL HINTS

. CLEANING AND MAINTENANCE

. QUICK USER GUIDE

. CONTROLS AND PROGRAMS

TROUBLESHOOTING AND WARRANTY

Environmental conditions

Contents

1. GENERAL SAFETY

RULES

This appliance is intended to

be used in household.

A differentuse of this appliance

from household environment

or from typical housekeeping

functions, as commercial use by

expert or trained users, is excluded

even in the above applications. If

the appliance is used in a manner

inconsistent with this it may reduce

the life of the appliance and may

Any damage to the appliance or

other damage or loss arising

through use that is not consistent

with domestic or household use

(even if located in a domestic or

household environment) shall not

be accepted by the manufacturer to

the fullest extent permitted by law.

This appliance can be used by

children aged from 8 years and

above and persons with reduced

physical, sensory or mental

capabilities or lack of experience

and knowledge if they have been

given supervision or instruction

concerning use of the appliance

in a safe way and understand the

hazards involved.

Children of less than 3 years

should be kept away unless

continuously supervised.

If the supply cord is damaged, it

must be replaced by a special

cord or assembly available from

the manufacturer or its service

agent.

Water pressure must be between

0.05 MPa and 0.8 MPa.

Make sure carpets or rugs do

not obstruct the base or any of

the ventilation openings.

After installation, the appliance

must be positioned so that the

plug is accessible.

The maximum load capacity of

dry clothes depends on the

model used (see control panel).

To consult the product technical

specification please refer to the

website.

Children shall

not operate with the

appliance inapporpriate. Cleaning

and user maintenance shall not

be made by children without

supervision.

The technical details (supply

voltage and power input) are

indicated on the product rating

label.

Make sure that the electrical

system is earthed, complies

with all applicable law and that

the (electricity) socket is

compatible with the plug of the

appliance. Otherwise, seek

qualified professional assistance.

The use of converters, multiple

sockets or extension cords

might cause hazard.

Before cleaning or maintaining

the washing machine, unplug

the appliance and turn off the

water tap.

Do not pull on the power cord

or appliance to unplug the

machine.

Make sure there is no water in

the drum before opening the

door.

Do not expose the washing

machine to rain, direct sunlight

or other weather elements.

Protect from possible freezing.

When moving, do not lift the

washing machine by the knobs

or detergent drawer; during

transport, never rest the door on

the trolley. We recommend two

people lift the washing machine.

In the event of fault and/or

malfunction, turn off the

washing machine, close the

water tap and do not tamper

with the appliance.

Immediately contact the

Customer Service Centre and

only use original spare parts.

Failure to observe these

instruction may jeopardise

appliance safety.

Electrical connections and

safety instructions

WARNING:

water may reach very

high

temperatures during

the

wash cycle.

2. INSTALLATION

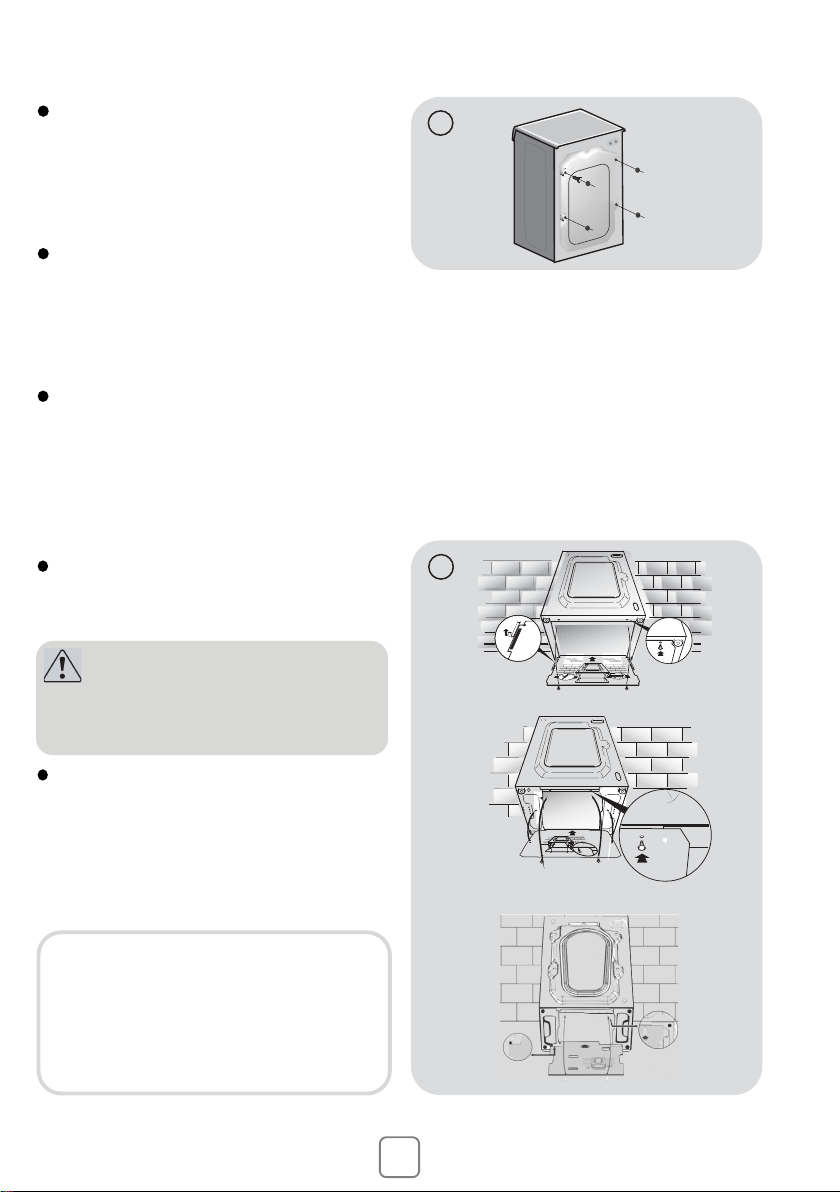

Remove the 2or 4transportation

screws (A) on the back

and

remove the 2or 4flat washers

rubber bungs and plastic spac

tubes (B)as illustrated in figure 1.

If the washing machine is built-in

unscrew the 3or 4transportati

screws (A) and remove the 3or

flat washers, rubber bungs

and

plastic spacer tubes (B).

During the removal of the screw

occasionally spacer tubes f

all

inside the product, these can b

remove by tilting the product forwar

and recovering them from the floor o

inside the base of the machine.

Cover the open transportation

screw

holes with the 2or 4plastic

caps

included in the instruction bag.

Place the corrugated plastic shee

found on top of the appliance

during

the unpacking process, into the bas

of the appliance as shown in figure

(according to the model, conside

version A, Bor C).

WARNING:

keep packaging

materials

away from children.

In some models this operation

will not be necessary, because

the corrugated plastic sheet

will be already placed on the

bottom of the appliance.

Connect the water hose to the wate

supply tap (fig. 3) only using the hos

supplied with the appliance (do no

reuse old hose-sets).

SOME MODELS may include one o

more of the following features:

HOT&COLD (fig. 4):

water mains connection settings with ho

and cold water for higher energy savings.

Connect the grey tube to the cold wate

tap and the red one to the hot water

tap. The machine can be connected to

the cold water tap only: in this case, some

programs may start afew minutes later.

AQUASTOP (fig. 5):

a device located on the supply tube that

stops water flow if the tube deteriorates;

in this case, a red mark will appear in the

replaced. To unscrew the nut, press the

one-way lock device "B".

AQUAPROTECT SUPPLY TUBE WITH

GUARD (fig. 6):

Should water leak from the primary

internal tube "A", the transparent

containment sheath "B" will contain water

to permit the washing cycle to complete.

At the end of the cycle, contact the

Customer Service Centre to replace the

supply tube.

The washing machine should be installed

in its final position such that the water fill

hose is not kinked or trapped. The

corrugated drain hose should be inserted

into suitable drain pipe of between 50 cm

and 85 cm height above the floor using

the curved drain hose support. If an under

sink connection is used the drain hose

must be routed above the sink overfill

opening to prevent back siphoning. Care

must be taken to avoid kinking or trapping

the drain hose (fig. 7). (Note: This accessory

is excluded in some models).

min 50 cm

max 85 cm

+2,6 mt

max

max 100 cm

min 4 cm

Hydraulic connections

Setting

Level the appliance using the feet as

illustrated in figure 8:

a. turn the nut clockwise to release t

screw;

b. rotate the foot to raise or lower it until

touchestothe floor;

c. lock the foot, screwing in the nut, until

tightens against to the bottom of t

washing machine.

Plug in the appliance.

he detergent draw is split into

ompartments as illustrated in figure 9:

compartment "1": for prewash detergent;

: for special additives

softeners, starch fragrances, etc.;

compartment "2": for washing detergent

liquid detergent cup is also included I

OME MODELS (fig. 10). To use it, place

n compartment "2". This way, liqui

tergent will only enter the drum at t

ight time. The cup can also be used fo

elected.

WARNING:

contact the Customer Service Centre

should the power cord need

replacement.

Detergent drawer

WARNING:

only use liquid products; the washing

machine is set to automatically dose

additives at each cycle during the last

rinse.

WARNING:

some detergents are not designed for

use in the dispenser drawer but are

supplied with their own dispenser that

is placedin the drum directly.

WARNING:

installation faults are not covered by

the manufacturers warranty.

3. PRACTICAL HINTS

When sorting laundry, make sure:

-have eliminated metallic objects such as

hair clips, pins, coins, from laundry;

- to have buttoned pillow cases, closed

zips, tied loose belts and long robe

ribbons;

- to have removed rollers, hooks or clips

from curtains;

- to have carefully read clothing washing

labels;

- to have removed any persistent stains

using specific detergents.

When washing rugs, bedcovers or other

heavy clothing, we recommend you avoid

the spinning cycle.

To wash wool, make sure the item can be

machine washed. Check the fabric label.

A guide environmentally friendly and

economic use of your appliance.

Maximise The Load Size

Achieve the best use of energy, water,

detergent and time by using the

recommended maximum load size.

Save up to 50% energy by washing a full

load instead of 2 half loads.

Do you needto pre-wash?

For heavily soiled laundry only!

SAVE detergent, time, water and

between 5 to 15% energy consumption

by NOT selecting Prewash for slight to

normally soiled laundry.

Is a hot wash required?

Pretreat stains with stain remover or soak

dried in stains in water before washing to

reduce the necessityof ahotwash

programme. Save energy by using alow

temperature wash programme.

SAVE energy and time by selecting a

highspin speed to reduce thewater

content in laundry.

Following is a quick guide with tips and

recommendations on detergent use at the

various temperatures. In any case, always

read the instructions on the detergent for

correct use and doses.

Load tips

Helpful suggestions for the user

When washing heavily soiled whites,

we recommend using cotton

or above and a

normal washing powder (heavy duty)

that contains bleaching agents that at

medium/high temperatures provide

excellent results.

the type of detergent used needs to be

appropriate for the type of fabric and

level of soiling.

Normal powders ar

or colour fast fabrics with high soiling,

coloured fabrics with light levels of

soiling.

For washing at temperatures below

we recommend the use of liquid

detergents or detergents specifically

labeled as suitable for low temperature

washing.

For washing woolor silk, only use

detergents specifically formulated for

these fabrics.

4. CLEANING AND

MAINTENANCE

To clean the washing machine exterior, use

a damp cloth, avoiding abrasives, alcohol

and/or solvents. To maintain a good wash

performance we recommend that the soap

drawer and pump filters are regularly

cleaned. A monthly service wash, using a

proprietary cleaner is also recommended.

We recommend you clean the drawer to

avoid accumulating detergent and

additive residue.

To do this, extract the drawer using slight

force, clean it with running water and

reinsert it inits housing.

Ensure the siphon cap is correctly

refitted.

The washing machine comes with a

special filter able to trap large residue,

such as buttons or coins, which could

clog the drain.

ONLY AVAILABLE ON CERTAIN MODELS:

pull out the corrugated hose, remove the

stopper and drain the water into a

container.

Ensure all the water has been emptied

from the drum.

Before unscrewing the filter, we

recommend you place an absorbent cloth

under it to keep the floor dry. A small

amount of water will come out of the filter

as you remove it - this is normal.

Turn the filter counter-clockwise to the

limit stop.

Remove and clean the filter; when

finished, replace it turning it clockwise.

The filter handle will be locked when it is

not possible to turn any further and the

handle is horizontal. Smearing a small

amount of liquid soap on the filter seal will

help refitting.

Repeat the previous steps in reverse

orderto reassemble all parts.

Should the washing machine be stored in

an unheated room for a long period of

time, drain all water from tubes.

Unplug the washing machine.

Detach the tube from the drainage

system and clip on the rear of the

machine and lower it, fully draining water

into a bowl.

Secure the drain tube with the drainage

system and clip on the rear of the

machine when finished.

Keep the door glass and gasket clean.

Drawer cleaning

Filter cleaning

Suggestions for mo v es or

rolonged disuse

The manufacturers warranty only

covers faults within the product of a

mechanical or electrical nature.

Faults caused by handling,

installation or miss use are not

covered and may incur a charge for

any repair visit to resolve.

5. QUICK USER GUIDE

This washing machine automatically adjusts

the level of the water to the type and

quantity of washing. This system gives a

reduction in energy consumption and a

saving in washing times.

Turn on the washing machine and select

the required program.

Adjust the washing temperature if

necessary and press the required "option"

buttons.

Press the START/PAUSEbutton to start

washing.

If there is a break in the power supply

whilst the machine is operating, when

the power is restored, the machine will

restart from the beginning of the phase it

was in when the power was lost.

At the end of the programme, the

message "End" will appear on the display

or, on some models, all wash stage

indicator lights will turn on.

Turn off the washing machine.

For any type of wash, see the program

table and follow the operating sequence

as indicated.

Water pressure:

min 0.05 Mpa / max 0.8 Mpa

(0.05 MPa dispenses approximately 1 litre

of water in 10 seconds)

Spin r.p.m.: See rating label.

Power input / Power current fuse amp /

Supply voltage: See rating label.

6. CONTROLS AND

PROGRAMS

GF H C E D B

Programme selector with OFF

sition

START/PAUSE button

DELAY START button

OPTIONS button

RAPID / STAIN LEVEL button

TEMPERATURE SELECTION

tton

SPIN SPEED button

NIGHT & DAY button

F+G

KEY LOCK

Digital display

DOOR LOCKED indicator light

Program selection

Wait until the DOOR LOCKED light has

gone out before opening the door.

Technical data

This manual suits for next models

Table of contents

Other Philco Washer manuals

Philco

Philco PLD 1471 User manual

Philco

Philco PTL 8610 User manual

Philco

Philco PL 151 User manual

Philco

Philco PWM 641 User manual

Philco

Philco PLDSA 1263 Chiva User manual

Philco

Philco PLD 127 D QTL User manual

Philco

Philco PLWD 16170 Crown User manual

Philco

Philco PLS 1061 User manual

Philco

Philco PLD 106 ECZ User manual

Philco

Philco PLD 14840 User manual

Philco

Philco PLDS 1261 F User manual

Philco

Philco PLDI 148 A steam User manual

Philco

Philco PV810DX User manual

Philco

Philco PLS 1040 User manual

Philco

Philco PWD 12SN User manual

Philco

Philco PLDA 1273 Chiva User manual

Philco

Philco PLDI 147 B King User manual

Philco

Philco PLD 1272 User manual

Philco

Philco PL 1061-5 TL User manual

Philco

Philco PLD 106 E User manual

Philco

Philco PLS 1051 F User manual

Philco

Philco PLWD 14961 CHIVA User manual

Philco

Philco PWM 15 PL User manual

Philco

Philco SM2894 User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
