Perfect Aire Forest Series User manual

SPLIT-TYPE ROOM AIR CONDITIONER

CS78421-548-754

IMPORTANT NOTE:

Read this manual carefully before installing

or operating your new air conditioning

unit. Make sure to save this manual for

future reference.

Owner’s Manual

Forest Series

All Model Numbers

P1ZAI0980W

P1ZAI1280W

P1ZAI1880W

P1ZAI2480W

Safety Precautions.......................................................04

Unit Speciﬁcations and Features

..............................06

Table of Contents

Owner’s Manual

SAFETY

FIRST

Manual Operation

(Without Remote)................11

Care and Maintenance.....................................................12

Troubleshooting...................................................................14

European Disposal Guidelines....................................18

Page 4 

Safety Precautions

Read Safety Precautions Before Installation

The seriousness of potential damage or injuries is classiﬁed as either a WARNING or CAUTION.

WARNING

This symbol indicates that ignoring instructions may cause death or serious

Incorrect installation due to ignoring instructions can cause serious damage or injury.

injury.

This symbol indicates that ignoring instructions may cause moderate injury

to your person, or damage to your appliance or other property.

CAUTION

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

INSTALLATION WARNINGS

•

Ask an authorized dealer to install this air conditioner. Inappropriate installation may cause water

leakage, electric shock, or fire.

•

All repairs, maintenance and relocation of this unit must be performed by an authorized service

technician. Inappropriate repairs can lead to serious injury or product failure.

WARNINGS FOR PRODUCT USE

•

If an abnormal situation arises (like a burning smell), immediately turn off the unit and pull the

power plug. Call your dealer for instructions to avoid electric shock, fire or injury.

•

Do not

insert ﬁngers, rods or other objects into the air inlet or outlet. This may cause injury, since

the fan may be rotating at high speeds.

•

Do not

use ﬂammable sprays such as hair spray, lacquer or paint near the unit. This may cause

ﬁre or combustion.

•

Do not

operate the air conditioner in places near or around combustible gases. Emitted gas may

collect around the unit and cause explosion.

•

Do not

operate the air conditioner in a wet room (e.g., bathroom or laundry room). This can

cause electrical shock and cause the product to deteriorate.

•

Do not

expose your body directly to cool air for a prolonged period of time.

Safety

Precautions

Safety

Precautions

Page 5 

ELECTRICAL WARNINGS

•

Only use the speciﬁed power cord. If the power cord is damaged, it must be replaced by the

manufacturer or certiﬁed service agent.

•

Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty

plugs can cause fire or electric shock.

• Do not

pull power cord to unplug unit. Hold the plug ﬁrmly and pull it from the outlet. Pulling

directly on the cord can damage it, which can lead to ﬁre or electric shock.

• Do not

use an extension cord, manually extend the power cord, or connect other appliances to

the same outlet as the air conditioner. Poor electrical connections, poor insulation, and insufﬁcient

voltage can cause fire.

CLEANING AND MAINTENANCE WARNINGS

•

Turn off the device and pull the plug before cleaning. Failure to do so can cause electrical shock.

• Do not

clean the air conditioner with excessive amounts of water.

• Do not

clean the air conditioner with combustible cleaning agents. Combustible cleaning agents

can cause fire or deformation.

CAUTION

•

If the air conditioner is used together with burners or other heating devices, thoroughly ventilate

the room to avoid oxygen deﬁciency.

•

Turn off the air conditioner and unplug the unit if you are not going to use it for a long time.

•

Turn off and unplug the unit during storms.

•

Make sure that water condensation can drain unhindered from the unit.

• Do not

operate the air conditioner with wet hands. This may cause electric shock.

• Do not

use device for any other purpose than its intended use.

• Do not

climb onto or place objects on top of the outdoor unit.

• Do not

allow the air conditioner to operate for long periods of time with doors or windows open,

or if the humidity is very high.

Page 6 

Unit Speciﬁcations and Features 1

Unit

Speciﬁcations

and Features

NOTE:

A guide on using the infrared remote is not included

in this literature package.

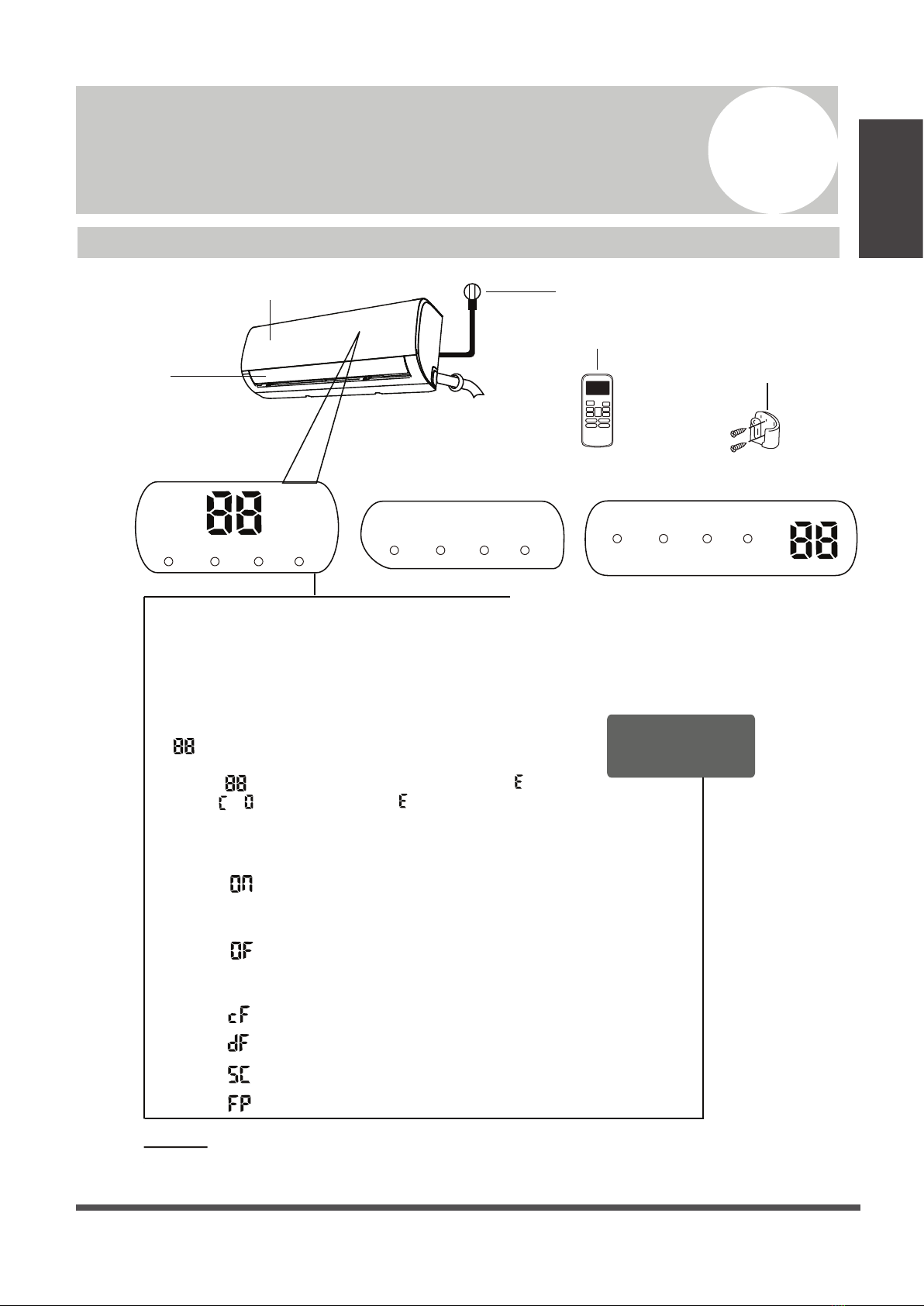

Unit Parts

fresh defrost run timer

Power Cable (Some Units)

Remote Control Remote Control

Holder

(Some Units)

Louver

Front Panel

Display window(A)

Display window(B) Display window(C)

“ ” for 3 seconds when:

• TIMER ON is set

• FRESH, SWING, TURBO, or SILENCE features are turned on

“ ” when Fresh feature is activated(some units)

“ ” for 3 seconds when:

• TIMER OFF is set

• FRESH, SWING, TURBO, or SILENCE features are turned off

“ ” when defrosting

“ ” when anti-cold air feature is turned on

“ ” when unit is self-cleaning

“ ” when freeze protection is turned on

“ ” when defrost feature is activated.

Display Code

Meanings

In Fan and Dry mode, the unit will display the room temperature.

In other modes, the unit will display your temperature setting.

“ ” Not available for all units.

When ECO function(some units) is activated, the

illuminates gradually one by one as --

-- --set temperature -- ...... in one second interval.

fresh defrost run timer

“ ” when the unit is on.

“ ” when TIMER is set.

When error occurs, it displays error code.

fresh

defrost

run

timer

fresh defrost run timer

Unit

Speciﬁcations

and Features

Page 7 

Achieving Optimal Performance

Optimal performance for the COOL, HEAT, and DRY modes can be achieved in the following

temperature ranges. When your air conditioner is used outside of these ranges, certain safety

protection features will activate and cause the unit to perform less than optimally.

Room

Temperature 17°-32°C (63°-90°F) 0°-30°C (32°-86°F) 10°-32°C (50°-90°F)

Outdoor

Temperature

18°-43°C (64°-109°F)

-7°-24°C (19°-75°F)

11°-43°C (52°-109°F)

-7°-43°C (19°-109°F)

(For models with low-temp cooling systems) 18°-43°C (64°-109°F)

18°-54°C (64°-129°F)

(For special tropical models) 18°-54°C (64°-129°F)

(For special tropical models)

COOL mode HEAT mode DRY mode

Room Temperature 17°C - 32°C

(63°F - 90°F)

0°C - 30°C

(32°F - 86°F)

10°C - 32°C

(50°F - 90°F)

Outdoor

Temperature

0°C - 50°C

(32°F - 122°F)

-15°C - 30°C

(5°F - 86°F)

0°C - 50°C

(32°F - 122°F)

0°C - 60°C

(32°F - 140°F)

(For special

tropical models)

0°C - 60°C

(32°F - 140°F)

(For special

tropical models)

-15°C - 50°C

(5°F - 122°F)

(For models with

low temp. cooling

systems.)

To further optimize the performance of your unit, do the following:

• Keep doors and windows closed.

• Limit energy usage by using TIMER ON and TIMER OFF functions.

• Do not block air inlets or outlets.

• Regularly inspect and clean air filters.

FOR OUTDOOR UNITS

WITH AUXILIARY

ELECTRIC HEATER

Inverter Split Type

Fixed-speed Type

When outside

temperature is below 0°C

(32°F ), we strongly

recommend keeping the

unit plugged in at all

time to ensure smooth

ongoing performance.

Unit

Speciﬁcations

and Features

Page 8 

For a detailed explanation of each function,

refer to the Remote Control Manual.

Other Features

•

Auto-Restart

If the unit loses power, it will automatically

restart with the prior settings once power has

been restored.

• Anti-mildew (some units)

When turning off the unit from COOL, AUTO

(COOL), or DRY modes, the air conditioner will

continue operate at very low power to dry up

condensed water and prevent mildew growth.

• Wireless Control (some units)

Wireless control allows you to control your air

conditioner using your mobile phone and a

Wireless connection.

• Louver Angle Memory(some units)

When turning on your unit, the louver will

automatically resume its former angle.

• Refrigerant Leakage Detection (some

units)

The indoor unit will automatically display “EC”

For a detailed explanation of your unit’s

advanced functionality (such as TURBO

mode and its self-cleaning functions),

refer to the Remote Control Manual.

Air Filter Reminders (some units)

The “timer” indicator light turns off and

the “run” indicator light flashes 7 times

when the unit detects refrigerant leakage.

Air Filter Cleaning Reminder

Air Filter Replacement Reminder

After 240 hours of use, the “run” &

“timer” indicator lamps on the indoor

unit will flash simultaneously and the

display window on the indoor unit will

flash “CL” (if applicable). This is a

reminder to clean your filter. After 15

seconds, the unit will revert to its

previous display.

To reset the reminder, press the LED

button on your remote control 4 times,

or press the MANUAL CONTROL botton

3 times. If you don’t reset the reminder,

the “CL”, “run” & “timer” indicator

lamps will flash again when you restart

the unit.

After 2,880 hours of use, the “run” &

“timer” indicator lamps will flash

simultaneously for 10 times, then

remain on for five seconds,and the

display window on the indoor unit will

flash “nF”(if applicable). This is a reminder

to replace your filter. After that, the unit

will revert to its previous display.

To reset the reminder, press the LED

button on

your remote control 4 times,

or press the

MANUAL CONTROL botton

3 times. If you don’t reset the reminder,

the “nF”, “run” & “timer” indicator

lamps will flash again when you restart

the unit.

For the USB device access, replacement,

maintenance operations must be carried

out by professional staff.

NOTE ON ILLUSTRATIONS

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be

slightly different. The actual shape shall prevail.

Page 9 

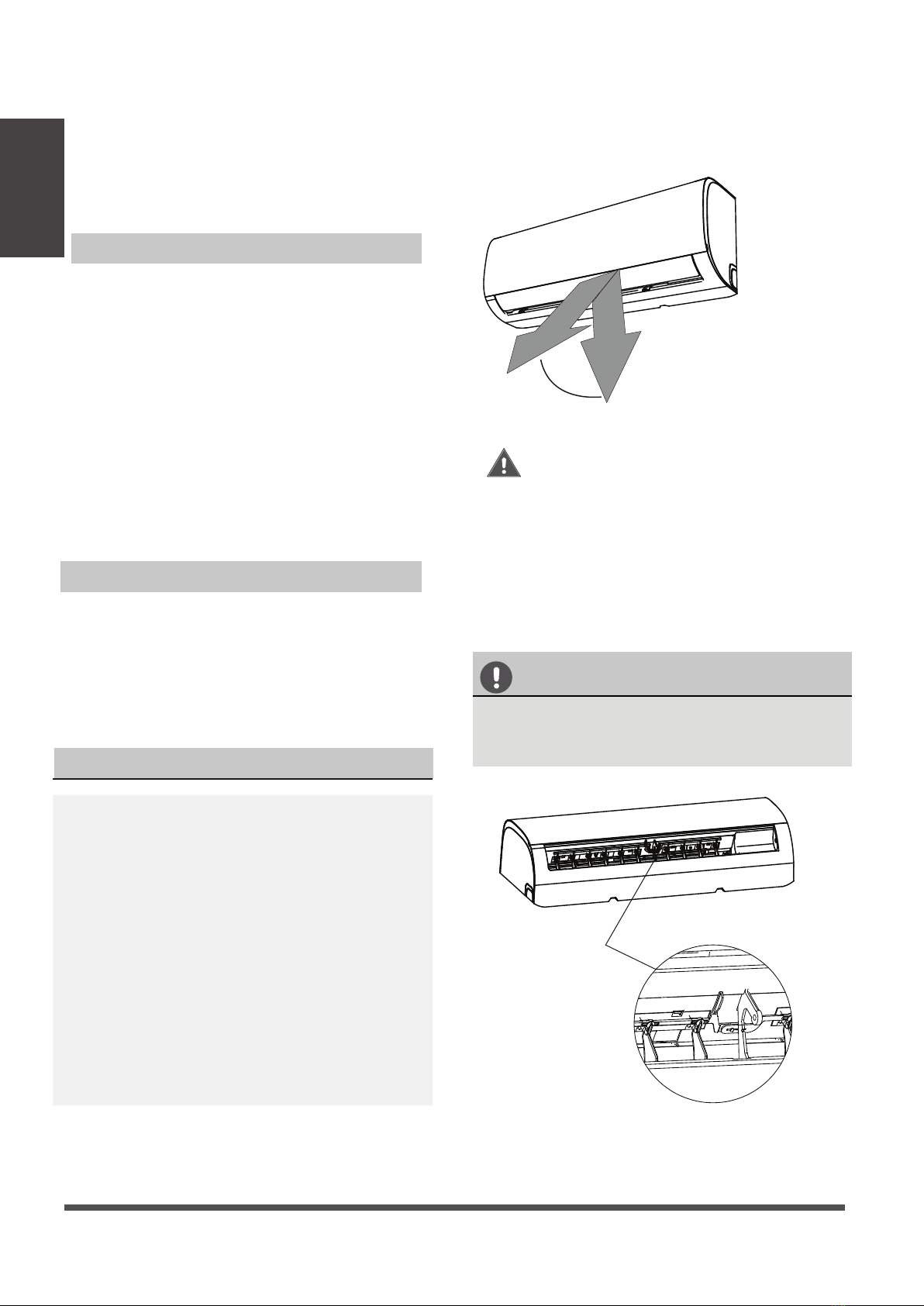

Setting vertical angle of air ﬂow

While the unit is on, use the SWING/DIRECT

button to set the direction (vertical angle) of

airﬂow.

Press the SWING/DIRECT button once to

activate the louver. Each time you press

the button, it will adjust the louver by 6°.

Press the button until the direction you

prefer is reached.

To make the louver swing up and down

continuously, press and hold the SWING/

DIRECT button for 3 seconds. Press it

again to stop the automatic function.

The horizontal angle of the airflow must be set

manually. Grip the deflector rod (See Fig.B)

and manually adjust it to your preferred direction.

For some units, the horizontal angle of the airflow

can be set by remote control. Please refer to the

Remote Control Manual.

NOTE ON LOUVER ANGLES

When using COOL or DRY mode, do not set

louver at too vertical an angle for long periods

of time. This can cause water to condense on

the louver blade, which will drop on your ﬂoor

or furnishings. (See Fig.A)

When using COOL or HEAT mode, setting the

louver at too vertical an angle can reduce the

performance of the unit due to restricted air

ﬂow.

Do not move louver by hand. This will cause the

louver to become out of sync. If this occurs, turn

off the unit and unplug it for a few seconds,

then restart the unit. This will reset the louver.

Fig. A

CAUTION

Do not put your fingers in or near the blower

and suction side of the unit. The high-speed

fan inside the unit may cause injury.

Fig. B

Setting Angle of Air Flow

Setting horizontal angle of air ﬂow

•

Unit

Speciﬁcations

and Features

Range

Caution: Do not keep louver at too

vertical an angle for long periods of

time. This can cause water condensation

to drip on your furnishings.

Deflector rod

Page 10 

The SLEEP function is used to decrease energy

use while you sleep (and don’t need the same

temperature settings to stay comfortable). This

function can only be activated via remote control.

Press the SLEEP button when you are ready to

go to sleep. When in COOL mode, the unit will

increase the temperature by 1°C (2°F) after 1

hour, and will increase an additional 1°C (2°F)

after another hour. When in HEAT mode, the unit

will decrease the temperature by 1°C (2°F) after

1 hour, and will decrease an additional 1°C (2°F)

after another hour.

It will hold the new temperature for 5 hours, then

the unit will turn off automatically.

Note:The SLEEP function is not available in

FAN or DRY mode.

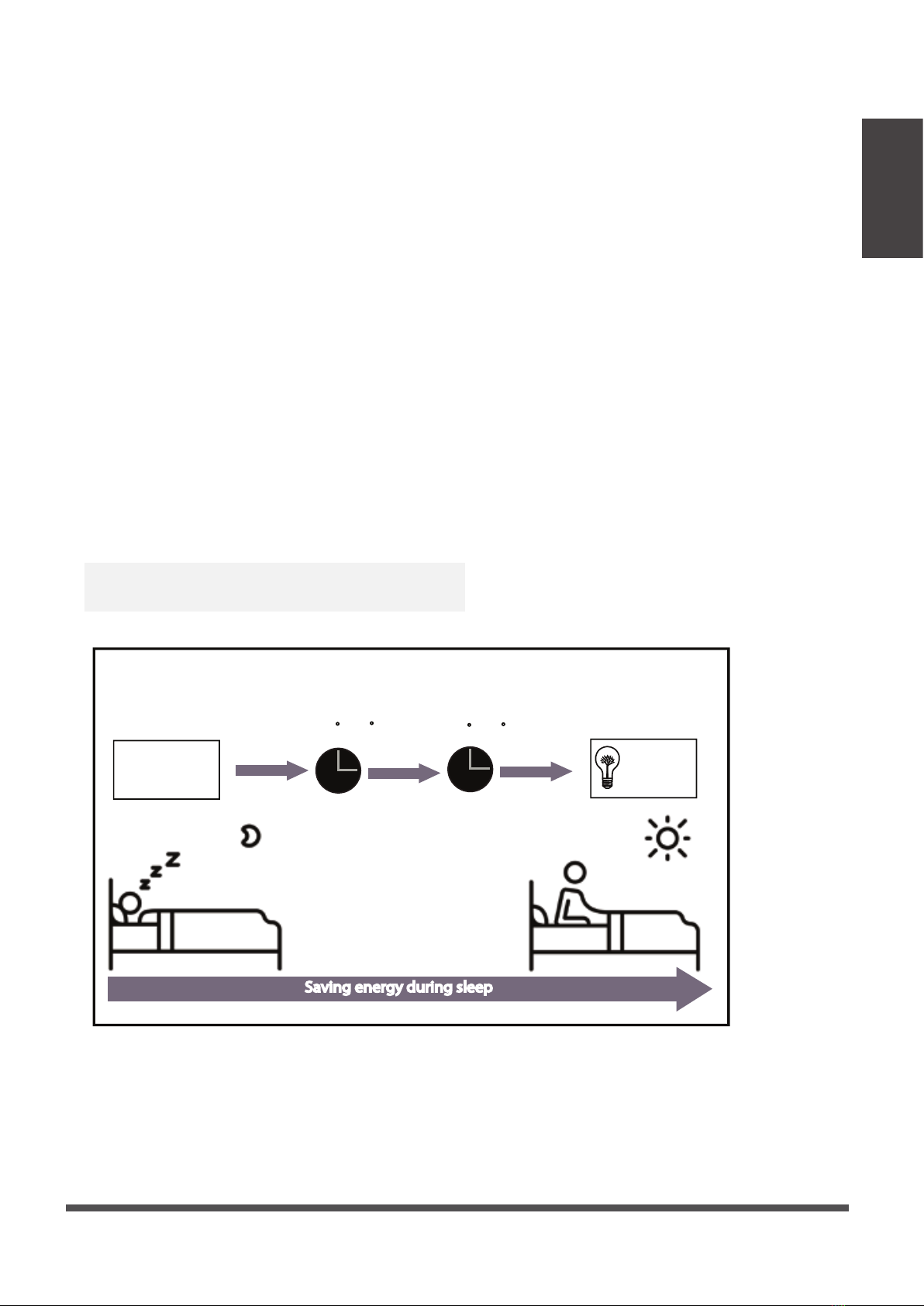

Sleep Operation

Set

temperature

Saving energy during sleep

1hr 1hr

7 hours

timer o

+/- 1 C/2 F

SLEEP Operation

+/- 1 C/2 F

•

Unit

Speciﬁcations

and Features

This manual suits for next models

Other Perfect Aire Air Conditioner manuals

Perfect Aire

Perfect Aire NP8000 User manual

Perfect Aire

Perfect Aire 2PAMSH09-MZW User manual

Perfect Aire

Perfect Aire PORT8000 User manual

Perfect Aire

Perfect Aire 3PATW8000 User manual

Perfect Aire

Perfect Aire PORTQ12000 User manual

Perfect Aire

Perfect Aire M2OF-18HFN1-M User manual

Perfect Aire

Perfect Aire 5PAC6000 User manual

Perfect Aire

Perfect Aire 1PEC12000 User manual

Perfect Aire

Perfect Aire 1PAMSH18-MZO2-16 User manual

Perfect Aire

Perfect Aire 1PAMSHQCW12-15 User manual

Perfect Aire

Perfect Aire PATC8000 User manual

Perfect Aire

Perfect Aire 3PAMSHHQC18-MZ02 User manual

Perfect Aire

Perfect Aire PAHP18002 User manual

Perfect Aire

Perfect Aire PORT8000A User manual

Perfect Aire

Perfect Aire 2PAC6000 User manual

Perfect Aire

Perfect Aire PAC5000 User manual

Perfect Aire

Perfect Aire 3PNC18000 User manual

Perfect Aire

Perfect Aire 8000PPAC User manual

Perfect Aire

Perfect Aire 1PAMSH09-SZW-14.5 User manual

Perfect Aire

Perfect Aire 3PASC10000 User manual

Perfect Aire

Perfect Aire 4PAC6000 User manual

Perfect Aire

Perfect Aire 6PAC10000 User manual

Perfect Aire

Perfect Aire PASC10000 User manual

Perfect Aire

Perfect Aire 1PAMSH30-SZW-16 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
