PedalPCB Samadhi Overdrive Quick start guide

Copyright © 2021 - PedalPCB.com Page 1 of 5Samadhi Overdrive

Samadhi Overdrive

Revised 7/16/21

All trademarks and registered trademarks are the property of their respective owners. The company, product, and service names used in this web site

are for identication purposes only. Use of these names, logos, and brands does not imply endorsement.

• Volume

• Drive

• AMC

• Tone

CONTROLS AND FEATURES

Copyright © 2021 - PedalPCB.com Page 2 of 5

Samadhi Overdrive

Samadhi Overdrive

Parts List (Page 1 of 1)

LOCATION VALUE TYPE NOTES

R1 2M Resistor, 1/4W

R2 470K Resistor, 1/4W

R3 1K Resistor, 1/4W

R4 1K Resistor, 1/4W

R5 10K Resistor, 1/4W

R6 1K Resistor, 1/4W

R100 4K7 Resistor, 1/4W

R101 10K Resistor, 1/4W

R102 10K Resistor, 1/4W

C1 470n Film capacitor, 7.2 x 5.0mm

C2 100p Ceramic capacitor

C3 100n Film capacitor, 7.2 x 2.5mm

C4 3n3 Film capacitor, 7.2 x 2.5mm

C5 470n Film capacitor, 7.2 x 5.0mm

C100 100u Electrolytic capacitor, 5mm

C101 47u Electrolytic capacitor, 5mm

D1 1N914A Signal diode, DO-35

D2 1N914A Signal diode, DO-35

D3 GE Germanium diode, 1N34A (1N34A, 1N270, D9E, etc)

D100 1N5817 Schottky diode, DO-41

Q1 BS170 N-Channel MOSFET

Q2 BS170 N-Channel MOSFET

IC1 AD712 Dual op-amp, DIP8

VOLUME A250K 16mm right-angle PCB mount pot

DRIVE B500K 16mm right-angle PCB mount pot

AMC B50K 16mm right-angle PCB mount pot

TONE B100K 16mm right-angle PCB mount pot

Copyright © 2021 - PedalPCB.com Page 3 of 5

Samadhi Overdrive

Samadhi Overdrive

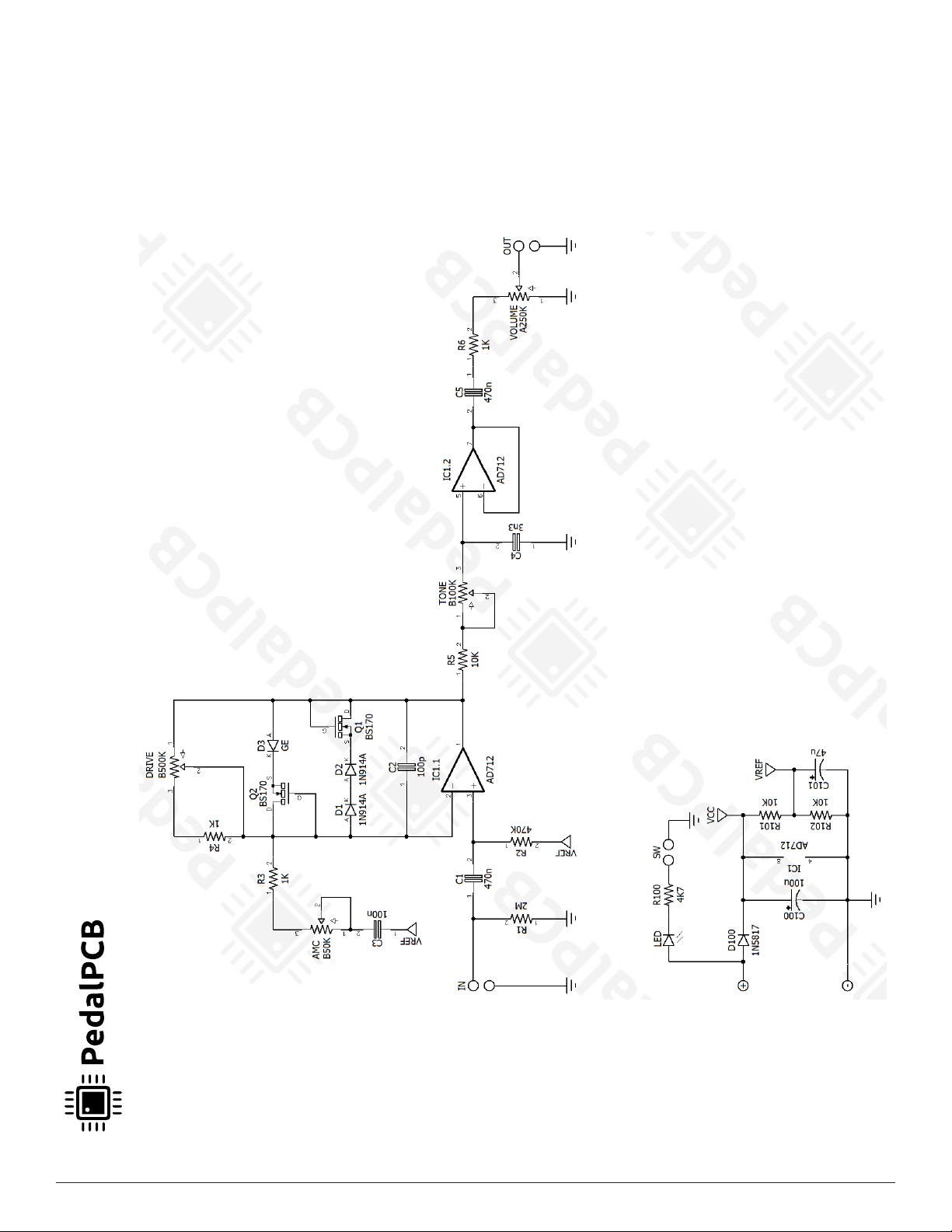

Schematic Diagram

Copyright © 2021 - PedalPCB.com Page 4 of 5

Samadhi Overdrive

Samadhi Overdrive

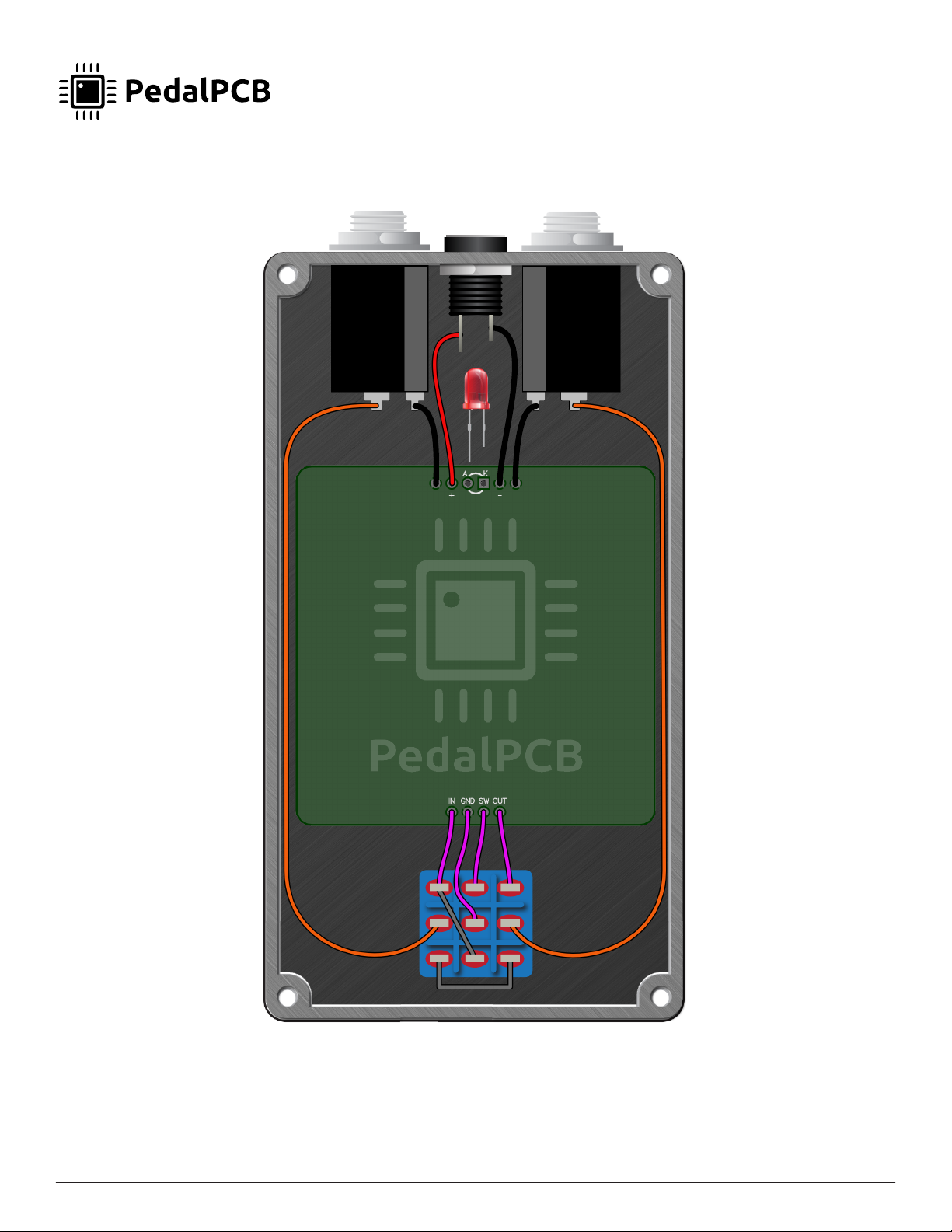

Wiring Diagram

F

O

O

T

S

W

I

T

C

H

P

O

T

E

N

T

I

O

M

E

T

E

R

P

O

T

E

N

T

I

O

M

E

T

E

R

P

O

T

E

N

T

I

O

M

E

T

E

R

P

O

T

E

N

T

I

O

M

E

T

E

R

L

E

D

D

C

J

A

C

K

I

N

P

U

T

J

A

C

K

O

U

T

P

U

T

J

A

C

K

Copyright © 2021 - PedalPCB.com Page 5 of 5

Samadhi Overdrive

Samadhi Overdrive

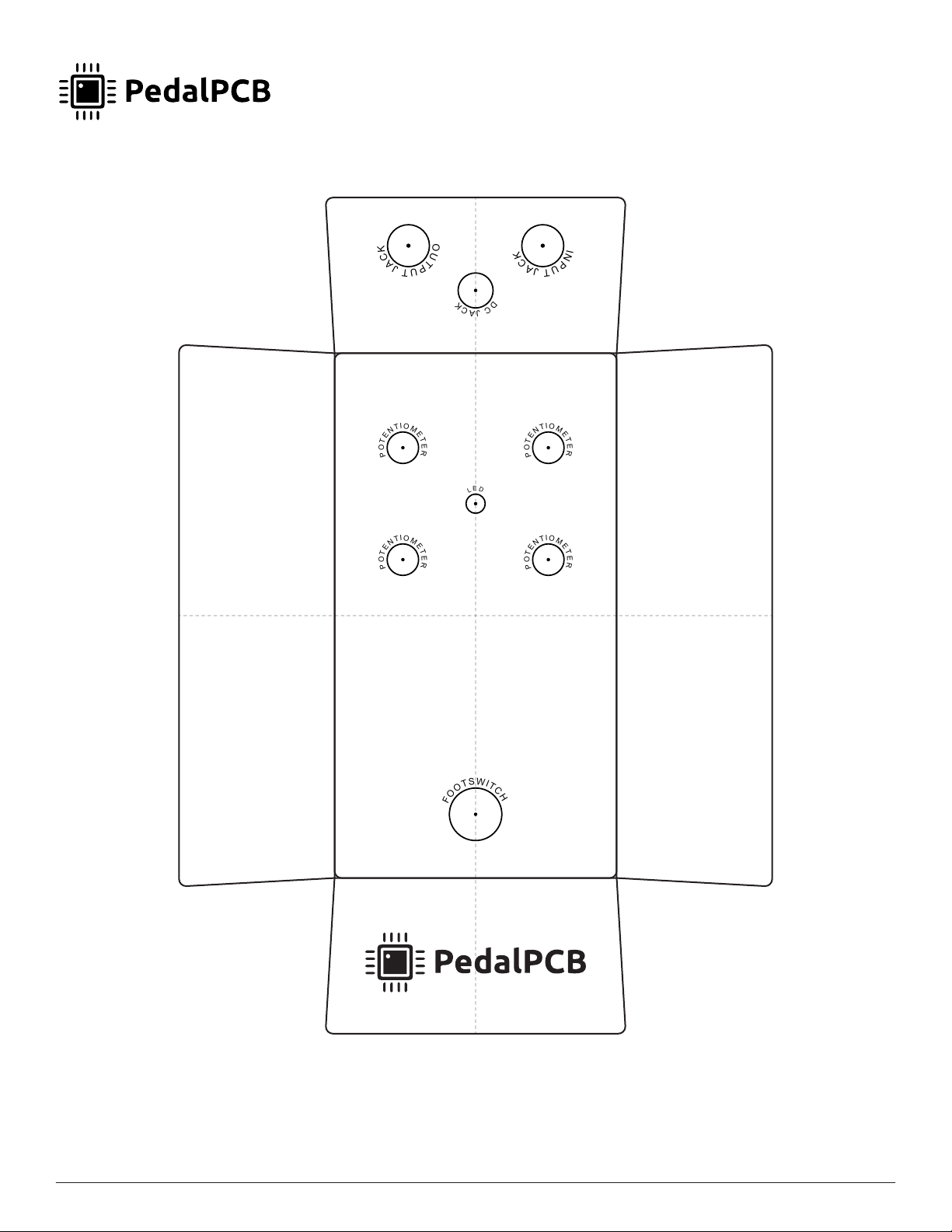

Drill Template

125B Enclosure

Volume Drive

AMC Tone
