PedalPCB Sliver Overdrive Quick start guide

Copyright © 2020 - PedalPCB.com Page 1 of 5Sliver Overdrive

Sliver Overdrive

Revised 1/4/21

All trademarks and registered trademarks are the property of their respective owners. The company, product, and service names used in this web site

are for identication purposes only. Use of these names, logos, and brands does not imply endorsement.

• Volume

• Tone

• Drive

• Bass (Internal trimpot)

• Mid (Internal trimpot)

• Presence (Internal trimpot)

CONTROLS AND FEATURES

Copyright © 2020 - PedalPCB.com Page 2 of 5Sliver Overdrive

Sliver Overdrive

Parts List (Page 1 of 1)

LOCATION VALUE TYPE NOTES

R1 1M Resistor, 1/4W

R2 470K Resistor, 1/4W

R3 10K Resistor, 1/4W

R4 13K3 Resistor, 1/4W

R5 470R Resistor, 1/4W

R6 1K Resistor, 1/4W

R7 3K6 Resistor, 1/4W

R8 1K8 Resistor, 1/4W

R9 150K Resistor, 1/4W

R10 470K Resistor, 1/4W

R11 3K Resistor, 1/4W

R100 4K7 Resistor, 1/4W

R101 10K Resistor, 1/4W

R102 10K Resistor, 1/4W

R103 91R Resistor, 1/4W

C1 56n Film capacitor, 7.2 x 2.5mm

C2 100p Ceramic capacitor

C3 27n Film capacitor, 7.2 x 2.5mm

C4 10n Film capacitor, 7.2 x 2.5mm

C5 20n Film capacitor, 7.2 x 2.5mm

C6 10n Film capacitor, 7.2 x 2.5mm

C7 56n Film capacitor, 7.2 x 2.5mm

C8 56n Film capacitor, 7.2 x 2.5mm

C9 10n Film capacitor, 7.2 x 2.5mm

C10 4u7 Electrolytic capacitor, 5mm

C100 100u Electrolytic capacitor, 5mm

C101 47u Electrolytic capacitor, 5mm

D1 1N4148 Signal diode, DO-35

D2 1N4148 Signal diode, DO-35

D3 1N4148 Signal diode, DO-35

D4 1N4148 Signal diode, DO-35

D100 1N5817 Schottky diode, DO-41

IC1 JRC4559D Dual op-amp, DIP8

VOLUME A100K 16mm right-angle PCB mount pot

TONE B100K 16mm right-angle PCB mount pot

DRIVE A1M 16mm right-angle PCB mount pot

BASS 50K Trim potentiometer 3362P-type

PRES 10K Trim potentiometer 3362P-type

MID 10K Trim potentiometer 3362P-type

Copyright © 2020 - PedalPCB.com Page 3 of 5Sliver Overdrive

Sliver Overdrive

Schematic Diagram

Copyright © 2020 - PedalPCB.com Page 4 of 5Sliver Overdrive

Sliver Overdrive

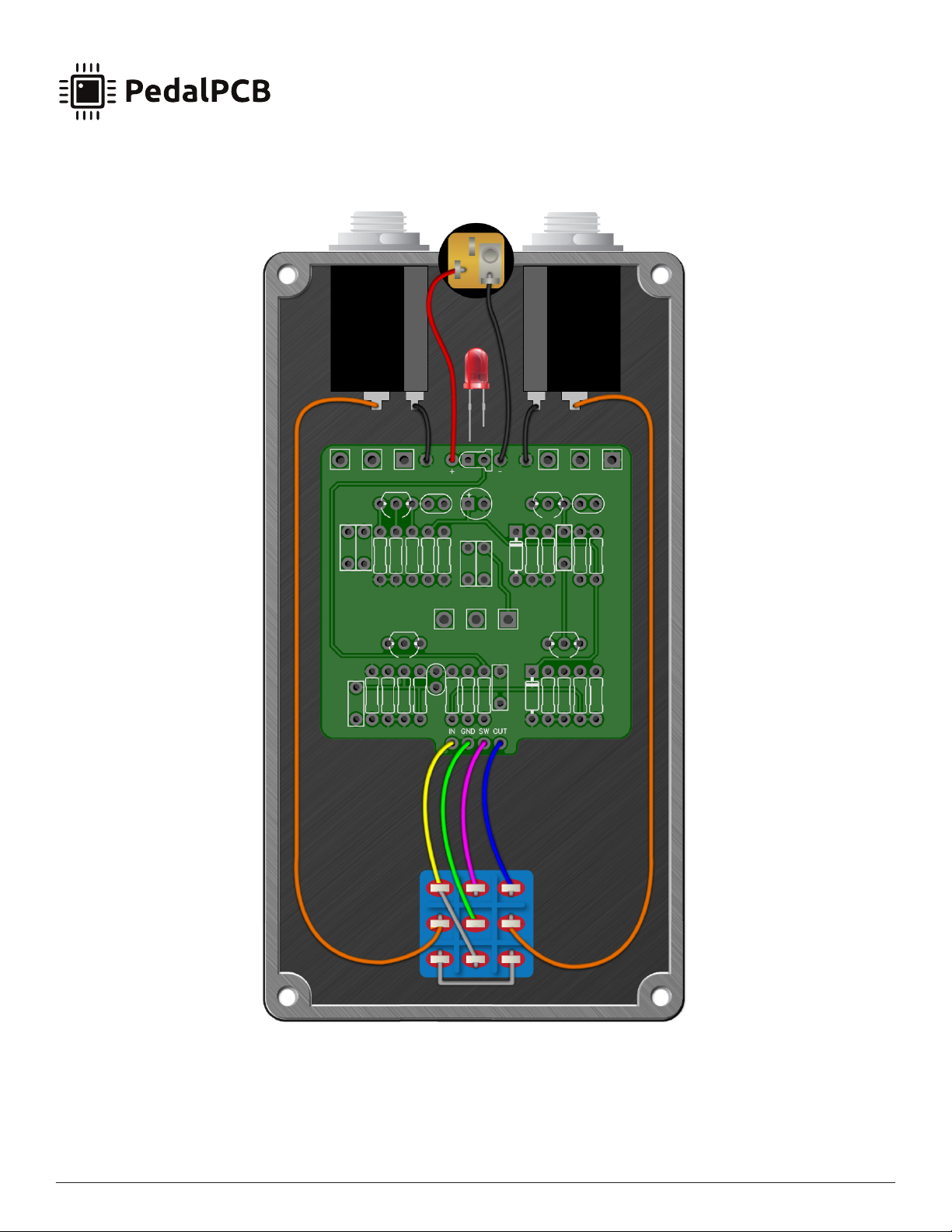

Wiring Diagram

F

O

O

T

S

W

I

T

C

H

P

O

T

E

N

T

I

O

M

E

T

E

R

P

O

T

E

N

T

I

O

M

E

T

E

R

P

O

T

E

N

T

I

O

M

E

T

E

R

L

E

D

D

C

J

A

C

K

I

N

P

U

T

J

A

C

K

O

U

T

P

U

T

J

A

C

K

Copyright © 2020 - PedalPCB.com Page 5 of 5Sliver Overdrive

Sliver Overdrive

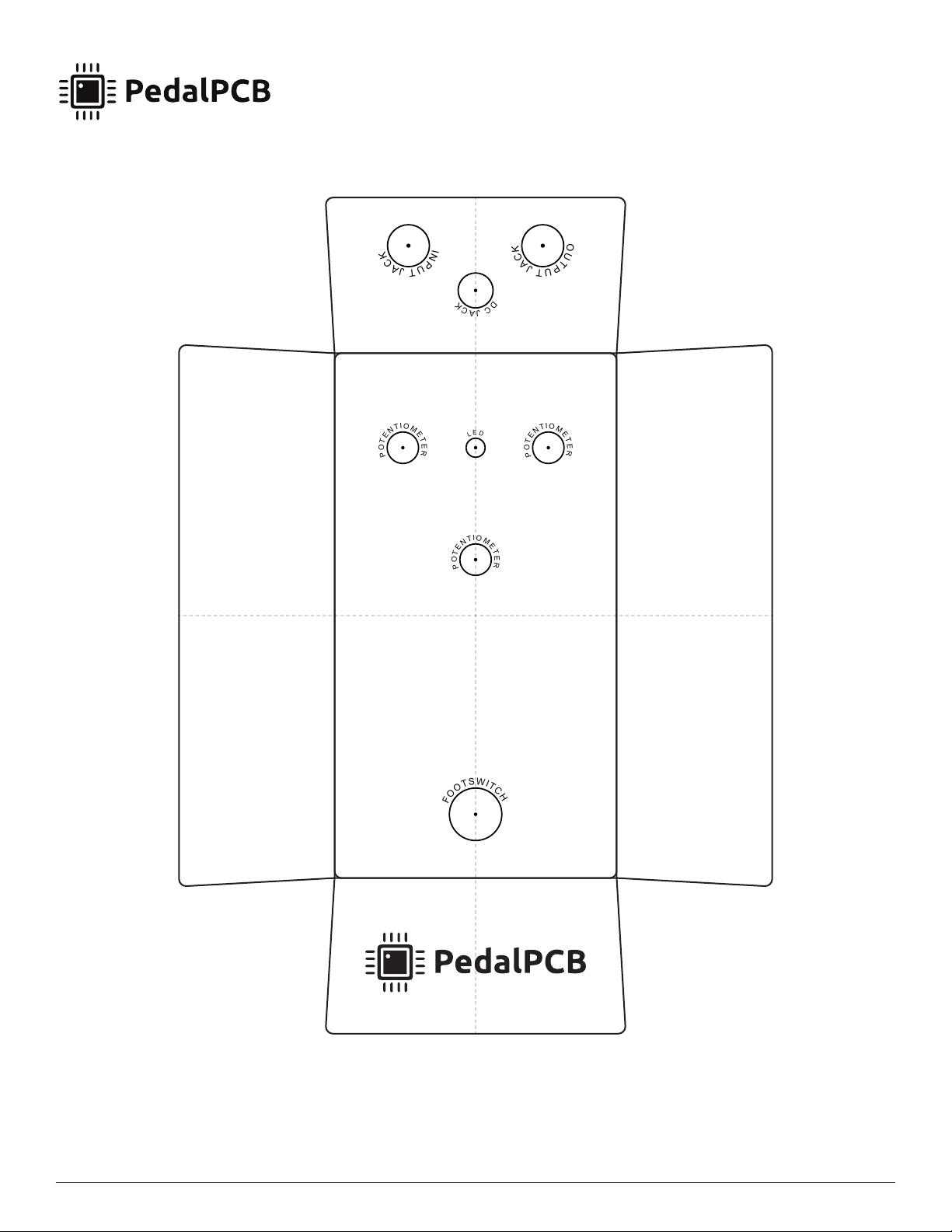

Drill Template

125B Enclosure

Tone

Volume Drive
