Peavey TLS 1X User manual

FFrreeqquueennccyy rraannggee ((--1100 ddBB,, hhaallff ssppaaccee))::

60 Hz to 20 Hz

FFrreeqquueennccyy rreessppoonnssee ((++//-- 33 ddBB,, hhaallff

ssppaaccee))::

97 Hz to 20 Hz

SSeennssiittiivviittyy ((11ww//11mm))::

97 dB

PPoowweerr rraattiinngg ((pprrooggrraamm))::

160 Watts

PPoowweerr ccaappaacciittyy ((ppeeaa))::

320 Watts

MMaaxxiimmuumm SSPPLL::

121 dB

TTrraannssdduucceerr ccoommpplleemmeenntt::

Blue Marvel®10" woofer, premium

dual bi-morph compression drivers

with 1.5" diaphragms on a dual

exponential horn

DDrriivveerr pprrootteeccttiioonn::

Dual bi-morph compression driver

series resistor protection networ

NNoommiinnaall ccoovveerraaggee ppaatttteerrnn::

60˚ x 30˚

EElleeccttrroo--aaccoouussttiicc ccrroossssoovveerr ffrreeqquueennccyy::

3.4 Hz

NNoommiinnaall iimmppeeddaannccee::

8 Ohms

IInnppuutt ccoonnnneeccttiioonnss::

Two 3/4" phone jac s in parallel

EEnncclloossuurree mmaatteerriiaallss aanndd ffiinniisshh::

Trapezoidal, blac carpet-covered

enclosure with dado joined 1/2"

MDF (Medium Density Fiberboard),

and a full-length blac powder -

coated steel grille

DDiimmeennssiioonnss ((HH xx WW xx DD))::

FFrroonntt::

20.5" x 15.125" x 12.25"

52.07 cm x 38.418 cm x 31.115 cm

RReeaarr::

20.5" x 11.25" x 12.25"

52.07 cm x 28.575 cm x 31.115 cm

WWeeiigghhtt::

24 lbs. (10.91 g)

OOppttiioonnaall ssyysstteemm uuppggrraaddeess::

TLS™115X add-on subwoofer

BBuulllleettss::

• Two-way sound reinforcement

enclosure

• Peavey exclusive Blue Marvel®

10" woofer

• Premium dual bi-morph

compression drivers, with 1.5"

diaphragms

• Series resistor tweeter

protection networ

• 160 Watts program/320 Watts

pea power handling

• Extremely lightweight

trapezoidal enclosure

• Dual exponential horn

• High quality, heavy duty

carpet covering

• Steel handles

• Steel corners

• Pole stand adapter

SPECIFICATIONS TLS™1X

• Rugged dado and rabbet

construction for light weight-yet-

strong joints

• T-Nut spea er mounting

• Heavy duty full-length steel grille

DDeessccrriippttiioonn

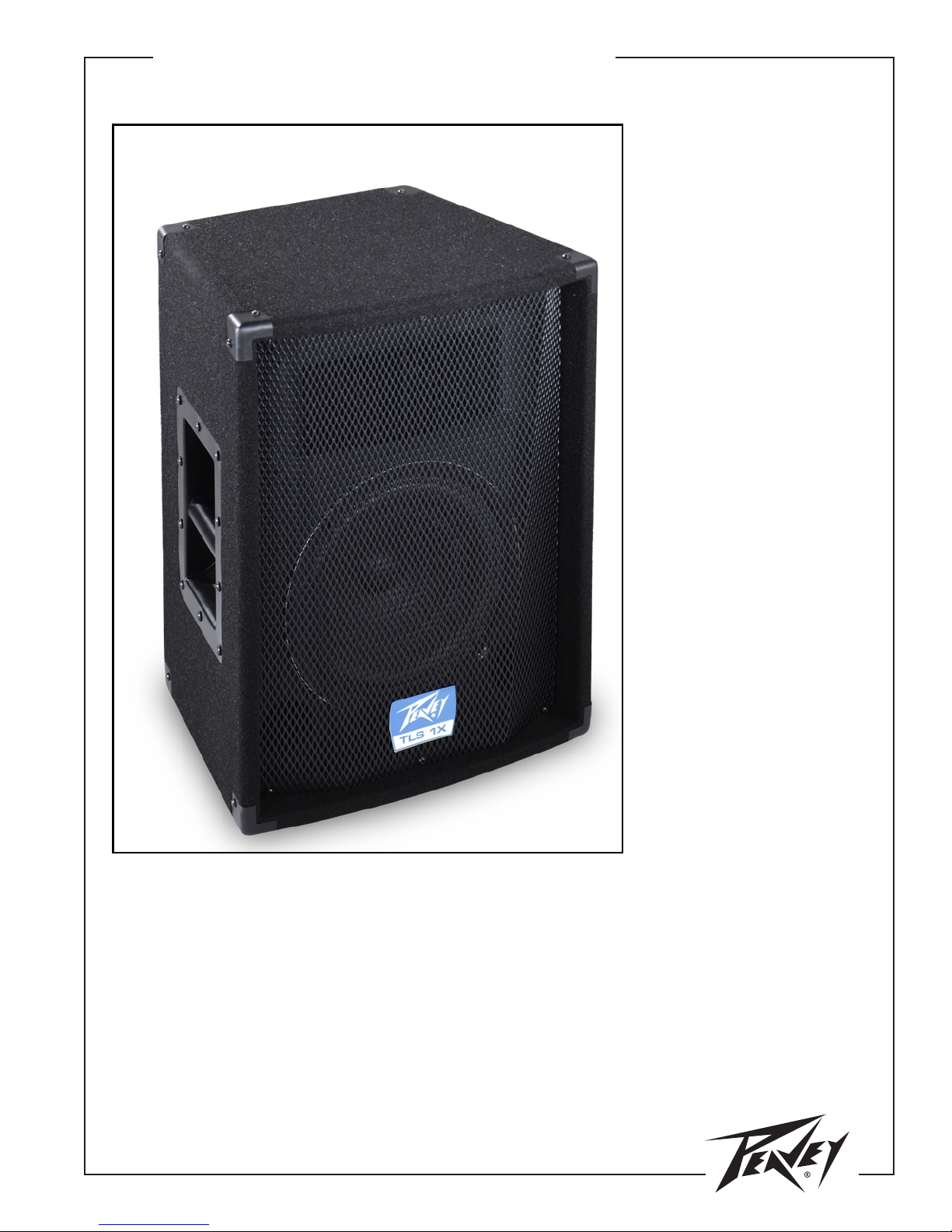

The TLS 1X is a two-way spea er system

based on a 10" Blue Marvel®woofer and

premium, dual, bi-morph compression

drivers mounted on a dual exponential

horn. The extremely lightweight-yet-

rugged, carpet-covered trapezoidal

enclosure with steel handles facilitates

portable use for live music or speech

sound reinforcement, as well as music

playbac . A full-length, blac powder-

coated steel grille provides driver

protection and a professional

appearance.

The TLS 1X spea er system is rated at

160 Watts program power handling and

includes a series resistor protection

networ for the premium dual bi-morph

compression drivers, which results in

excellent long-term reliability. Its light

weight and smooth response ma es this

system ideal for smaller venues where

space is in demand, and its two 1/4"

phone jac input connectors ma e hoo -

up a breeze.

Broaden your sound reinforcement

experience by utilizing the TLS 115X

subwoofer with the TLS 1X spea er

system.

33 ++ 22 YYEEAARR LLIIMMIITTEEDD WWAARRRRAANNTTYY

NNOOTTEE:: For details, refer to the

warranty statement. Copies of

this statement may be obtained

by contacting Peavey Electronics

Corporation, P.O. Box 2898, Meridian,

Mississippi 39301-2898.

20 50 100 200 500 1k 2k 5k 10k 20k

Frequency (Hz)

100

110

dB SPL (re 20 Pa)

Amplitude Response (1W 1m On-Axis)

Figure 1

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com

80305047
