Peavey PV 12M User manual
Frequency range (-10 dB, half
space):
52 Hz to 21 kHz
Frequency response (±3 dB,
half space):
68 Hz to 17 kHz
Sensitivity (1W/1M):
98 dB
Power rating (program):
500 Watts
Power capacity (peak):
1000 Watts
Maximum SPL:
127 dB
Transducer complement:
Sheffield® Pro 1200+™ 12"
premium woofer and 14XT™
1.4" titanium diaphragm
dynamic compression driver on
a 90˚ x 40˚ coverage constant
directivity horn
Driver protection:
Sound Guard™ IV for the
compression driver provides
long- and medium-term
overload and overdrive
protection
Nominal coverage pattern:
90˚ x 40˚
Electro-acoustic crossover
frequency:
2.9 kHz
Nominal impedance:
8 Ohms
Input connections:
Two 1/4" phone jacks in parallel
Enclosure materials and
finish:
Trapezoidal, black carpet-
covered enclosure with dado
joined 1/2" MDF (Medium
Density Fiberboard) and a full-
length, black powder-coated
steel grille
Dimensions (H x W x D):
22.375" x 17.75" x 12.5625"
56.833 cm x 45.085 cm x
31.909 cm
Weight:
37 lbs. (16.8 kg)
Mounting or suspension:
1-3/8" pole-mount cup for
stand mounting
Features:
• Two-way sound reinforcement
monitor enclosure
• 30˚ and 45˚ dual-angle
monitoring
• Peavey-exclusive Sheffield Pro
1200+ woofer with 2.5" voice
coil
• 1.4" 14XT titanium diaphragm
compression driver
• Sound Guard IV tweeter
protection
• 500 Watt program/1000 Watt
peak power handling
• Heavy duty crossover network
for driver protection and EQ
• Lightweight trapezoidal
enclosure
• 90˚ x 40˚ coverage constant
directivity horn for better off-
axis tonality
• High quality, heavy duty carpet
covering
• Steel handle
• Rugged dado and rabbet
construction for lightweight-
yet-strong joints
• T-Nut speaker mounting
• Heavy duty, full-length steel
grille
• Pole mount included
SPECIFICATIONS PV® 12M
Features and specifications subject to change without notice.
Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 (601) 483-5365 • FAX (601) 486-1278 • www.peavey.com
©2005

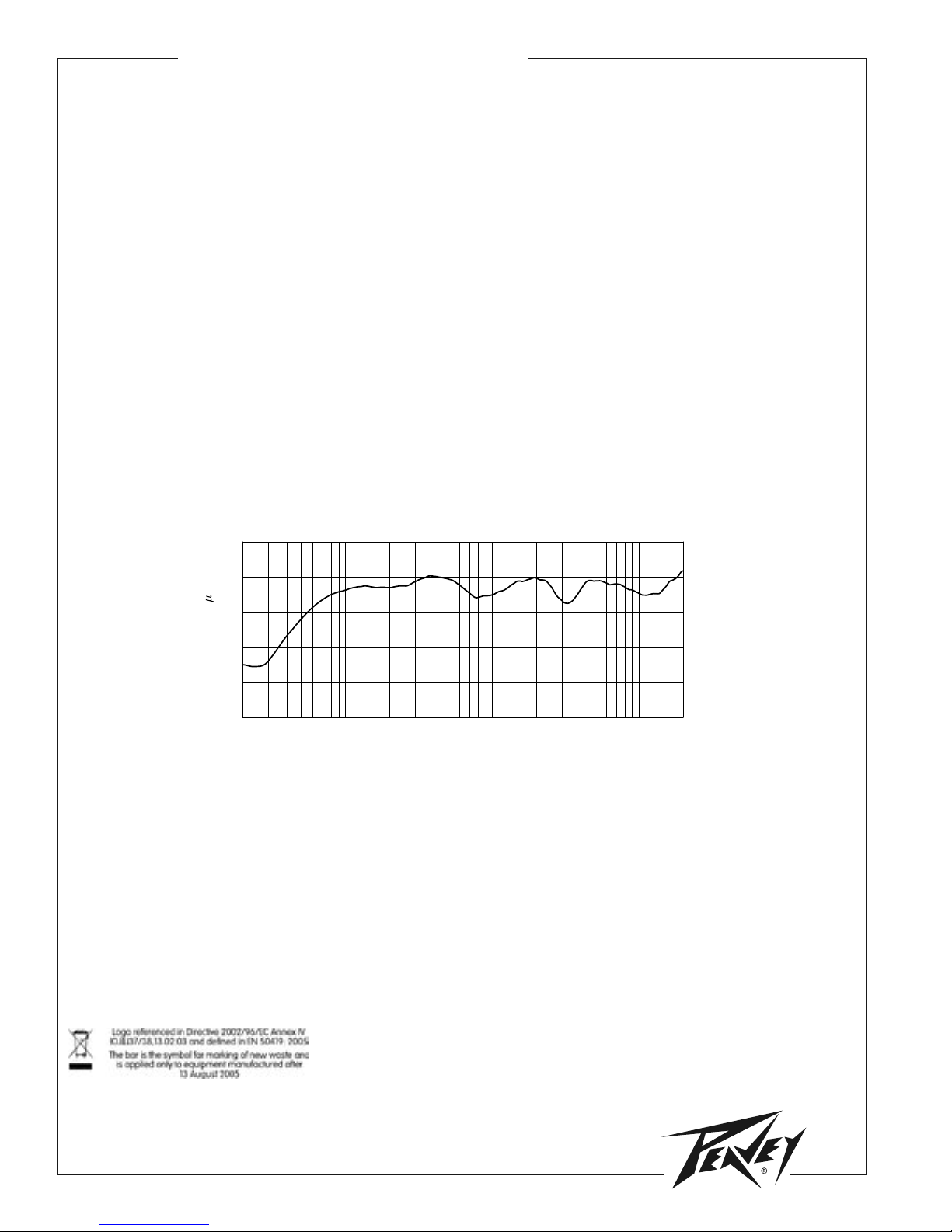

20 50 100 200 500 1k 2k 5k 10k 20k
Frequency (Hz)
60
70
80
90
100
110
dB SPL (re 20 Pa)
Amplitude Response (1W 1m On-Axis)
Figure 1
SPECIFICATIONS PV®12M
Description
The PV 12M is a two-way floor
monitor utilizing a 12" Sheffield®
Pro 1200+™ woofer and a 14XT™
titanium diaphragm dynamic
compression driver mounted on
a 90˚ x 40˚ coverage constant
directivity horn. This lightweight-
yet-rugged, carpet-covered
monitor enclosure with stand-
mount cup facilitates portable use
a stage monitor or other sound
reinforcement applications.
The dual-angle enclosure provides
a choice of 30˚ and 45˚ monitoring
angles for full monitoring utility.
A full-length, black powder-
coated steel grille provides driver
protection and a professional
appearance.
The PV 12M speaker system is
rated at 500 Watts program power
handling, and the full crossover
network includes high voltage film
capacitors and Sound Guard™ IV
tweeter protection for clear, punchy
sound and excellent long-term
reliability. Two 1/4" phone jack
input connectors make hook-up and
daisy-chaining to other monitors a
breeze.
3 + 2 YEAR LIMITED WARRANTY
NOTE: For details, refer to the
warranty statement. Copies of
this statement may be obtained
by contacting Peavey Electronics
Corporation, P.O. Box 2898,
Meridian, Mississippi 39301-2898.
EX000034
