COMSPHERE 3500 Series Data Service Units

Models 3510 & 3511

Quick Reference

Document Number 3510-A2-GL10-10

March 1999

Product Documentation on the World Wide Web

We provide complete product documentation online. This lets you search the

documentation for specific topics and print only what you need, reducing the waste of

surplus printing. It also helps us maintain competitive prices for our products.

Complete documentation for this product is available at www.paradyne.com.

Select

Library

→

Technical Manuals

→

Subrate Digital Access Devices

Select the following document:

3510-A2-GN32

COMSPHERE 3500 Series Data Service Units,

Models 3510 and 3511, User’s Guide

To request a paper copy of a Paradyne document:

Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)

Outside the U.S.A., call 1-727-530-8623

Be sure to register your warranty at www.paradyne.com. Select

Service & Support

→

Warranty Registration

Before you install the DSU, read the

Important Safety Instructions

on page 18.

!HANDLING PRECAUTIONS FOR STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive components from

damage due to electrostatic discharge (ESD) during normal

operation. When performing installation procedures,

however, take proper static control precautions to

prevent damage to equipment. If you are not sure

of the proper static control precautions, contact

your nearest sales or service representative.

Installation Procedures

This section provides instructions for installing standalone Model 3510 DSUs and

carrier-mounted Model 3511 DSUs. Refer to the appropriate section.

Model 3510 DSU Installation

Physical installation of the Model 3510 consists of unpacking the DSU and placing it in

its planned location. Electrical installation requires the following procedure.

Procedure

1. Coordinate the installation with the telephone company and affected digital network

user locations.

2. Configure the DSU to meet the requirements of the application (refer to

Hardware

Strapping

on page 8). Do not disable the faceplate switches now, or you will

not be able to test the DSU.

3. Find a suitable non-switched ac wall outlet capable of furnishing 90 to 132 Vac,

0.07 amps at 117 Vac. Label the circuit breaker that controls the outlet and be sure

it is set to ON.

4. At the rear panel of the DSU, insert the socket end of the power cable into the

POWER receptacle. Ensure that the connector is fully inserted. Connect the other

end to the ac outlet.

Indicators on the faceplate flash as the DSU performs an internal power-on

self-test. The green OK indicator then lights for about 20 seconds, then the red

OS/NS indicator flashes. If no indicators light, verify that the DSU is receiving

power.

NETWORK INTERFACE

POWER CONNECTOR 98-12304a

EIA-232-D/V.24

CONNECTOR

V.35 CONNECTOR

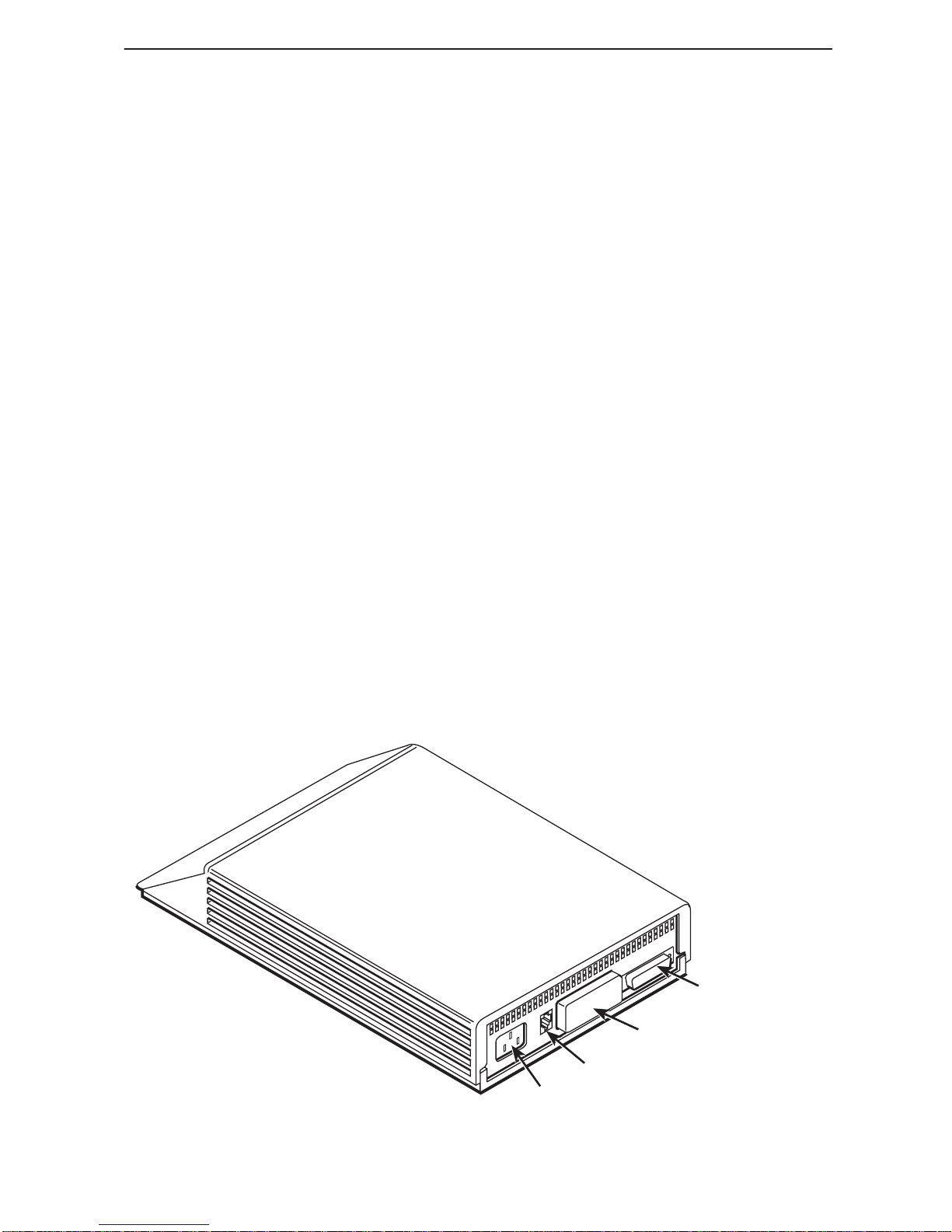

Model 3510 DSU, Rear Panel

5. Perform the Device Test as described in the

Operation

section of the User’s Guide.

If the DSU fails this test, replace the DSU.

6. Connect the network interface.

The Model 3510 DSU’s rear panel contains a miniature universal service ordering

code (USOC) type RJ48S jack for connecting your DSU to the digital network.

Purchasers in the United States receive a modular telephone cable (D8W-87) with

each DSU, with identical connectors on both ends. Canadian purchasers must

order another cable (Feature Number 3000-B1-006) with a USOC-type RJ48S

connector on one end and a 6-pin connector on the other.

7. Connect the DSU to the digital network by inserting the 8-pin end of the cable into

the connector labeled LINE at the rear of the DSU.

Insert the other end of the cable into the modular jack provided by the telephone

company. Make sure the OK indicator shows green and the OS/NS indicator stops

flashing.

NOTE:

For LADS applications, the OK indicator will not come on and the OS/NS

indicator will flash until both DSUs are connected to the LADS circuit.

8. The DSU has an EIA-232-D/V.24 (ISO 2110) connector and a CCITT V.35

connector. EIA-232-D/V.24 is the factory default setting; Switch S3-6 on the CCA is

positioned toward the front (F). Equipment speeds above 19.2 kbps typically use

the V.35 interface.

To configure the DSU to use the V.35 interface, set Switch S3-6 on the CCA toward

the rear (R) during configuration. Refer to

Hardware Strapping

on page 8 for

additional information.

NOTE:

For the V.35 connector, the recommended maximum distance between a DTE

and a DSU is nominally 1000 feet. For the EIA-232 connector, the effective

shunt capacitance of the circuit, measured at the DSU, including the

capacitance of the cable and the DTE, must not exceed 2500 picofarads, as

specified in EIA-232-D.

9. Insert the plug end of the DTE cord into the appropriate DATA TERMINAL

connector (EIA-232-D or V.35) at the back of the DSU. Connection of the DSU to

the DTE is a matter of selecting and installing the appropriate cable.

Connect the other end of the DTE cord to your DTE.

10. If the network line and remote-end DSU are installed and tested, do a Remote

Loopback – Test Pattern Test (Point-to-Point or Multipoint).

11. If the Front Panel test switches strap is to be disabled, do this now.

Installation of the standalone Model 3510 DSU is complete.

Model 3511 DSU Installation

This section includes the installation procedures for the Model 3511 DSU, which is

designed for installation in a COMSPHERE 3000 Series Carrier. Before installing the

DSU, verify that the carrier has been installed properly and is operational.

CAUTION:

Discharge any static electricity that may be present on your body by

touching a properly grounded object (e.g., cold water pipe, frame ground, or

data cabinet). Do not handle the circuit card unnecessarily.

The initial installation procedure for the Model 3511 DSU requires the installation of a

rear connector plate onto the rear of the COMSPHERE 3000 Series Carrier. After the

initial installation, the DSU can be installed and removed from the front of the carrier

without first disconnecting the DTE cables at the rear of the carrier.

P26 P25 P24 P23

P20 P19

J2 P22 J1 P21

NON-MODULAR DSUs MODEL 3511 DSU

REAR CONNECTOR PLATES

SCREW

SLOT

98-12302a

25-PIN

EIA-232-D

CONNECTORS

25-PIN V.35

CONNECTORS

Rear View of the COMSPHERE 3000 Series Carrier

NOTE:

When modular circuit cards are installed with non-modular cards in the same

carrier, modular circuit cards like the Model 3511 DSU must be installed on the left

side of the carrier.

Installing the Rear Connector Plate

To install a DSU and its rear connector plate for the first time:

Procedure

1. Configure the DSU to meet the requirements of the application (refer to

Hardware

Strapping

on page 8). Do not disable the front panel switches at this time.

2. At the rear of the carrier, set the tab on the rear connector plate into one of the slots

on the carrier’s backplane. Make sure the rear connector plate uses the same slot

position intended for the DSU.

3. Loosely fasten the screw attached to the rear connector plate, allowing for slight

adjustment that may be needed when installing the DSU.

4. Using a Phillips screwdriver, loosen the screw holding the circuit pack lock that

secures the DSU’s latch, and rotate the lock to the open position. Open the latch.

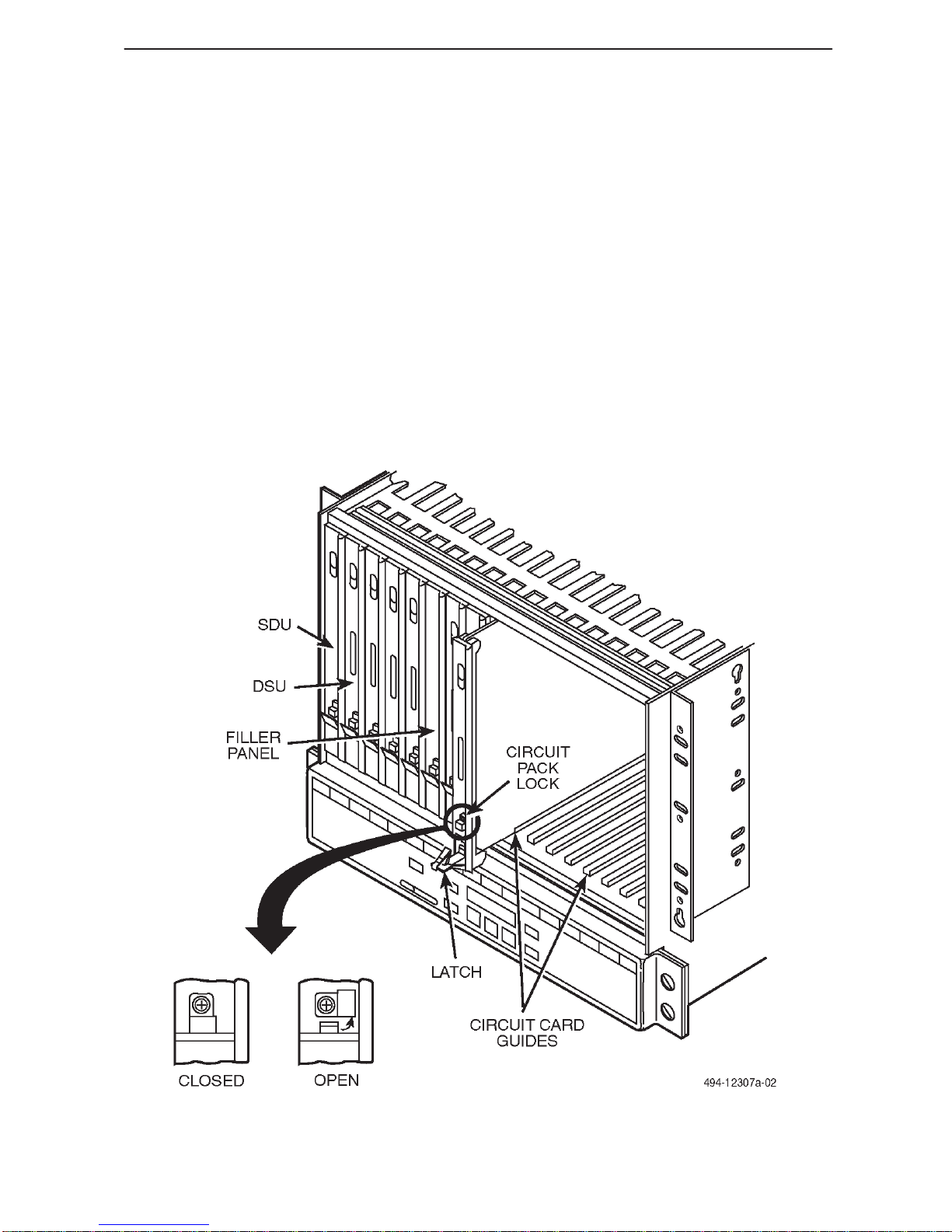

Model 3511 DSU Installation and Circuit Pack Lock

5. At the front of the carrier, hold the DSU vertically with the latch on its faceplate in

the open position. Then, insert the circuit card into the top and bottom circuit card

guides for the slot that contains the rear connector plate.

6. Aligning the circuit card with the rear connector plate, slide the DSU into the slot

until the connectors seat firmly into the back of the carrier.

7. Press the faceplate latch to secure the DSU in the carrier, rotate the circuit pack

lock into the closed position, and tighten the screw.

If the carrier is powered, all indicators on the faceplate flash as the DSU performs

an internal power-on self-test. The green OK indicator then lights for about 20

seconds, then the red OS/NS flashes. If no indicators light, verify that the DSU is

receiving power.

8. Return to the rear of the carrier and tighten the rear connector plate screw.

9. At the rear of the carrier, connect the DTE interface cable onto the rear connector

plate.

If using an EIA-232-D interface cable, connect the EIA-232-D cable to the top DTE

connector on the rear connector plate.

Installation of the DSU and its rear connector plate is complete.

Connecting to a V.35 Interface

To connect a V.35 interface cable:

Procedure

1. Connect the 25-pin end of the V.35 adapter to the bottom DTE connector on the

rear connector plate. Tighten the thumbscrews on both sides of the connector.

2. Connect the 34-pin end of the V.35 adapter to the DTE’s V.35 interface cable.

Tighten the screws on both sides of the connector.

Installation of the V.35 interface cable is complete.

NOTE:

For the V.35 connector, the recommended maximum distance between a DTE and

a DSU is 1000 feet. For the EIA-232 connector, the effective shunt capacitance of

the circuit measured at the DSU, including the capacitance of the cable and the

DTE, must not exceed 2500 picofarads, as specified in EIA-232-D.

25-Pin Connector

V.35 Adapter

V.35 Cable

Thumbscrews

99-16298

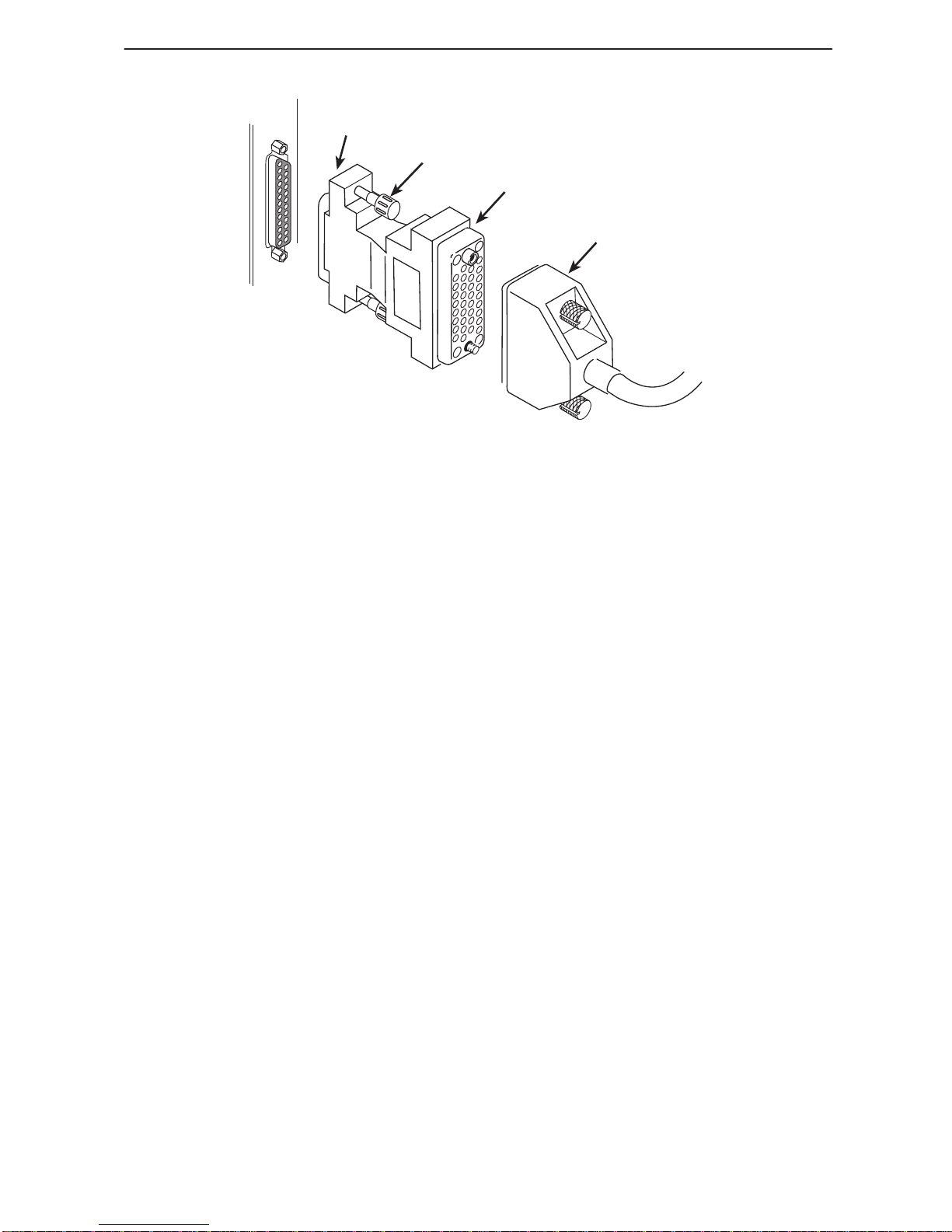

Model 3511 DSU V.35 Adapter Installation

(Feature Number 3000-F1-510)

Connecting to the Digital Network

The installed DSU is connected to the digital network through the 50-pin connectors on

the rear of the carrier. These interfaces are specified in USOC RJ48T. Proper network

connection to the DDS facility or a network channel terminating equipment must be

made at the far end of the cable.

To ensure proper network connection to the DDS facility or to network channel

terminating equipment:

Procedure

1. If the network line and remote DSU are installed and tested, perform a Remote

Loopback – Test Pattern Test (Point-to-Point or Multipoint).

2. If the Front Panel test switches strap is to be disabled, slide the DSU slightly out of

the carrier, open Switch S3-1, then reseat the DSU into the carrier. Do this now.

3. Write circuit ID information in the area provided on the cover plate under the

appropriate slot number.

The Model 3511 DSU and rear connector plate installation procedure is completed.

Hardware Strapping

Both Model 3510 and 3511 DSUs can be configured for installation at the local or

remote end of a network by setting onboard straps. The straps also allow you to

configure either type of DSU (Model 3510 or 3511) as a LADS for connection to 4-wire

metallic circuits.

98-12303a

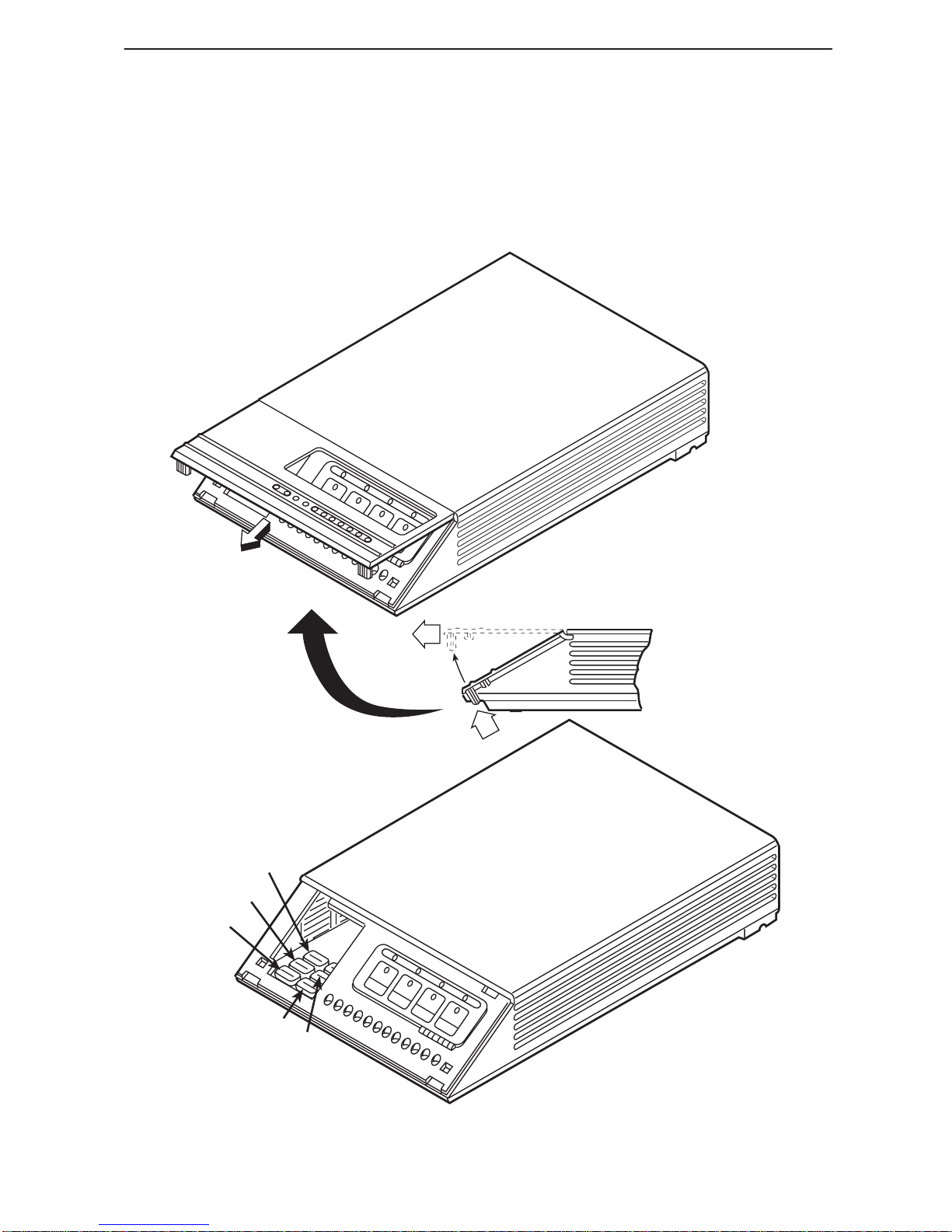

S1S3

S2 S5

3510

Model 3510 DSU Strap Access

Other manuals for Comsphere 3510

This manual suits for next models

Table of contents

Other Paradyne Network Hardware manuals

Paradyne

Paradyne Hotwire 7995 User manual

Paradyne

Paradyne ACCULINK 3160 User manual

Paradyne

Paradyne 8540 User manual

Paradyne

Paradyne COMSPHERE 6700 Series User manual

Paradyne

Paradyne Hotwire 8775 MSDSL User manual

Paradyne

Paradyne FrameSaver NP 110 User manual

Paradyne

Paradyne Hotwire 7995 User manual

Paradyne

Paradyne 8310 MVLt User manual

Paradyne

Paradyne BitStorm 2600 IP DSLAM User manual

Paradyne

Paradyne FrameSaver SLV 9124 Use and care manual

Paradyne

Paradyne MIM-4E1 User manual

Paradyne

Paradyne DC Power Entry Module 8820-S1-906 User manual

Paradyne

Paradyne Comsphere 3510 Operation and maintenance manual

Paradyne

Paradyne ACCULINK 3161 CSU User manual

Paradyne

Paradyne 4300 User manual

Paradyne

Paradyne 7112 User manual

Paradyne

Paradyne GranDSLAM 4200 User manual

Paradyne

Paradyne 7610 SNMP DSU User manual

Paradyne

Paradyne 3163 User manual

Paradyne

Paradyne ACCULINK 336x E1 Manual

Paradyne

Paradyne COMSPHERE 3610 Operation and maintenance manual

Paradyne

Paradyne COMSPHERE 3610 Operation and maintenance manual

Paradyne

Paradyne COMSPHERE 3800 Series Instruction Manual

Paradyne

Paradyne 3163 User manual

Popular Network Hardware manuals by other brands

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL product manual

B&B Electronics

B&B Electronics ZXT9-IO-222R2 product manual

Yudor

Yudor YDS-16 user manual

D-Link

D-Link ShareCenter DNS-320L datasheet

Samsung

Samsung ES1642dc Hardware user manual

Honeywell Home

Honeywell Home LTEM-PV Installation and setup guide

evertz

evertz 7700 Series manual

D-Link

D-Link ShareCenter DNS-343 Quick installation guide

Asante

Asante AsanteBridge 1012 user guide

FireBrick

FireBrick FB2700 user manual

Audiovox Electronics

Audiovox Electronics ARWH2T user manual

ADC

ADC DSX-1 Operational Procedures Guide

NetComm

NetComm NF2 user guide

Alcatel-Lucent

Alcatel-Lucent 5620 user guide

Dell EMC

Dell EMC XC6420 Series Solution guide

Lanner

Lanner NCA-1020A user manual

Allied Telesis

Allied Telesis AT-TN121-A Specifications

Arista

Arista CCA-ETM-Q12 quick start guide
