Paradigm GO4 User manual

GO4

GO6

Outdoor

Satellite

Speakers

OWNER’S MANUAL

arden

asis

1| EN 121616

2EN |

TABLE OF CONTENTS

Overview ........................................3

Garden Oasis Premium Satellite Speakers ..........3

Required Tools .................................3

Power ........................................3

Planning The Install ..............................4

Wiring Recommendations .........................5

Installation Considerations ........................5

Wiring & Speaker Installation ......................6

Mono Setup Using 4 Conductor Burial Cable &

Crown Amplifier ................................6

Preparing the 4 Conductor Burial Cable ............6

Installing Ground Stake Accessory &

Attaching Speaker ..............................7

Installing Surface Mount Accessory &

Attaching Speaker ..............................9

Speaker & Burial Cable Connections..............11

Speaker Direction & Settings ....................11

Optional Inground Conduit Box ....................12

OPTION 1: PVC Conduit Installation ...............12

OPTION 2: Burial Cable Installation...............12

Test System ....................................13

To Avoid Speaker Damage ........................14

Listening Outdoors ..............................14

Off Season Speaker Cover ........................14

Audio Settings Chart .............................15

Limited Warranty................................16

3| EN

Garden Oasis Premium Satellite Speakers

The Garden Oasis series Satellite speakers are premium

sounding all season outdoor speakers ideal for backyards

ranging from 2,000 to 3,000 sq. feet.

GO4 and GO6 are sold individually and can be ordered in

accordance with the area to be covered.

Made of durable UV treated ABS plastic, Garden Oasis

speakers can endure the elements while providing

years of trouble free service.

While installation is relatively easy, Paradigm’s Garden

Oasis series is designed to be installed by your authorized

Paradigm dealer.

WARNING!

• ACCOUNT FOR POTENTIAL ELECTRICAL,

GAS, BURIED CABLES, PLUMBING OR

OTHER OBSTACLES BEFORE INSTALLING

GROUND STAKES.

• MANY LOCALITIES FORBID DIGGING

WITHOUT PRIOR NOTIFICATION.

CONTACT LOCAL AUTHORITIES BEFORE

INSTALLATION.

• READ AND FOLLOW all instructions

before beginning installation.

PLEASE NOTE: CONTENTS OF GO4 AND

GO6 SATELLITE SPEAKERS DO NOT

CONTAIN MOUNTING OPTIONS. YOU

MUST PURCHASE MOUNTING OPTIONS

SEPARATELY:

Contents of GO4 and GO6:

• (1) Speaker with Mounting Arm

• (1) Off-Season Speaker Cover

• (2) Silicone-Filled Wire Connectors

Mounting Options (Sold Separately):

• Ground Stake

• Surface Mount

• Inground Conduit Box

Required Tools:

• Shovel

• Cable Strippers

• Phillips Screwdriver

• Wrench

Power

Crown Amplifier (available direct from Paradigm).

The Paradigm GO4 and GO6 are passive speakers. These

speakers are optimized for use with the Crown CDi 1000

amplifier which is pre-programmed with customized

DSP settings for a variety of different speaker/subwoofer

installation scenarios.

OVERVIEW

GO6

GO4

4EN |

PLANNING THE INSTALL

=GO4

GO6

GO10SW

GO12SW

Crown Amplifier

4 Conductor Burial Wire

Subwoofer

Speakers

–+

Black Red

Green White

–

–+

• Identify the location.

• Determine the positioning of subwoofer and

satellite speakers.

• Dig the trench according to speakers and

accessories to be installed.

• The trench should be 6”-8” deep.

5| EN

We strongly recommend using burial–rated cable (not

included) when installing any of the Garden Oasis Satellite

Speakers. In addition, it’s critical to use the proper speaker

cable gauge. Please review the chart below.

There a few considerations before you start digging a trench:

• Ensure that ALL Speakers are tested prior to installation.

• Ensure that the proposed area is easily accessed and that

the area is not prone to flooding, standing water or where

the speakers can be easily damaged, kicked or struck.

• Consider Overall Landscape/Garden Design and

positioning in relation to listening area

CABLE RECOMMENDATIONS

INSTALLATION CONSIDERATIONS

CABLE GAUGE CHART

Cable Gauge Distance

18 Gauge Up to 100 feet (30 meters)

16 Gauge Up to 150 feet (45 meters)

14 Gauge Up to 200 feet (61 meters)

12 Gauge Up to 400 feet (122 meters)

10 Gauge Up to 650 feet (198 meters)

6EN |

Mono Setup Using 4 Conductor Burial Cable & Crown Amplifier

Preparing the 4 Conductor Burial Cable

WIRING & SPEAKER INSTALLATION

1. Starting

with the first

speaker and

every speaker/

sub that

comes after,

create a loop

approximately

6” in length.

3. Use a Round

Cable Stripper

to remove the

outside protective

cable jacket to

expose the four

color-coded

wires. Separate

the wire loops

as shown.

2. Recommended:

Use a wire tie

(not included)

to keep the wire

loop intact and

act as a strain

relief.

4. Cut the red (+)

and black (-)

wires with cable

strippers and

strip off 1 inch

(25.4mm) of

insulation from

the ends if the

wires to expose

the copper

conductor.

Wires for

Speaker

red (+) &

black (-)

Wires for

Subwoofer

white (+) &

green (-)

Mono Mono Mono MonoMono Mono

GOSW12

GOSW10

7| EN

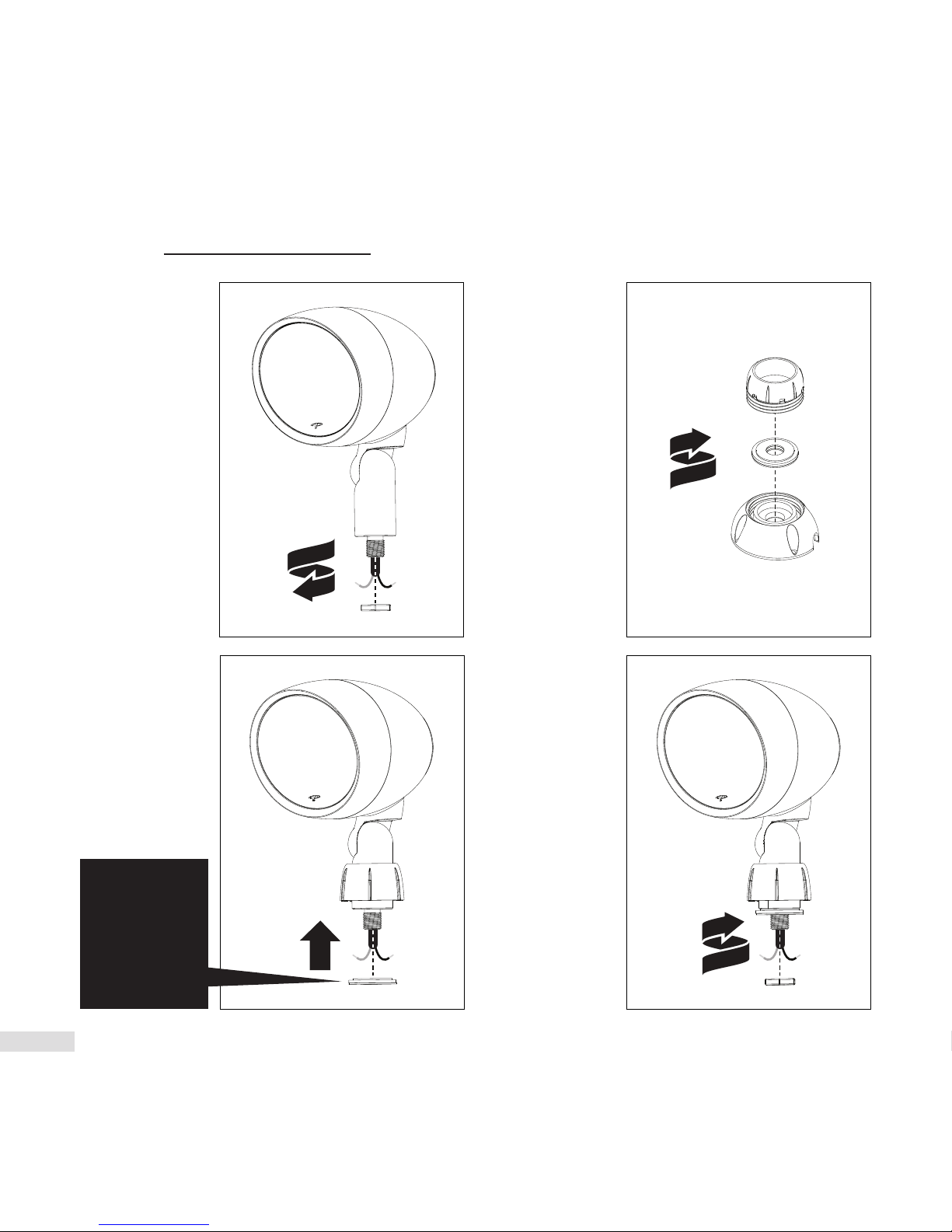

Installing Ground Stake Accessory & Attaching Speaker

1. Remove nut from

the threaded end

of the speaker arm.

3. Slide the twist cap

over the speaker

arm then slide

the gasketed

aluminum washer

(from the ground

stake) over the

threaded end of

speaker arm.

4. Using a wrench,

thread and firmly

tighten the nut

(removed in

step 1) over the

threaded end of

the speaker arm.

2. Remove the twist

cap and gasketed

aluminum washer

from the ground

stake accessory.

WIRING & SPEAKER INSTALLATION (CONT’D)

IMPORTANT!

The face of

the aluminum

washer with the

smaller rubber

gasket must be

facing up.

8EN |

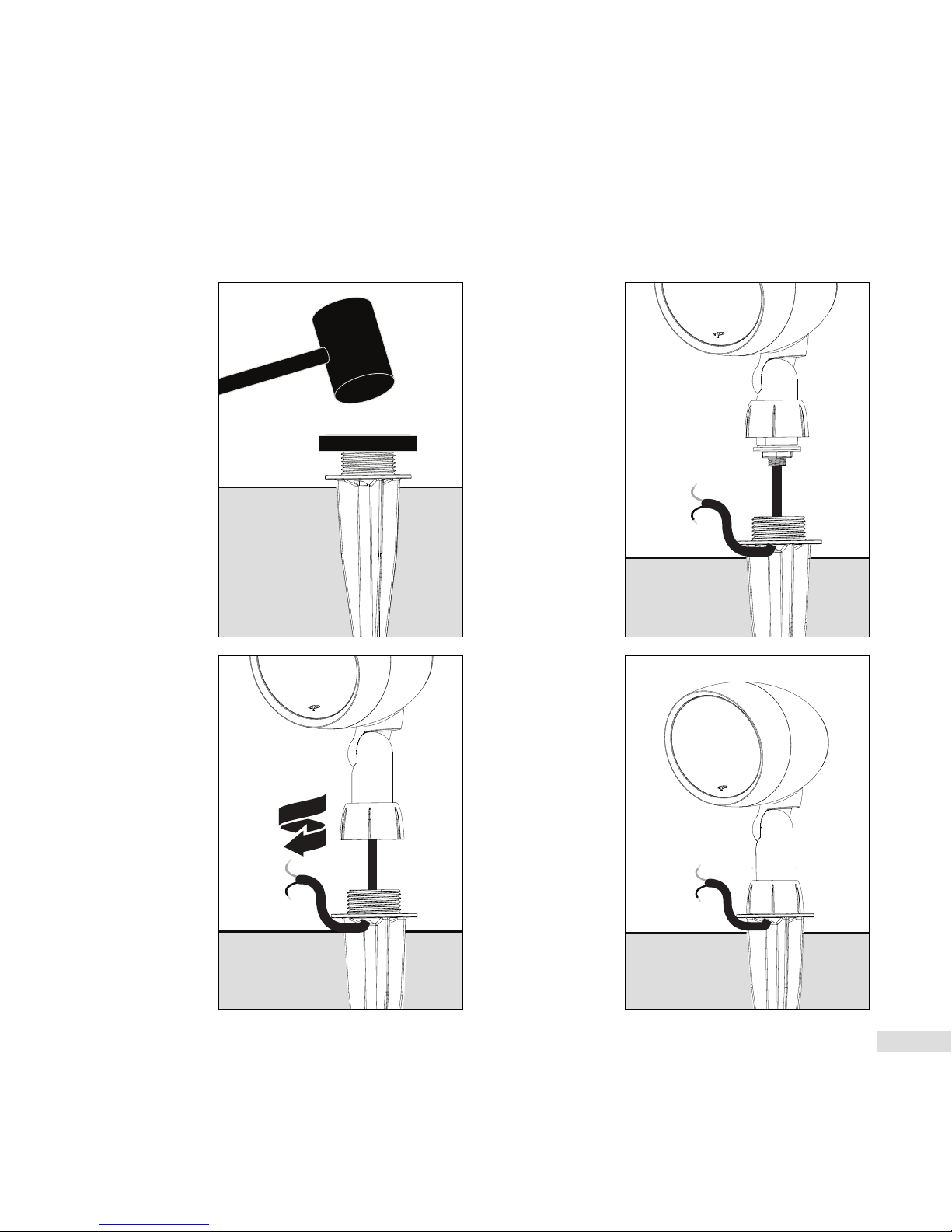

7. To attach the

speaker to the

ground stake,

hand thread the

twist cap to the

ground stake.

8. The speaker is

now mounted to

the ground stake.

The next step is

wiring, go the

‘Wiring’ section

for instructions.

For wiring instructions see ‘Speaker & Burial Cable Connections’ on page 11.

6. Thread the

speaker’s wiring

through the

wiring hole in

the ground stake.

5. Using a mallet and

a wooden block,

pound the ground

stake into the

ground. Drive the

ground stake down

until the ground

stake flange is

nearly flush with

the surface. Note:

Leave a slight

gap between the

ground stake

flange and the

ground surface

in order to thread

speaker wiring

through the wiring

hole in the ground

stake.

9| EN

Installing Surface Mount Accessory & Attaching Speaker

1. Remove nut from

the threaded end

of the speaker arm.

3. Slide the twist cap

over the speaker

arm then slide

the gasketed

aluminum washer

(from the ground

stake) over the

threaded end of

speaker arm.

4. Using a wrench,

thread and firmly

tighten the nut

(removed in step 1)

over the threaded

end of the speaker

arm.

2. Remove the twist

cap and gasketed

aluminum washer

from the surface

mount accessory.

WIRING & SPEAKER INSTALLATION (CONT’D)

IMPORTANT!

The face of

the aluminum

washer with the

smaller rubber

gasket must be

facing up.
