Panasonic NA-F150A5 Product guide

Contents

Safety Precautions 2

Part Names

Accessories

Before Washing 7

Operation Panel 8

Variety of Programs 10

Detergent 12

Washing 14

Washing Options

• Comforter

• Gentle Hand Wash

• Stain Master

• Super Dry

(90 min)

• Wash / Rinse / Spin

Contents of Programs 19

Convenient Functions 20

Maintenance 21

Installation 24

Error Display 28

Troubleshooting 29

Speciﬁcations 30

Thank you for purchasing this product.

- Read these instructions carefully for optimum

performance and safety before use.

- Keep this manual for future reference.

T1118-0(SAUDI/ME)

Printed in Thailand

11-2018

AWW9901D2X00

Operating & Installation

Instructions

Fully Automatic Washing Machine

(Household Use)

Model No. NA-F150A5

NA-F130A5

Safety Precautions

Read and follow these safety precautions.

WARNING

May cause serious injury or death.

Do not allow children to use on their own.

This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities,

or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play

with the appliance.

Observe the following about the power plug and cord.

(To prevent ﬁre or electric shock)

Do not plug in or unplug the power cord with wet hands.

Do not hold or pull on the cord when removing the plug from the

socket.

Do not use a power cord or plug that is damaged. If the power

cord is damaged, it must be replaced by the manufacturer, its

service agent or similarly qualiﬁed persons in order to avoid a

hazard.

Use a socket that satisﬁes the rating requirement solely for this

appliance. Do not use a plug adaptor or extension cord.

Always fully insert the power plug into the socket.

Wipe the power plug periodically with a dry cloth. (Accumulated

dust collects moisture, which may cause insulation failure,

resulting in ﬁre.)

Unplug the power cord before cleaning.

Safety Precautions

WARNING

Never disassemble, repair or modify the appliance

yourself.

In case of malfunction or failure (burnt odour smell, fume, etc.),

immediately stop use, unplug the power cord, and ask your

nearest service centre for repair.

Keep away from ﬁre.

Do not put ﬂammable materials or clothes with such

things attached in the tub.

Keep them away from the appliance.

(To prevent explosion or ﬁre)

For example: Kerosene, gasoline, benzine/thinner, alcohol, etc.

Do not touch the tub until it completely stops.

(To prevent injury)

If the tub does not stop within 15 seconds when the lid

is opened during spin process, switch off the appliance

immediately and call a service person.

Be sure to provide a ground.

(To prevent electric shock if electricity leakage occurs.)

To establish a ground, ask a service person to do the grounding

work.

External water heater safety

Under certain conditions, hydrogen gas may be produced

in your hot water heater that has not been used for two

weeks or more. Hydrogen gas can be explosive under these

circumstances. To prevent the possibility of damage or injury,

you should turn on all hot water faucets in your home, and let

the water ﬂow out for several minutes before connecting to your

washer. This will allow any built-up hydrogen gas to escape.

Since hydrogen gas is ﬂammable, do not smoke or use an open

ﬂame or start appliance during this process.

Safety Precautions (continued)

CAUTION

May cause injury or property damage.

Do not wash, rinse, or spin waterproof sheets or

clothes.

(To prevent injury, damage to the main unit, walls, ﬂoor or laundry,

or water leakage if the appliance falls over or oscillates extremely

while spinning)

Raincoats, wet suits, etc.

Locate away from direct sunlight or heat.

(To prevent malfunction or

deformation)

Turn off the water faucet after operation.

(To prevent water leakage)

Safety Precautions

CAUTION

Observe the following

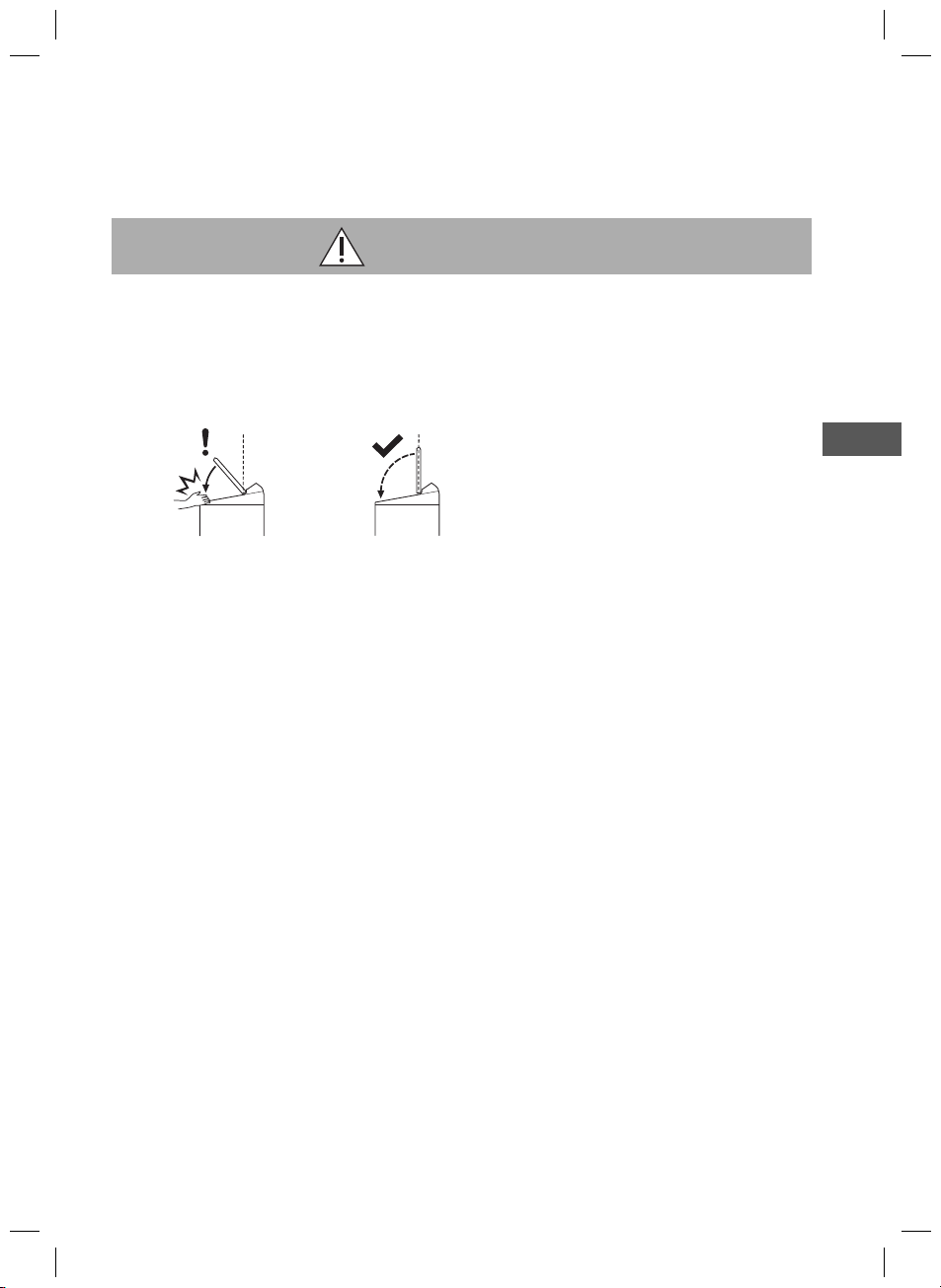

Be careful not to get your ﬁngers caught.

Beware of sudden

lid closing.

Soft closing when

fully opened.

New hose-sets supplied with the appliance are to be used and

old hose-sets should not be reused.

Do not obstruct the openings of the bottom face with carpet, etc.

Do not insert your hands or feet under the main unit.

(To prevent injury by rotating parts.)

Do not climb or put heavy objects on the appliance.

(To prevent deformation and breakage resulting in injury)

If the lid is broken, immediately stop using the appliance.

(To prevent deformation and breakage resulting in injury)

This appliance is only suitable for textiles labelled washing

machine washable.

Do not use water hotter than 60 ºC.

Do not make wrong connection for the HOT and COLD water

supply faucets.

Depending on the connected water heater, very hot water may

come out. Be careful not to burn yourself.

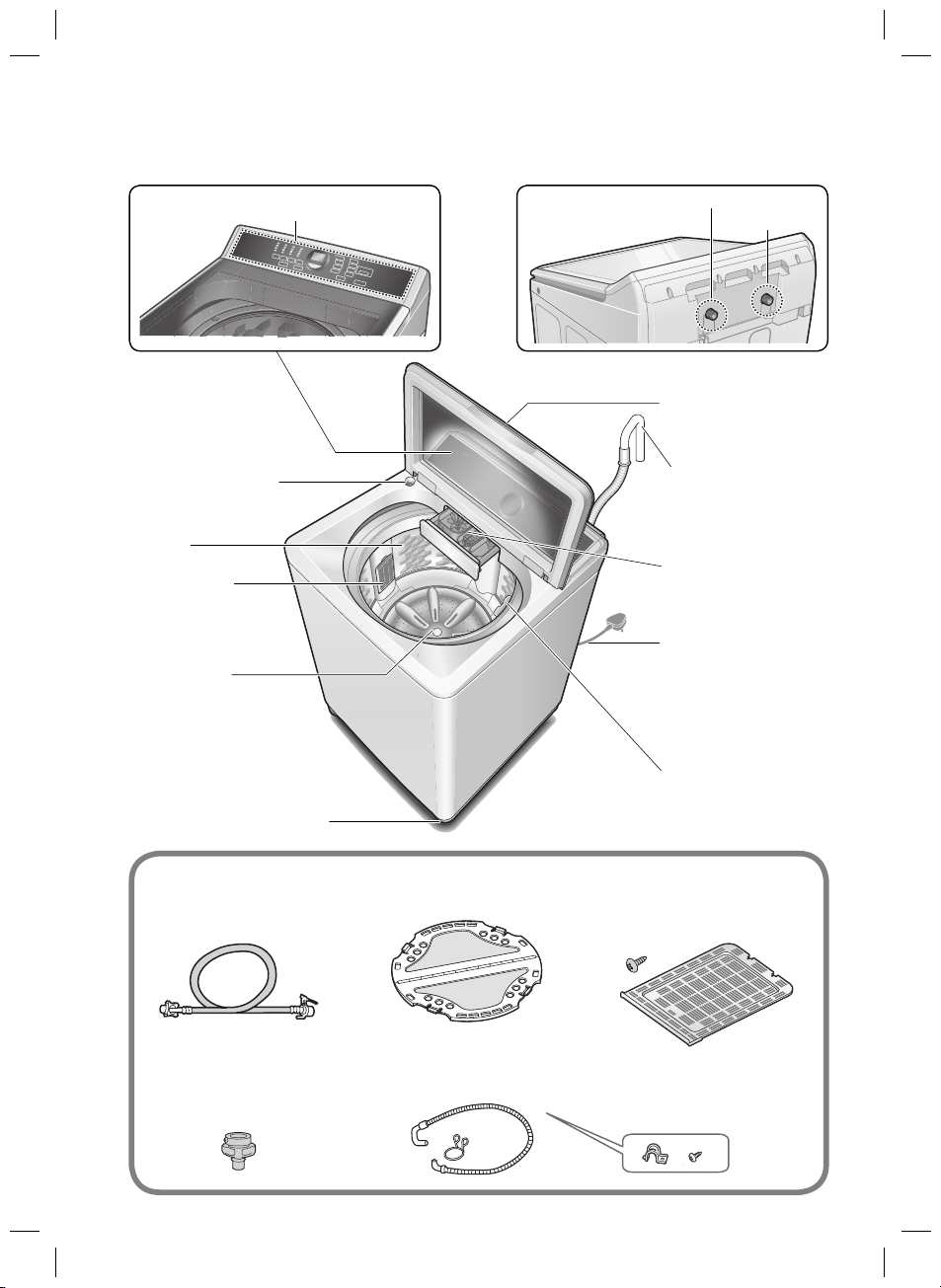

Part Names / Accessories

Lint ﬁlter

(P. 21)

Lid (Soft Closing)

Leveller (P. 27)

Power cord and

plug* (P. 27)

* The plug shape

varies with the

region.

Adjustable leg (P. 27)

Drain hose

(P. 25)

Detergent and

softener drawer

(P. 13)

Detergent/

Bleach inlet (P. 12)

Pulsator

Tub

Operation panel (P. 8) Water supply

valve (P. 27)

●COLD

●HOT

Accessories

Water supply

hose (2) (P. 26)

• Length: 1.0 m

Washing board (1) Bottom cover (1) (P. 24)

Screw (1)

Water tap adaptor

(2) (P. 26)

Drain hose (1)

Hose band (1) Hose holder (1)

Screw (1)

Part Names / Accessories Before Washing

Before Washing

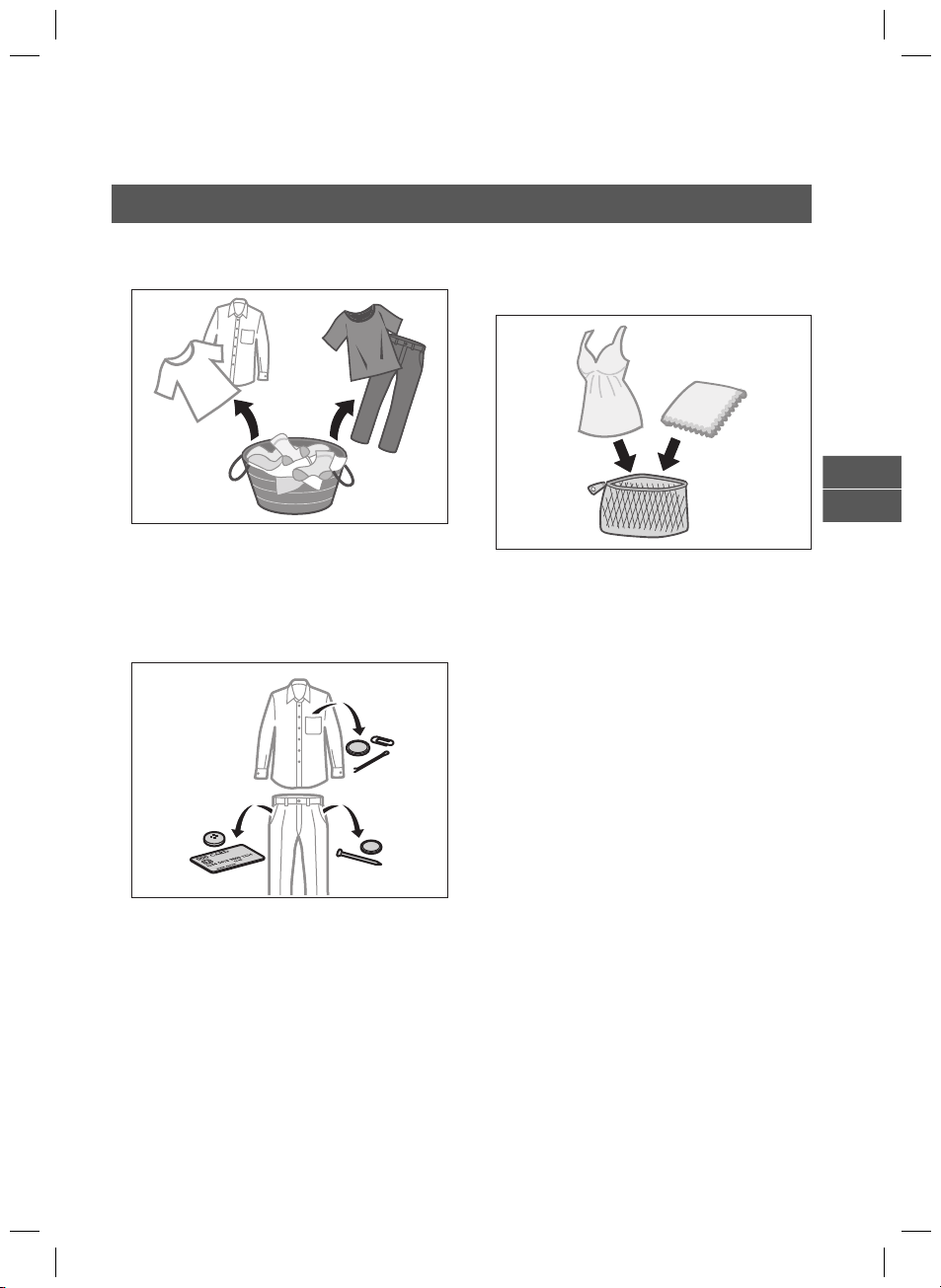

Laundry preparation and check

Wash separately for clothes

losing colour easily

Pre-laundry check

(To prevent damage to clothes,

malfunction and drainage failure)

Remove coins, pins, paper clips,

nails, etc.

Fasten buttons and close zippers.

Do not wash items (such as paper

diapers) other than laundry.

Reverse clothes likely to pill.

Use a brush to remove pet and

human hair, sand, etc.

Tie strings, etc.

Use laundry nets for delicates

Underwire brassieres, lacy clothes,

lingerie and stockings

Do not overpack.

Put the zipper's slider into the cover.

(To prevent damage to clothes and

the main unit)

Do not use the “Super Dry”

program. (To prevent uneven drying

and wrinkles)

For “Stain Master” program

(P. 10)

Recommended for removing stains.

Observe the instructions on the

care labels of clothes.

Operation Panel

Change process settings

Change the combination of wash, rinse

and spin processes, and the time length

or number of times for individual

processes. (P. 18)

Flashing (in progress)

Lighting

After starting operation, you can

change settings only during wash

process by pressing “Start/Pause”.

(The wash process setting of the

“Soak” and “Stain Master” program

cannot be changed.)

Preset

Set the time to ﬁnish washing

(in hours). ( lights.)

e.g.) 8 hours later

Setting range:

2 - 24 hours later, in one-hour

increments.

(3 - 24 hours later for the

“Soak” program)

Not available for the

following programs:

Gentle Hand Wash,

Comforter, Tub Hygiene,

Super Dry

Change water amount

During the wash process,

press “Water Level” to check

and change the water amount.

Some water amounts cannot

be selected depending on

the program.

When the remaining time

is displayed, press

“Water Level” to check the

water level.

Water amount/remaining time

After starting

operation, indicates

the water amount

according to the

amount of laundry.

After approx.

5 seconds,

indicates

the approximate

remaining time

(min).

Super Dry (P. 18)Child Lock lamp (P. 20) Start/Pause

Operation Panel

NOTE

In case of a power failure

during operation, operation will

resume from the point where it

was stopped when the power is

recovered (Auto Restart).

The power turns off

automatically if you do not

press “Start/Pause” within

10 minutes after power-on.

Water level/water amounts

Level High

10-8

Mid

7-5

Low

4-2

Extra Low

1Model

Detergent* NA-F150A5

NA-F130A5

Water

amount (L) 96 88 81 73 66 58 52 46 38 33

* : 1 scoop of detergent

Each water level, except “Extra Low”, has three water amount options that

can be switched while the level is lighted by pressing “Water Level”.

Temp Setting

For washing, cold water can be mixed

with hot water. Press the button to select

Hot/Warm/Cold. (P. 14)

Do not use water hotter than 60 ºC.

The estimated water temperature in

the tub during wash process (when hot

water is 50 ºC, and normal water is

20 ºC):

Hot approx. 40 ºC

Warm approx. 30 ºC

Lamp indications

Lighted: Hot/Warm/Cold is set.

Flashing: Hot water is being supplied.

Not available for the following

programs:

Gentle Hand Wash, Tub Hygiene, Super Dry

Program selection (P. 10)

Power Off/On

Stain Master (P. 17)

Variety of Programs

Program Purpose

Normal (P. 14)

Everyday clothes

Daily washing

Speedy (P. 14) Speedy washing for light soil

Gentle Hand Wash (P. 16)

Delicates



Washing delicates gently

Baby Care (P. 14)

Clothes for babies & people with

sensitive skin

Rinsing thoroughly

Water Save (P. 14)

Saving water

* To rinse thoroughly, use the “Normal” or

“Baby Care” program.

Comforter (P. 16) Comforters and Blankets

Soak (P. 14)

Heavily soiled clothes

Presoaking to wash

(P. 17)

Light stain

Heavy stain

Sweat Sweat stains

Mud Mud stains

Sauce Sauce stains (soya, tomato, etc.)

Super Dry (90 min) (P. 18) Drying synthetic ﬁbre clothes

Tub drying

Tub Hygiene (P. 23)

Tub cleaning

Preventing black mould and smell

NOTE



“Normal” program and “Water Save” program are recommended for a

normally soiled load at the rated capacity of this washing machine.

This manual suits for next models

Table of contents

Other Panasonic Washer manuals

Panasonic

Panasonic NA-F70B6 Product guide

Panasonic

Panasonic NA-FD13AR1 Product guide

Panasonic

Panasonic NA-F80VS8 Product guide

Panasonic

Panasonic ECONAVI NA-FS95G3WAU User manual

Panasonic

Panasonic NA-F75S6 Product guide

Panasonic

Panasonic NA--148VB7LEG Operating instructions

Panasonic

Panasonic NA-16VX1 User manual

Panasonic

Panasonic NA-F60A6 User manual

Panasonic

Panasonic NA-W952N User manual

Panasonic

Panasonic NA-148XS1 Product guide

Panasonic

Panasonic NA-F953H Operating instructions

Panasonic

Panasonic NA-148VB3 User manual

Panasonic

Panasonic NA-120VX7 Product guide

Panasonic

Panasonic NA-F75S6 Product guide

Panasonic

Panasonic NA-F12AR1 Product guide

Panasonic

Panasonic NA-168VG4 Operating instructions

Panasonic

Panasonic NA-140XS1 Product guide

Panasonic

Panasonic NA-FS16G2 User manual

Panasonic

Panasonic NA-127VB4 User manual

Panasonic

Panasonic NA-148VB3 Operating instructions

Panasonic

Panasonic NA-F75S7 Product guide

Panasonic

Panasonic NA-F75G6 User manual

Panasonic

Panasonic NA-F50GD User manual

Panasonic

Panasonic NA-126MB1WSA User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide

Beko

Beko WKB 51231 PTMA manual
