Panasonic NA-F50GD User manual

Order No.HUD0310342C3

Washing Machine

NA-F50GD

Product Color :White,Grey

Unauthorized copying and distribution isaviolation of law.

1. SPECIFICATIONS

Powersource AC220V , 230V

50Hz Spinr/min.

(Clothes load) 760 r/min.

Dimension (Width)562mm (Depth)570mm

(Height)1006mm Machine weight 33kg

Waterlevel

selector

(standaedized

wateramount)

Wateronly Clothes load Power

consumption

(Motor)

Input

49L-56L 49L- 5.0kg AC220V 310W

44L-50L 44L- 3.8kg AC230V 320W

39L-43L 39L- 2.3kg Heater 600W

32L-34L 32L- 1.2kg Safetyswitch Lidand

unbalance

20L - 20L 20L- 0.3kg Buzzer Cycle-end buzzer,

Give

alarm

Standerdized

water

consumption

(Normal)

118L Thermal

protector Motor

Softener

dispenser Providing

Operating Water

pressure 0.03 to1MPa

(4.3p.s.i to142p.s.i) Bleachinlet Providing

Lint filter Providing

Autopoweroff Providing

Pulsatorr/min.

(Clothes load) 104 r/min. Accessories Pressure hose (Inlet

hose)

Feedvalve joint A

Service hose B unit

(

2. SCHEMATIC DIAGRAM

3. PRODUCT INFORMATION

3.1. Timer type drying function

It’s possible todrysmall amount (Below1.5kg) of laundryjust afterspinning orfinishdrying

underopen-airdrying.

The heater, fanmotorand fancase are providing inside of the panel, and drying function shall

be operatedbytimercontrol.

Exhaust airincluding humidairshall be come out fromupperportion of the tub through the

exhaust filter.

Drying capacity Necessaryhours

1. 1.5kg Approx. 3-4 hours

2. 1.0kg Approx. 2-3 hours

3. 0.5kg Approx. 1-2 hours

*Dryedup conditions shall be changedagainst atmospheric temperature, humidityand

installations.

Laundrycapacity1.5kg

Putting intoo manygarments will lessenthe dryer’s effect and cause wrinkles.

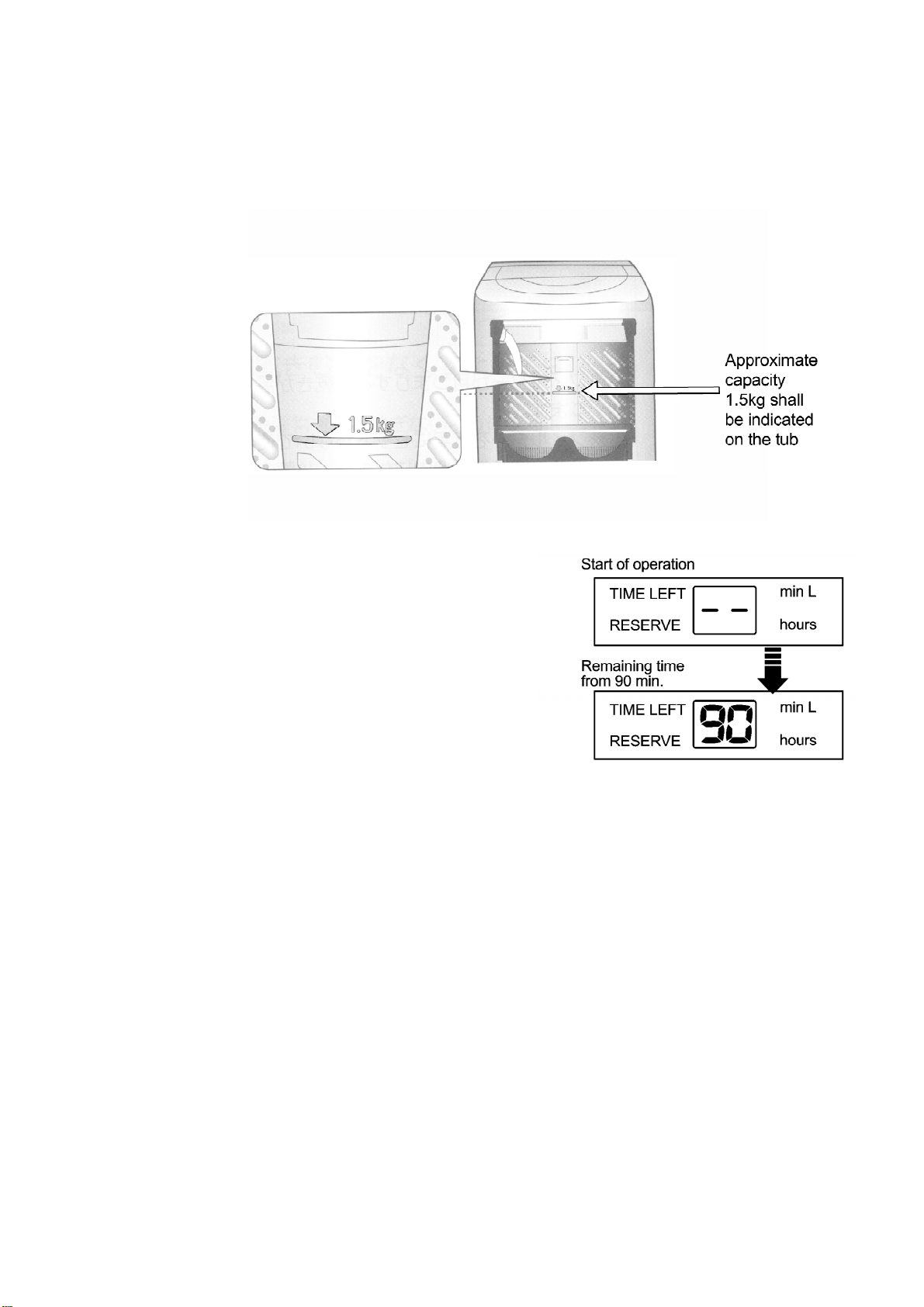

Remaining time indication fordrying

It is not possible toindicate remaining time more

than100 min. due totwodigit. therefore, evenselect

more than2 hours (2, 3 and 4 hours), “--”mark shall

be indicatedat start of drying and indicate proper

remaining time from90 min.

Remaining time shall be decreasedon everyone

minute.

3.2. Use the “TUB DRY”function to prevent black mold

Activating “Tub Dry” afterthe washis complete

eliminates the humidityinthe tub that is one cause

of black mold. (Activate once a week)

1. Turn on thepower supply/ Press DRYto select “Tub Dry”.

2. Close theinner cover and thelid and press START

Thewashing machinewill rotate thetub quicklyand blowin hotair for

roughly30 minutes.

The operation is finishedwhenthe buzzer

sounds. [NOTE] -Theoccurrence ofblack mold in thetub

depends

usageenvironment.

-Once black mold has formed, activating “Tub

Dry”

removeit.

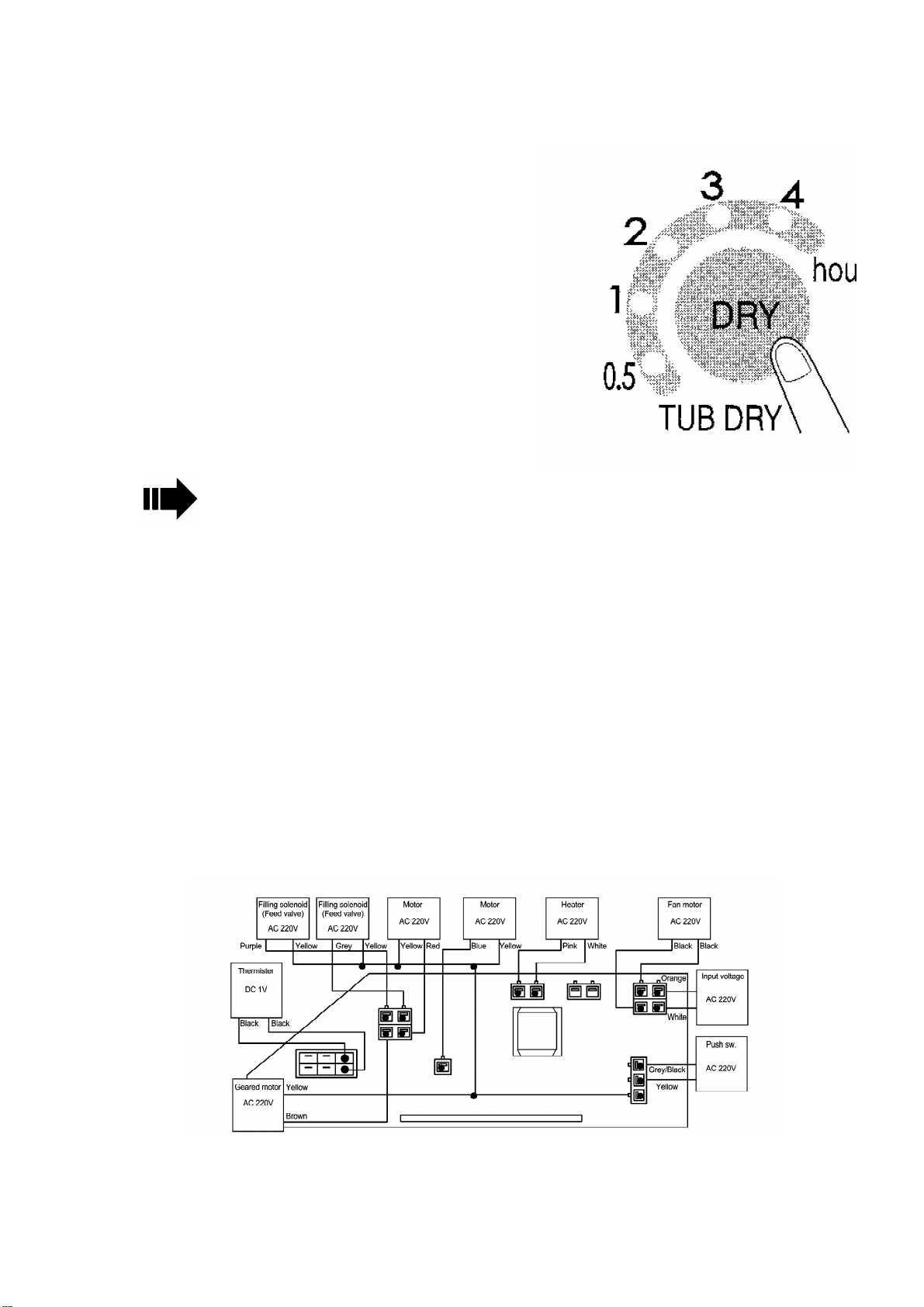

4. CHECK INPUT AND OUTPUT VOLTAGE OF THE /

PC.BOARD

1. Before replace PC.Board, check input and output voltage of the

PC.Board.

2. Check range of the test meter.

3. When check output voltage of the PC.Board, set aprogram of the

Washing Machine on the working mode.

4. Measure each resistance after removed connectors from

PC.Board w/ components.

5. OPERATIONS

6. DRYING TIPS

7. CHECK PRIOR TO START UP

8. DISASSEMBLY INSTRUCTIONS AND

ADJUSTMENTS

P.C.Board 1Openthe lid, and remove the panel A packing,

and

remove a screwmounting the panel face.

2Slide the panel face toright toremove.

3Turnthe panel face front side back.

Incase toreplace the P.C.Boardforoperation

side.

4Remove bothconnectors of the pushswitch

and

intermediaryleadwire.

5Remove the P.C.Boardfrompawls.

6Remove the leadwire holder.

Incase toreplace the P.C.Boardforpowerside.

4Slide the panel A support tofrontwardto

remove.

5Remove the connectorof the intermediarylead

wire.

6Remove screws mounting the P.C.Board.

5Remove 5 connectors fromthe P.C.Board.

Water

level

detector,

Filling

solenoid

(Feed

valve),

safety

switch

1Slide the lidhinge shaft toright toremove, and

remove

the lid.

2Remove the panel A.

3Remove 2 screws mounting the filling solenoid(

feed

valve).

4Remove the filling solenoid(feedvalve) from

the

detergent case A.

Replace the waterlevel detector

5Remove the pawl holding the waterlevel

detector.

6Remove the

connector.

7Remove the airhose.

Replace the filling solenoid(feedvalve)

5Remove 2

connectors.

6Remove the packing fromthe filling solenoid(

feed

[NOTE]

Set the packing tothe detergent case A, and

then

the filling solenoid(feedvalve) tothe detergent

case

Replace the safetyswitch

1Slide the lidhinge shaft toright toremove, and

remove

the lid.

2Remove the panel A.

3Remove 2 screws mounting the safetyswitch.

4Remove the

connector.
