Panasonic KX-TS108W User manual

Integrated Telephone System

Model No. KX-TS108W

Pulse-or-tone dialing capability

Operating Instructions

Preparation Basic Operation Advanced Operation Useful Information

PLEASE READ BEFORE USE AND SAVE.

Panasonic World Wide Web address: http://www.panasonic.com

for customers in the USA or Puerto Rico

PQQX13160ZB-BM0105.3.290:39PMページ1

Before Initial Use

For your future reference

Serial No. Date of purchase

(found on the bottom of the unit)

Name and address of dealer

Please read IMPORTANT SAFETY

INSTRUCTIONS on page 34 before use.

Read and understand all instructions.

Thank you for purchasing your new Panasonic integrated

telephone.

Attach your purchase receipt here.

PQQX13160ZB-BM0105.3.290:39PMページ2

For assistance, please call: 1-800-211-PANA(7262)

Accessories (included)

For extra orders, call 1-800-332-5368.

∑Handset (p. 8)

Order No. PQJXC0102Z

one

∑Telephone Line Cord (p. 8)

one

∑Handset Cord (p. 8)

Order No. PQJA212M

one

∑Wall Mounting Adaptor (p. 14)

Order No. PQKL10038Y1

one

PQQX13160ZB-BM0105.3.290:39PMページ3

Location of Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Installing the Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Connecting the Handset/Telephone Line Cord . . . . . . . . . . . . . 18

Connecting a Communication Device . . . . . . . . . . . . . . . . . . . . . 9

Programming Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Dialing Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Time Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

LCD Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Ringer Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Wall Mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Making Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Speed Dialer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Storing Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Dialing a Stored Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

One-Touch Dialer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Storing Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Dialing a Stored Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Contents

Preparation

Basic Operation

Advanced Operation

PQQX13160ZB-BM0105.3.290:39PMページ4

Preparation Basic Operation Advanced Operation Useful Information

For assistance, please call: 1-800-211-PANA(7262)

Special Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

For Call Waiting Service Users . . . . . . . . . . . . . . . . . . . . . . . . . 23

Temporary Tone Dialing

(For Rotary or Pulse Service Users) . . . . . . . . . . . . . . . . . . . 23

How to Use the PAUSE Button

(For Analog PBX Line/Long Distance Service Users) . . . . . . . 24

Muting Your Conversation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

FLASH Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

PIN Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Dial Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Call Restriction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Optional Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . 34

FCC and Other Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Useful Information

PQQX13160ZB-BM0105.3.290:39PMページ5

Location of Controls

ABC

DEF

JKL MNO

GHI

TUV WXYZ

PQRS

PAUSE

REDIALREDIAL

FLASH

HOLD

VOLUMEVOLUME MUTEMUTE

PROGRAM

MIC

DIAL LOCKDIAL LOCK

DIAL LOCK

MUTUTEPRPROG.OG.

LOWER TIME

AUTO/AUTO/

LOWERLOWER

(TONE) Button (p. 23)

(FLASH) Button (p. 23, 25)

VOLUME (_) (^)

Buttons (p. 16)

RINGER

Selector (p. 13)

(PROGRAM) Button (p. 10, 18)

(PAUSE) Button (p. 24)

(REDIAL) Button (p. 15)

Display (p. 7)

One-Touch Auto

Dial Buttons (p. 20)

(DIAL\LOCK) Button (p. 27)

(AUTO/LOWER)

Button (p. 18, 21)

(HOLD) Button (p. 16)

MIC (Microphone)

(p. 15, 17)

(MUTE) Button (p. 10, 24)

(SP-PHONE/HEADSET) Button and Indicator (p. 15, 17, 30)

Headset Jack (p. 29)

Ringer Indicator (p. 17)

EMERGENCYEMERGENCY

TONE

HEADSETHEADSET

PAUSE

OPER

PQQX13160ZB-BM0205.3.290:40PMページ6

For assistance, please call: 1-800-211-PANA(7262)

Preparation

Display

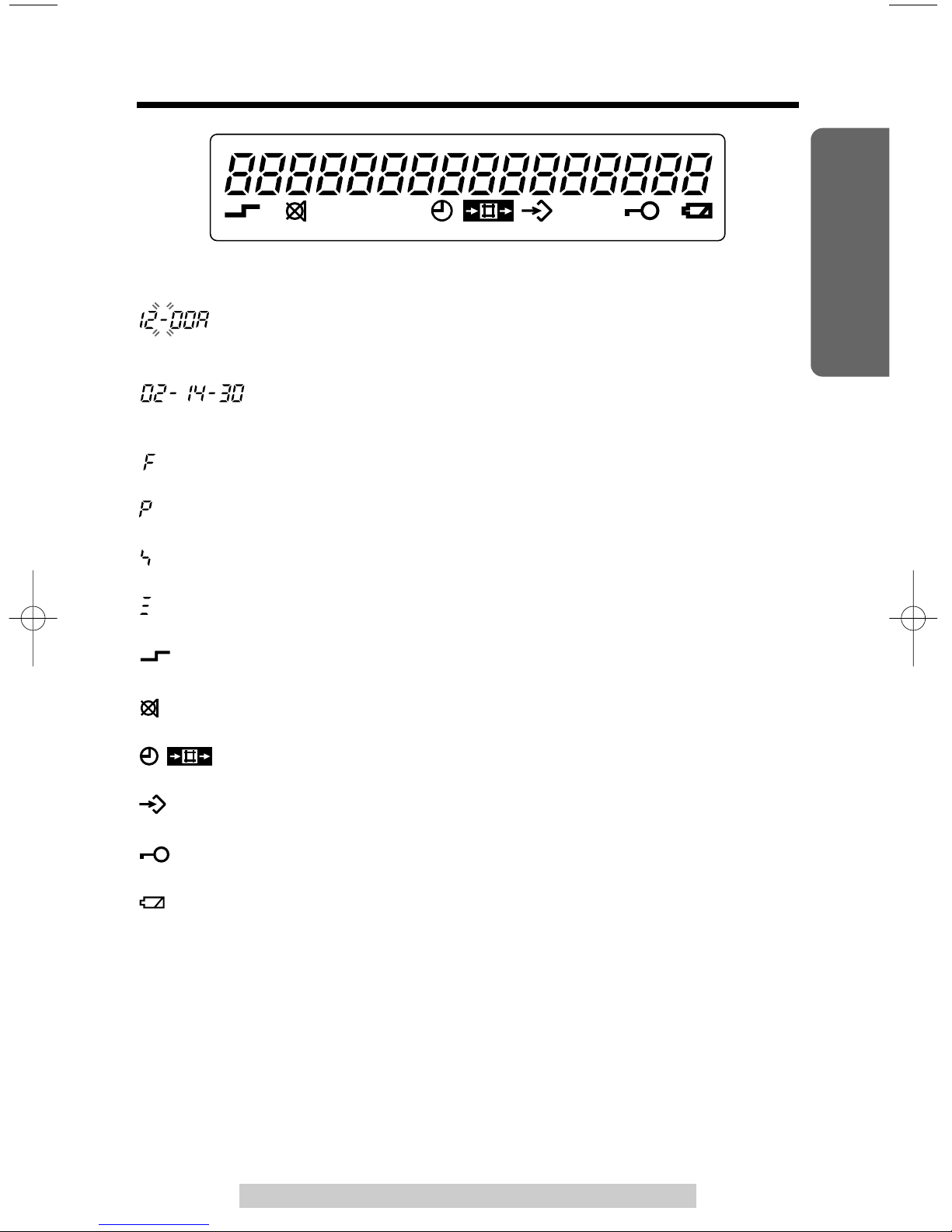

: In the standby mode, the display shows the current time.

(Ex. 12:00AM)

: During a conversation, the call duration is displayed.

(Ex. 2 hours, 14 minutes, 30 seconds)

: (FLASH) was pressed.

:(PAUSE) was pressed while storing phone numbers.

:($) was pressed while dialing.

:(#) was pressed while dialing.

:(AUTO/LOWER) was pressed (p. 18, 21).

:(MUTE) was pressed during a conversation (p. 24).

: The unit is in the clock setting mode (p. 12).

: The unit is in the programming mode (p. 10).

: The dial lock mode is set. To cancel the mode, see page 27.

: This display ﬂashes, when the battery power is low. To replace

the batteries, see page 31.

(This display shows all of the possible conﬁgurations.)

PQQX13160ZB-BM0205.3.290:40PMページ7

Settings

Connecting the Handset/Telephone Line

Cord

After connection, lift the handset to check for a dial tone.

≥Use only a Panasonic Handset for the KX-TS108W.

Single-Line

Telephone Jack

(RJ11C)

Handset Cord

Handset

Telephone Line

Cord

LINE

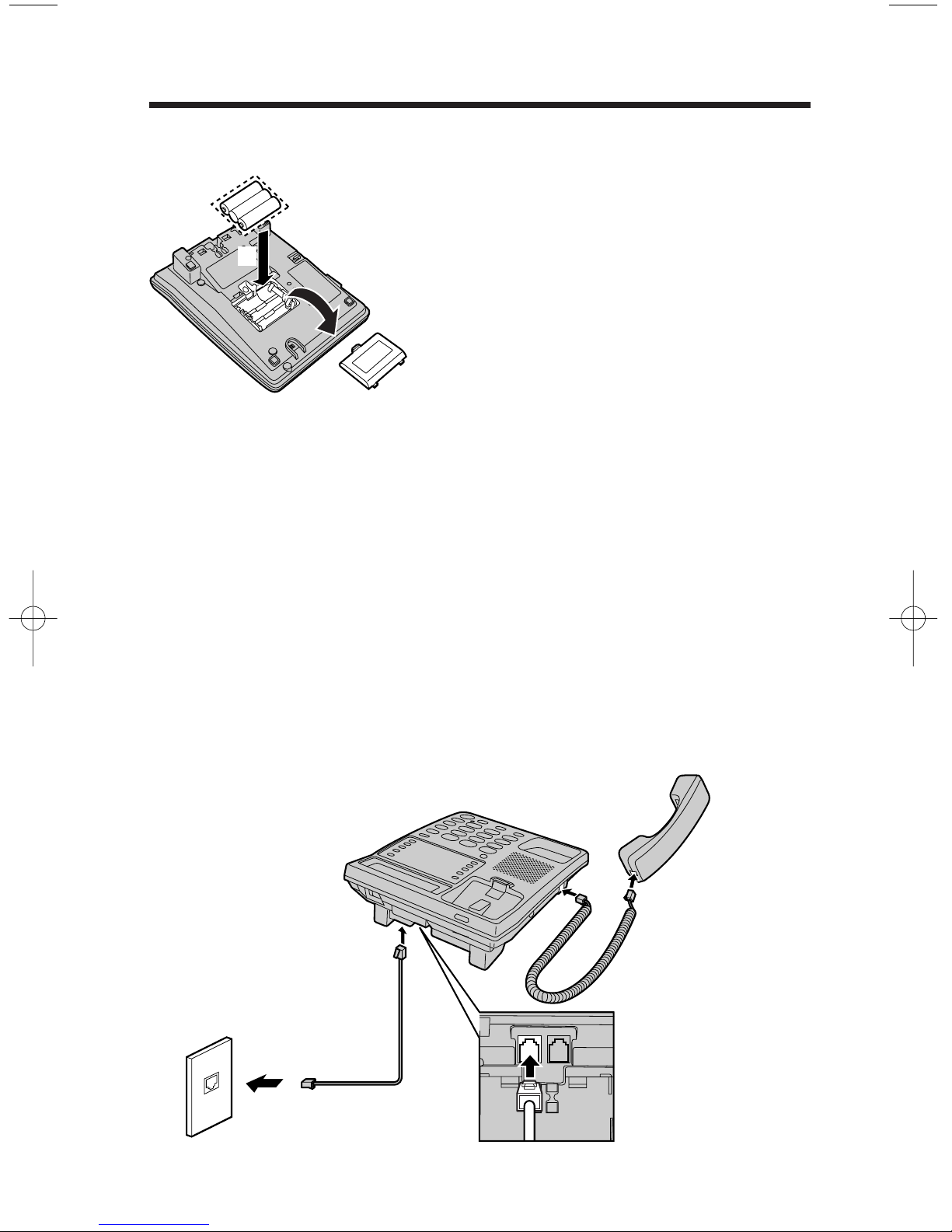

1. Press down in the direction of the

arrow and remove the cover.

2. Install the batteries in the proper

order as shown, matching the

correct polarity.

3. Close the battery cover.

≥Batteries are not included in the unit.

≥Install three high quality “AA” Alkaline or Manganese batteries. We recommend

to use Alkaline batteries.

Battery life is: —about six months in use of Alkaline batteries.

—about three months in use of Manganese batteries.

≥Battery life may depend on usage conditions and ambient temperature.

≥Make sure to install the batteries for the following features to operate properly:

—Display (p. 7)

≥—Buttons’ function when the handset is on the cradle

≥—Speakerphone (p. 15, 17)

≥—Programming (p. 10)

Installing the Batteries

PQQX13160ZB-BM0205.3.290:40PMページ8

For assistance, please call: 1-800-211-PANA(7262) 9

Preparation

“

≥Computer

≥Modem

≥Fax

≥Answering machine

Single-Line

Telephone Jack

(RJ11C)

LINE DATA

Connecting a Communication Device

If you connect a communication device (computer, modem, fax,

answering machine, etc.) to the telephone line, you can connect it through

this unit using the DATA jack.

After connecting the handset and telephone line cord (p. 8), connect the

communication device telephone line cord to the DATA jack.

≥Make sure the communication device is not in use before using this unit (making

calls, storing phone numbers in memory etc.) or the communication device may

not operate properly.

PQQX13160ZB-BM0205.3.290:40PMページ9

“

Settings

Programming Summary

You can program the following functions. The display shows the

programming instructions. See the corresponding pages for function

details.

Make sure that a call is not put on hold.

Press (MUTE).

Press (PROGRAM) to store the setting.

Press (PROGRAM).

≥To set the call restriction, press (1). (page 28)

≥To change the flash time, press (2). (page 25)

≥To select the dialing mode, press ( ). (page 11)

≥To change the PIN code for the dial lock and call restriction,

press (5). (page 26)

≥To adjust the time, press (6). (page 12)

≥To change the LCD contrast setting, press (7). (page 13)

≥You can exit the programming mode any time by pressing (PROGRAM).

≥If you do not press any buttons for 60 seconds, the unit will return to the standby

mode.

PQQX13160ZB-BM0205.3.290:40PMページ10
