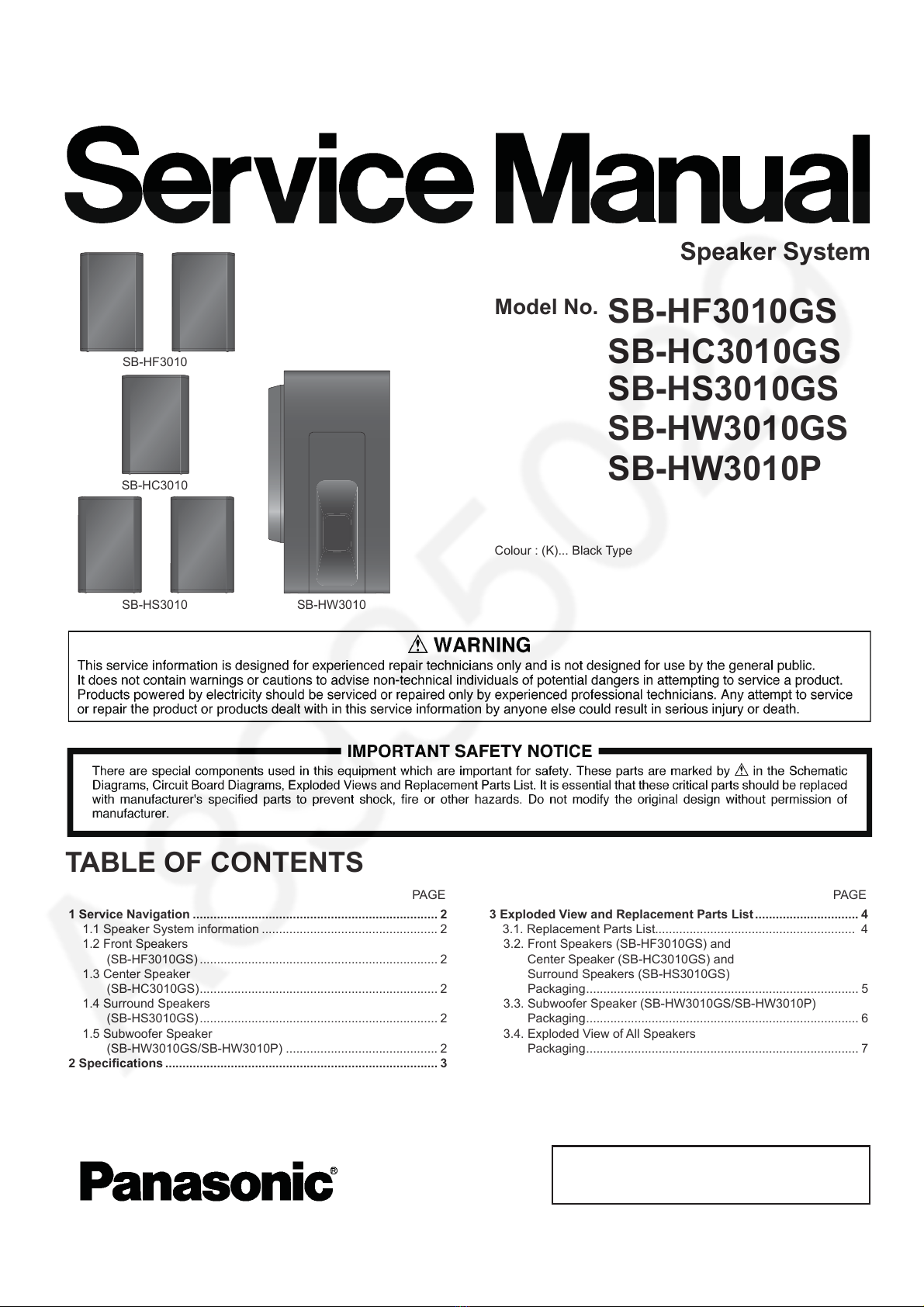

Panasonic SB-HF3010GS User manual
Order No. AD1403030CE
Speaker System
Model No. SB-HF3010GS
Colour : (K)... Black Type
TABLE OF CONTENTS
1 Service Navigation ....................................................................... 2
1.1 Speaker System information ................................................... 2
1.2 Front Speakers
(SB-HF3010GS) ..................................................................... 2
1.3 Center Speaker
(SB-HC3010GS)..................................................................... 2
1.4 Surround Speakers
(SB-HS3010GS)..................................................................... 2
1.5 Subwoofer Speaker
(SB-HW3010GS/SB-HW3010P) ............................................ 2
2 Specifications ............................................................................... 3
PAGE PAGE
© Panasonic Corporation 2014. All rights reserved.
Unauthorized copying and distribution is a violation of
law.
3 Exploded View and Replacement Parts List.............................. 4
3.1. Replacement Parts List.......................................................... 4
3.2. Front Speakers (SB-HF3010GS) and
Center Speaker (SB-HC3010GS) and
Surround Speakers (SB-HS3010GS)
Packaging............................................................................... 5
3.3. Subwoofer Speaker (SB-HW3010GS/SB-HW3010P)
Packaging............................................................................... 6
3.4. Exploded View of All Speakers
Packaging............................................................................... 7
SB-HS3010
SB-HC3010GS
SB-HS3010GS
SB-HW3010GS
SB-HC3010
SB-HF3010
SB-HW3010
A6
SB-HW3010P
2
1 Service Navigation

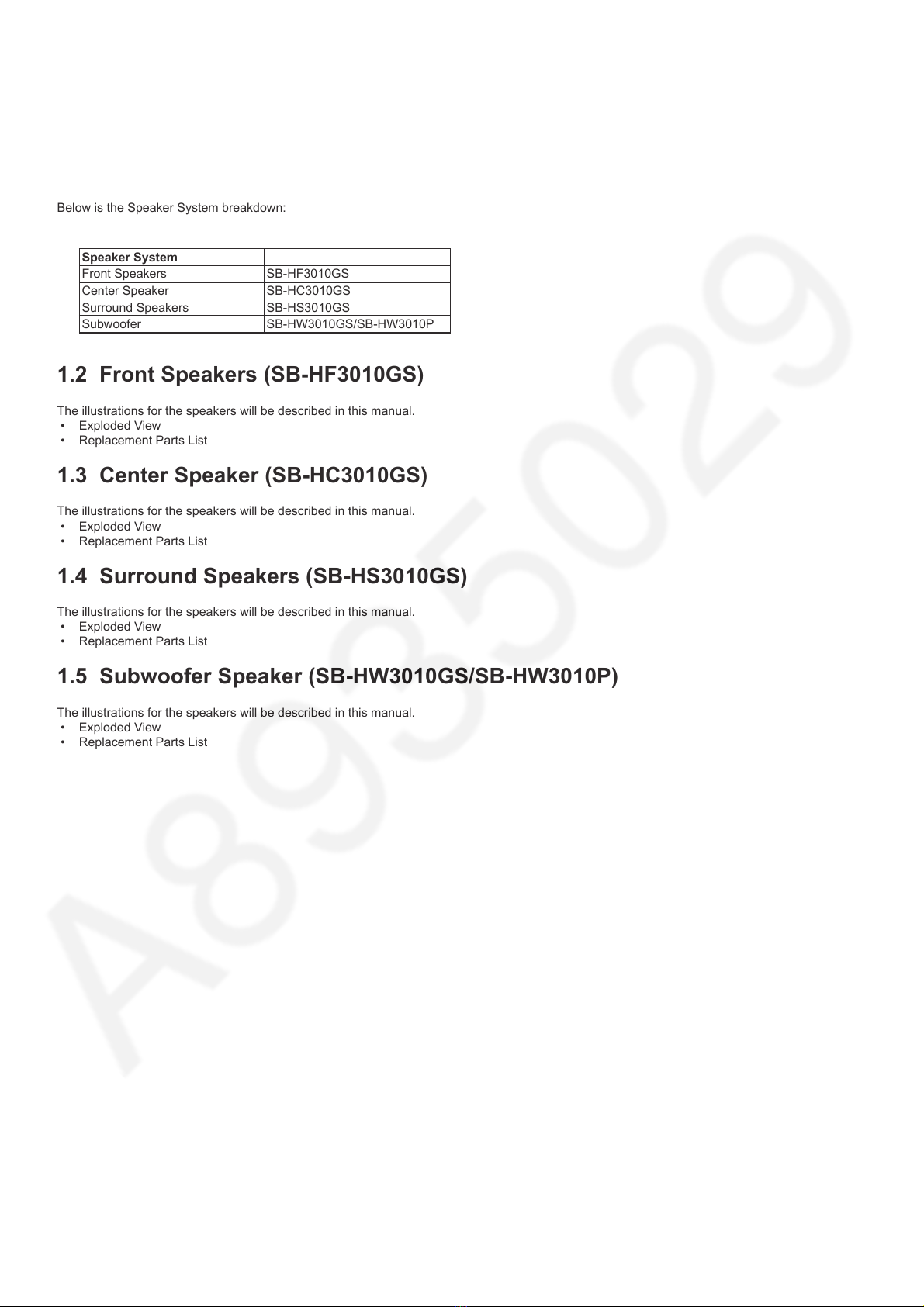

1.1 Speaker System information
Below is the Speaker System breakdown:
Speaker System
Front Speakers SB-HF3010GS
Center Speaker SB-HC3010GS
Surround Speakers SB-HS3010GS
Subwoofer SB-HW3010GS/SB-HW3010P
1.2 Front Speakers (SB-HF3010GS)
The illustrations for the speakers will be described in this manual.
• Exploded View
• Replacement Parts List
1.3 Center Speaker (SB-HC3010GS)
The illustrations for the speakers will be described in this manual.
• Exploded View
• Replacement Parts List
1.4 Surround Speakers (SB-HS3010GS)
The illustrations for the speakers will be described in this manual.
• Exploded View
• Replacement Parts List
1.5 Subwoofer Speaker (SB-HW3010GS/SB-HW3010P)
The illustrations for the speakers will be described in this manual.
• Exploded View
• Replacement Parts List
3

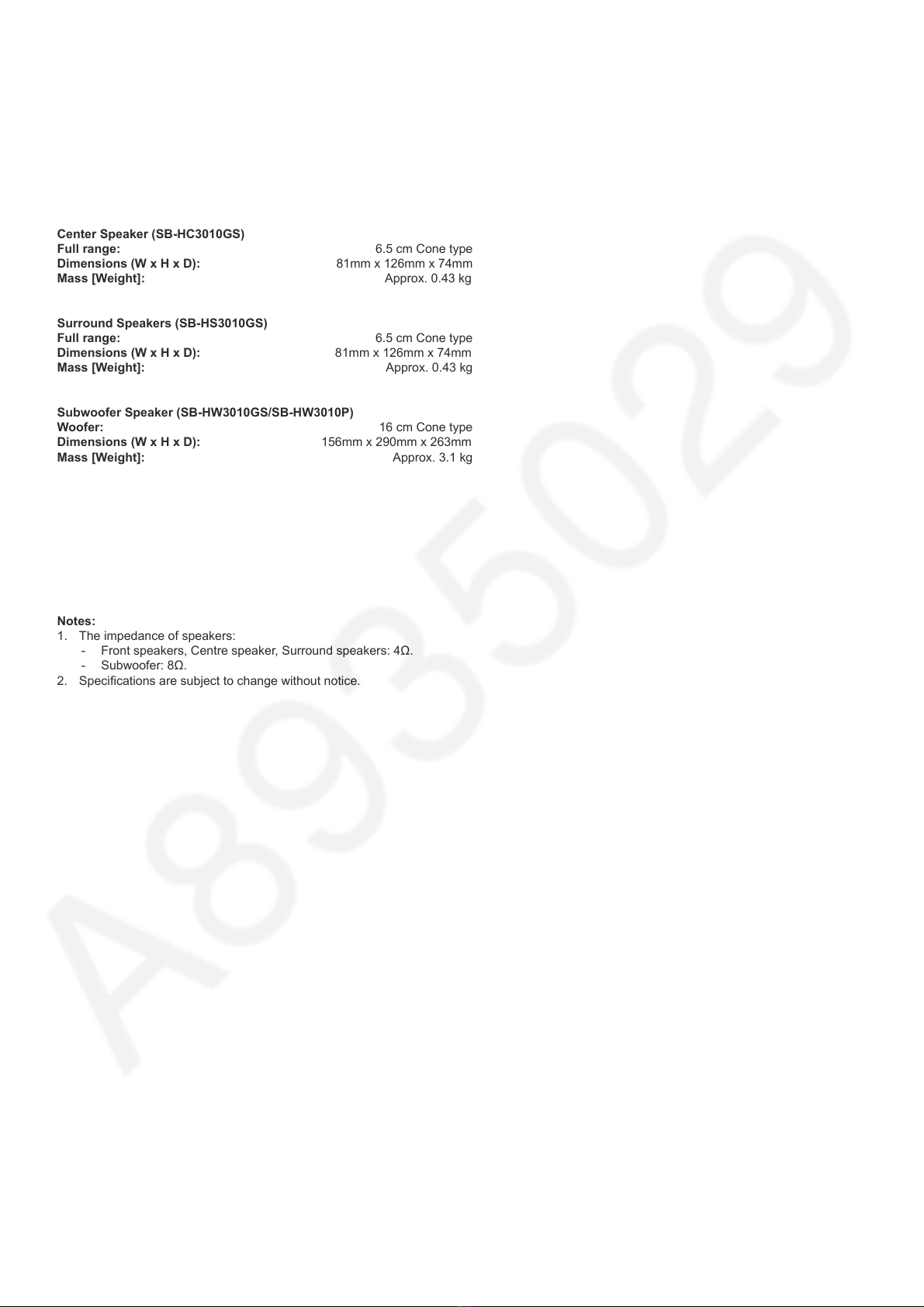

2 Specifications
Front Speakers (SB-HF3010GS)
Full range: 6.5 cm Cone type
Dimensions (W x H x D): 81mm x 126mm x 74mm
Mass [Weight]: Approx. 0.43 kg
Center Speaker (SB-HC3010GS)
Full range: 6.5 cm Cone type
Dimensions (W x H x D): 81mm x 126mm x 74mm
Mass [Weight]: Approx. 0.43 kg
Surround Speakers (SB-HS3010GS)
Full range: 6.5 cm Cone type
Dimensions (W x H x D): 81mm x 126mm x 74mm
Mass [Weight]: Approx. 0.43 kg
Subwoofer Speaker (SB-HW3010GS/SB-HW3010P)
Woofer: 16 cm Cone type
Dimensions (W x H x D): 156mm x 290mm x 263mm
Mass [Weight]: Approx. 3.1 kg
Notes:
1. The impedance of speakers:
- Front speakers, Centre speaker, Surround speakers: 4Ω.
- Subwoofer: 8Ω.
2. Specifications are subject to change without notice.
4
3 Exploded View and Replacement Parts List

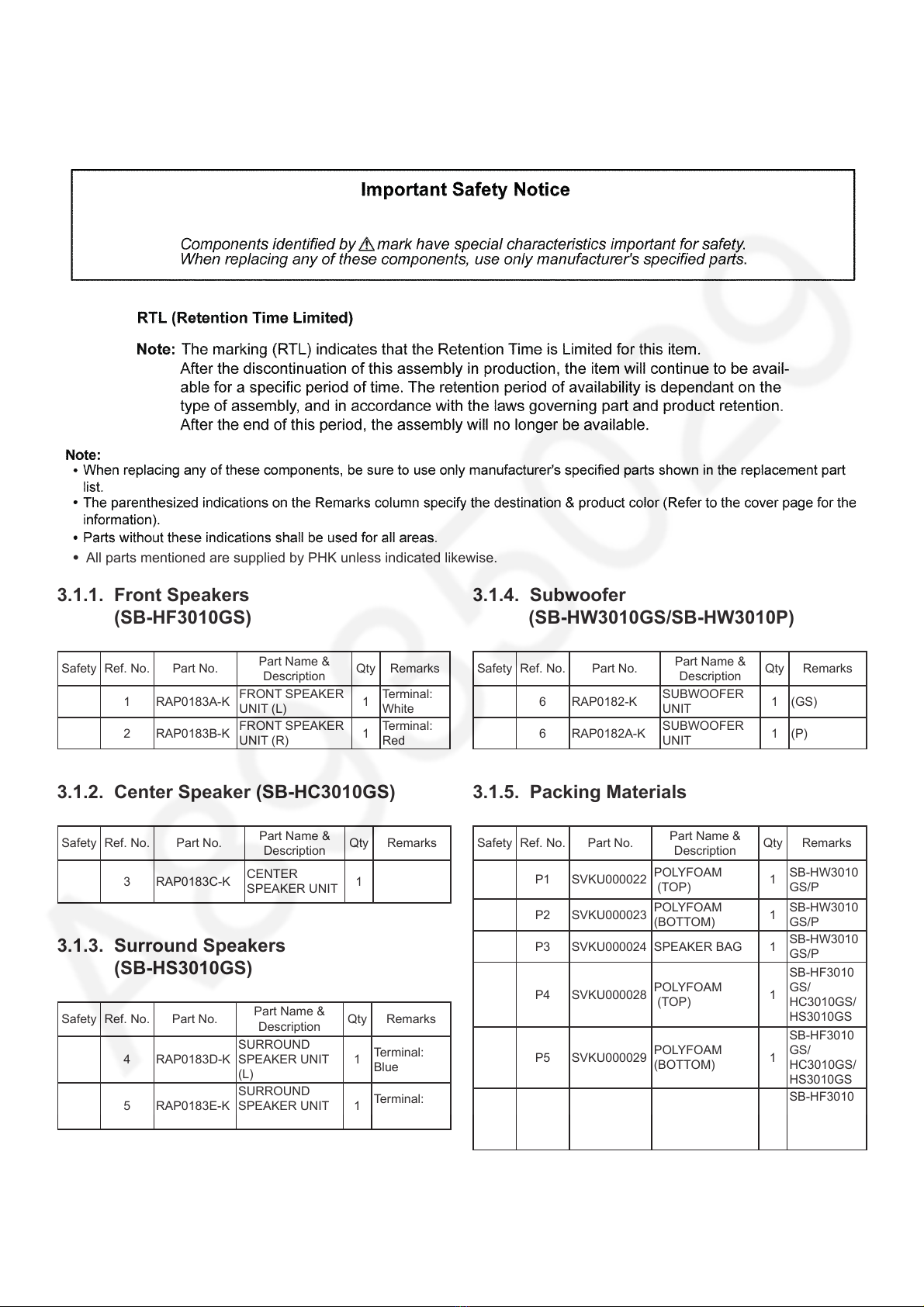

3.1. Replacement Parts List
3.1.1. Front Speakers
(SB-HF3010GS)
Safety Ref. No. Part No. Part Name &
Description Qty Remarks
1 RAP0183A-K FRONT SPEAKER
UNIT (L) 1Terminal:
White
2 RAP0183B-K FRONT SPEAKER
UNIT (R) 1Terminal:
Red
3.1.2. Center Speaker (SB-HC3010GS)
Safety Ref. No. Part No. Part Name &
Description Qty Remarks
3 RAP0183C-K CENTER
SPEAKER UNIT 1
3.1.3. Surround Speakers
(SB-HS3010GS)
Safety Ref. No. Part No. Part Name &
Description Qty Remarks
4 RAP0183D-K
SURROUND
SPEAKER UNIT
(L)
1Terminal:
Blue
5 RAP0183E-K
SURROUND
SPEAKER UNIT
(R)
1Terminal:
Gray
•All parts mentioned are supplied by PHK unless indicated likewise.
3.1.4. Subwoofer
(SB-HW3010GS/SB-HW3010P)
Safety Ref. No. Part No. Part Name &
Description Qty Remarks
6 RAP0182-K SUBWOOFER
UNIT 1 (GS)
6 RAP0182A-K SUBWOOFER
UNIT 1 (P)
3.1.5. Packing Materials
Safety Ref. No. Part No. Part Name &
Description Qty Remarks
P1 SVKU000022 POLYFOAM
(TOP) 1SB-HW3010
GS/P
P2 SVKU000023 POLYFOAM
(BOTTOM) 1SB-HW3010
GS/P
P3 SVKU000024 SPEAKER BAG 1 SB-HW3010
GS/P
P4 SVKU000028 POLYFOAM
(TOP) 1
SB-HF3010
GS/
HC3010GS/
HS3010GS
P5 SVKU000029 POLYFOAM
(BOTTOM) 1
SB-HF3010
GS/
HC3010GS/
HS3010GS
P6 SVKU000030 SPEAKER BAG 1
SB-HF3010
GS/
HC3010GS/
HS3010GS
5

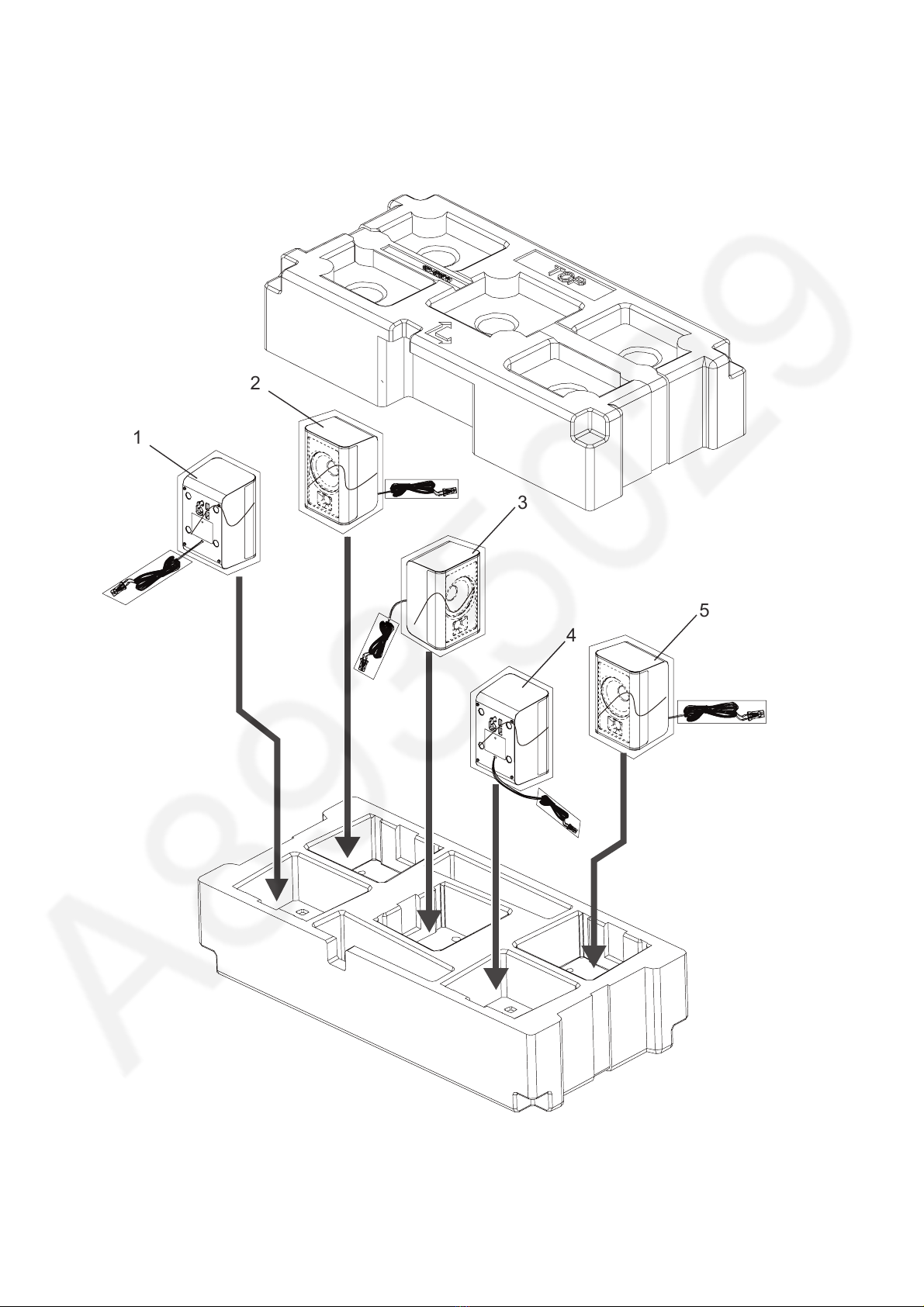

3.2. Front Speakers (SB-HF3010GS) and Center Speaker (SB-HC3010GS)
and Surround Speakers (SB-HS3010GS) Packaging
2
1
4
3
5
6

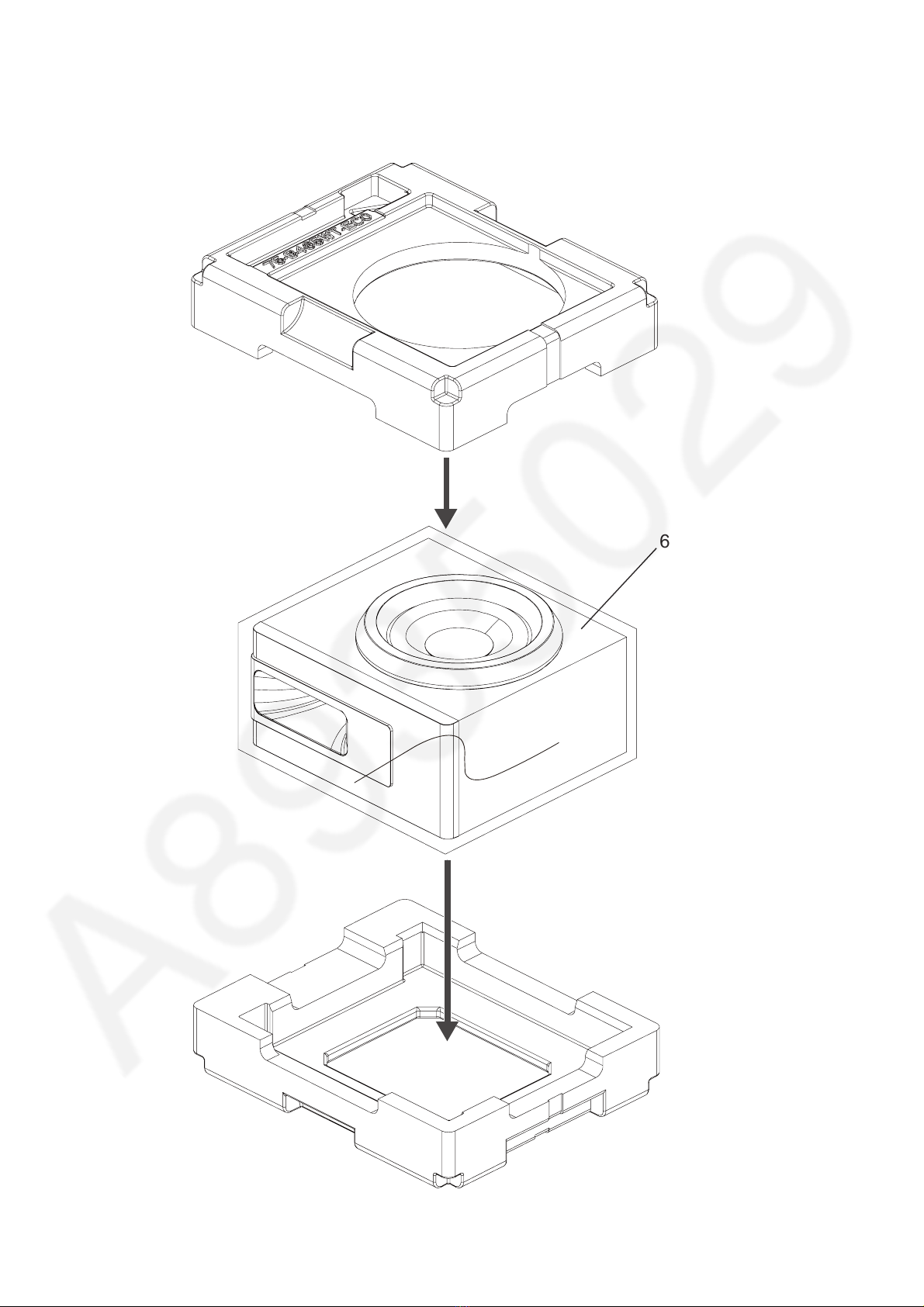

3.3. Subwoofer Speaker (SB-HW3010GS/SB-HW3010P) Packaging
6
7

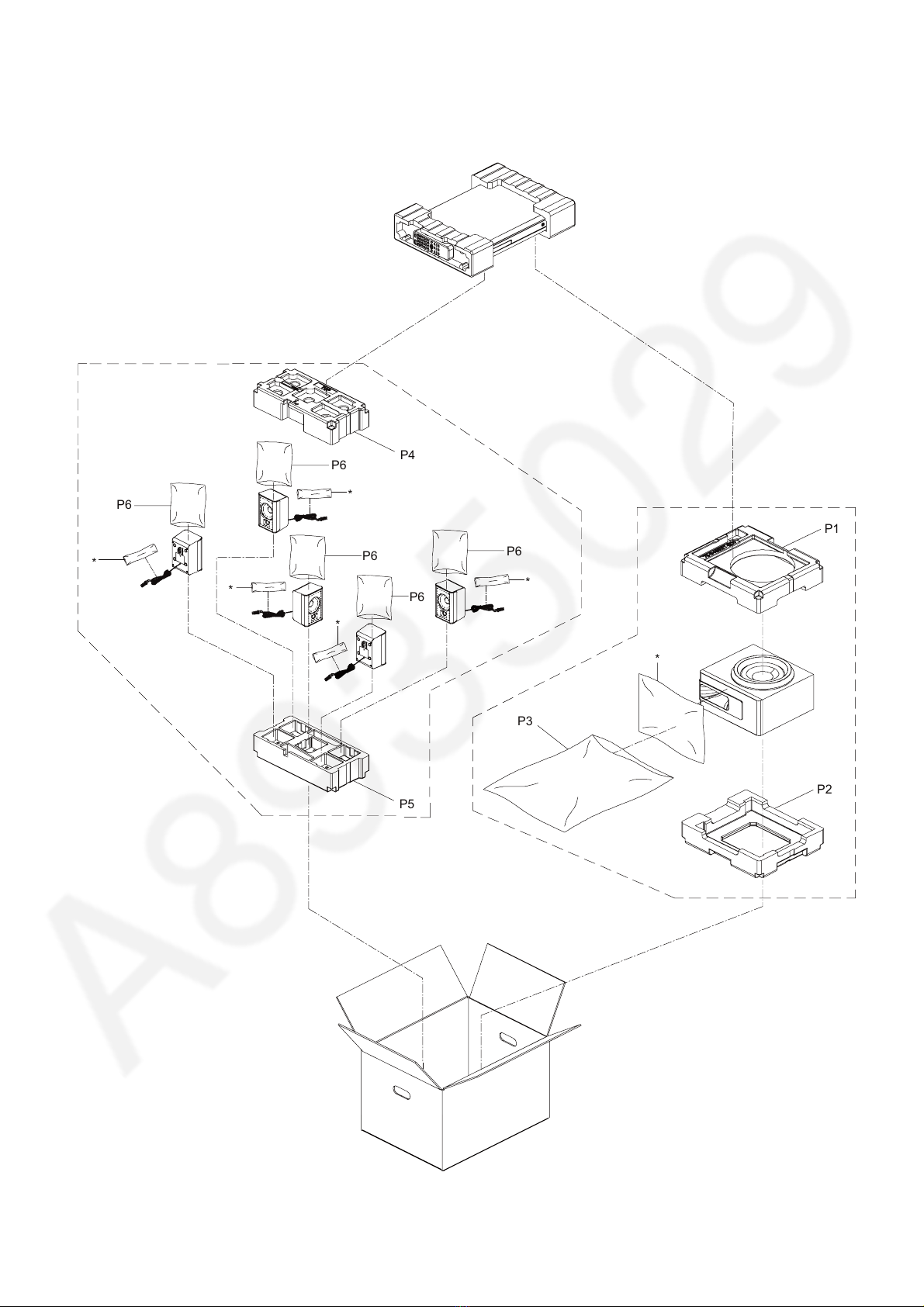

3.4. Exploded View of All Speakers Packaging
*
P1
P4
P6
P6
P6
P6
P6
*
*
*
*
*
P2
P3
P5
Note: "*" part is not supplied.
