Panasonic WORKIO DP-1810 User manual

DP-1510P/1810P/1810F/2000/2010E/2500/3000

Operating Instructions

Software

Model No.

English

Before operating this software, please read these instructions completely and keep these operating instructions for future reference.

(For Panasonic Printing System Ver. 6)

Printer Section Before UseTroubleshooting

The following trademarks and registered trademarks are used throughout this manual:

Microsoft, MS-DOS, Windows and Windows NT are registered trademarks of Microsoft

Corporation in the USA and other countries.

i386, i486 and Pentium are trademarks of Intel Corporation.

Centronics is a registered trademark of Centronics Data Computer Corporation.

TrueType is a registered trademark of Apple Computer, Inc.

All other trademarks identified herein are the property of their respective owners.

Published in Japan.

The contents of these Operating Instructions are subject to change without notice.

Table of Contents

Precautions.....................................................................................................................4

QFor User in USA ............................................................................................. 4

Installing the Printer Driver .......................................................................................... 5

QWindows 98/Me/NT/2000/XP ......................................................................... 5

Installing the LPR (Line Printer Remote) Monitor ....................................................... 8

QWindows 98/Me.............................................................................................. 8

QWindows NT 4.0 ............................................................................................. 12

QWindows 2000/XP.......................................................................................... 16

Configuring the Printer Driver Settings ....................................................................... 20

QWindows 98/Me.............................................................................................. 20

QWindows NT 4.0 (Administrator) .................................................................... 33

QWindows NT 4.0 (User) .................................................................................. 41

QWindows 2000/XP (Administrator) ................................................................. 49

QWindows 2000/XP (User) ............................................................................... 58

Print Operation ............................................................................................................... 66

QPrinting from Windows Applications ............................................................... 66

QPrinting on Network ........................................................................................ 67

Troubleshooting ............................................................................................................. 69

QPrinting operation fails.................................................................................... 69

QDocument is not printed correctly................................................................... 70

QError messages displayed on the computer................................................... 71

Appendix ......................................................................................................................... 72

QPrinting Area................................................................................................... 72

QParallel Interface Connector........................................................................... 73

QFont Table ...................................................................................................... 75

QSymbol Table ................................................................................................. 76

Before Use

Printer Section

Troubleshooting

Before Use

Precautions

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one of the following measures:

1. Reorient or relocate the receiving antenna.

2. Relocate fax machine with respect to receiver or other equipment.

3. Connect fax machine into outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

Warning: To assure continued compliance, use only shielded interface cable when connecting the facsimile

machine parallel interface port to host computer. Also, any changes or modifications not expressly approved

by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

• You need to read the software license agreement before setting up the Printer Driver.

• You need to read the following precautions which is described in the Machine’s Operating Instructions.

1. Installation

2. Ventilation

3. Handling

4. Toner and Paper

5. For your safety

For User in USA

Responsible Party: Matsushita Electric Corporation of America

One Panasonic Way, Secaucus, NJ 07094

Technical Support: Panasonic Document Imaging Company/Technical Support Department

Two Panasonic Way, Secaucus, NJ 07094

1-800-225-5329

Email: consumerproducts@panasonic.com

Printer Section

Installing the Printer Driver

Windows 98/Me/NT/2000/XP

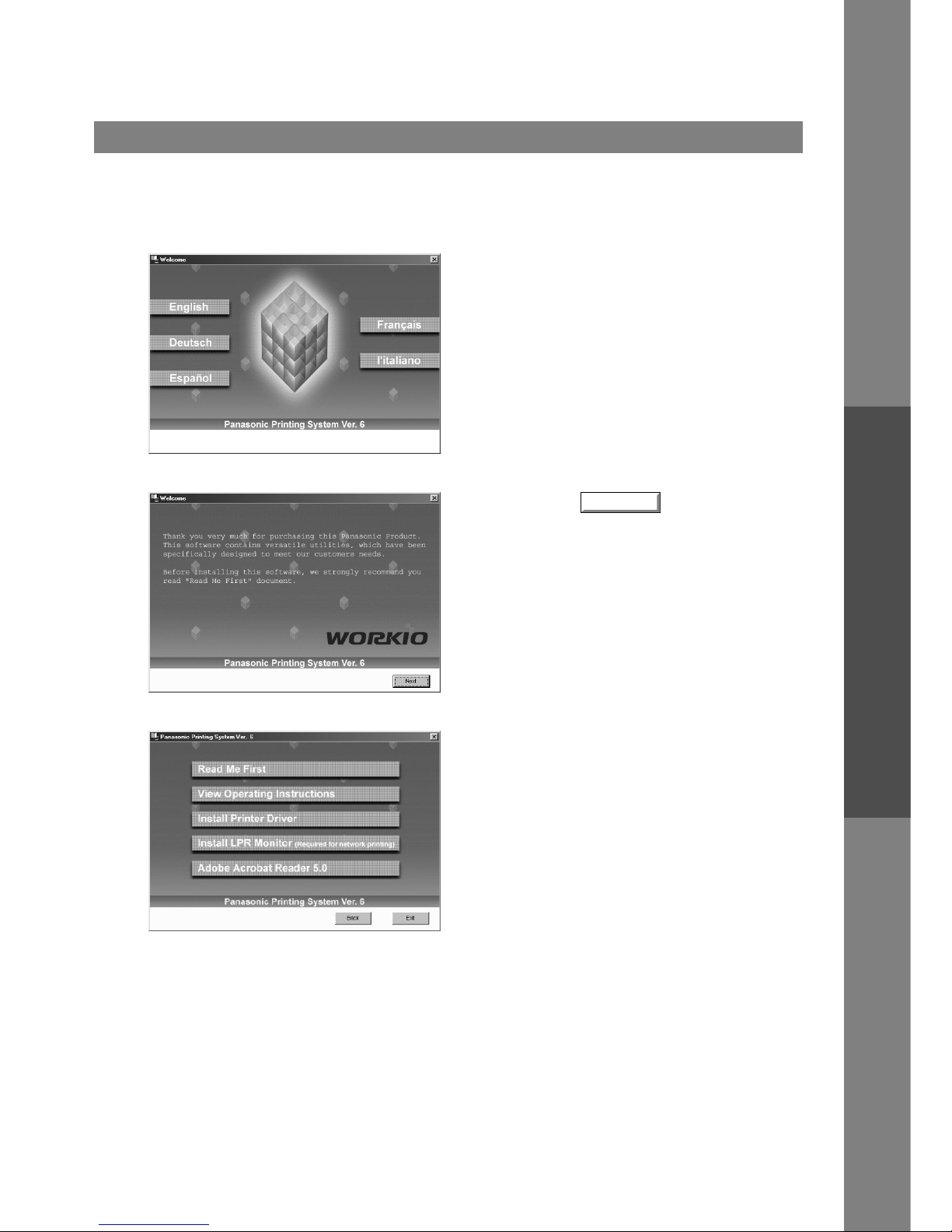

1Insert the Panasonic Printing System Ver. 6

CD-ROM.

2Click on the desired language.

3Click on the button.

4Click Install Printer Driver.

Continued on the next page...

Installing the Printer Driver

Windows 98/Me/NT/2000/XP

5Select your machine's model(s) and click the

button.

6Click the button if you would like

to change your current default printer to the

one that you are installing.

7Select your new default printer from the New

Printer List and click the button.

8The required files are copied.

Yes

Installing the Printer Driver

Windows 98/Me/NT/2000/XP

Printer Section

The Panasonic/Panafax Printer Driver is installed, and the Panasonic/Panafax Printer icon(s) are added to

the Printer folder.

If you are installing the Printer Driver for network printing, please contact your network administrator for the

IP Address of the machine and proceed to the next section to install the LPR Monitor service after your

computer has rebooted.

NOTE 1. When installing on Windows NT 4.0 and Windows 2000/XP, log onto the computer/network

with an account rights of Administrator.

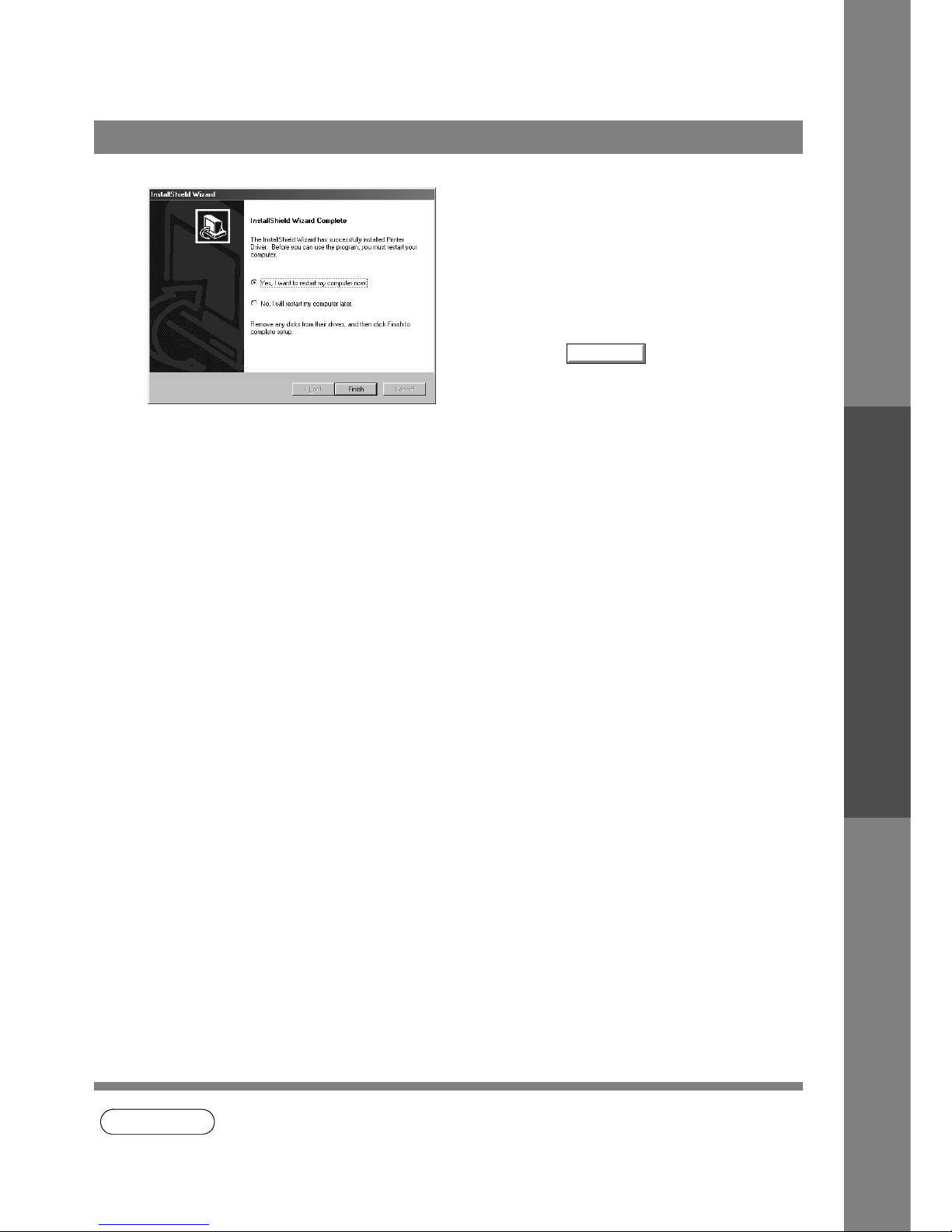

9When the setup process is completed, a

message is displayed prompting you to restart

your computer.

Click the button to restart your

computer.

Finish

Installing the LPR (Line Printer Remote) Monitor

Windows 98/Me

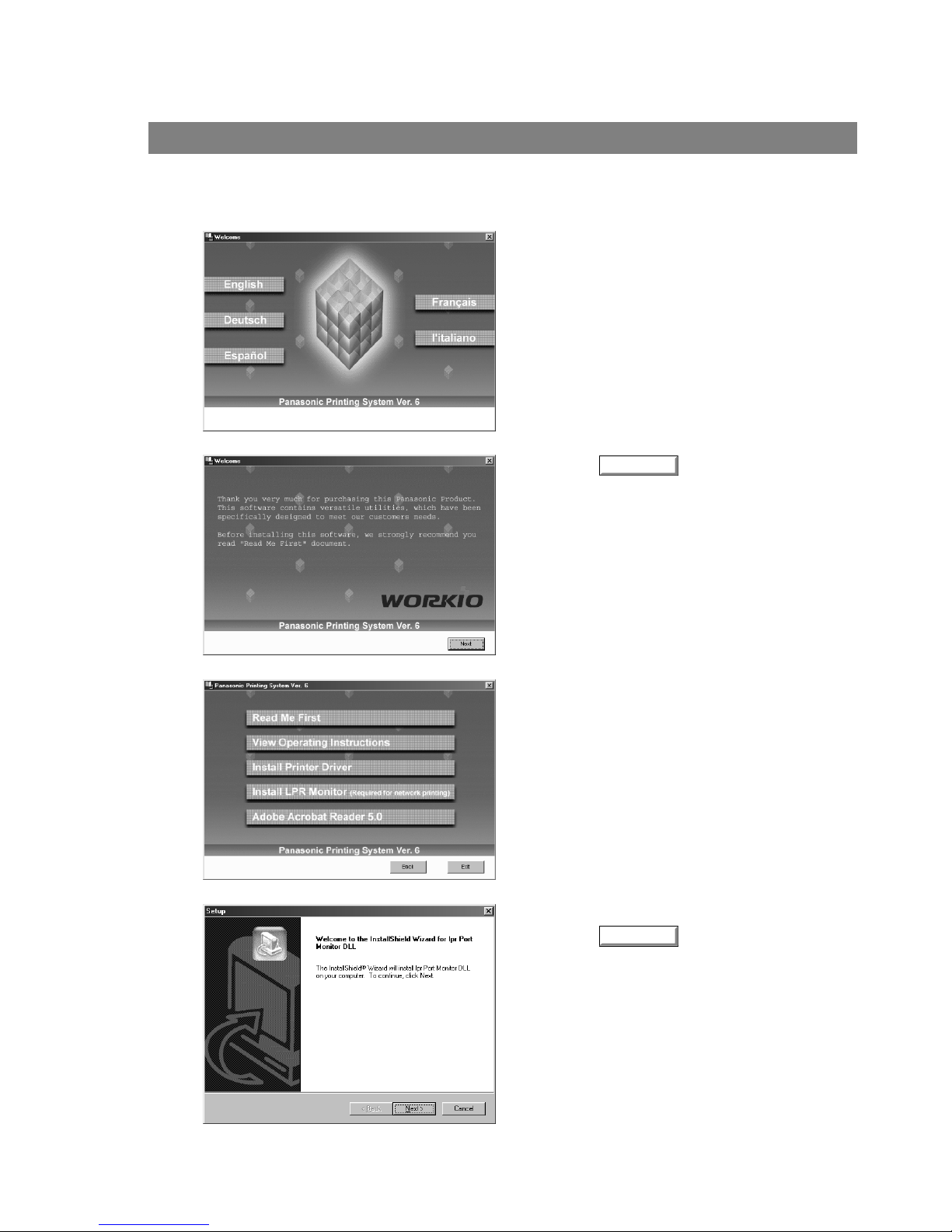

1Insert the provided CD-ROM.

2Click on the desired language.

3Click on the button.

4Click Install LPR Monitor.

5The Setup dialog box appears.

Click on the button.

Installing the LPR (Line Printer Remote) Monitor

Windows 98/Me

Printer Section

6The setup program copies the necessary files onto

your Hard Disk.

When the setup process is completed, a message

is displayed prompting you to restart your

computer.

It is recommended that you restart your computer

now so that the LPR Monitor is started.

Click on the button.

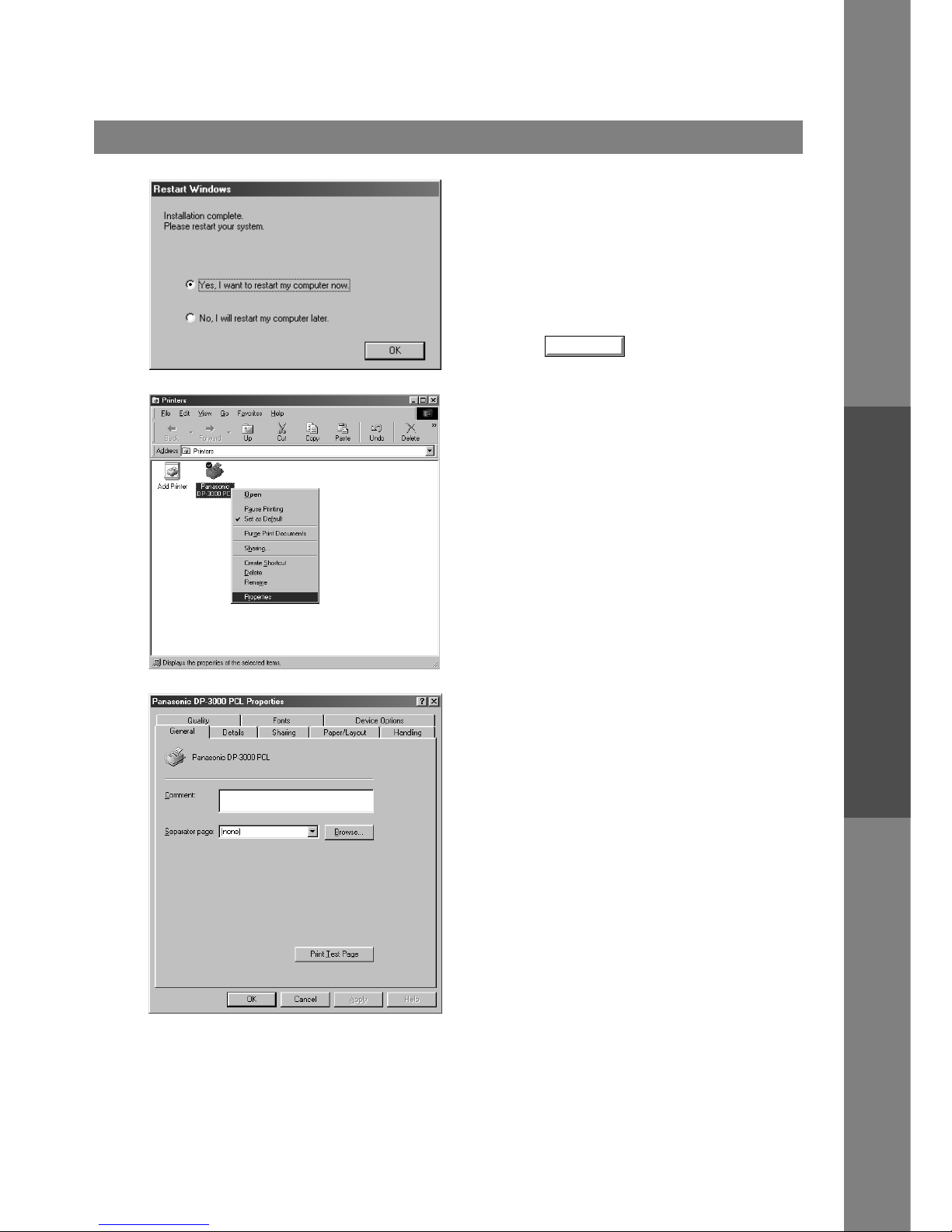

7After your computer is rebooted, click the Start

button, point to Settings, and then click Printers.

The Printers folder appears.

Right-click on your desired printer (Ex. Panasonic

DP-3000 PCL) and select Properties from the pop-

up menu.

8The printer properties dialog box appears.

The following step is to Register the LPR Port for

network printing.

Before proceeding, ensure that the Printer is

installed, connected to the Network, is turned ON

and operating properly.

Continued on the next page...

Installing the LPR (Line Printer Remote) Monitor

Windows 98/Me

9Select the Details tab and click on the

button.

10 The Add Port dialog box appears. Click the Other

radio button, and select HLPRMON from "Click the

type of port you want to add:" and click on the

button.

11 The LPR Port Name dialog box appears.

Type the IP Address of the machine and "lp"as the

queue name separated by a ":"

Ex: 10.74.229.105:lp

Click on the button. If an error occurs

because the queue name was already used for the

same IP Address, select a different unique name

such as "lpr".

Add Port...
