Panasonic WV-CF224EX User manual

The new WV-CF224EX Colour Dome Camera from

Panasonic is equipped with a 440,000 pixel, 1/4-type

CCD and can be used with both AC and DC power

sources. In addition to 480 TV lines horizontal resolution,

it can operate effectively in lighting as low as 1.6 lux

with an aperture setting of F1.4. A full range of

correction features including Backlight Compensation

(BLC), Aperture Correction, and Auto Tracing White

Balance (ATW) ensure crisp colour images in dark or

backlit environments. The 2.8mm to 6.0mm variable-

focal auto iris lens* is standard, allowing for easy

installation and camera angle adjustment.

When used with a 24-volt AC power source, it

simultaneously supports Internal, Line-Lock, and VD2

synchronization, making it simple to configure a reliable,

multi-channel camera system.

Great features, simple operation, system flexibility and

economical, the WV-CF224EX is an "EXcellent"

surveillance solution for a wide range of applications.

*Lens is non-exchangeable.

Excellent Image Quality and 2x Variable-Focal Lens. The Advanced

WV-CF224EX Mini Dome Camera, an EXcellent Performer.

KEY FEATURES

•135mm diameter compact colour dome camera for indoor use.

•480 TV lines horizontal resolution.

•Minimum illumination of 1.6 lux.

•50dB signal to noise ratio.

•Built-in 2x variable-focal lens (2.8-6.0mm) with auto iris.

•Built-in aperture level (sharp/soft) correction.

•Advanced digital adaptive Back-Light Compensation (BLC) capability.

•

Internal/Line-lock/VD2 synchronization (Line-lock : 24V AC operation only).

•Vertical drive (VD2) sync capability with Panasonic system products.

•Video monitor output jack provides "on the spot" checking of the lens

angle setting.

•Can be installed in standard electric junction box.

•24V AC/12V DC compatible power source operation to suit a wide

variety of applications.

•3-dimensional hinge (Pan, Tilt and Azimuth) allows the camera to be

rotated as well as moved horizontally and vertically.

Select the precise camera angle you need. No camera makes it easier.

Colour Dome Camera

WV-CF224EX

75°

100°

75°

Pan 200 degrees Tilt 150 degrees Azimuth 200 degrees

Pick-up Device 752 (H) x 582 (V) pixels, interline transfer CCD

Scanning Area

3.6 (H) x 2.7 (V) mm (equivalent to scanning area of 1/4" pick-up tube)

Synchronization

Internal, Line-lock (24 V AC only) or multiplexed vertical drive (VD2)

Scanning System 2 : 1 interlace

Scanning 625 lines / 50 fields / 25 frames

Horizontal 15.625 kHz

Vertical 50 Hz

Horizontal Resolution 480 TV lines

Video Output 1.0 V [p-p] PAL composite 75 Ω

Automatic Gain Control (AGC) +18 dB

Automatic Tracing White Balance (ATW)

ON only

Signal-to-Noise Ratio 50 dB (equivalent to AGC Off, weight On)

Minimum Illumination 1.6 lux at F1.4 (WIDE)

Back Light Compensation (BLC)

On or Off

Detail Sharp or Soft, selectable

Lens Type 2x variable-focal lens with auto iris

Focal Length 2.8 ~ 6.0 mm

Angular Field of View

Horizontal: 35.6° ~ 72.6°, Vertical: 26.7° ~ 54.0°

F Number F1.4 (Wide) to F176, close / F1.8 (Wide) to F176, close

Min. Object Distance 1.2 m

Panning Range 200° (±100°)

Tilting Range 150° (±75°)

Azimuth Range 200° (±100°)

Ambient Operating Temperature

–10 °C ~ +50 °C

Ambient Operating Humidity Less than 90 %

Power Source and 12 V DC, 235 mA

Power Consumption 24 V AC 50 Hz, 2.8 W

Dimensions ø135 (D) x 90 (H) mm

Weights 0.46 kg

Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.

• Weights and dimensions are approximate. • Specifications are subject to change without notice. • These products may be subject to export control regulations.

DISTRIBUTED BY:

Panasonic is the brandname of Matsushita Electric.

Printed in Japan

WV-JKCF224EXT(2N-714B)

Digital Disk Recorder WJ-HD220

(with 8ch Multiplexer)

Spot

LCD Monitor x 2 Ethernet

(10Base-T/100Base-TX)

LAN/WAN

Internet

WV-CU360CJ

Multi

screen

WV-CF224EX x 4

for indoor monitoring

WV-CW960 Series x 4

for outdoor monitoring

WV-CW964 WV-CW964 WV-CW964 WV-CW964

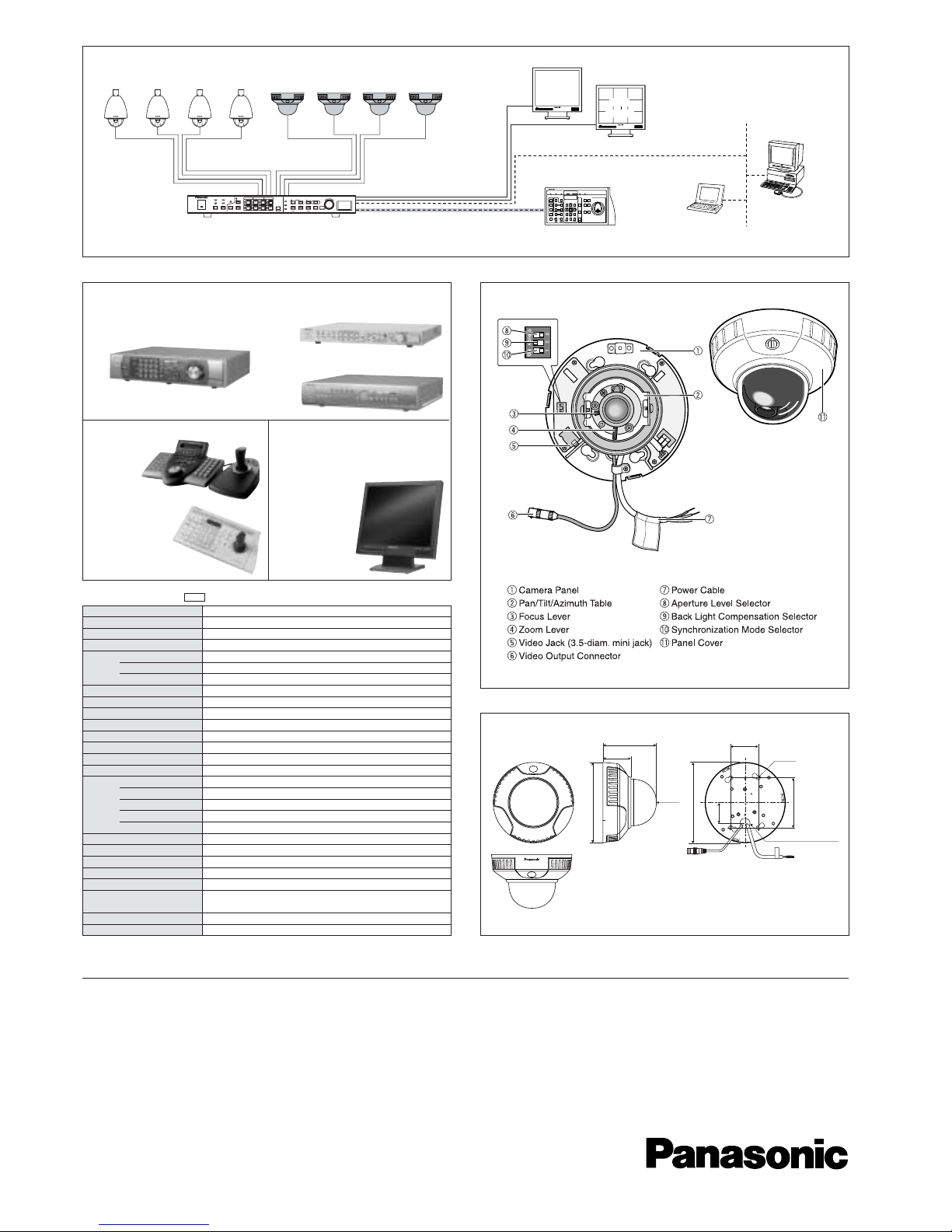

SYSTEM EXAMPLE

SPECIFICATIONS

MAJOR OPERATING CONTROLSOPTIONAL COMPONENTS

ø135

83.5

ø135

SR40

Cable access hole

ø16

90 46

4-ø4.5

Unit: mm

APPEARANCE

PAL

System Controllers

WV-CU650

WV-CU360CJ

Digital Disk Recorders

WJ-HD316A(16ch)

WJ-HD309A(9ch)

WV-LC1710 43.2cm (17")

WV-LD2000 50.8cm (20")

WV-LD1500 38.1cm (15")

LCD AV Monitors

WJ-HD220(8ch)

WJ-HD88(8ch)
