Panasonic ET-LAEF100 User manual

DPQX1005ZC/X1

Model No. ET-LAEF100

Operating Instructions

Replacement Lamp Unit Commercial Use

Thank you for purchasing this Panasonic product.

Please read these operating instructions and the projector operating instructions

carefully, and then use this product correctly.

¢Before using this product, be sure to read “Read this rst!” (xPage 2).

¢Please save this manual for future use.

ENGLISH

FRANÇAIS

2 - ENGLISH

Read this ﬁrst!

WARNING:

Before replacing the lamp unit, be sure to turn the power off and to dis-

connect the power plug from the wall outlet.

zElectric shocks or explosions can result if this is not done.

Do not disassemble the lamp unit.

zIf the lamp breaks, it could cause injury.

Do not remove unspecied screws during the lamp unit replacement.

zDoing so can cause electric shocks, burns, or injury.

Replace the lamp unit after the lamp has cooled (after waiting at least

one hour).

zThe high temperature inside the cover will cause burns.

WARNING: TURN THE POWER OFF AND DISCONNECT THE

POWER PLUG FROM THE WALL OUTLET BEFORE

REPLACING THE LAMP UNIT.

NOTICE

For USA only

Hg-LAMP CONTAINS MERCURY, Manage in Accord with Disposal

Laws.

See:www.lamprecycle.org or call 1-888-411-1996.

Always follow these precautions

rIllustrations in this manual

fPictures shown are illustrations of PT-EZ590 in this manual, other models have their

own characteristics and may be different from them.

rTerm

fIn this manual, the supplied "Wireless/wired remote control unit" or "Wireless remote

control unit" in the projector is referred to as “Remote control”.

This lamp is used in projectors.

It is not intended to be used for indoor lighting of ordinary homes.

2009 / 125 / EC

ENGLISH - 3

English

Manufactured by: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importer: Panasonic Connect Europe GmbH

Authorized Representative in EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Importer for UK:

Panasonic Connect UK,

a branch of Panasonic Connect Europe GmbH,

Maxis 2, Western Road, Bracknell, Berkshire, RG12 1RT

Français Fabriqué par: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japon

Importateur: Panasonic Connect Europe GmbH

Représentant autorisé dans l’UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hambourg, Allemagne

Español Fabricado por: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japón

Importador: Panasonic Connect Europe GmbH

Representante Autorizado para la UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburgo, Alemania

Deutsch Hergestellt von: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importeur: Panasonic Connect Europe GmbH

Vertretungsberechtigter in der EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Deutschland

Italiano Fabbricato da: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Giappone

Importatore: Panasonic Connect Europe GmbH

Rappresentante autorizzato nell’UE: Panasonic Testing Centre

Winsbergring 15, 22525 Amburgo, Germania

Български Производител: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Япония

Вносител: Panasonic Connect Europe GmbH

Упълномощен представител в ЕС: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Германия

4 - ENGLISH

Čeština Vyrobil: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonsko

Dovozce: Panasonic Connect Europe GmbH

Oprávněný zástupce v EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburk, Německo

Dansk Fremstillet af: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importør: Panasonic Connect Europe GmbH

Autoriseret repræsentant i EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland

Eesti Tootja: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Jaapan

Maaletooja: Panasonic Connect Europe GmbH

Volitatud esindaja ELis: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Saksamaa

Ελληνικά Κατασκευάστηκε από: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Ιαπωνία

Εισαγωγέας: Panasonic Connect Europe GmbH

Εξουσιοδοτημένος αντιπρόσωπος στην ΕΕ: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Γερμανία

Hrvatski Proizvodi: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Uvoznik: Panasonic Connect Europe GmbH

Ovlašteni zastupnik u EU-u: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Njemačka

Latviešu Ražotājs: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japāna

Importētājs: Panasonic Connect Europe GmbH

Ociālais pārstāvis ES: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Vācija

Lietuvių Gamintojas: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonija

Importuotojas: Panasonic Connect Europe GmbH

Įgaliotasis atstovas ES: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburgas, Vokietija

Magyar Gyártotta: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japán

Importőr: Panasonic Connect Europe GmbH

Hivatalos képviselő az EU-ban: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Németország

ENGLISH - 5

Nederlands Geproduceerd door: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importeur: Panasonic Connect Europe GmbH

Bevoegde vertegenwoordiger in de EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Duitsland

Norsk Produsert av: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importør: Panasonic Connect Europe GmbH

Autorisert representant i EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland

Polski Wyprodukowano przez: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonia

Importer: Panasonic Connect Europe GmbH

Upoważniony przedstawiciel w UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Niemcy

Português Fabricado por: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japão

Importador: Panasonic Connect Europe GmbH

Representante Autorizado na UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburgo, Alemanha

Română Fabricat de: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonia

Importator: Panasonic Connect Europe GmbH

Reprezentant autorizat în UE: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germania

Slovenčina Výrobca: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonsko

Dovozca: Panasonic Connect Europe GmbH

Autorizovaný zástupca v EÚ: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Nemecko

Slovenščina Proizvaja: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonska

Uvoznik: Panasonic Connect Europe GmbH

Pooblaščeni zastopnik v EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Nemčija

Suomi Valmistaja: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japani

Maahantuoja: Panasonic Connect Europe GmbH

Valtuutettu edustaja EU:ssa: Panasonic Testing Centre

Winsbergring 15, 22525 Hampuri, Saksa

6 - ENGLISH

Svenska Tillverkad av: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Importör: Panasonic Connect Europe GmbH

Auktoriserad representant i EU: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Tyskland

Türkçe Tarafından Üretilmiştir: Panasonic Connect Co., Ltd.

4-1-62 Minoshima, Hakata-ku, Fukuoka 812-8531, Japonya

İthalatçı: Panasonic Connect Europe GmbH

AB Yetkili Temsilcisi: Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Almanya

ENGLISH - 7

Replacing the lamp unit

zBe sure to turn off the power before replacing the lamp unit.

zWhen switching off the projector, make sure to follow the procedures in “Switching

off the projector” (xpage 7).

zIt is recommended that you request a qualified technician to replace the lamp unit.

Consult your dealer.

Before replacing the lamp unit

Attention

zSince the luminous lamp is made of glass, it may burst if dropped or hit with a hard object.

Handle with care.

zDo not disassemble or modify the lamp unit.

zWhen replacing the lamp unit, be sure to hold it by the handle because its surface is pointed and

its shape is protruded.

zThe lamp may rapture. Replace the lamp unit carefully so the glass fragments of the lamp do not

scatter. While attaching the projector to the ceiling, do not work right under the lamp unit or do

not conduct work while your face is near the lamp unit.

zThe lamp contains mercury. When disposing of used lamp units, contact your local authorities

or dealer for correct methods of disposal.

Note

zA Phillips screwdriver is necessary when replacing the lamp unit.

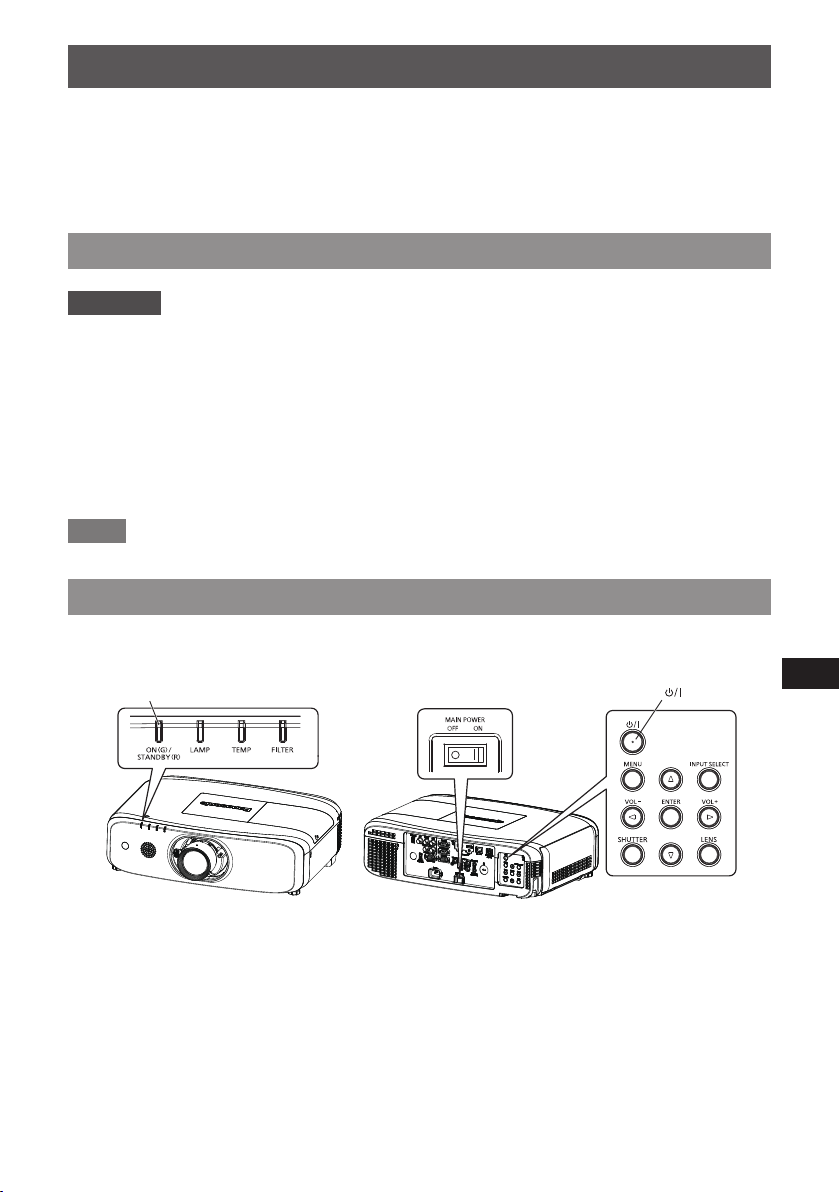

Switching off the projector

When the projector is operating, perform the following steps to turn off the projector, and

wait until the lamp unit cools off then make the replacement.

Power < > button

<MAIN POWER> switch

Power indicator <ON(G)/STANDBY(R)>

1) Press the power < v/I > button on the control panel or on the remote control.

fThe [POWER OFF] conrmation screen is displayed.

2) Press qw to select [OK], and press the <ENTER> button.

(Or press the power < v/I > button again.)

fProjection of the image will stop, and the power indicator <ON (G)/STANDBY (R)> on the

projector body lights in orange. (The fans keep running.)

3) Wait until the power indicator <ON (G)/STANDBY (R)> on the projector body

lights or blinks in red.

8 - ENGLISH

4) Press the <OFF> side of the <MAIN POWER> switch to turn off the power.

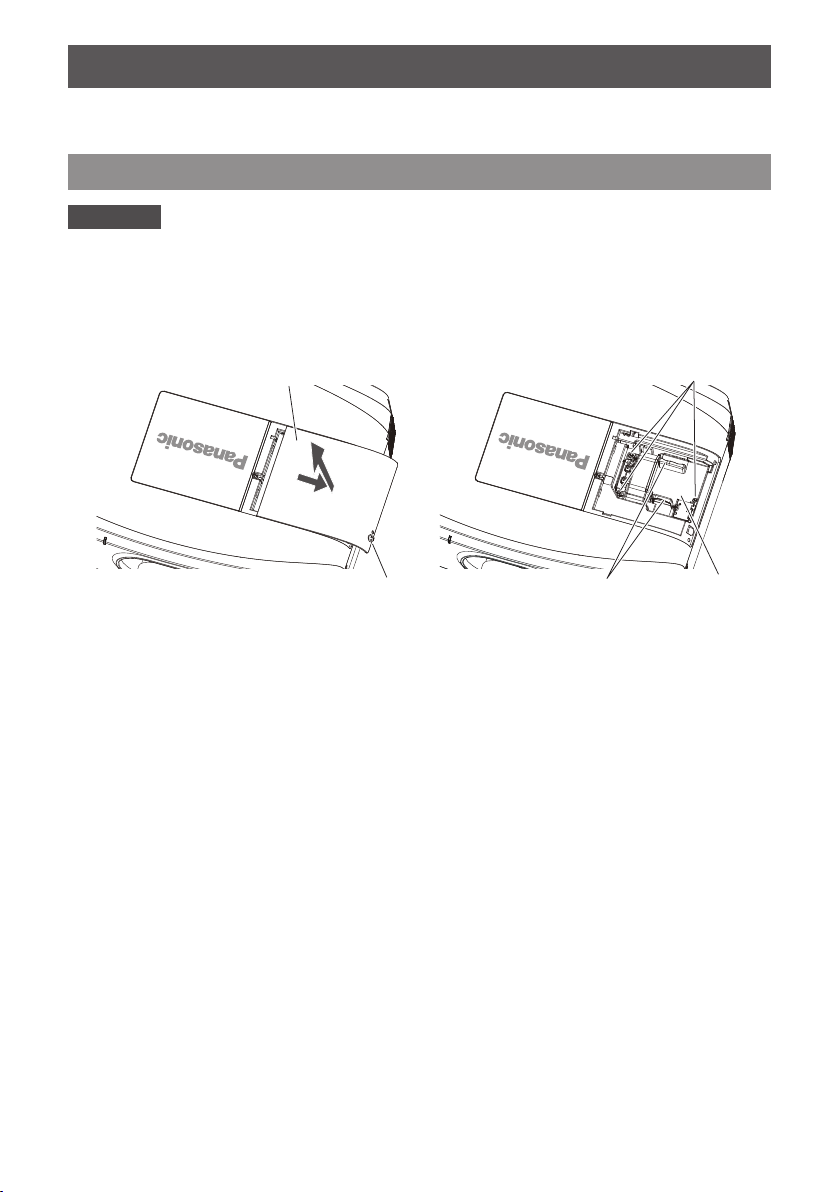

Replacing the lamp unit

Attention

zWhen the projector is mounted on the ceiling, do not make the replacement while your face is

near the lamp unit.

1) Set the <MAIN POWER> switch to <OFF> and disconnect the power plug from

the power outlet.

fWait at least one hour and check if the lamp unit has cooled down.

ii)

Fig. 1 Fig. 2

Lamp cover

Lamp cover xing screw

Lamp unit xing screws

Lamp unit

Handles

2) Remove the lamp cover. (Fig. 1)

fUse a Phillips screwdriver to turn the lamp cover xing screw (x1) counterclockwise until

it turns freely, and slide and pull up the lamp cover slowly in the direction of the arrow to

remove it.

fOpening the lamp cover quickly may result in falling.

3) Remove the lamp unit. (Fig. 2)

fUse a Phillips screwdriver to turn the lamp unit xing screws (x3) counterclockwise until

they turn freely, and remove the lamp unit.

fHold the handles of the lamp unit and remove it straight.

4) Push in the new lamp unit while paying attention to the insertion position.

fIf the lamp unit is not installed properly, remove it and then push it in slowly. Pushing it in

quickly or forcibly may break the connector.

5) Use a Phillips screwdriver to firmly tighten the lamp unit fixing screws (x3).

fMake sure to attach the lamp unit securely.

6) Attach the lamp cover.

(i) Perform Step 2) in the reverse order to attach the lamp cover.

(ii) Use a Phillips screwdriver to rmly tighten the lamp cover xing screw (x1).

fMake sure to attach the lamp cover slowly and securely.

Replacing the lamp unit (continued)

ENGLISH - 9

Note

zWhen you replace the lamp unit with new one, the projector resets the total usage time of the

lamp unit automatically.

Attention

zAfter unpacking the lamp unit, discard the packaging material properly.

Replacing the lamp unit (continued)

TI0316JG2062 -PT

Printed in China

Disposal of Old Equipment

Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means

that used electrical and electronic products must not be mixed with general

household waste.

For proper treatment, recovery and recycling of old products, please take them to

applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and

prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local

authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance

with national legislation.

Web Site : https://panasonic.net/cns/projector/

Panasonic Connect Co., Ltd.

Product information (for Turkey only)

AEEE Yönetmeliğine Uygundur

Other manuals for ET-LAEF100

Table of contents

Languages:

Other Panasonic Projector Accessories manuals

Panasonic

Panasonic ET-LAL331 User manual

Panasonic

Panasonic ET-LAEF100 User manual

Panasonic

Panasonic ET-PFD465 User manual

Panasonic

Panasonic ET-LAD310A User manual

Panasonic

Panasonic ET-PKD75 User manual

Panasonic

Panasonic ET-LAD57 Guide

Panasonic

Panasonic ET-RFL100 User manual

Panasonic

Panasonic ET-LAD510 User manual

Panasonic

Panasonic ET-D75MC1 User manual

Panasonic

Panasonic ET-PKD130B User manual

Panasonic

Panasonic ET-LAX100 Guide

Panasonic

Panasonic PressIT TY-WP2B1W Operating instructions

Panasonic

Panasonic ET-ELW02 Use and care manual

Panasonic

Panasonic ET-LAE200 User manual

Panasonic

Panasonic PressIT TY-WPS1W Operating instructions

Panasonic

Panasonic ET-LAE200C User manual

Panasonic

Panasonic PressIT TY-WP2B1 User manual

Panasonic

Panasonic ET-LAD60A User manual

Panasonic

Panasonic ET-MWP100G Quick start guide

Panasonic

Panasonic ET-LAA410 User manual

Panasonic

Panasonic ET-D75LE6 User manual

Panasonic

Panasonic ET-ELW20 User manual

Panasonic

Panasonic ET-ELW21 User manual

Panasonic

Panasonic ET-ELW21C User manual

Popular Projector Accessories manuals by other brands

Optoma

Optoma BX-AL133B datasheet

PEERLESS

PEERLESS PE 1120 Installation and assembly

Osram

Osram SIRIUS HRI Series Directions for use

Presentation Switchers

Presentation Switchers PS111 quick start

Kramer

Kramer VIA GO user manual

Yamaha

Yamaha PJL-112 Replacement guide

Swedstyle

Swedstyle CL23AA02ZA25E operating manual

Mitsubishi Electric

Mitsubishi Electric 236CB Features

Epson

Epson BrightLink 475Wi user guide

Acer

Acer WP100 quick guide

i3 i3board user manual

CHIEF

CHIEF HB-43E installation instructions

Biamp

Biamp Modena Hub Network administrator's guide

NEC

NEC MP10RX Quick setup guide

Panamorph

Panamorph DCR-S3 installation guide

Exact solutions

Exact solutions FRAME-EVO-P10 manual

CHIEF

CHIEF VCM103S installation instructions

InFocus

InFocus LP70+ Replacement instructions
