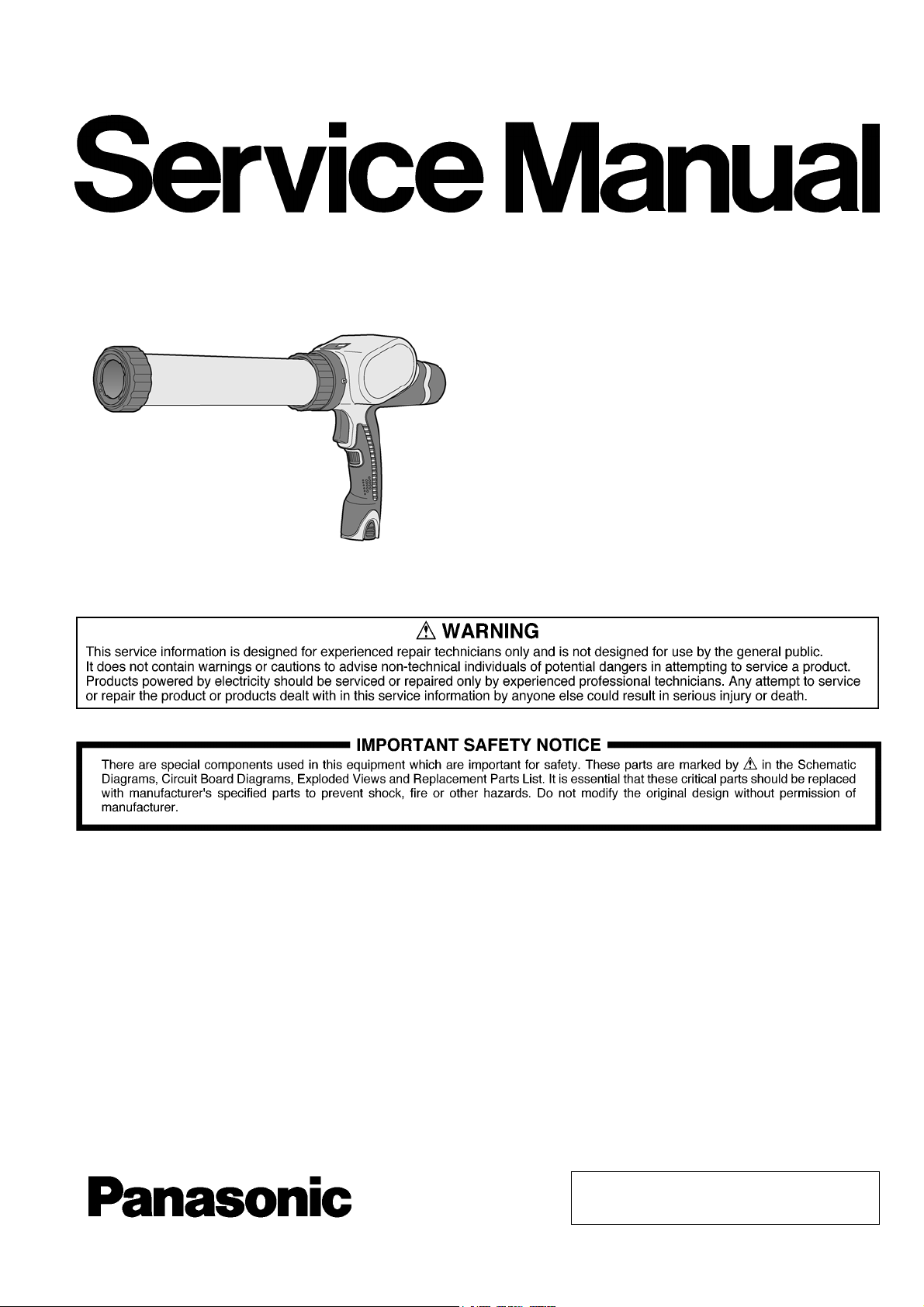

Panasonic EY3610 User manual

© Panasonic Eco Solutions Power Tools Co., Ltd.

2012. All rights reserved. Unauthorized copying and

distribution is a violation of law.

Order Number PTD1208E01CE

Variable Speed Cordless Sealing Gun

Model No. EY3610

Europe

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Trial Operation (After Checking Troubleshooting

Guide) ---------------------------------------------------------------- 5

5 Disassembly and Assembly Instructions ---------------- 6

6 Wiring Connection Diagram ---------------------------------13

7 Schematic Diagram ---------------------------------------------13

8 Exploded View and Replacement Parts List -----------14

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

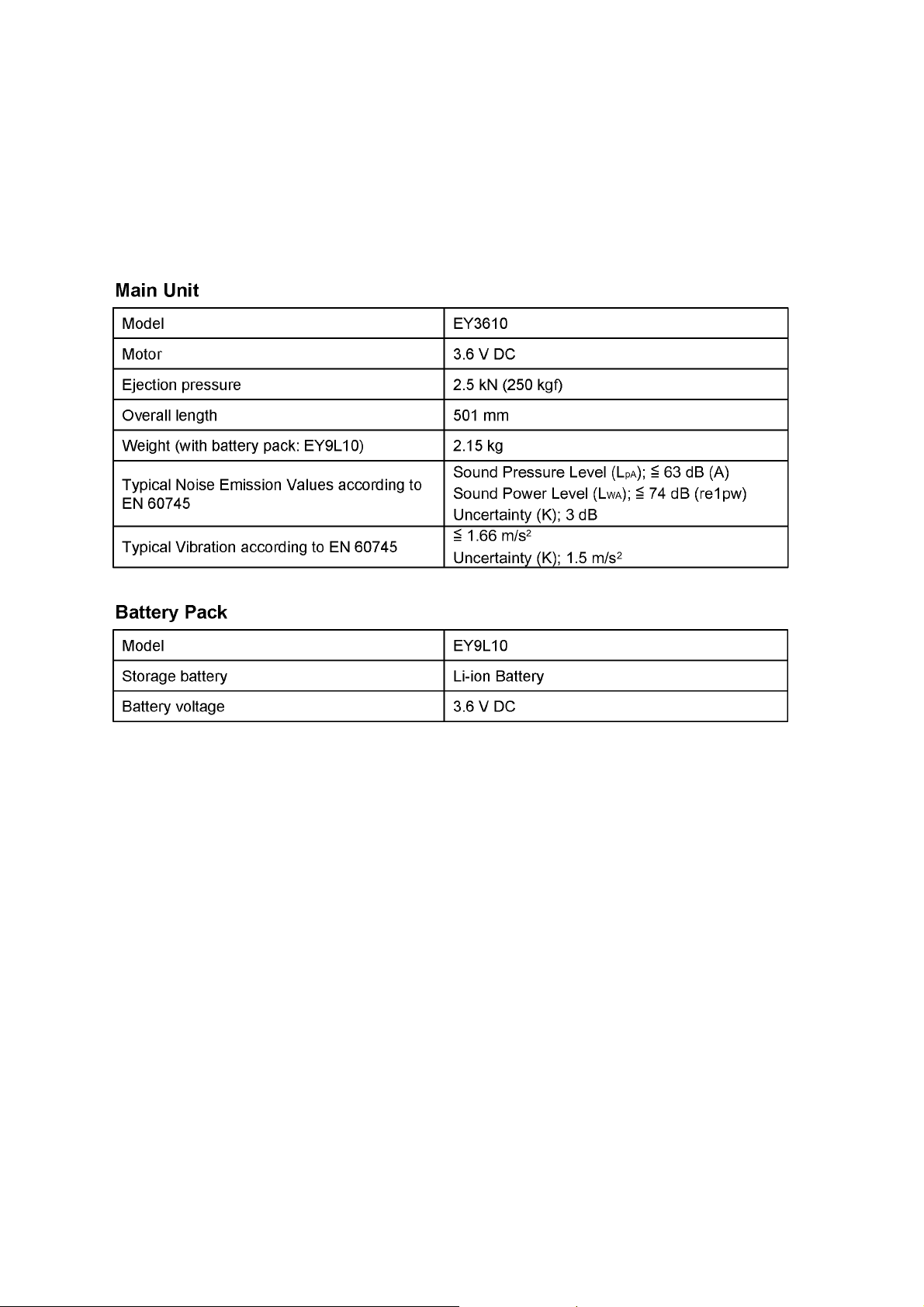

2 Specifications

3

3 Troubleshooting Guide

4

5

4 Trial Operation (After Checking Troubleshooting Guide)

4.1. Assembly

• Confirm if there is NO gap between Housing A and B by pinching the lead wires.

• There is no dust or deformation on battery terminals.

4.2. Operation

• Confirm if SWITCH turns ON and OFF normally.

• Confirm the smooth changing of HIGH and LOW handle and its changing mode.

• Confirm if caulking pressure is appropriate.

Place end of the rack guide on floor and turn on the switch leaning your body weight onto the unit instead of using sealing.

Check if the rack guide extends properly.

• Confirm if operation is normal attaching the sausage and cartridge attachment.

• There should be no abnormal sound of gears chafing, metallic sound and no abnormal vibration.

• There should be no metallic sound and abnormal sound when shaking up-down and right-left.

4.3. Adjustment of remaining amount scale

1. Turn on and extend the rack guide till the end.

2. Furthermore pull it by hand in the direction of arrow until it clicks.

3. Keep pushing the switch again until white part shows approx.1mm after red part appears.

4. Push the rack guide all the way back inside by hand.

6

5 Disassembly and Assembly Instructions

5.1. Remove the cartridge holder from the main unit.

5.2. Pull up the rack guide and remove 3 tapping screws.

7

5.3. Pull the rack guide out forward.

5.4. Remove a connector cap.

8

5.5. Remove housing B.

5.6. Remove the module.

9

5.7. Remove the micro switch.

5.8. Remove 2 screws of the driving block.

10

5.9. Release the spring for switch handle from the housing boss with radio

pliers.

* Spring for switch handle is strong. Be careful to remove it.

5.10. Take the driving block parts out from housing A.
