Panasonic KX-PW507DL User manual

Facsimile

Quick Reference Guide

Model No. KX-PW507DL

KX-PW507DW

KX-PW507DL

Main unit:

Portable handset:

KX-PW507

KX-FKN515

Thank you for purchasing a Panasonic facsimile.

This guide explains some basic features and operations, but not all of them.

For further details, see the Japanese operating instructions.

This product is designed for use in Japan.

Panasonic cannot provide service for this product if used outside Japan.

Any details given in this guide are subject to change without notice.

This unit is equipped with the voice guide features. (Japanese only)

For details about voice guide, please see page 10.

Table of Contents

Finding the controls …………………………………………………………… 2

Installations and connections ………………………………………………… 4

Setting the date and time……………………………………………………… 7

Setting your facsimile telephone number …………………………………… 7

Setting your logo ……………………………………………………………… 8

Character input and command key table …………………………………… 9

Voice guide…………………………………………………………………… 10

Automatic dialing on the main unit ………………………………………… 11

Automatic dialing on the portable handset (KX-FKN515) ……………… 13

Intercom ……………………………………………………………………… 14

Sending faxes ……………………………………………………………… 15

Receiving faxes ……………………………………………………………… 16

Operating the built-in answering device ………………………………… 17

Night mode…………………………………………………………………… 18

Call block …………………………………………………………………… 19

Specifications ……………………………………………………… Back cover

KX-PW507DLQG.indb1KX-PW507DLQG.indb1 2007/08/279:52:302007/08/279:52:30

Finding the controls

Main unit

1 2 34

16 17 18

10 11 12 13

Liquid crystal display

Function button initiates programming.

Resolution button selects the resolution

when faxing or copying.

Speed Dialer button

Volume/Change/Redial/Phonebook key

To adjust the volume.

To change Hiragana into Kanji.

To redial the phone numbers in

the redial list. The last 10 phone

numbers dialed are stored in

memory.

To use the phonebook.

To store a parameter.

Auto Answer button & indicator

—light on: answering device activated.

—light off: used as a regular telephone.

Playback button plays back recorded

messages.

Flash button(For call waiting service users.)

Intercom button

Edit/Character Input Mode button

Hold button

Call Memory button starts a search in the

Number Display (Caller ID) log.

Call Memory indicator lights when a call

was missed.

(For Number Display service users.)

Monitor button

Block button for the undesired call

Record button records a telephone

conversation.

Secure button

While the unit is ringing, press this button.

The unit announces a message to the caller.

The message is announced in Japanese

and means “This unit is currently set to

Caller Verifying mode. Could you please

speak out your name?”.

To talk to the caller, lift the handset.

To hang up, press .

Voice select button

Erase button

Fax button starts faxing.

Copy button starts copying.

Stop button

Tone button switches to tone dialing.

Night mode button

Sharp button

Key lock button can lock the main unit so

that no calls or settings can be made. To

turn key lock on, press this button for about

3 seconds until a single beep is heard.

“”is displayed.

To turn key lock off, press this button for

about 3 seconds.

KX-PW507DLQG.indb2KX-PW507DLQG.indb2 2007/08/279:52:302007/08/279:52:30

Finding the controls

Portable handset (KX-FKN515)

●



To adjust the volume.

●



To change Hiragana into

Kanji.

●



To redial the phone

numbers in the redial

list. The last 10 phone

numbers dialed are

stored in memory.

●



To make/answer calls.

●



To put a call on hold.

●



To start a search in the

Number Display log.

(For Number Display

service users.)

●



To use the speakerphone.

●



For call waiting service

users.

●



To clear letters/numbers.

Sharp button

Key lock button

●To lock the portable

handset so that no calls

or setings can be made.

To turn key lock on,

press this button for

about 3 seconds until a

single beep is heard.

●“ ” is displayed.

●To turn key lock off,

press this button for

about 3 seconds.

●



To use the phonebook.

and buttons refer to the function

displayed on the bottom of the display.

They function differently depending on

the mode.

Dial buttons

Earpiece Liquid crystal display

Microphone

Do not cover the

microphone while

talking.

Function menuthat is

controlled by or

Portable handset number

(and name)

No link to the main unit

Battery strength

Tone button

●To switch to tone dialing.

●



To end a call.

●



To end or exit from editing

or other operations.

How to use key

How to use buttons

●



To change your voice.

●



To mute your voice to the

other party by pressing this

button for about 2 seconds.

(To release the mute,

press this button again.)

●



To page the main unit

and/or portable handset(s).

KX-PW507DLQG.indb3KX-PW507DLQG.indb3 2007/08/279:52:372007/08/279:52:37

When the unit runs out of ink film, the following message will be displayed.

Install a new ink film.

Installations and connections

Installing the ink film

1Open the control panel.

2Open the back cover.

4If the ink film is slack, tighten it by

winding this gear (

orange)

3Insert the ink film.

Insert the orange

gear

into the left slot

of the main unit.

Insert the white gear into the right slot

of the main unit.

5Close the back cover pressing

“ ” down on both sides

until it clicks into place.

6Close the control panel.

As of September 2007. Tax included.





































Replacement ink film:

KX-FAN190 (15 m) 714

KX-FAN190W (15 m X 2) 1,208

KX-PW507DLQG.indb4KX-PW507DLQG.indb4 2007/08/279:52:382007/08/279:52:38

Installations and connections

Installing recording paper (A4 size)

2Set up the recording paper stands.

Pull out the front stand first.

3Insert the recording paper into the

recording paper tray. (Up to 15 sheets)

●Fan the stack of recording paper.

Recording paper

●Printing side is

on the back.

1Open the recording paper tray.

1Remove the recording paper and fold the recording

paper stands in.

2Close the recording paper tray.

Folding the recording paper tray

KX-PW507DLQG.indb5KX-PW507DLQG.indb5 2007/08/279:52:422007/08/279:52:42

















Connecting the main unit

Installations and connections

Setting up the portable handset

(KX-FKN515)

1Raise the antenna.

Power cord

Telephone line cord

(supplied accessory) Wall jack

Power outlet

(AC 100 V)

3Connect the telephone line cord.

4Connect the power cord.

2Connect the cord and

place the handset on

the main unit.

After the Power On...

4Charge the battery in the charger for 10 hours.

After your Panasonic battery is fully charged,

it will last up to about 5 hours of conversation.

Battery

If you can not make a call...

Set the dialing mode with the main unit.

1. Press (Function/Resolution).

Press

3. Press (Search button) repeatedly until the

desired setting is selected.

4. Press (Set).

5. Press (Stop).

Example :

 : Tone

 : Pulse (20 PPS)

 : Pulse (10 PPS)

 : Auto (Default)

Charger

Power outlet

(AC 100 V)

1This unit will automatically select the dialing

mode (Tone/Pulse).

2When the following is displayed, press

(Stop).









 







KX-PW507DLQG.indb6KX-PW507DLQG.indb6 2007/08/279:52:472007/08/279:52:47









Cursor



















Setting the date and time Setting your facsimile

telephone number

1Press (Function/Resolution). 1Press (Function/Resolution).

5Press (Stop).

6Press (Stop).

Example :

3Enter your facsimile telephone number, up to

20 digits.

Example: +098 7654··

3Enter the correct year/month/day.

Example: December 1, 2007

Press .

2Press .

4Enter the correct hour/minute in a 24-hour clock entry.

Example: 15:45 (3:45 PM)

Press .

5Press (Set). 4Press (Set).

2Press .

Example :

















Cursor

















































  







Example :



























  









































The (Tone) button replaces

the digit with “+”.

The (Hold/Call memory)

button replaces the digit with a

space.



















KX-PW507DLQG.indb7KX-PW507DLQG.indb7 2007/08/279:52:502007/08/279:52:50

































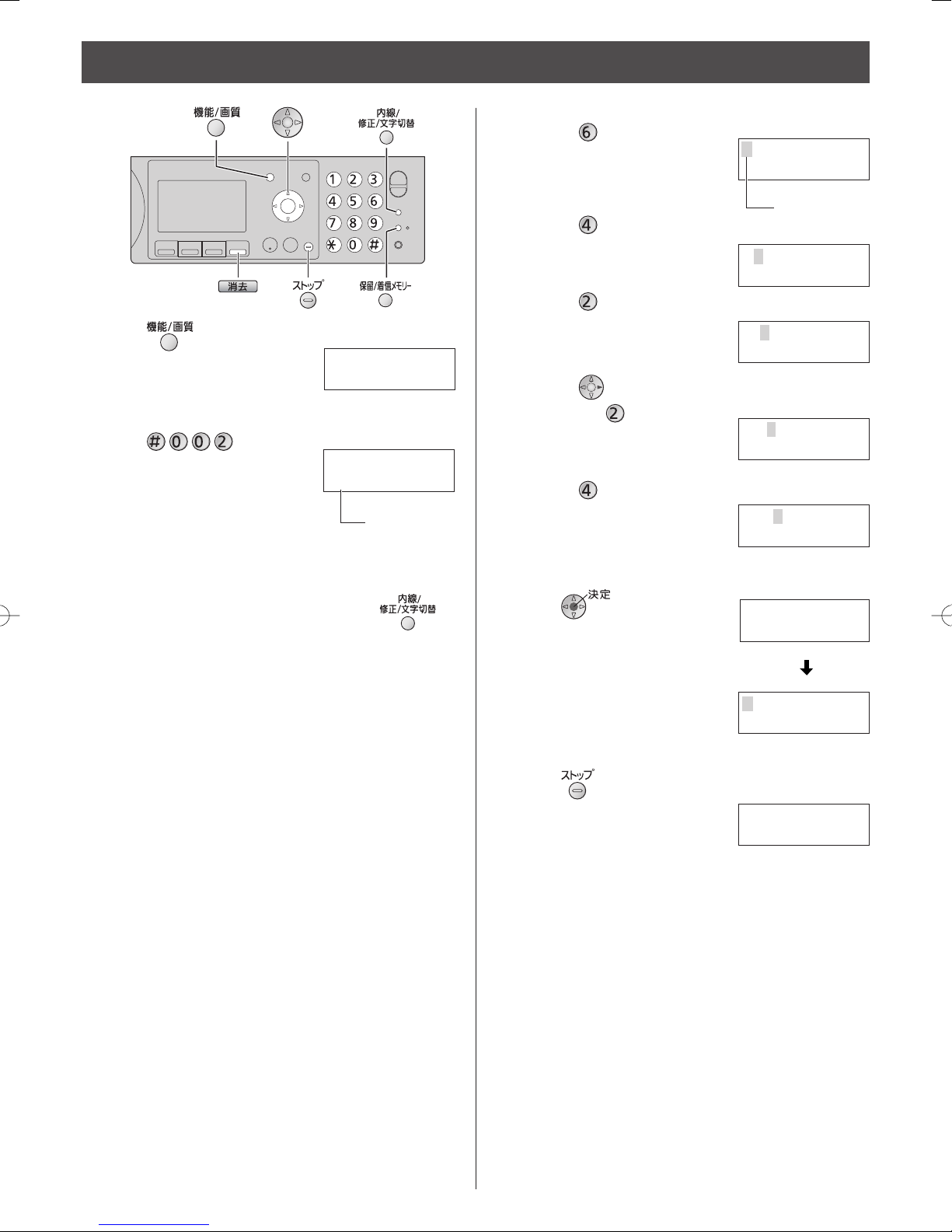

3Enter your logo, up to 30 characters, using the dial

keypad.

To enter English characters easily, press

(Intercom/Edit/Character input mode) repeatedly

and select “ 英” (English and sign input mode).

For details, see the table on page 9 for instructions.

Setting your logo

1Press (Function/Resolution).

5Press (Stop).

Example: Micah

1. Press once.

2. Press six times.

3. Press six times.

4. Press to move the cursor to the next space

and press four times.

5. Press five times.

4Press (Set).









2Press .

Example :

Cursor



























Cursor





















































KX-PW507DLQG.indb8KX-PW507DLQG.indb8 2007/08/279:52:522007/08/279:52:52

Character input and command key table

Pressing the dial keys will select a character as shown below.

Character Hiragana Katakana English Numbers

Display of the

main unit and the

portable handset

［かな］［カナ］［英］［数］

Dial key

Main

(

unit

)

Portable

handset

(

KX-FKN515

)







 @ . _ – & $ ¥ % + = ˜^

      

       

       

        

    

       

      

      

           ’”

  

 

Command keys

(Main unit), (Portable handset) Used to change the character input

mode.

(Main unit),

(Portable handset) Used to move the cursor to the left

and right.

(Main unit), (Portable handset) Used to delete a character.

(Main unit), (Portable handset) Used to insert a space.

The characters on the display are somewhat different from those shown in the character input and command key table.

KX-PW507DLQG.indb9KX-PW507DLQG.indb9 2007/08/279:52:532007/08/279:52:53

Operation guide

The unit starts the following voice guidance in Japanese:

Operations To cancel the operation guide

Send a fax

(Select “

なし

”)



Copy

Add entries to the phonebook

(Select “

なし

”)



Store phonebook entries in the speed dialer

Make a call using the phonebook/redial/

speed dialer/call memory

Change a ink film (Select “

なし

”)



Print fax documents from the main unit memory (Select “

なし

”)



Reading-out dial

The unit announces the number dialed in Japanese, when you make a call with the main unit.

To cancel the reading-out dial

(Select “

なし

”)

Voice guide

KX-PW507DLQG.indb10KX-PW507DLQG.indb10 2007/08/279:52:552007/08/279:52:55

This manual suits for next models

Table of contents

Other Panasonic Fax Machine manuals

Panasonic

Panasonic Panafax UF-490 User manual

Panasonic

Panasonic KX-FP80C User manual

Panasonic

Panasonic KX-FP105 User manual

Panasonic

Panasonic KX-F580 User manual

Panasonic

Panasonic KX-FHD301 User manual

Panasonic

Panasonic KX-FT33NZ User manual

Panasonic

Panasonic KX-PW308DW User manual

Panasonic

Panasonic KX-FL313HK User manual

Panasonic

Panasonic UF-6300 User manual

Panasonic

Panasonic KX-PD750DL User manual

Panasonic

Panasonic KX-PD715DL User manual

Panasonic

Panasonic KX-FPG376 User manual

Panasonic

Panasonic KX-FP81 User manual

Panasonic

Panasonic KX-FT33NZ User manual

Panasonic

Panasonic KX-FC962HK User manual

Panasonic

Panasonic KX-FLB851E User manual

Panasonic

Panasonic KX-FP152 Operating and installation instructions

Panasonic

Panasonic UF-5950 - Panafax - Fax User manual

Panasonic

Panasonic KX-FL613HK User manual

Panasonic

Panasonic KX-FM220 User manual

Panasonic

Panasonic Panafax UF-250 User manual

Panasonic

Panasonic KX-FT72BR-G User manual

Panasonic

Panasonic KX-FPG391 - Fax / Copier User manual

Panasonic

Panasonic KXFG2451 - B/W Thermal Transfer Parts list manual

Popular Fax Machine manuals by other brands

Samsung

Samsung SF-515 user manual

Radio Shack

Radio Shack TFX-1031 owner's manual

imagistics

imagistics 2030 Operator's guide

Furuno

Furuno FAX-30 Operator's manual

Savin

Savin 3740 Setup

Sharp

Sharp FO-51 Operation manual

Muratec

Muratec MFX-C3035 user guide

Canon

Canon FAX-L400 Facsimile guide

Ricoh

Ricoh 1000L Field service manual

Sharp

Sharp FO-3150 Operation manual

Kyocera

Kyocera KM-F1060 operating instructions

Sharp

Sharp FO-2970M Operation manual

Canon

Canon JX510P instruction manual

Mita

Mita LDC-870 Instruction handbook

Brother

Brother MFC 640CW - Color Inkjet - All-in-One user guide

Samsung

Samsung FX100 Operator's guide

Sharp

Sharp MX-FXX1 Quick reference guide

Develop

Develop ineo 25e manual
