Panasonic KX-FHD332C User manual

ORDERNO. KMF0206584C1

Compact PlainPaper FAXand Copier

KX-FHD332C

(for Canada)

Unauthorized copying and distribution isaviolation of law.

1. INTRODUCTION

1.1. SAFETY PRECAUTIONS

1. Before servicing, unplug the AC power cord to prevent an electric

shock.

2. When replacing parts, use onlythe manufacturer's recommended

components.

3. Check the condition of the power cord. Replace ifwear or damage

isevident.

4. After servicing, be sure to restore the lead dress, insulation

barriers, insulation papers, shields, etc.

5. Before returning the serviced equipment to the customer, be sure

to perform the following insulation resistance test to prevent the

customer from being exposed to shock hazards.

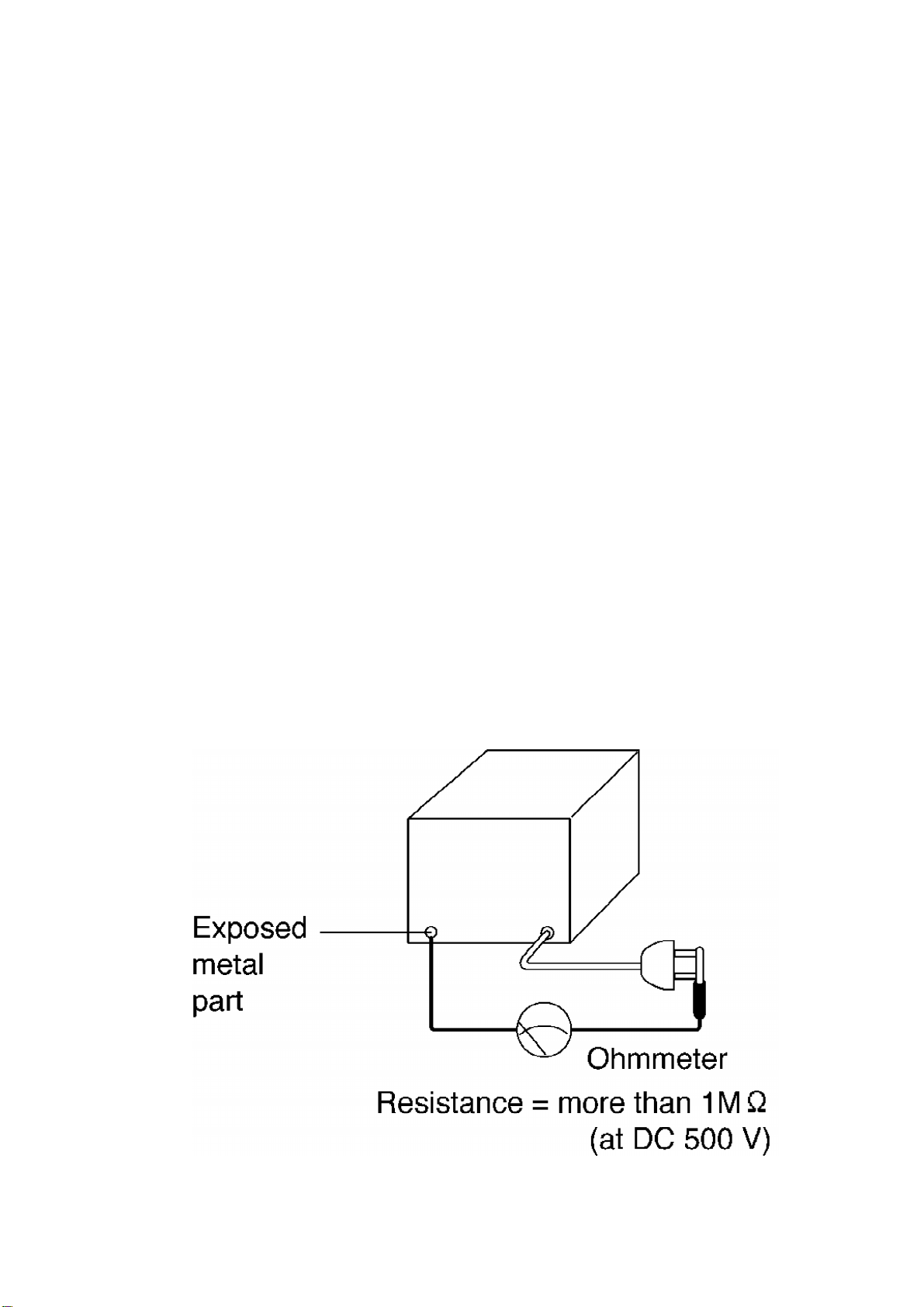

1.2. INSULATIONRESISTANCETEST

1. Unplug the power cord and short the twoprongs of the plug with

ajumper wire.

2. Turn on the power switch.

3. Measure the resistance value with an ohmmeter between the

jumpered AC plug and each exposed metal cabinet part

(screw heads, control shafts, bottom frame, etc.).

Note: Some exposed parts maybe isolated from the chassisby

design. These will read infinity.

4. Ifthe measurement isoutside the specified limits, there isa

possibilityof ashock hazard.

1.3. FORSERVICETECHNICIANS

ICs and LSIs are vulnerable tostatic electricity.

Whenrepairing, the following precautions will helpprevent recurring malfunctions.

1. Cover the plasticpart's boxes with aluminum foil.

2. Ground the soldering irons.

3. Use aconductive mat on the worktable.

4. Donot touch the ICor LSI pins with bare fingers.

1.4. BATTERYCAUTION

CAUTION

Danger of explosion ifthe batteryisreplaced incorrectly. Replace

onlywith the same or equivalent type recommended bythe

manufacturer. Discard used batteries according to following caution

Disposal of lithium batteries shouldbe performed bypermitted,

professional disposal firms knowledgeableinstate government

federal and local hazardous materialsand hazardous waste

transportation and disposal requirements.

Abatterycontinues to have no transportation limitations as long as

itisseparated to prevent short circuits and packed instrong

packaging.

Commercial firms that dispose of anyquantityof lithium cells

shouldhave amechanism inplace to account for theirultimate

disposition. Thisisagood practice for all types of commercial or

industrial waste.

Recommend Type Number:

CR2032 (BAT501) Manufactured byMATSUSHITA/SONY/TOSHIBA/

HITACHI

1.5. AC CAUTION

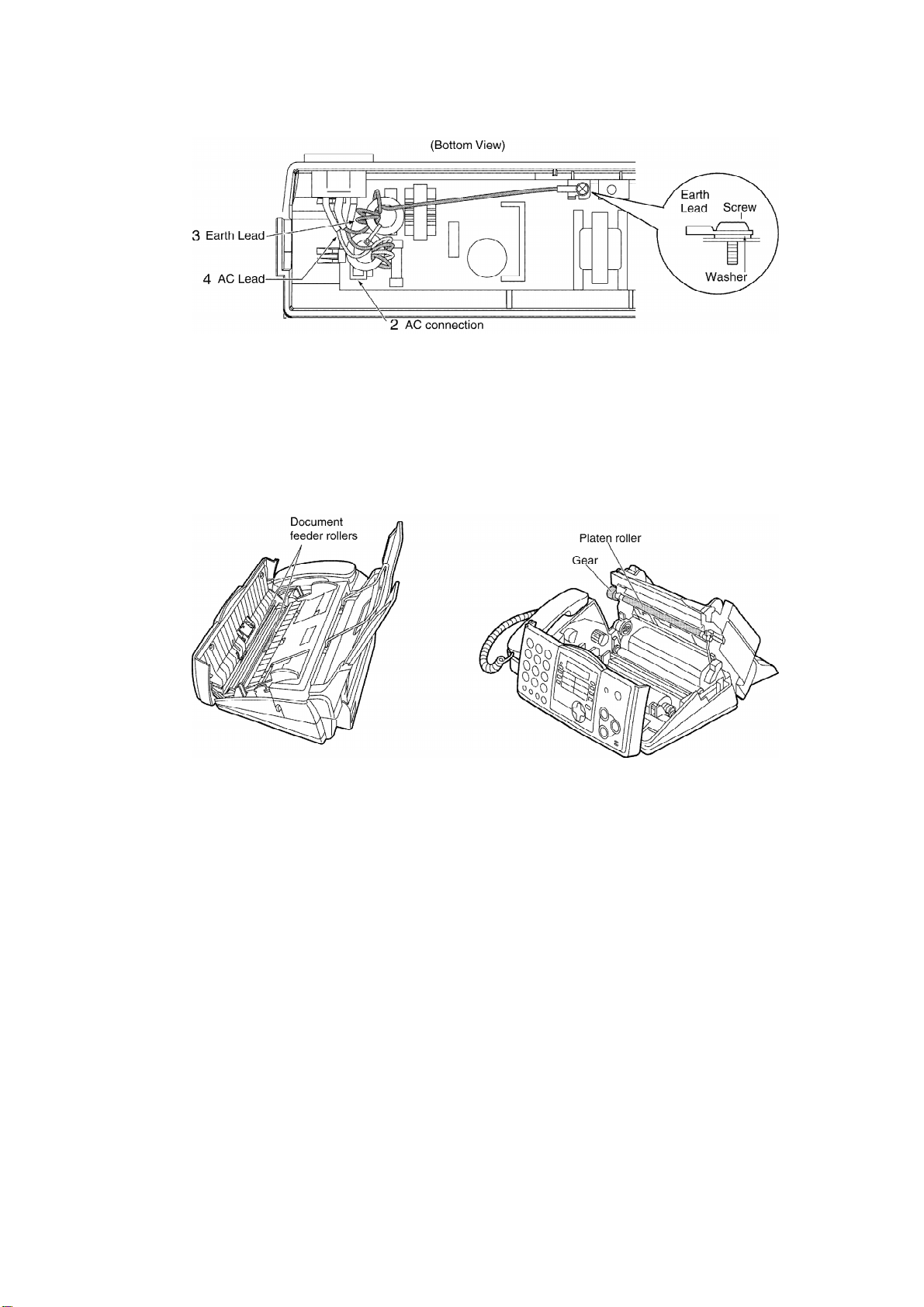

Forsafety, before closing the lowercabinet, please make sure of the following precautions.

1. The earth lead isfixed with the screw.

2. The AC connector isconnected properly.

3. Wrap the earth lead around the core 3times.

4. Wrap the AC lead around the core 2times.

1.6. PERSONALSAFETY PRECAUTIONS

1.6.1. MOVING SECTIONS OFTHE UNIT

Be careful not tolet yourhair, clothes, fingers, accessories, etc., become caught inanymoving

sections of the unit.

The moving sections of the unit are the rollers and a gear. There is a separation rollerand a

document feedrollerwhichare rotatedbythe document feedmotor. A gearrotates the two

rollers. Be careful not totouchthemwithyourhands, especiallywhenthe unit is operating.

1.6.2. LIVE ELECTRICALSECTIONS

All the electrical sections of the unit suppliedwithAC powerbythe AC powercordare live.

Neverdisassemble the unit forservice withthe AC powersupplypluggedin.

CAUTION:

AC voltage issupplied to the primaryside of the power supplyunit.

Therefore, alwaysunplug the AC power cord before disassembling

for service.

1.7. SERVICEPRECAUTIONS

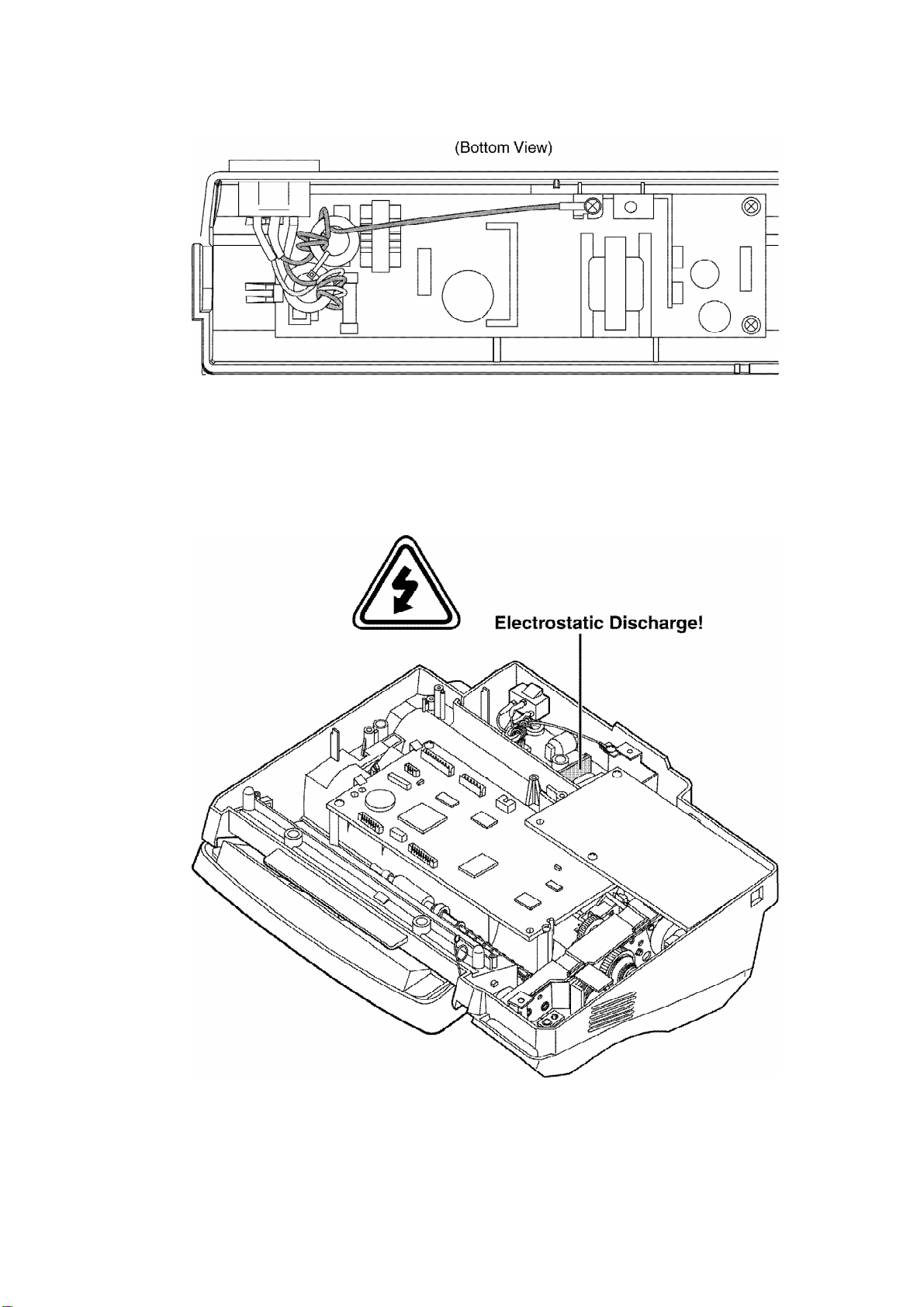

1.7.1. PRECAUTIONS TO PREVENTDAMAGE FROM STATIC ELECTRICITY

Electrical charges accumulate on a person. Forinstance, clothes rubbing togethercandamage

electric elements orchange theirelectrical characteristics. Inordertoprevent static electricity,

toucha metallic part that is groundedtorelease the static electricity. Nevertouchthe electrical

sections suchas the powersupplyunit, etc.

2. FEATURES AND SPECIFICATIONS

2.1. FEATURES

General

-Helpfunction

Display:

-QUICK SET UP

-FEATURELIST

-DIRECTORY

-FAXSND/RCV

-COPIER

-REPORTS

-CALL DISPLAY

-LCD (LiquidCrystal Display)readout

-TAM(Telephone answering machine) interface

PlainPaperFacsimile Machine

-15 second transmission speed *

-Letter / Legal, G3compatible

-Automaticdocument feeder (10 sheets)

-Quick scan

-Resolution: Standard / Fine / Super fine / Photo (64 level)

-Broad cast with Navigator

-50-sheet paper capacity(20 lb.)

-Automaticfax/phone switching

-Distinctive ring detection **

*The 15 second speedis basedupon the ITU-TNo. 1 Test Chart on the condition that memory

transmission is performed.

** Subscription todistinctive ring services is required.

Large Memory(28 pages)... PerformedbyDRAM

Approx. 25 pages of memorytransmission

Approx. 28 pages of memoryreception

IntegratedTelephone System

-On-hook dialing

-Monitor speaker

-Voice muting

-Redialing function

-100-Station telephone directorywith Navigator/one-touch key

-Caller IDcompatible***

***Feature requires asubscription to caller identification services

offered bycertainlocal telephone companies for atee. You and

your caller(s) must be inareas that provide caller identification

services, and compatibleequipment must be used byboth

telephone companies. Feature not availablewhen the unitis

connected to aPBXsystem.

EnhancedCopierFunction

-Multi-copyfunction (up to 50 copies)

-Enlargement and reduction

-Collate

-64-Level halftone

2.2. OPTIONALACCESSORIES

-The included filmroll is10 meters (32 1/2’)long. We recommend

that you buyafull-size replacement film70 meters (229’)for

continuous use of your unit. For best results, use genuine

Panasonicreplacement filmas follows:

Model No. Description Specifications

KX-FA57A Replacement Film 216 mm × 70 m(8 1/2”×229’)

Note:

The ink filmis not reusable. Donot rewind and use the ink filmagain.

2.3. SPECIFICATIONS

ApplicableLines:

PublicSwitched Telephone Network

Document Size:

Max. 216 mm (8 1/2") inwidth

Max. 600 mm (23 5/8") inlength

Effective Scanning Width:

208 mm (8 3/16")

Recording Paper Size:

Letter: 216×279 mm (8 1/2"×11")

Legal:216×356 mm (8 1/2"×14")

Effective Printing Width:

208 mm (8 3/16")

Transmission Time*1:

Approx. 15 s/page (Original mode)*2

Scanning Density:

Horizontal:

8pels/mm (203 pels/inch)

Vertical:

3.85 lines/mm (98 lines/inch)—STANDARD mode

7.7lines/mm (196 lines/inch)—FINE/ PHOTO mode

15.4lines/mm (392 lines/inch)—SUPERFINEMode

Halftone Level:

64-level

Scanner Type:

Contact Image Sensor (CIS)

Printer Type:

Thermal Transfer on PlainPaper

Data Compression System:

Modified Huffman (MH), Modified READ (MR)

Modem Speed:

9,600/7,200/4,800/2,400 bps; AutomaticFallback

Operating Environment:

5—35°C(41—95°F), 20—80 %RH (Relative Humidity)

Dimensions:

Approx. height 185 mm × width 355 mm × depth 275 mm (7 9/32"×13

31/32"×10 27/32")

Mass (Weight):

Approx. 3.4kg (7.5lb.)

Power Consumption:

Standby:Approx. 3.6W

Transmission: Approx. 12 W

Reception: Approx. 40 W(When receiving a20%black document)

Copy:Approx. 55 W(When copying a20%black document)

Maximum: Approx. 135 W(When copying a100%black document)

Power Supply:

120 VAC, 60 Hz

MemoryCapacity:

Approx. 25 pages memorytransmission

Approx. 28 pages memoryreception

(Based on ITU-T No. 1Test Chart instandard resolution.)

*1Transmission speeddepends upon the contents of the pages, resolution, telephone line

conditions and capabilityof the otherparty’s machine.

*2Transmission speedis basedupon the ITU-TNo. 1 Test Chart and original mode. (Referto ITU

-T No.1 TEST CHART ().) If the capabilityof the otherparty's machine is inferiortoyourunit, the

transmission time maybe longer.

Note:

-Anydetailsgiven inthese instructions are subject to change

without notice.

-The pictures and illustrations inthese instructions mayvary

slightlyfrom the actual product.

3. INSTALLATION

3.1. LOCATIONOFCONTROLS

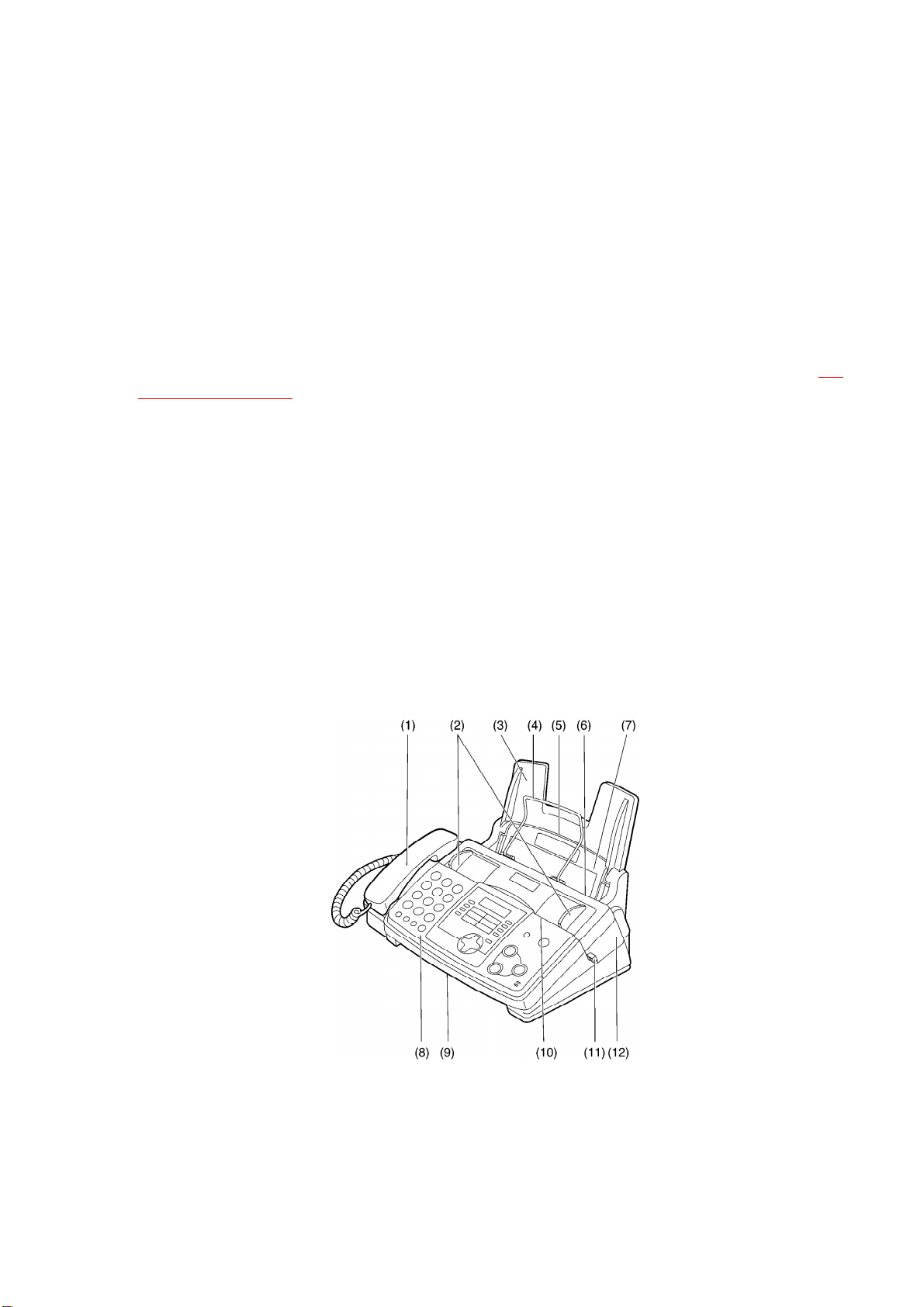

3.1.1. FRONTVIEW

(1) Handset

(2) Document guides

(3) Papertray

(4) Recording papersupport

(5) Recording paperentrance

(6) Recording paperexit

(7) Tension plate

(8) Front cover

(9) Document exit

(10) Document entrance

(11) Back coveropenbutton

(12) Back cover

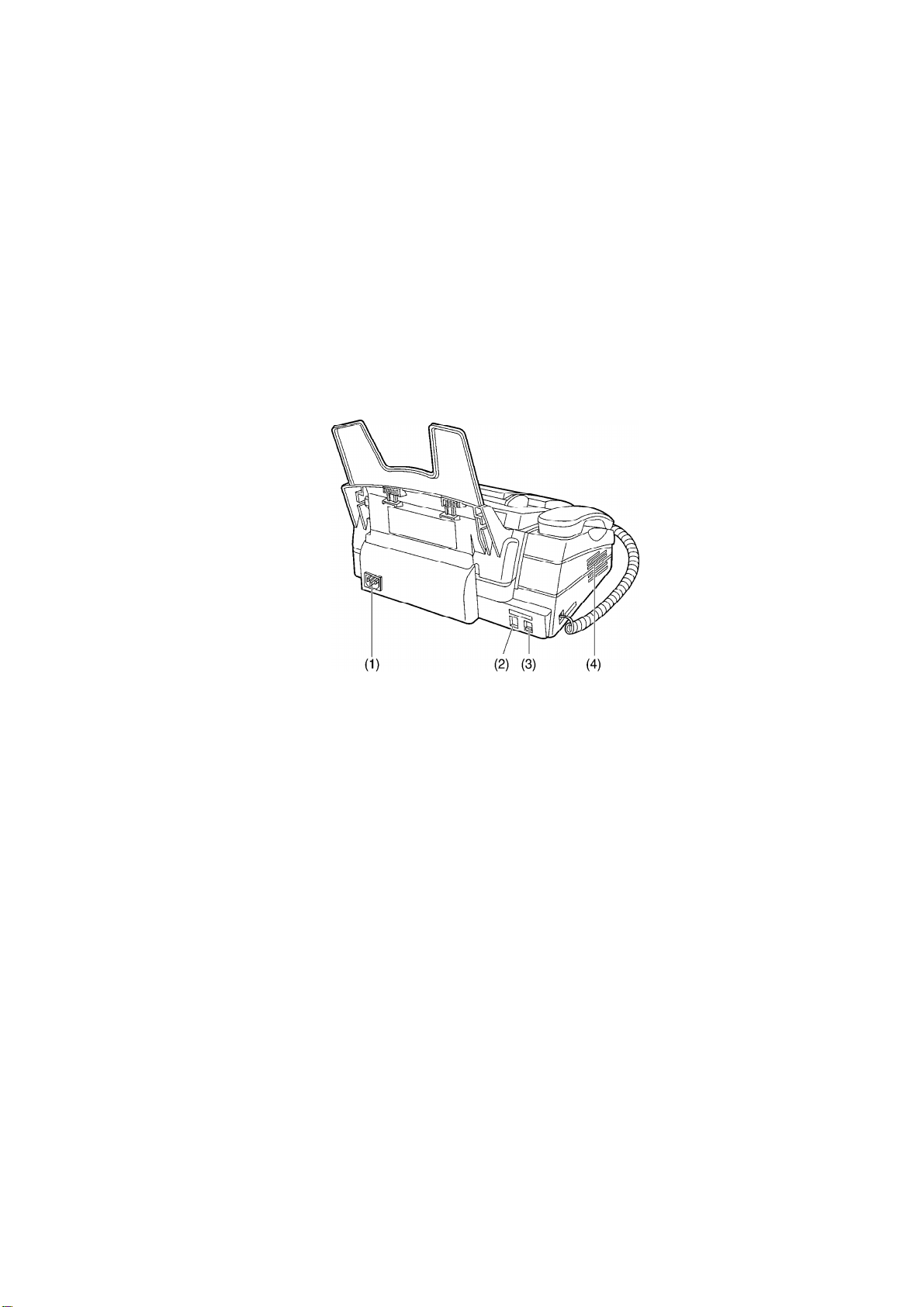

3.1.2. REAR VIEW

(1) Powerinlet

(2) Telephone line jack

(3) External telephone jack

(4) Speaker

3.1.3. CONTROLPANEL
