Panasonic ES-RF41 User manual

bution is a violation of law.

Order Number SD1009U61CE

Rechargeable Shaver

Model No. ES-RF41

ES-RF31

America

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 4

5 Schematic Diagram ---------------------------------------------- 7

6 Exploded View and Replacement Parts List ------------ 8

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

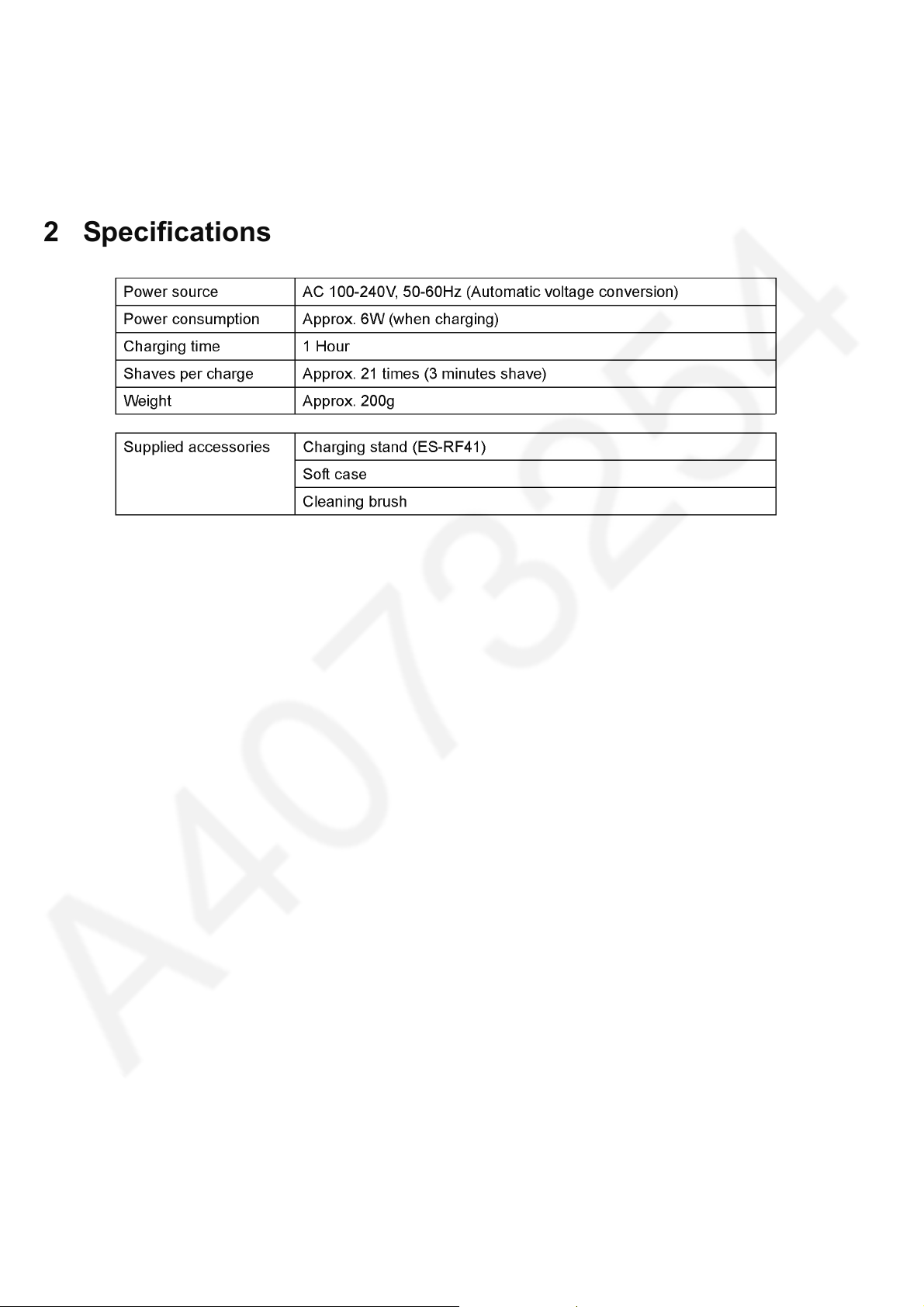

2 Specifications

3 Troubleshooting Guide

4 Disassembly and Assembly Instructions

4.1. Disassembly Instructions

1. Remove the cap, the outer foil with outer foil frame and

the inner blades.

2. Slide the trimmer handle and unhook the trimmer handle

by inserting something like a slotted screwdriver or plastic

spatula into a slit.

3. How to disassemble the housing.

a. Loosen a screw.

b. Slide the rear panel and remove it.

c. Loosen 8 screws.

d. Remove the housing.

4. To remove the trimmer driving bar or the slit blade driving

bar, press bars outward.

5. Pull up the battery and chassis block from the linear

motor side first. Then, slide it upward and take it out from

the front panel.

NOTE:

Do not pull the battery and chassis block forcefully

due to connecting the linear motor by the lead wires.

6. Take out the battery from the chassis.

7. Unsolder the lead wires from the module.

8. Take out the tube holder.

9. Move gently the linear motor assembly down and unhook

it and remove the float springs from the front panel.

4.2. Caution in Assembly

NOTE:

When reassembling, replace the new waterproof seal. Make sure whether there is NO foreign substance sticking around a part

covered with waterproof seal.

1. Solder the lead wires with the module.

NOTE:

Make sure of the color of lead wires.

2. When inserting the module and chassis block into the

front panel, confirm if the module does not get any dam-

age or deformation.

3. Twist the lead wires and place them in the ribs.

4. Set the trimmer driving bar and the slit blade driving bar.

5 Schematic Diagram

5.1. ES-RF41

5.2. ES-RF31

Model No. : ES-RF41 Exploded View for ES-RF41

6 Exploded View and Replacement Parts List

Model No. : ES-RF41 Parts List

Safety

Ref.

No. Part No. Part Name & Description Q'ty Remarks

ES-RF41

1 WESRF41X7158 PROTECTIVE CAP 1 [BG]

2 WESRF41S0048 OUTER FOIL FRAME 1 [BG]

3 WES9167PC OUTER FOIL 1

4 WES9068PC INNER BLADE 1ST

5 WESRF41L1008 LINEAR MOTOR ASSEMBLY 1 [BG]

6 WESRF41L1088 TRIMMER DRIVING BAR 1 [BG]

7 WES8258L1077 SLIT BLADE DRIVING BAR 1 [BG]

8 WES8258L1177 FINISHING BLADE DRIVING BAR 1 [BG]

9 WES8258L0327 WATERPROOF RUBBER 1 [BG]

10 WES7046L0237 TUBE HOLDER 1 [BG]

11 WESRF41S3858 FRONT PANEL 1 [BG]

12 WESRF41K3068 HOUSING 1 [BG]

13 WES7023L6058 TAPPING SCREW 1 (K2-8), [BG]

14 WES8176L6007 P TIGHT SCREW 1 (M2-12), [BG]

15 WESRF41L2128 MODULE 1 [BG]

16 WES8176L2509 LITHIUM ION STORAGE BATTERY 1 (LM-ION TYPE), [BG]

17 WESRF41K1508 TRIMMER 1 [BG]

18 WESRF41K3369 REAR PANEL 1 [BG]

19 WESRF41K3039 BODY BLOCK 1 [BG]

20 WESRF41K7658 CHARGING ADAPTOR 1 (A-2 PLUG), [BG]

21 WESLT50K7189 CHARGING STAND 1 [BG]

22 WES7115K7007 SOFT CASE 1 [BG]

23 WES8093H7057 CLEANING BRUSH 1 (Only for Canada and Latin America), [BG

]

- WESRF41S8000 INDIVIDUAL BOX 1 [BG]

- WESRF41S8109 OPERATING INSTRUCTIONS 1 [BG]

Model No. : ES-RF31 Exploded View for ES-RF31
