Mechanical Parts List

MODEL No.: AJ-HVF21G

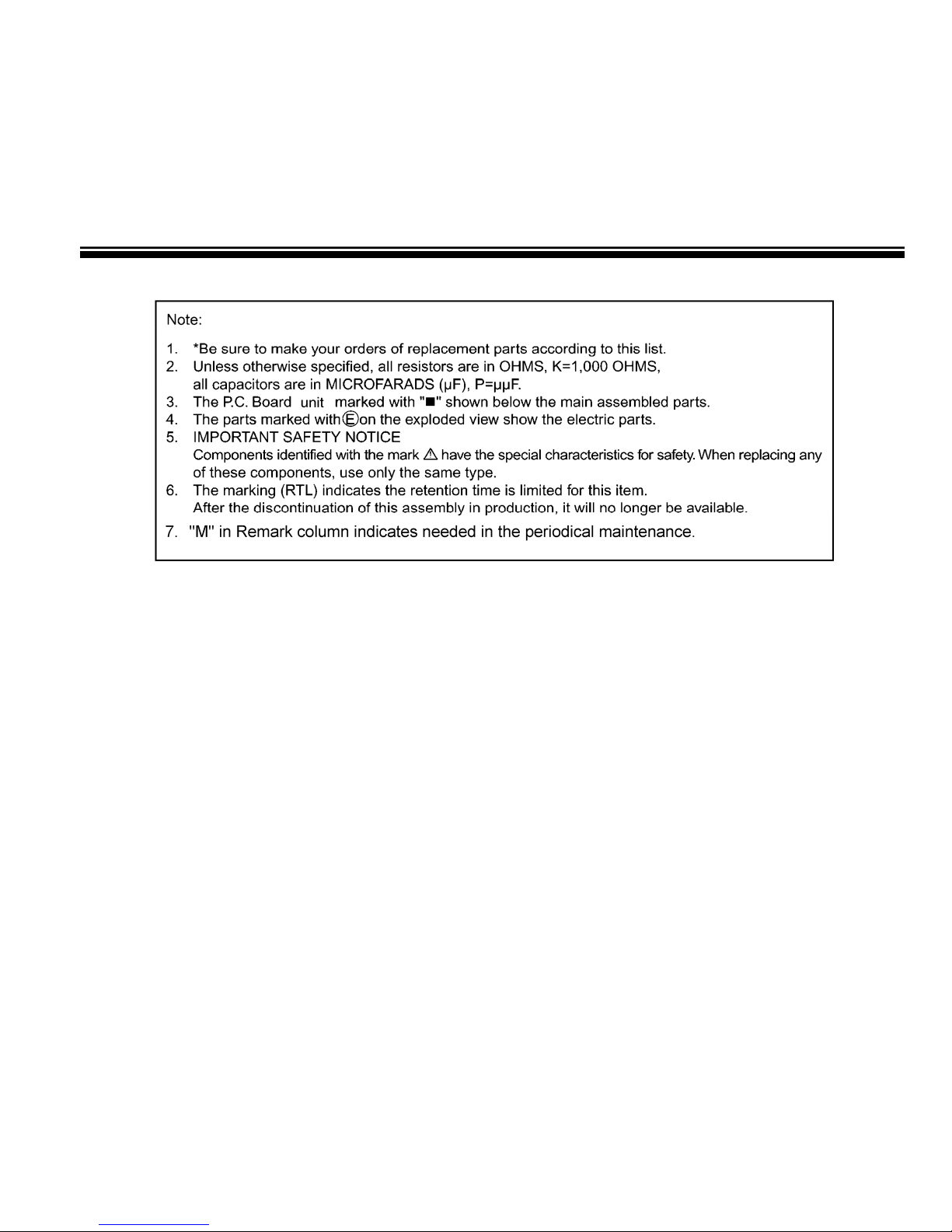

CONTENTS

CASING PARTS ASSEMBLY ..........................................................................................................MPL-1

PACKING PARTS ............................................................................................................................MPL-3

ELECTRICAL REPLACEMENT PARTS LIST .................................................................................EPL-1

54 55

55 6

63 63

RELEASE

60 31

61 28

51 52

211

39 38

42 43

34 35

CASING PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

MPL-1

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VYK1Z27 TOP CASE U 1

2 VYK1X59 BOTTOM CASE U 1

3 VYC0884 MIC MOUNT U 1

4 VMC1513 PLATE SPRING (A) 1

5 VKH0389 GUARD BAR 1

6 VMG1217 CASE PACKING (1) 1

7 VMG1218 CASE PACKING (2) 1

8 VGU8170 TALLY KNOB 1

9 VGQ5321 TALLY BASE 1

10 VGL0837 BACK TALLY COVER 1

11 VMG1219 BACK TALLY SHEET 1

12 VEE1D20 VF CABLE 1

15 VMG1225 SW PACKING 1

16 VMZ2914 INSULATOR 1

17 VHD1884 VR NUB 3

18 VGU0A67 VR KNOB 3

18 VGU0A66 VR KNOB ASS'Y 3

19 VEK0K61 CRT/DY CONNECTOR U 1

20 VGP5041 MASK 1 Jan-07 Revised

21 VMZ2915 MASK SHEET 1

22 VEE1C86 10P CABLE 1 (MAIN) -(LED)

23 VGH4923 DISPLAY PLATE 1 Jan-07 Revised

24 VMG1221 LENS LOCK PACKING 1

25 VMX3242 SLIP RING 1

26 VGP6184 OUT SIDE HOLDER 1

27 VYC0951 LENS CASE 1

28 VMG1423-S EYE CAP 1

29 VFC4122 VR RAIL U 1

30 VGM1655 LOCK TABLE 1

31 XSB3+8VJK SCREW 5

32 XWA3BFJK SCREW 3

33 VMP7716 STOPPER BASE 1

34 VMB3791 STOPPER RING 1

35 VMS7411 STOPPER PIN 1

36 VDL0965 UV FILTER 1

37 VDL0963 VF MIRROR 1

38 VMP6010 MIRROR GUIDE 1

39 VMP6011 MIRROR PLATE 1

40 VMG1449 MIRROR CUSHION 1

41 VMC1514 LOCK SPRING 1

42 VGQ9076 LOCK RING 1

43 VMX2887 LOCK SPACER 1

50 XSB4+12FJK SCREW 2

51 VHD1528 MIC HOLDER SCREW 1

52 XWGV35D8G WASHER 1

54 VMX2885 SCREW WASHER 3

55 XVE26+A8FZ SCREW 5

56 VHD1885 SCREW 2

57 XQN2+A4FN SCREW 2

58 XXEV2W3FP HEX SCREW 3

59 XSB2+4FC SCREW 4

60 XQN2+A3FJK SCREW 2

61 XUC15FP E-RING 1

62 XTN2+6CFN SCREW 1

63 XTS2+5JFJK SCREW 4

64 XTN26+8CFJK SCREW 2

65 XTN2+7JFJK SCREW 4

E1 VEP29177A MAIN P.C.BOARD 1

E2 VEP29178A SUB 1 P.C.BOARD 1

E3 VEP29179A SUB 2 P.C.BOARD 1

E4 VEP29176A LED P.C.BOARD 1

E5 VEP29180A SUB 3 P.C.BOARD 1

CASING PARTS ASSEMBLY

MPL-2

PACKING PARTS

MPL-3

Components identified with the mark have the special characteristics for safety.

When replacing any of these components, use only the same type.

Ref.No. Part No. Part Name & Description

Remarks Ref.No. Part No. Part Name & Description

Remarks

1 VQT0X77 OPERATING INSTRUCTIONS 1

2 VPG0A71 PACKING CASE 1

3 VPN5247 CUSHION A 1

4 VPN5248 CUSHION B 1

5 VPN5249 CUSHION C 1

6 KH4-10 CUSHION D 1

7 VPN5251 CUSHION E 1

8 VPN5252 CUSHION F 1

9 VQL1K00 PACKING LABEL 2

10 KH8208 POLYETHYLENE BAG 1
