INSTALLATION AND

OPERATING INSTRUCTIONS

Room Air Conditioner

Models: CW-XC103HU

CW-XC123HU

CW-XC143HU

CW-XC118HU

Please read these operating instructions thoroughly

before using your air conditioner and keep for future

reference.

For assistance, please call: 1-800-211-PANA(7262) or

Safety Precautions

About the Controls on the Air Conditioner

Features and Installation

Before you call for service...

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of the unit.

Dealer's Name

Date Purchased

Staple your receipt here for proof of purchase.

Inside you will find many helpful hints on how to use and

maintain your air conditioner properly. Just a little preventive

care on your part can save you a great deal of time and

money over the life of your air conditioner.

You'll find many answers to common problems in the chart

of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call for

service at all.

READ THIS MANUAL

CAUTION

• Contact the authorized Service technician for repair or

maintenance of this unit.

• The air conditioner is not intended for use by young

children or infirm persons without supervision.

• Young children should be supervised to ensure that they

do not play with the air conditioner.

Safety Precautions

Safety Precautions.............3

About the Controls on

the Air Conditioner

Controls..............................5

Ventilation ..........................7

Air Direction........................7

How to Secure Drain Pipe..7

Care and Maintenance

Air Filter Cleaning...............8

How to Insert Batteries.......8

Features

Features.............................9

Installation

How to Install the Unit......10

Window Requirements.....10

Installation Kit Contents

.....11

Suggested Tool

Requirements...................11

Cabinet Installation...........12

Electrical Data..................14

Electrical Safety ...............15

Before you call for

service...

Normal Operation.............16

Abnormal Operation.........16

Safety Precautions

WARNING

Safety Precautions

To prevent injury to the user or other people and property damage, the following instructions must be

followed.

■Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified

by the following indications.

WARNING : This symbol indicates the possibility of death or serious injury.

CAUTION :This symbol indicates the possibility of injury or damage to

property only.

■Meanings of symbols used in this manual are as shown below.

Be sure not to do this.

Be sure to follow the instructions.

Plug in the power plug

properly.

• Otherwise, it will cause electric

shock or fire due to heat

generation.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

• It will cause electric shock or fire

due to heat generation.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or fire.

•

If the power cord is damaged, it must

be replaced by the manufacturer or

an authorized service center or a

similarly qualified person in order to

avoid a hazard.

Do not modify power cord

length or share the outlet

with other appliances.

• It will cause electric shock or fire

due to heat generation.

Do not operate with wet

hands or in a damp

environment.

• It will cause electric shock.

Do not direct airflow at room

occupants.

• This could damage your health.

Safety Precautions

When the air filter is to be

removed, do not touch the

metal parts of the unit.

• It may cause an injury.

Do not clean the air

conditioner with water.

•Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

Ventilate well when used

together with a stove, etc.

• An oxygen shortage may occur.

When the unit is to be

cleaned, switch off, and turn

off the breaker.

•Since the fan rotates at high

speed during operation, it may

cause an injury.

Do not put a pet or house

plant where it will be exposed

to direct air flow.

• This could injure the pets or

plants.

Do not use for special

purposes.

• Do not use this air conditioner to

preserve precision devices, food,

pets, plants, and art objects.

It may cause deterioration of

quality, etc.

Do not operate switches

with wet hands

• It may cause an electric shock.

Do not apply an insecticide

or flammable spray.

• It may cause a fire or deformation

of the cabinet.

Do not put a heater, etc.

where it is exposed to direct

air flow.

•

It may cause imperfect

combustion.

About the Controls on the Air Conditioner

Controls

OPERATION

TEMP

TIMER

MODE FAN SPEED

Model: CW-XC118HU

Precaution: The Remote Control unit will not function properly if strong light strikes the sensor

window of the air conditioner or if there are obstacles between the Remote Control

unit and the air conditioner.

OPERATION BUTTON

To turn the air conditioner ON, push the button. To turn the air conditioner OFF, push the button again.

This button takes priority over any other buttons. When you first turn it on, the air conditioner is on the

High cool mode and the temp. at 72°F (22°C).

OPERATION MODE SELECTION BUTTON

Every time you push this button, it will toggle between COOL and FAN.

ON/OFF TIMER BUTTON

You can set the time when the unit will turn on or turn off automatically by pressing the timer button. If

the unit is operating, this button controls the time it will be turned off. If the unit is off state, this button

controls the time it will start. Every time you push this button, the remaining time will be set as follows.

- Stopping operation

•(1Hour → 2Hours →3Hours →4Hours → 5Hours →6Hours →7Hours →8Hours →9Hours →

10Hours →11Hours →12Hours →0Hour → 1Hour → 2Hours →... )

• The Setting Temperature will be raised by 2°F(1˚C) 30min. later and by 2°F(1˚C) after another 30 min.

- Starting operation

•(1Hour → 2Hours →3Hours →4Hours → 5Hours →6Hours →7Hours →8Hours →9Hours →

10Hours →11Hours →12Hours →0Hour → 1Hour → 2Hours → ... )

FAN SPEED SELECTION BUTTON

Every time you push this button, it is set as follows.

[High(F3)→ Low(F1)→ Med(F2) → High(F3) →...]

ROOM TEMPERATURE SETTING BUTTON

This button can automatically control the temperature of the room. The temperature can be set within a

range of 60°F to 86°F by 1°F (16°C to 30°C by 1°C).

Select the lower number for lower temperature of the room.

REMOCON SIGNAL RECEIVER

About the Controls on the Air Conditioner

OPERATION

TEMP

TIMER AIR

SWING

MODE

ECONOMY

FAN SPEED

Model: CW-XC103HU, CW-XC123HU, CW-XC143HU

OPERATION BUTTON

To turn the air conditioner ON, push the button. To turn the air conditioner OFF, push the button again.

This button takes priority over any other buttons. When you first turn it on, the air conditioner is on the

High cool mode and the temp. at 72°F (22°C).

OPERATION MODE SELECTION BUTTON

Every time you push this button, it will toggle between COOL, FAN.

ROOM TEMPERATURE SETTING BUTTON

This button can automatically control the temperature of the room. The temperature can be set within a

range of 60°F to 86°F by 1°F (16°C to 30°C by 1°C).

Select the lower number for lower temperature of the room.

FAN SPEED SELECTION BUTTON

Every time you push this button, it is set as follows.

[High(F3)→ Low(F1)→ Med(F2) → High(F3) →...]

ON/OFF TIMER BUTTON

You can set the time when the unit will turn on or turn off automatically by pressing the timer button. If

the unit is operating, this button controls the time it will be turned off. If the unit is off state, this button

controls the time it will start. Every time you push this button, the remaining time will be set as follows.

- Stopping operation

(1Hour → 2Hours →3Hours →4Hours → 5Hours →6Hours →7Hours →8Hours →9Hours →10Hours

→11Hours →12Hours →0Hour → 1Hour → 2Hours →... )

The Setting Temperature will be raised by 2°F(1˚C) 30min. later and by 2°F(1˚C) after another 30 min.

- Starting operation

(1Hour → 2Hours →3Hours →4Hours → 5Hours →6Hours →7Hours →8Hours →9Hours →10Hours

→11Hours →12Hours →0Hour → 1Hour → 2Hours → ... )

AIR SWING BUTTON

This button can automatically control the air flow direction.

ECONOMY BUTTON

If you push this button, the fan stops when the compressor stops cooling. Approximately every 3 minutes

the fan will turn on and check the room air temperature to determine if cooling is necessary.

REMOCON SIGNAL RECEIVER

Precaution:

The Remote Control unit will not function properly if strong light strikes the sensor window of the

air conditioner or if there are obstacles between the Remote Control unit and the air conditioner.

About the Controls on the Air Conditioner

VENTCLOSE OPEN

Part

Drain pipe

Drain cap

Controlled

manually

Controlled

manually

Controlled by Remote

Controller

Additional controls and important information.

Ventilation

The ventilation lever must be in the CLOSE position in order to maintain the best cooling conditions.

When fresh air is necessary in the room, set the ventilation lever to the OPEN position.

The damper is opened and room air is drawn out.

NOTE: Before using the ventilation feature, and prior to installing the front grille, pull down part until

level with part .

Air Direction

The direction of air can be controlled wherever you want to cool by adjusting the horizontal

louver and the vertical louver.

The vertical air direction is adjusted by rotating the

horizontal louver forward or backward manually.

The horizontal air direction is adjusted by rotating the

vertical louver right or left manually or by Remote Controller.

•VERTICAL AIR-DIRECTION CONTROL

•

HORIZONTAL AIR-DIRECTION CONTROL

How to Secure the Drain Pipe

In humid weather, excess water may cause the BASE

PAN to overflow. To drain the water, remove the DRAIN

CAP and secure the DRAIN PIPE to the rear hole of the

BASE PAN. Press the drain pipe into the hole by pushing

down and away from the fins to avoid injury.

About the Controls on the Air Conditioner

Air Filter Cleaning

The air filter behind the front grille should be checked and cleaned at least once every 2

weeks or more often if necessary.

TO REMOVE:

1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by

pulling out the top of the inlet grille.

2. Using the tab, pull up slightly on the filter to release it and pull it down or up.

3. Clean the filter with warm, soapy water under 40°C (104°F).

4. Rinse and gently shake the water from the filter and let it dry before replacing it.

CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will

clog it and reduce performance.

Care and Maintenance

TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.

1. Remove the cover from the back of the remote

controller.

2. Insert two AAA dry cell batteries.

•Be sure that the (+) and (-) directions are correct.

•Be sure that both batteries are new.

3. Re-attach the cover.

•Do not use

rechargeable batteries.

Such batteries

differ from standard dry

cells in shape,

dimensions, and

performance.

•Remove the batteries

from the remote

controller if the air

conditioner is not going

to be used for an

extended length of time.

HOW TO INSERT BATTERIES

Features and Installation

Learning parts name prior to installation will help you understand the installation procedure.

Features

CABINET

FRONT GRILLE

AIR FILTER AIR INTAKE

(INLET GRILLE)

AIR DISCHARGE

VERTICAL AIR DEFLECTOR

(HORIZONTAL LOUVER)

EVAPORATOR

CONTROL BOARD

REMOTE

CONTROLLER

POWER CORD

BASE PAN

CONDENSER

COMPRESSOR

BRACE

HORIZONTAL AIR DEFLECTOR

(VERTICAL LOUVER)

EVAPORATOR

CONTROL BOARD

REMOTE

CONTROLLER

POWER CORD

BASE PAN

CONDENSER

COMPRESSOR

BRACE

Model: CW-XC103HU

CW-XC123HU

CW-XC143HU

Model: CW-XC118HU

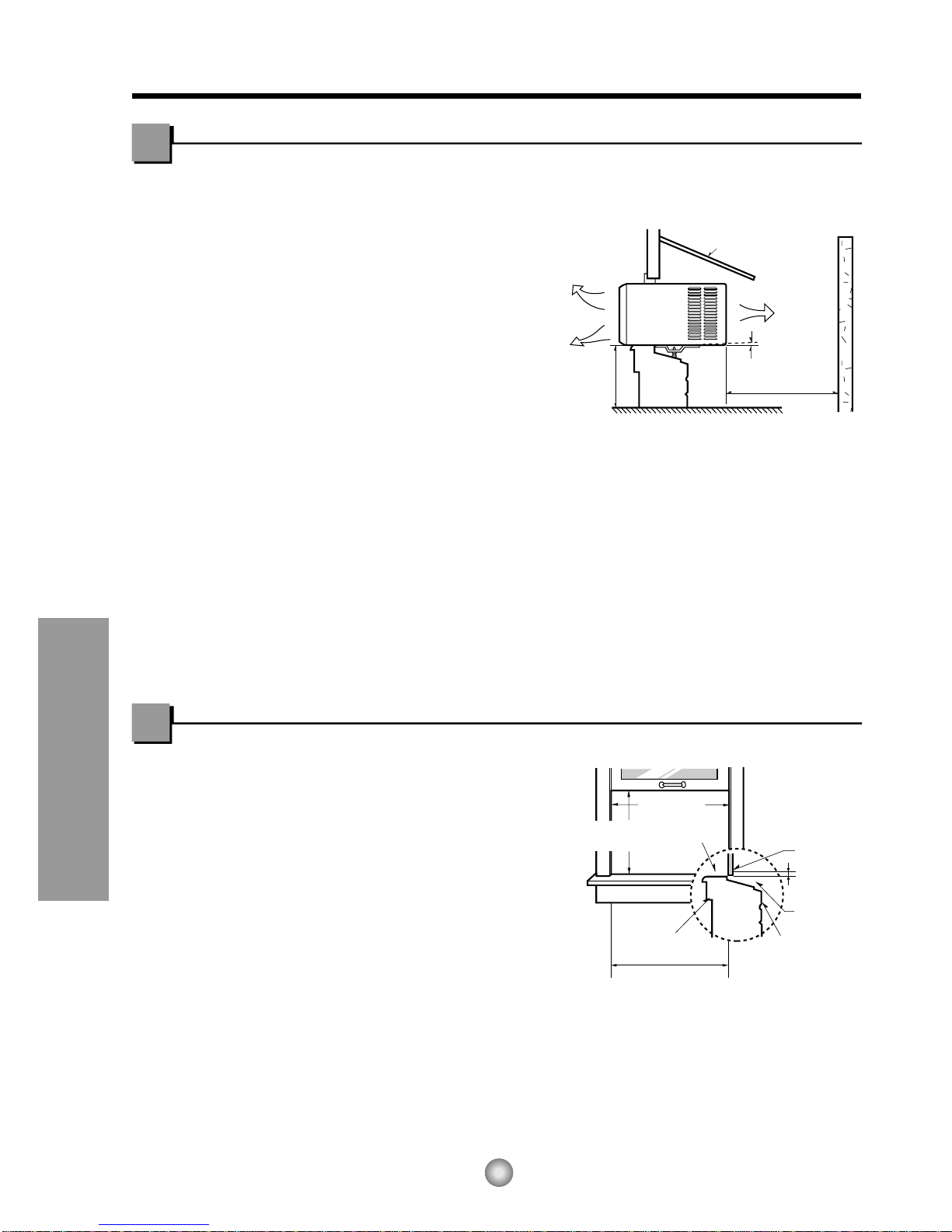

Features and Installation

27" to 39"

Offset

1/2" to 11/4"

Sill

Exterior

Interior wall

23 5/8" min.

(Without frame curtain)

Stool

16" min

(With frame curtain)

About 1/2"

30"~60"

Awning

Cooled air

Fence

Over 20"

Heat

radiation

Installation

1. To prevent vibration and noise, make sure

the unit is installed securely and firmly

2. Install the unit where the sunlight does not

shine directly on the unit.

3. The outside of the cabinet must extend

outward for at least 12" and there should

be no obstacles, such as a fence or wall,

within 20" from the back of the cabinet

because it will prevent heat radiation of the

condenser.

Restriction of outside air will greatly reduce

the cooling efficiency of the air conditioner.

CAUTION: All side louvers of the cabinet must remain exposed to the outside of the

structure.

4. Install the unit a little slanted so the back is slightly lower than the front(about 1/2").

This will force condensed water to flow to the outside.

5. Install the unit with the bottom about 30"~60" above the floor level.

Window Requirements

NOTE: All supporting parts should be secured to firm wood, masonry, or metal.

This unit is designed for installation in

standard double hung windows with actual

opening widths from 27" to 39".

The top and bottom window sash must open

sufficiently to allow a clear vertical opening of

16" from the bottom of the upper sash to the

window stool.

How to Install the Unit

Other manuals for CW-XC103VU

This manual suits for next models

Table of contents

Languages:

Other Panasonic Air Conditioner manuals

Panasonic

Panasonic CS-E9PB4EA User manual

Panasonic

Panasonic CS-MXS9UKZ User manual

Panasonic

Panasonic CS-W7MKD User manual

Panasonic

Panasonic U-36LE1U6 User manual

Panasonic

Panasonic CS-E9BKP User manual

Panasonic

Panasonic CS-FZ25UKE User manual

Panasonic

Panasonic U-16GE3E5 Use and care manual

Panasonic

Panasonic CU-LZ25TKE User manual

Panasonic

Panasonic SUPER DELUXE CS-XE9DKE User manual

Panasonic

Panasonic CS-YS18TKV User manual

Panasonic

Panasonic CS-HE9JKE User manual

Panasonic

Panasonic CS/CU-RE9GKE User manual

Panasonic

Panasonic S-1821PT3H-8 User manual

Panasonic

Panasonic CS-C12BKPG User manual

Panasonic

Panasonic CS-XU9XKH-8 User manual

Panasonic

Panasonic S-125FM3HPQ User manual

Panasonic

Panasonic S-15MF3E5A User manual

Panasonic

Panasonic CS-XKU24XKT User manual

Panasonic

Panasonic CW-606TU User manual

Panasonic

Panasonic CS-A18BD3P User manual

Panasonic

Panasonic S-M20PY3E User manual

Panasonic

Panasonic CS-HZ9RKE User manual

Panasonic

Panasonic CS-ME9PB4EA User manual

Panasonic

Panasonic CS-BE25TKE-1 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
